2W Mini Solar Panel - 6V 136 x 110mm Bare Module, 5-Pack
Product Overview

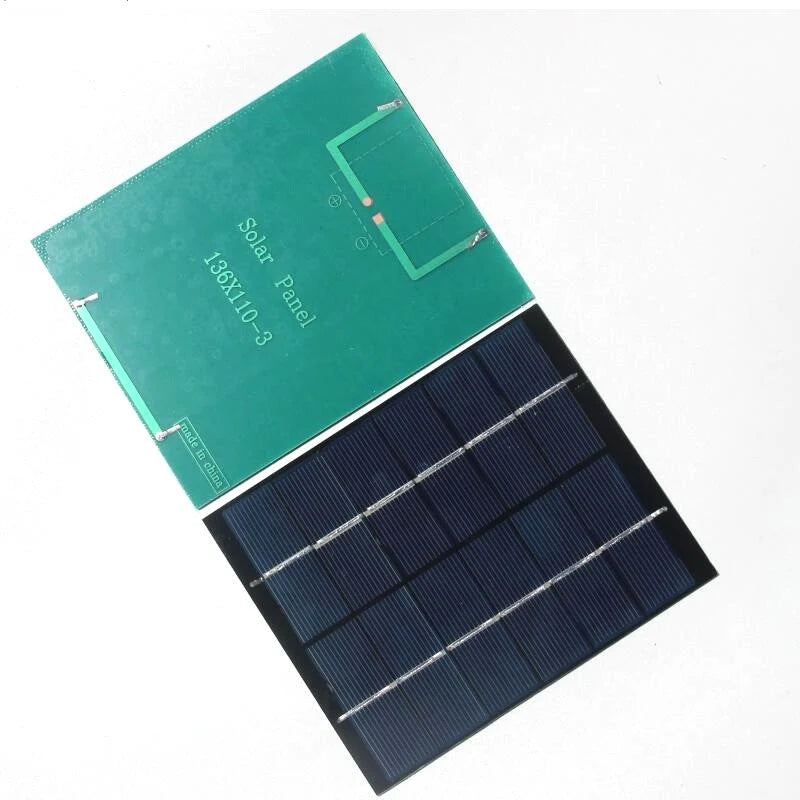

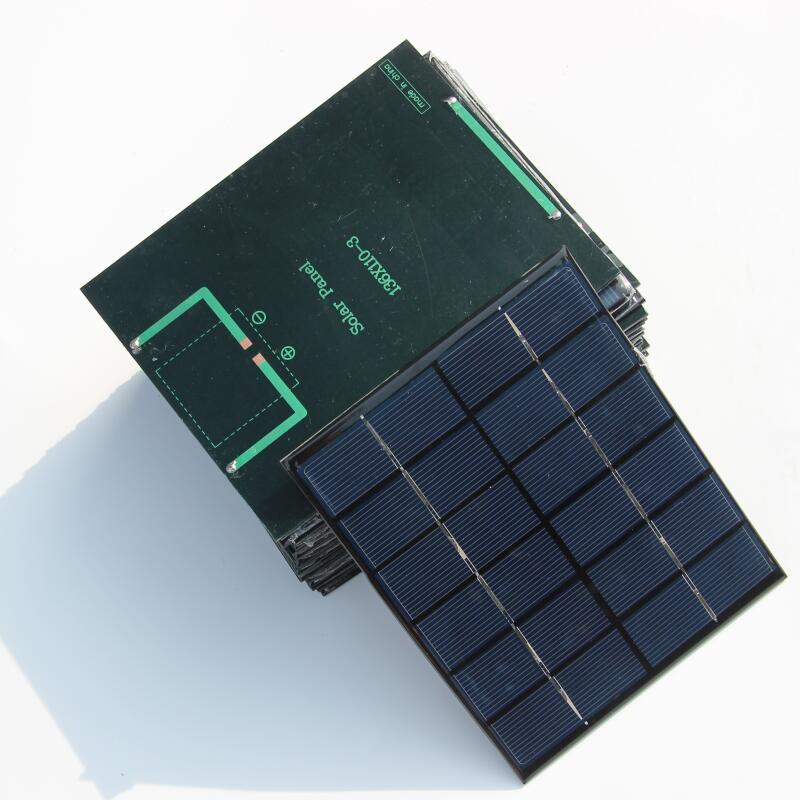

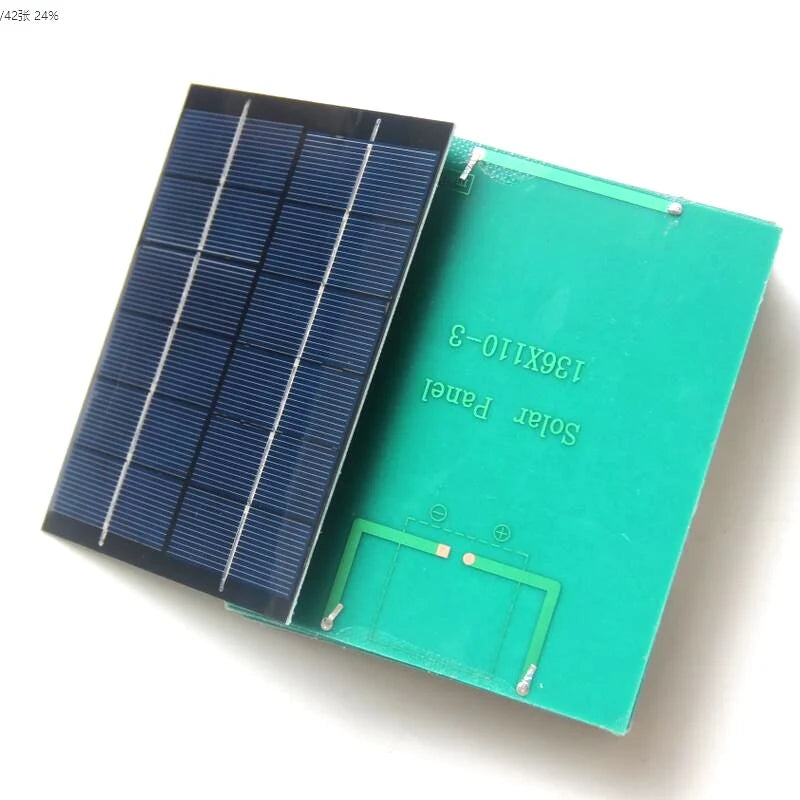

This 2W mini solar panel is supplied as a 5-pack of individual bare modules. Each purchase includes five 136 x 110mm cell boards with exposed rear solder contacts for custom circuit wiring. Each panel has a 6V working output for a correctly matched small solar project using separately selected control electronics. Each board has a 3mm profile and no attached lead, allowing the installer to choose cable length and routing.
Details & Specs
Electrical ratings, dimensions and panel weight apply to each module unless stated otherwise.
| Rated panel power | 2W |
|---|---|
| Working voltage | 6V |
| Dimensions | 136 × 110 × 3mm |
| Cell / surface | Covered polycrystalline silicon cell board |
| Connection | Rear solder contacts; no attached lead |
| Output current | 0-330mA |
| Short-circuit current | 400mA |
| Panel weight | Approximately 56g |
| Included | 5 bare solar modules per purchase |
Key Features
- Five individual modules per pack provide the same 2W, 6V rating per panel for matched small projects.
- 136 × 110 × 3mm module dimensions

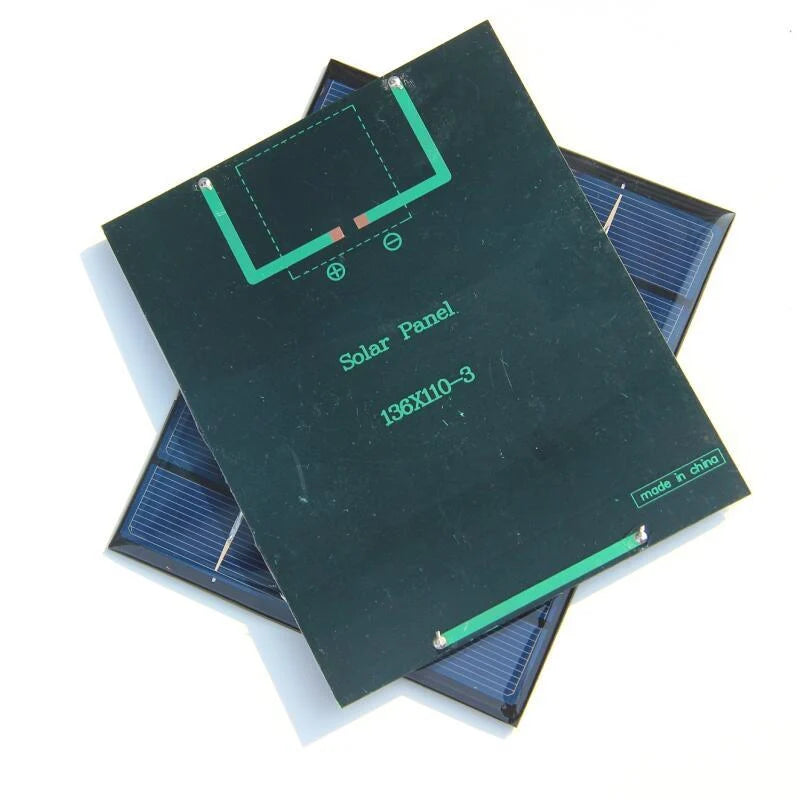

- Rear contacts for custom soldered wiring
- Polycrystalline cell board without attached cable
- Approximately 56g per panel keeps each board easy to handle during assembly.
Compatibility & Notes
Verify voltage, polarity and circuit requirements before wiring. Use a suitable charge-control circuit for rechargeable batteries. The module generates power in sunlight and does not store energy.
Package Contents
5 x 2W 6V bare solar modules, each measuring 136 x 110 x 3mm with rear solder contacts and no attached lead. One cart quantity equals one 5-pack.
