Solar Panel for Deer Feeder: Sizing Guide

You drove two hours to check your deer feeder and the battery is dead. The spin plate hasn't moved in a week. That corn you loaded is sitting in the hopper untouched because the 6V SLA battery quietly gave up sometime around Tuesday.

This is the most common complaint from hunters running timer-controlled feeders in remote food plots. The motor only runs for 5–15 seconds per feeding cycle, 1–4 times a day — barely any energy. But a 6V sealed lead-acid battery draining a little every day, with no way to recharge, hits zero faster than most people expect. Especially in fall and winter when you actually need the feeder working.

A small solar panel fixes this permanently. But "small" still needs to be the right size and — this is where people fry their feeders — the right voltage.

How Much Power Does a Deer Feeder Actually Use?

Less than you'd think. A timer-controlled deer feeder spins a motor to scatter feed. Here's what that looks like electrically:

That daily energy number looks tiny — and it is. A single AA battery holds about 3 Wh. The problem isn't the motor. It's the slow self-discharge of the SLA battery sitting in a metal box in the woods, plus the timer circuit drawing standby current 24/7. Over weeks, those milliamps add up.

A 6V 4.5Ah SLA battery holds roughly 27 Wh. If the feeder draws 1 Wh/day from the motor plus 0.3 Wh/day in standby drain, that's about 20 days before the battery voltage drops too low to spin the motor reliably. Add cold weather (SLA batteries lose 30–50% capacity below freezing) and you're looking at 10–14 days in a Michigan November.

Panel Sizing: Match the Voltage, Then Size the Wattage

Here's the part that trips up most buyers, and it's worth getting right because the wrong panel can kill your feeder.

Voltage Must Match

A 6V deer feeder needs a 6V solar panel. A 12V feeder needs a 12V panel.

This isn't optional. We've seen the damage from mismatched setups — someone pairs a 6V feeder with a 12V panel because "more voltage means faster charging," and the result is a fried circuit board. A 12V panel under direct sunlight outputs 18–21V open circuit. Push that into a 6V system with no charge controller and you're buying a new feeder.

The same rule applies in reverse: a 6V panel on a 12V battery won't charge it. The panel voltage needs to exceed the battery voltage by a small margin (1–2V) to push current in. A 6V panel tops out around 7.5V open circuit — not enough to charge a 12V battery that needs 13.5–14.4V.

Quick reference:

Why 2–4W for a 6V Feeder?

The feeder uses maybe 1–2 Wh per day. A 3W panel in 3 hours of usable sunlight produces 9 Wh. That's 4–9 times the daily consumption — which sounds like massive overkill until you factor in reality.

Reality includes:

• Tree canopy. Your feeder is in the woods, not an open field. Under tree cover, usable direct sunlight drops to 2–3 hours even in summer. In fall with partial leaf cover, it might be 1–2 hours of broken sun.
• Panel angle. Most feeder-mounted panels sit nearly flat on the hopper lid. Suboptimal angle costs 20–30% vs tilting toward the sun.
• Season. Hunting season is fall and winter. Shorter days, lower sun angle, more clouds. December in the Midwest gives you half the solar energy of July.
• Dirty panels. Dust, pollen, bird droppings. Nobody cleans a solar panel mounted on a deer feeder in the back forty.

So that 3W panel making 9 Wh in ideal conditions might actually deliver 2–4 Wh on a cloudy October day under tree canopy. Still enough — but not by a huge margin. Going with 4W gives you the buffer to stay charged through a string of overcast days.

For 12V feeders, scale up proportionally: 4–8W. The larger feeders with 12V motors tend to run heavier auger mechanisms or larger spin plates, so the motor current is on the higher end.

What About Charge Controllers?

Most dedicated "deer feeder solar panels" in the 2–5W range come with a built-in blocking diode and are designed to trickle-charge directly without a separate controller. At these low wattages, there's minimal risk of overcharging a 6V SLA battery — the charge current is low enough that the battery can absorb it.

If you're using a larger panel (6W+) or a generic panel not specifically designed for feeder use, add an inline charge controller or at minimum a blocking diode to prevent reverse current at night (the battery discharging back through the panel when there's no sun).

The Multi-Voltage Advantage

Here's where things get practical. Most hunters run more than just a deer feeder in the field. Trail cameras (typically 6V from 4×AA or 12V from 8×AA), game feeders, maybe a light for a hunting blind. Each device runs on a different voltage.

Buying a separate dedicated panel for each device means carrying multiple panels to the property, each with its own mounting solution. It adds up in cost and hassle.

Our 4W multi-voltage panel ($42.90) outputs 5V, 6V, 9V, or 12V — switchable with a selector. One panel that works with your 6V deer feeder this season and your 12V trail camera next season. The 8W version ($52.40) makes sense if you're running a 12V feeder or need to charge through heavy tree cover where a 4W panel is marginal.

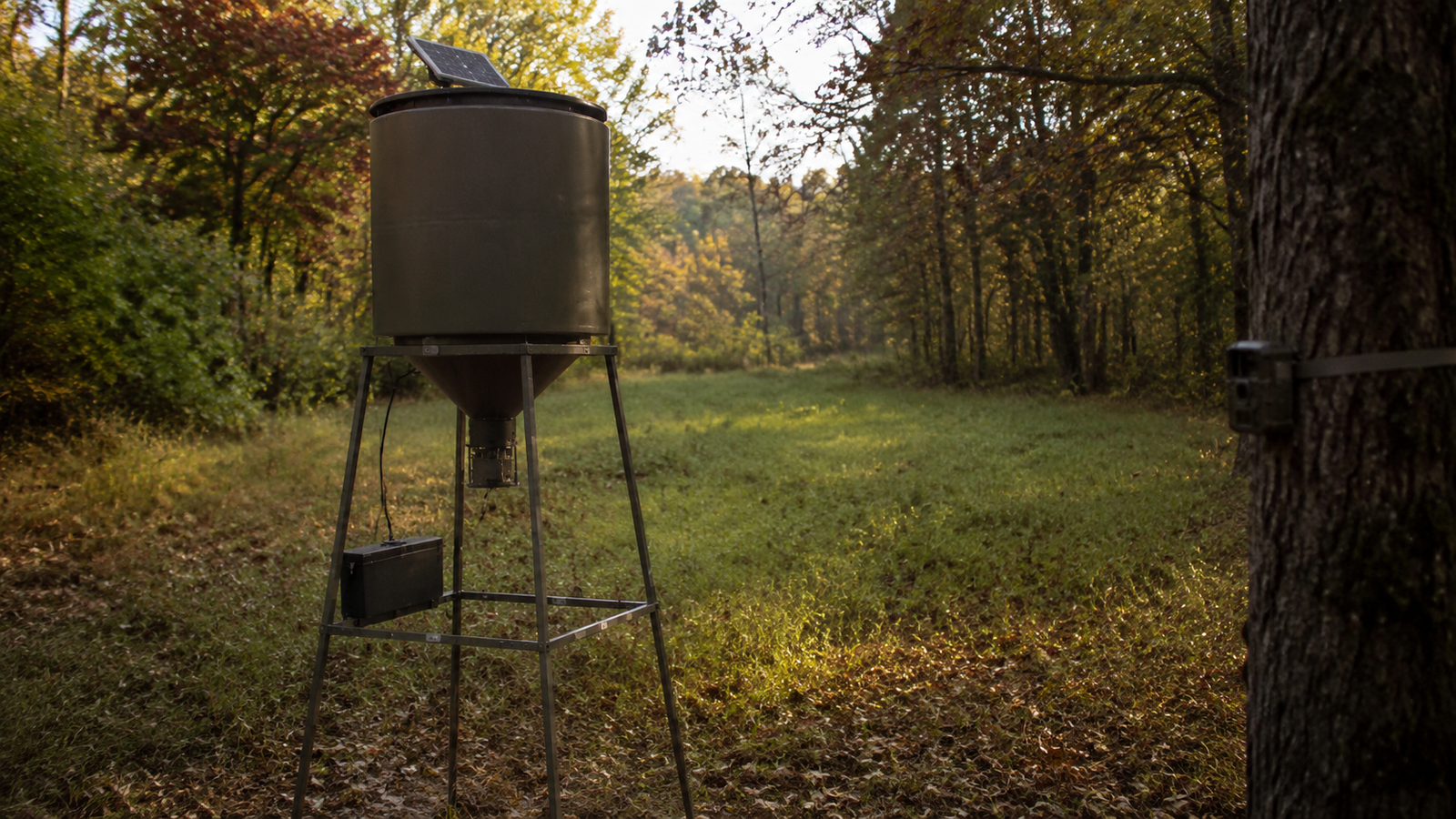

Mounting a Solar Panel on Your Deer Feeder

Most gravity or spin feeders have a flat or slightly angled lid on the hopper barrel. That's the obvious mounting spot, and it works — with caveats.

Lid mounting pros:

• No extra hardware needed (zip ties or self-tapping screws through mounting holes)
• Panel stays with the feeder when you move it
• Feed hopper shades the panel from below, reducing heat

Lid mounting cons:

• Nearly flat angle reduces output 20–30%
• Panel gets covered when you open the lid to add feed
• Barrel diameter limits panel size

Tree mounting alternative:
Strap the panel to a nearby tree using a universal bracket or even ratchet straps, angled south. Run the wire down to the feeder battery box. This gets the panel above the feeder canopy and lets you angle it properly. The tradeoff: you need 10–15 feet of wire, and the panel stays behind if you relocate the feeder.

Camouflage

Deer don't care about your solar panel. But other hunters might. If your feeder is on public land or a shared lease, a visible shiny panel advertises the location. Options:

• Spray the panel frame and wiring with camo paint (don't paint the glass/cell surface)
• Use a camo fabric sleeve that covers everything except the active cell area
• Mount behind brush or angled away from trails

Sizing Up for Hunting Season

The math that works in June doesn't work in November. Here's why:

A 2W panel that kept your feeder running all summer will fall short by October. The combination of shorter days, lower sun angle, bare trees letting in less direct light (yes, leafless trees still block and scatter sunlight), and cold-weakened batteries means your effective charging drops by half.

Rule of thumb: Size your panel for winter, not summer. If 2W works in July, go 4W for November. If you only hunt one season, size for that season.

Comparing Common Deer Feeder Solar Options

The generic options work fine if you have one 6V feeder and nothing else. Fixed-voltage panels lock you into a single ecosystem. The multi-voltage approach costs more upfront but replaces 2–3 single-purpose panels across your setup.

Installation Checklist

1. Confirm your feeder battery voltage. Open the battery box. Read the label on the battery. 6V and 12V SLA batteries look almost identical from outside — the label is the only reliable indicator.
2. Set the panel to the correct voltage. If using a multi-voltage panel, double-check the switch position. Getting this wrong is the most expensive mistake you can make.
3. Connect with correct polarity. Red to positive, black to negative. Most feeder battery terminals are color-coded or stamped +/−.
4. Mount the panel facing south (in the Northern Hemisphere). Even a rough south-facing orientation beats flat mounting by 15–25%.
5. Check for tree shadows. Walk the site at midday. If the panel location is in full shade at noon, move it. Even one branch casting a shadow across the cells can cut output by 50% or more — solar cells in a panel are wired in series, so one shaded cell drags down the whole string.
6. Secure all wiring. Squirrels chew wires. Use split loom tubing or run the wire through PVC conduit between the panel and battery box.

Bottom Line

A deer feeder needs almost no energy — but it needs some, consistently, all season. A matched solar panel turns a "drive out and swap batteries every two weeks" chore into a set-and-forget system.

Match the voltage (6V feeder = 6V panel, no exceptions), size for winter conditions (double what summer math suggests), and mount where you can get at least 2 hours of direct sun.

Need a panel with a specific connector for your feeder brand, or want to power multiple devices from one panel? Reach out with your setup details — we've spec'd solar for everything from single feeders to full food plot systems.
