IBC or Standard Mono? A Cell-Level Comparison for DIY Solar Builders
Updated April 2026 — When the 2-3× price premium of IBC cells is justified, and when a standard monocrystalline cell gets you 90% of the result for half the cost.
If you're pricing out a custom solar panel build, you've probably noticed that IBC cells — the SunPower/Maxeon type with all contacts on the rear — cost significantly more per watt than standard front-contact monocrystalline cells. The question isn't whether IBC is better. It's whether the difference matters enough for your specific project to justify the premium. This comparison looks at the cell-level realities, not the marketing.
What's the Actual Efficiency Difference?
Under STC (Standard Test Conditions), a typical IBC cell from Maxeon's production lines hits 22–24% efficiency. A standard front-contact monocrystalline silicon cell from a Tier 1 Chinese manufacturer runs 19–21%. The gap is 2–5 percentage points in absolute terms, or roughly 10–20% more power per unit area.
From our manufacturing experience, panels built with SunPower IBC cells deliver 3–5 percentage points higher output than equivalent-area panels using standard mono cells. That translates to real numbers: a 100 mm × 100 mm panel built with 19.5% standard cells outputs about 1.95W. The same panel with 23% IBC cells outputs 2.3W. The IBC panel is 18% more powerful — but the cells may cost 200% more.
The efficiency gap narrows in real-world conditions. STC uses 25°C cell temperature, but cells in sunlight run hotter — typically 45–65°C. Both cell types lose efficiency as temperature rises, but IBC cells usually have a slightly better temperature coefficient (around -0.29%/°C vs. -0.35%/°C for standard mono). In a 60°C rooftop installation, the IBC cell retains more of its rated output.
Front-Side Uniformity: Why It Matters for Custom Builds

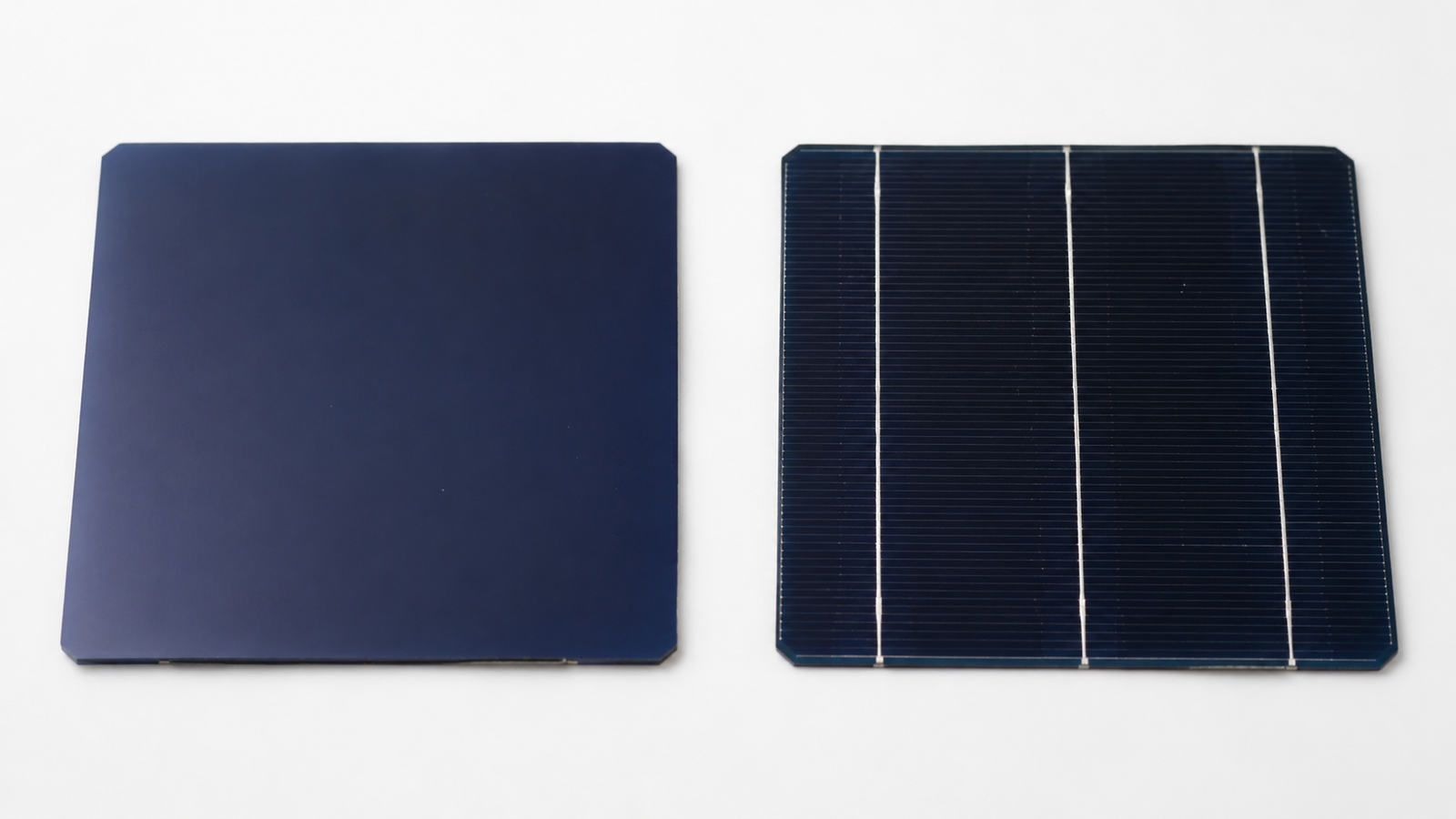

The most visible difference between IBC and standard cells is the front surface. IBC cells have zero gridlines — no silver fingers, no busbars, nothing interrupting the blue-black silicon. Standard cells have a network of metal fingers and 2–3 thick busbars running across the face.
For custom mini panels and embedded applications, this matters in two ways:
- Active area: Front-contact fingers shade 3–5% of the cell surface. IBC recovers that area, which is significant when you're counting every square millimeter in a compact build.
- Partial shading tolerance: When a front-contact cell is partially shaded, the shaded portion acts as a resistor in series, dragging down the whole string. IBC cells handle partial shading better because the current paths are distributed across the rear surface. In real-world testing with a leaf covering 20% of a cell, IBC strings lose 15–20% less power than front-contact strings.
For full-size rooftop panels in unshaded locations, the shading advantage is irrelevant. For a trail camera panel mounted under tree canopy, or a boat panel that gets intermittent mast shadows, it matters.
Temperature Performance: The Hidden Advantage
Solar cells get hot. A dark surface in direct sunlight absorbs infrared radiation and runs 20–40°C above ambient. Every degree above 25°C reduces output by a fraction of a percent. Over a summer afternoon, a panel can lose 10–15% of its rated power just from heat.
IBC cells generally have lower series resistance than front-contact designs because the rear contact fingers are wider and shorter than front-side gridlines. Lower resistance means less heat generation inside the cell at high current. The practical result: in hot climates (Arizona, Texas, inland Australia), IBC panels maintain a 2–4% output advantage over standard mono even after accounting for the nominal efficiency difference.
For indoor or temperate-climate applications, this thermal edge disappears. A lab experiment in a climate-controlled room won't see it. An RV panel in the desert will.
Price per Watt: The Math That Hurts
Here's the raw economics from secondary-market pricing in 2026:
| Cell type | Typical price per cell | Power per cell (STC) | Price per watt |
|---|---|---|---|
| Standard mono (156 mm) | $2.50–$4.00 | ~4.5W | $0.55–$0.90/W |
| IBC 125 mm (SunPower/Maxeon) | $8–$15 | ~3.8W | $2.10–$3.95/W |
| IBC 166 mm (SunPower/Maxeon) | $12–$20 | ~6.7W | $1.80–$2.99/W |
IBC cells cost 2–4× more per watt than standard mono, depending on source and quantity. For a hobby project where you're building one panel, the absolute dollar difference is small ($30 vs. $80 in cells). For a small business planning a 500-unit production run, the cell cost gap becomes a $25,000 line item.
The price gap is narrowing for 166 mm IBC. As Maxeon and other producers shift to larger wafer formats, 166 mm IBC surplus is becoming more available on the secondary market. Per-watt pricing on 166 mm is already 20–30% lower than 125 mm. If you're designing a new product and can accommodate the larger cell, the 166 mm format is the more cost-effective IBC choice.
When IBC Makes Sense (and When It Doesn't)
Choose IBC when:
- Space is fixed and you need maximum power density. A drone, a wearable device, or a compact IoT sensor can't get bigger — but it can get more efficient.
- Partial shading is unavoidable. Trail cameras under trees, boat panels with mast shadows, balcony panels with railing obstructions.
- You're running a research or characterization project. IBC cells have well-documented parameters and consistent quality. Standard cells from the secondary market vary wildly.
- Aesthetics matter. The uniform front face looks better in consumer products and architectural integrations.
- You need matched cells. IBC cells from a single production lot have tighter electrical tolerances. Series strings of matched cells perform better than mismatched strings.
Choose standard mono when:
- Cost is the primary constraint. Standard mono delivers 80–90% of IBC performance at 25–30% of the cell cost.
- You have unlimited mounting area. A cabin off-grid system with roof space for 400W of panels doesn't need 24% efficiency when 19% fits just fine.
- You're learning or experimenting. Your first panel build will have soldering mistakes, miswired strings, and encapsulation errors. Burn cheap cells, not expensive ones.
- You need hundreds of cells. At volume, the per-watt economics of standard cells are impossible to beat with IBC surplus.
Real-World Build Scenarios
| Project | Best choice | Why |
|---|---|---|
| ESP32 soil moisture sensor (50×30 mm panel) | IBC micro-cut | Only IBC delivers enough power in this footprint |
| RV rooftop (200W system, ample roof space) | Standard mono | Cost/area not constrained; standard cells are proven and cheap |
| University PV characterization lab | IBC 125 mm | Documented specs, consistent batch parameters, repeatable experiments |
| Trail camera solar retrofit (120×80 mm panel) | IBC half-cell or quarter-cell | Shading tolerance + power density matter in forest deployments |
| First DIY solar panel (learning project) | Standard mono | Expect to destroy 2–3 cells while learning. Do it cheaply. |
| Small-batch product (50–200 units/year) | IBC 166 mm | Best IBC price/watt; enough power to justify premium in commercial product |
Building with IBC cells? We stock 125 mm and 166 mm SunPower IBC cells, tested and shipped with electrical data. Custom cuts from 35 × 22 mm available.
FAQ
Can I mix IBC and standard mono cells in the same panel?
Not in the same series string. IBC and standard cells typically have different current outputs even at the same rated wattage. A series string is only as strong as its weakest current. If you must use both types, wire them in separate parallel strings, each with its own bypass diode.
Do IBC cells require special soldering equipment?
No — the same iron, flux, and tabbing wire work for both. The only difference is contact location: IBC cells solder on the rear, standard cells solder on the front busbars. Our tabbing guide walks through the IBC rear-contact process step by step.
Why do IBC cells have a lower fill factor on some datasheets?
Fill factor (FF) is the ratio of actual maximum power to theoretical maximum power (Voc × Isc). IBC cells often have slightly lower FF than front-contact cells because the rear contact geometry introduces some resistance. But IBC compensates with higher Voc and Isc, so the overall efficiency is still higher. Don't compare FF in isolation — compare watts per square meter.
Are there any Chinese-made IBC cells that compete with Maxeon?
A few Chinese manufacturers (Longi, Jinko) produce IBC or IBC-derived architectures, but they're sold almost exclusively as finished modules, not loose cells. The secondary market for non-Maxeon IBC cells is extremely thin. If you're buying loose IBC cells, you're almost certainly buying Maxeon surplus or pulls.
