5W 18V Mini Solar Panel, 220 × 165mm PET Module
5W 18V Mini Solar Panel, 220 × 165mm PET Module ...è stato ordinato al fornitore e verrà spedito non appena sarà di nuovo disponibile.
Caratteristiche
Caratteristiche
5W 18V Mini Solar Panel, 220 × 165mm PET Module
5W 18V Mini Solar Panel, 220 × 165mm PET Module ...è stato ordinato al fornitore e verrà spedito non appena sarà di nuovo disponibile.
Product Overview

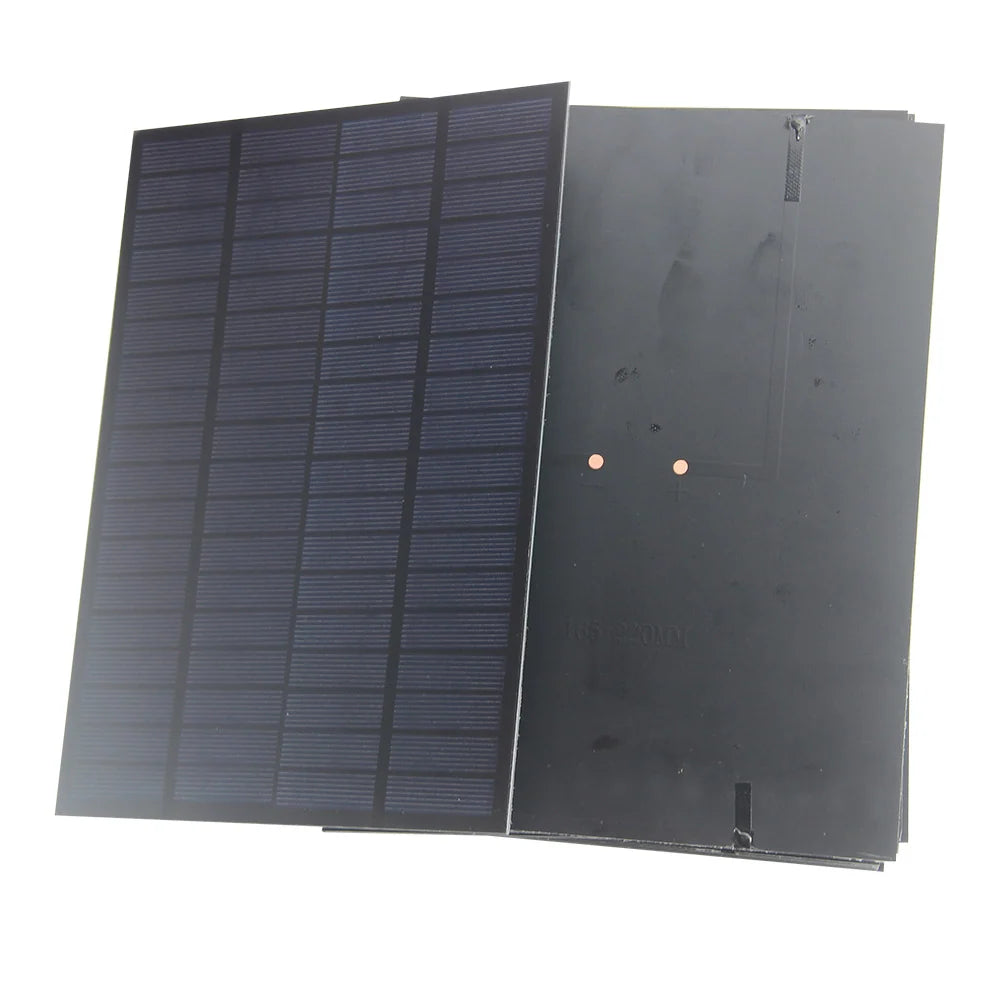

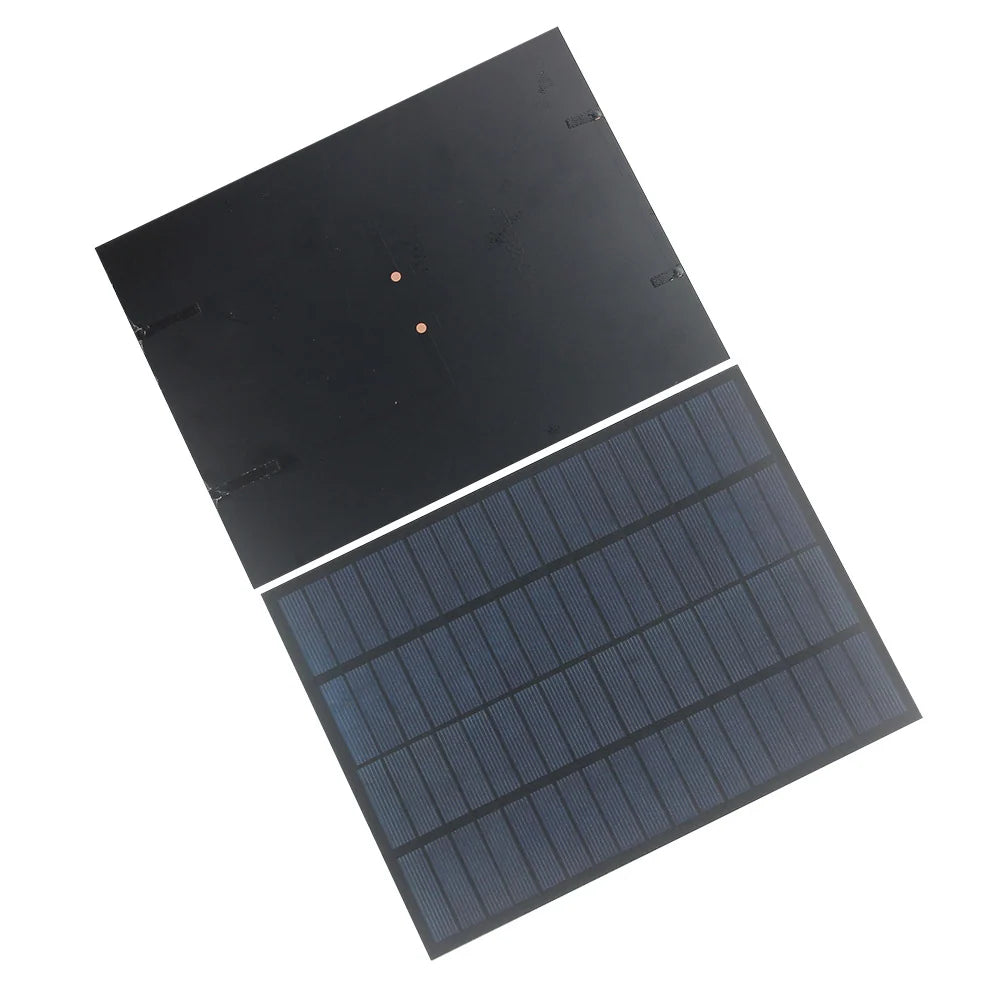

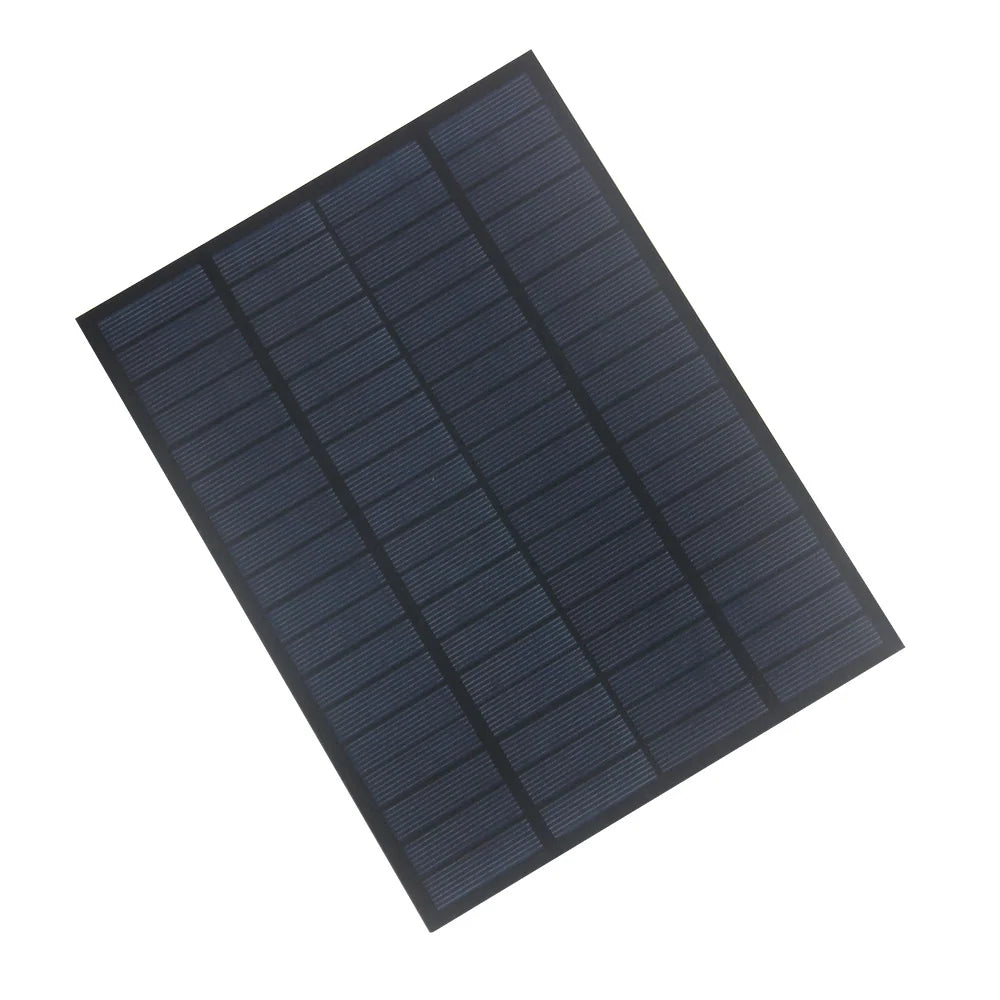

This 5W mini solar panel supplies an 18V working output through rear solder contacts. The 220 × 165mm PET-laminated PCB module lets you choose wiring suited to a controlled small-power build.
Details & Specs
| Rated panel power | 5W |
|---|---|
| Working voltage | 18V |
| Dimensions | 220 × 165mm |
| Cell / surface | polycrystalline silicon with PET laminate on PCB |

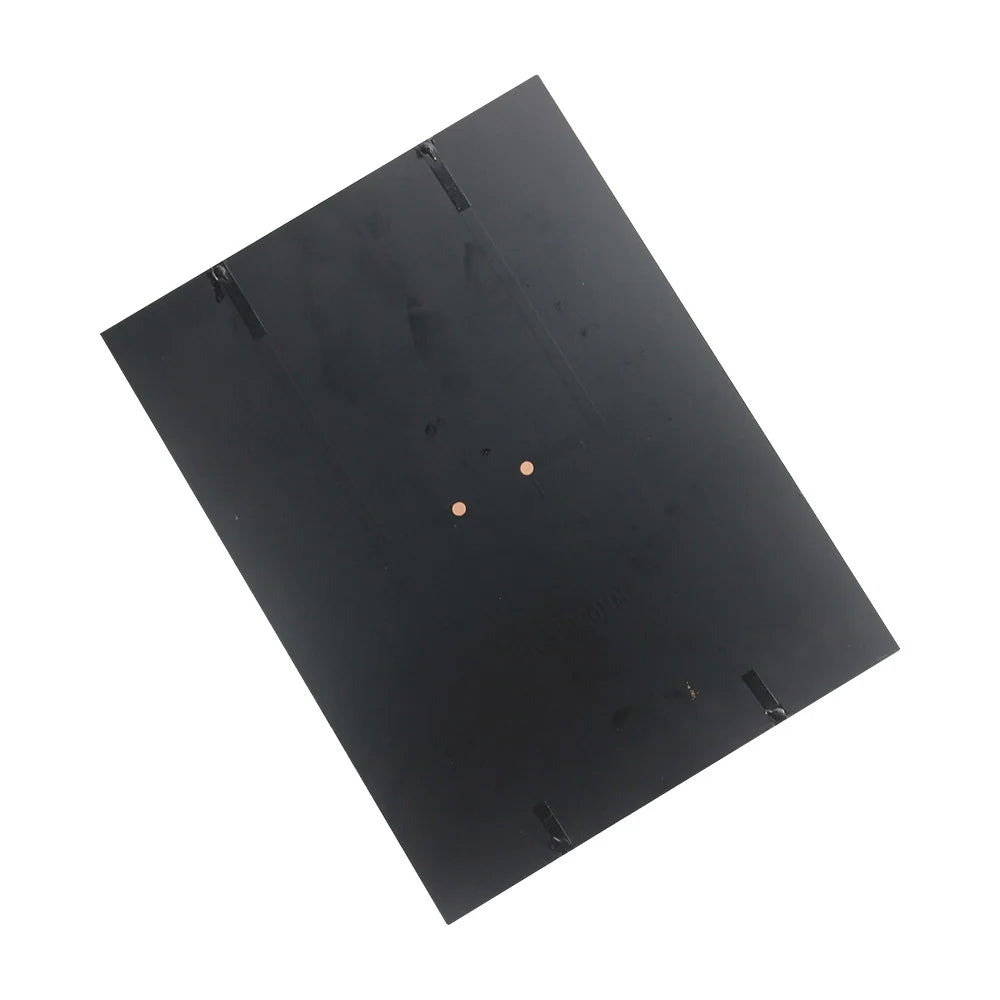

| Connection | rear solder pads |
| Output current | 0–278mA |
| Panel weight | approximately 126g |
| Included | one unwired panel |
Key Features
- 5W polycrystalline panel
- 18V working output up to 278mA
- PET front laminate over a PCB module
- Rear solder contacts for custom leads
- 220 × 165mm rectangular footprint
Compatibility & Notes
Verify voltage, polarity and circuit requirements before wiring. Use a suitable charge-control circuit for rechargeable batteries. The module generates power in sunlight and does not store energy.
