0.5W Flexible Solar Panel, 1.5V Amorphous Strip
$2466 USD
سعر الوحدة
Key Features
- Triple-junction amorphous silicon thin-film cell

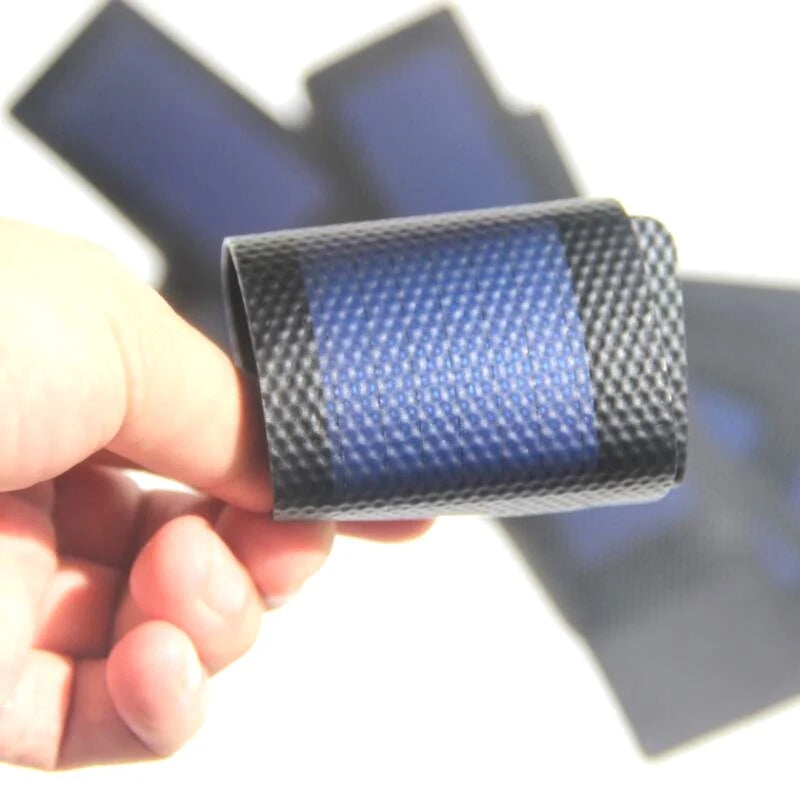

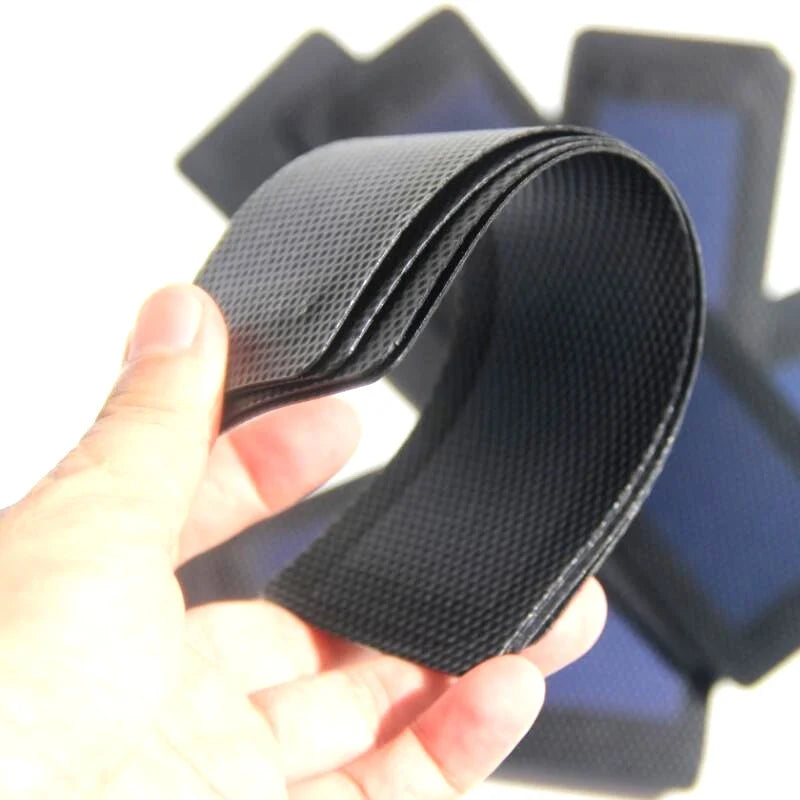

- Flexible 0.5mm module profile
- ETFE front film and EVA adhesive layer
- 165 × 38mm active cell area
- Two rear contacts for custom connections
Product Overview

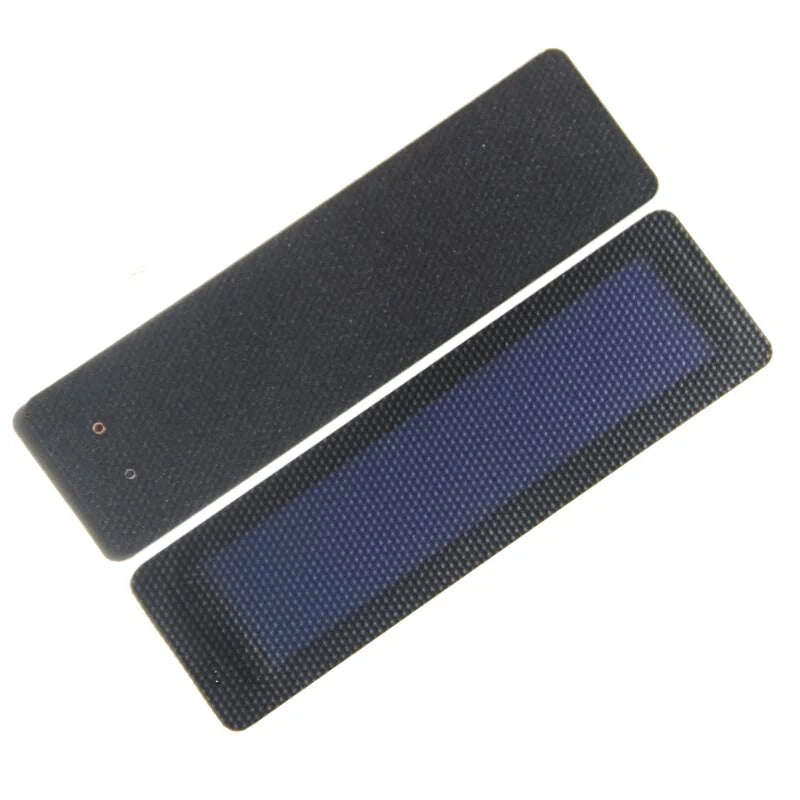

The 0.5W flexible solar panel uses a narrow amorphous silicon strip for small custom circuits. Its overall 195 × 58mm outline includes the border around a 165 × 38mm active area.
Details & Specs
| Rated panel power | 0.5W |
|---|---|
| Working voltage | 1.5V |
| Dimensions | 195 × 58 × 0.5mm overall |
| Cell / surface | triple-junction amorphous silicon; ETFE front and EVA adhesive |
| Connection | two rear electrical contacts |
| Output current | 250mA |
| Active area | 165 × 38mm |
| Open-circuit voltage | 2V |
| Short-circuit current | 420mA |
| Module weight | 18g ± 2g |
| Operating temperature | −40°C to 80°C |
| Electrical test conditions | 1000W/m² irradiance; AM1.5; cell temperature 25°C |
| Included | one unwired flexible strip |
Compatibility & Notes
Verify voltage, polarity and circuit requirements before wiring. Use a suitable charge-control circuit for rechargeable batteries. The module generates power in sunlight and does not store energy.
