1.5W USB-C Solar Panel, 5V, 100mm Square

LinkSolar  |  SKU: SP-A00173-001
$1995 USD
تُحسب الضرائب والشحن عند إتمام الطلب.

الميزات
  • 1.5W rated solar panel output.
  • 5V working output.
  • Dimensions: 100 × 100mm.
  • Connection: USB-C, approximately 1m cable.

Product Overview

The 1.5W USB-C solar panel offers a 5V connection in a 100mm square module. A fixed cable about one metre long lets the cell face sit in sunlight while a compatible low-power device stays within reach. The polycrystalline panel is a small energy source for suitable charging or electronic circuits, with available current changing as conditions change.

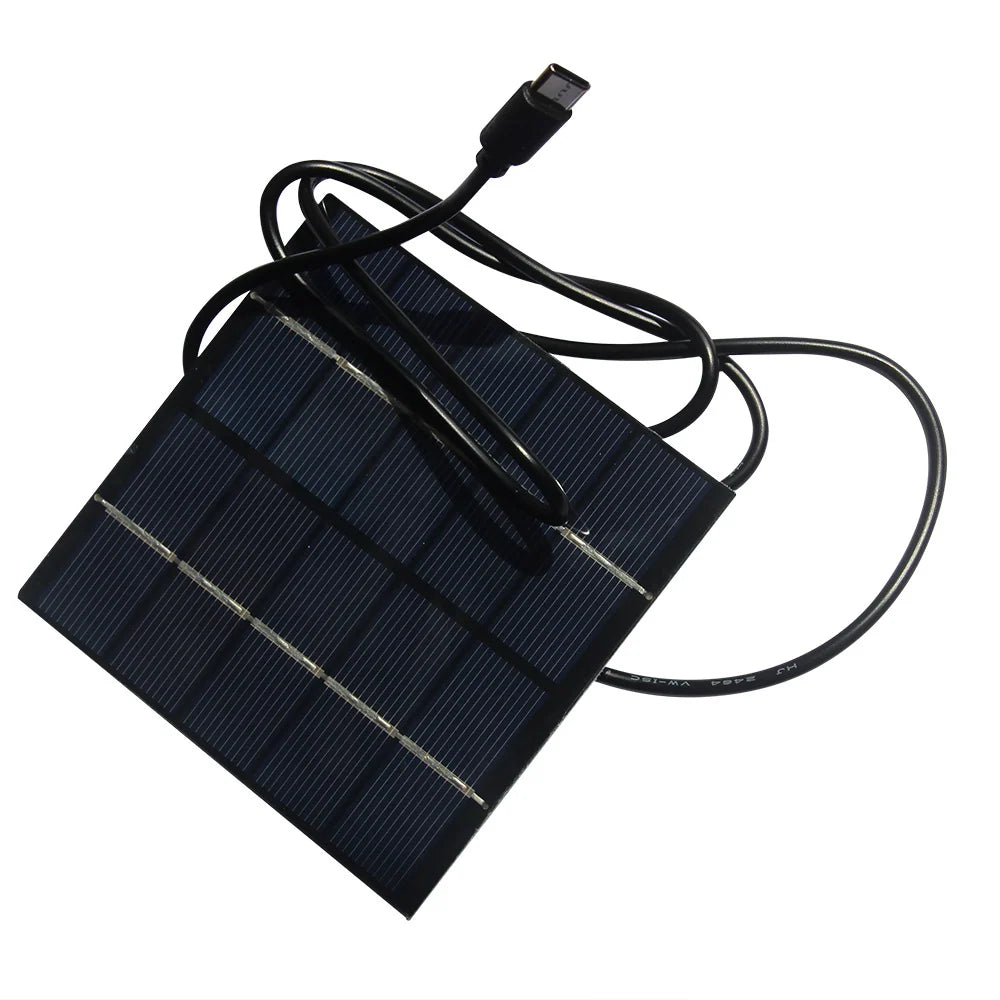

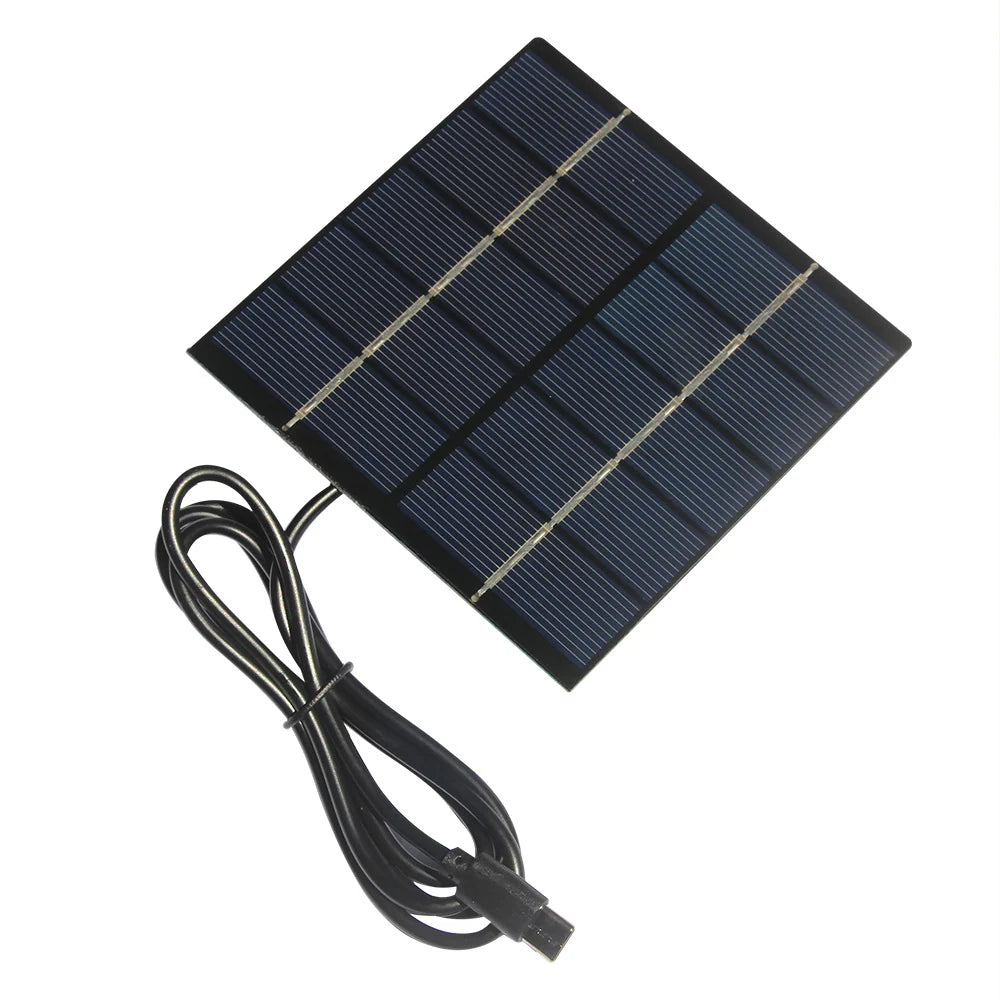

1.5W 1.5W USB-C solar panel — square panel with USB-C lead

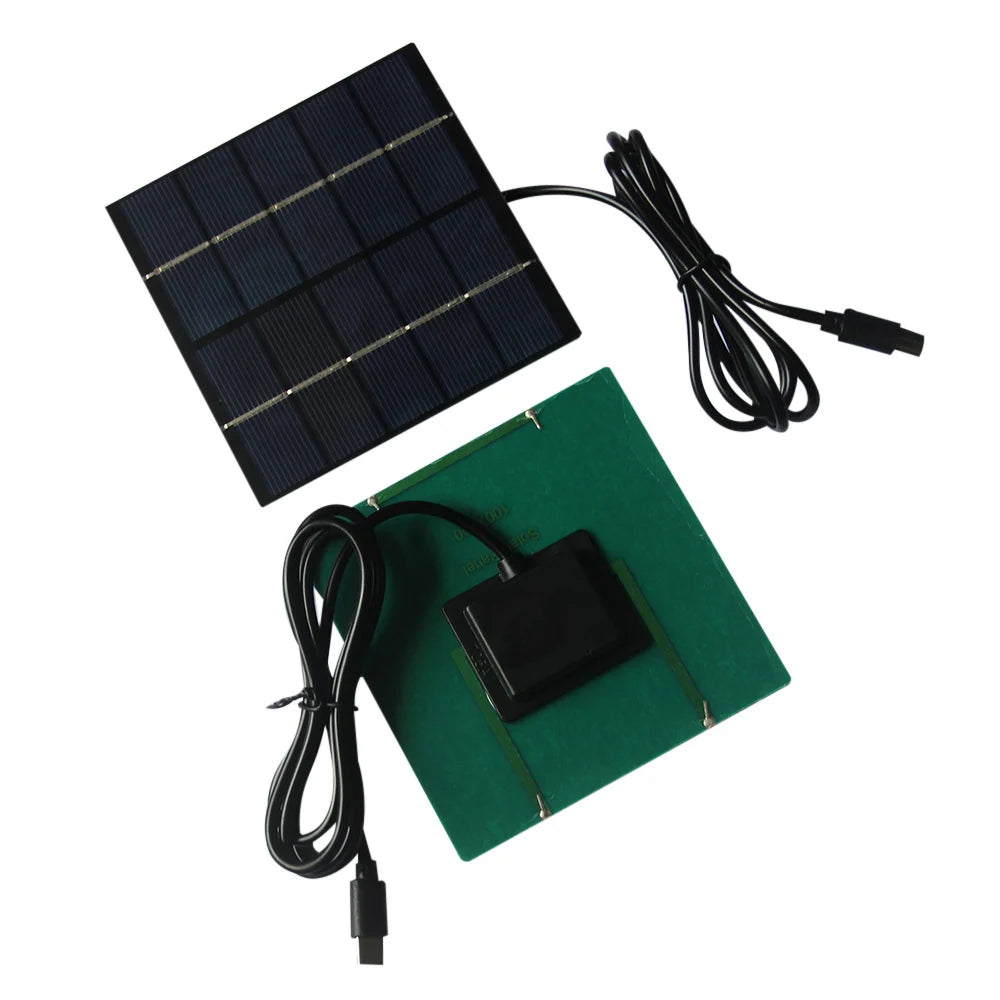

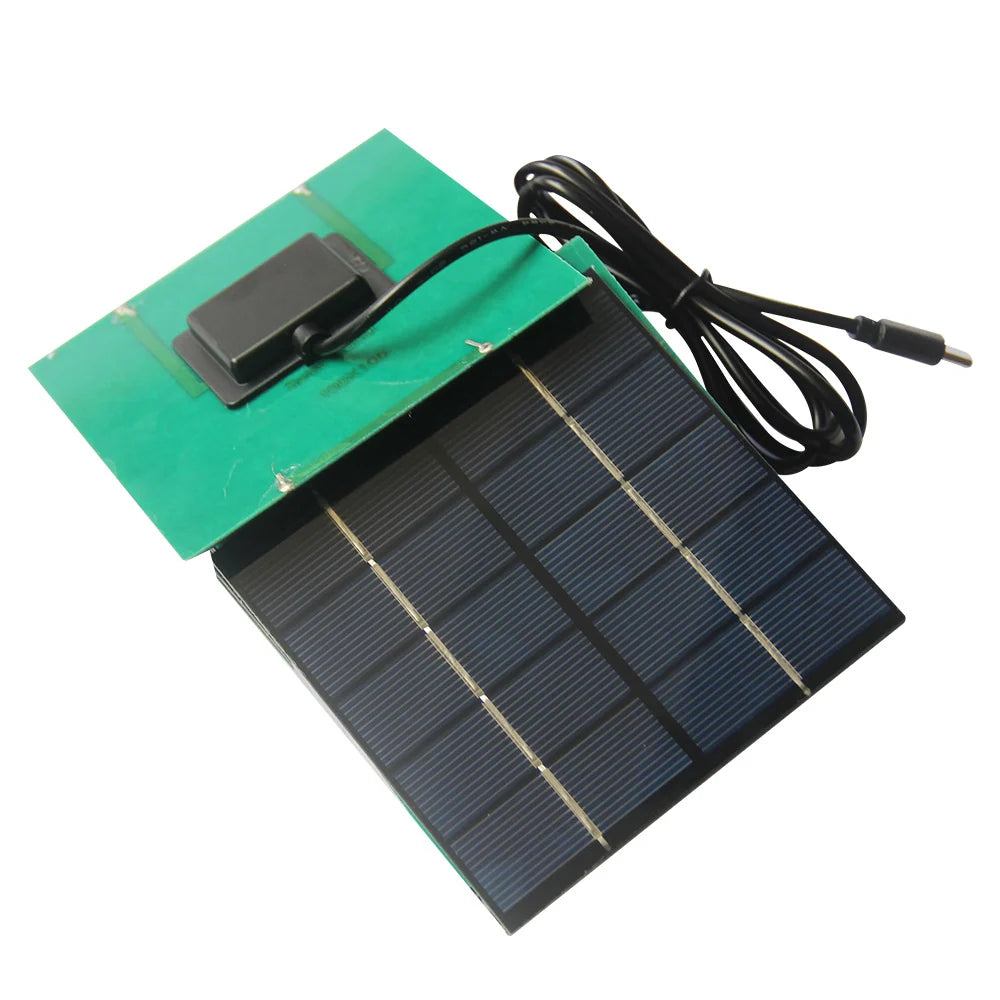

1.5W 1.5W USB-C solar panel — square panel front and rear

Compatibility & Notes

Place the panel in direct sunlight and connect a compatible USB load. Output changes with sunlight, angle and the connected device. The panel does not store power.

Key Features

  • 100 × 100mm square module fits compact low-power projects
  • 5V output for a compatible device input
  • Attached USB-C lead provides about one metre of placement distance
  • Polycrystalline cells generate power directly in sunlight

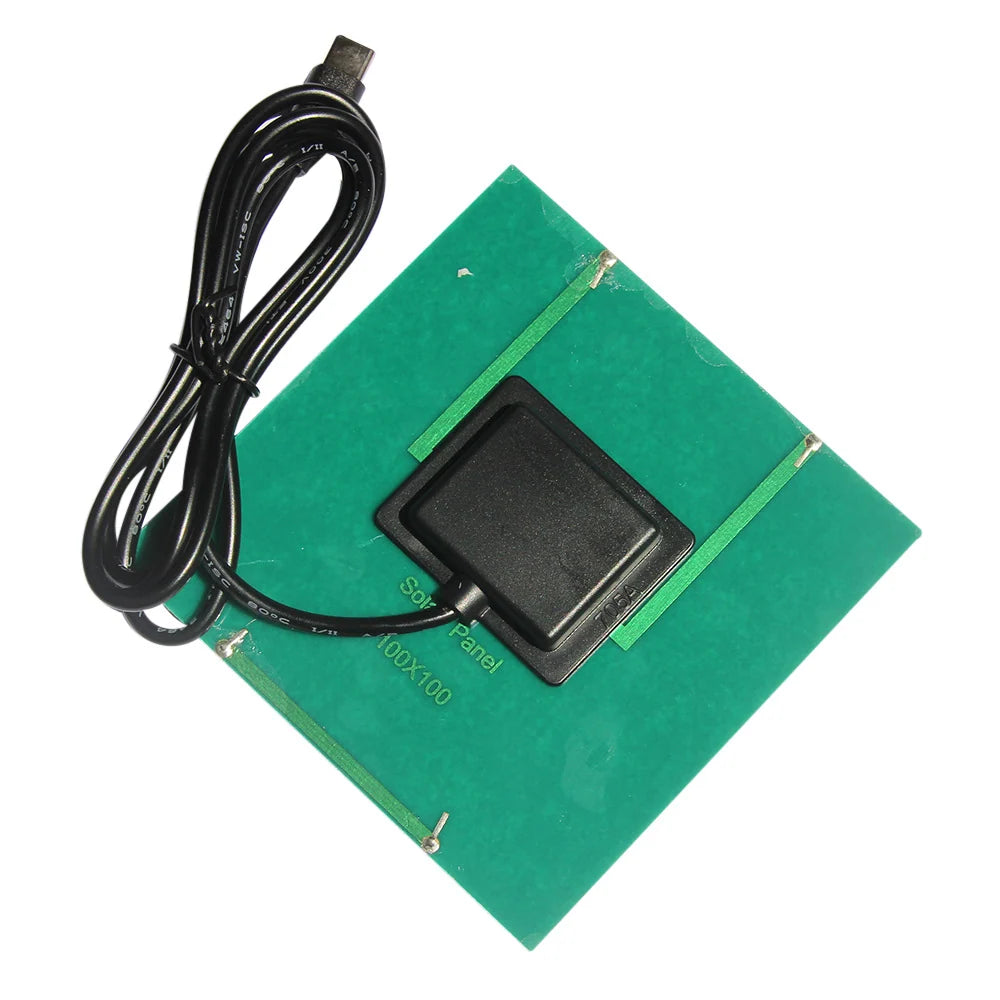

1.5W 1.5W USB-C solar panel — green panel rear and lead
1.5W 1.5W USB-C solar panel — USB-C plug and panel face
1.5W 1.5W USB-C solar panel — rear junction cover and cable

Details & Specs

Rated panel power 1.5W
Working voltage 5V
Dimensions 100 × 100mm
Cell / surface Polycrystalline silicon
Connection USB-C, approximately 1m cable
Output current 0–300mA
Packed weight Approximately 55g
Included 1 solar panel with attached USB-C lead
