6W 12V Solar Fan Kit with 3m Cable for Small Enclosures
Product Overview

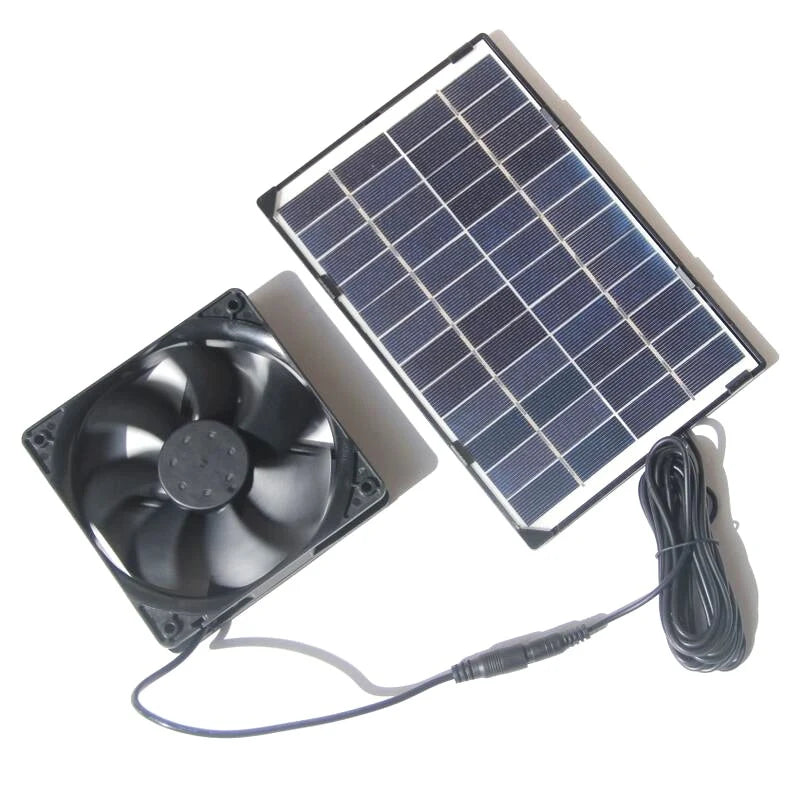

This 6W 12V solar fan kit combines a polycrystalline panel with one DC ventilation fan. The panel has a 3m lead and a DC5521 connector, so it can sit in sunlight while the fan is mounted at a sheltered opening.
It is intended for daytime air movement in a suitably sized small enclosure. There is no battery in the kit, and fan speed varies with available sunlight.
Details & Specs
| Solar panel rating | 6W |
|---|---|
| Panel working voltage | 12V |
| Panel working current | 0–500mA |
| Panel short-circuit current | 500mA |
| Panel dimensions | 210 × 135 × 5mm |
| Cell type | Polycrystalline silicon |
| Panel connector | DC5521 |
| Panel cable length | Approximately 3m |
| Fan quantity | One |

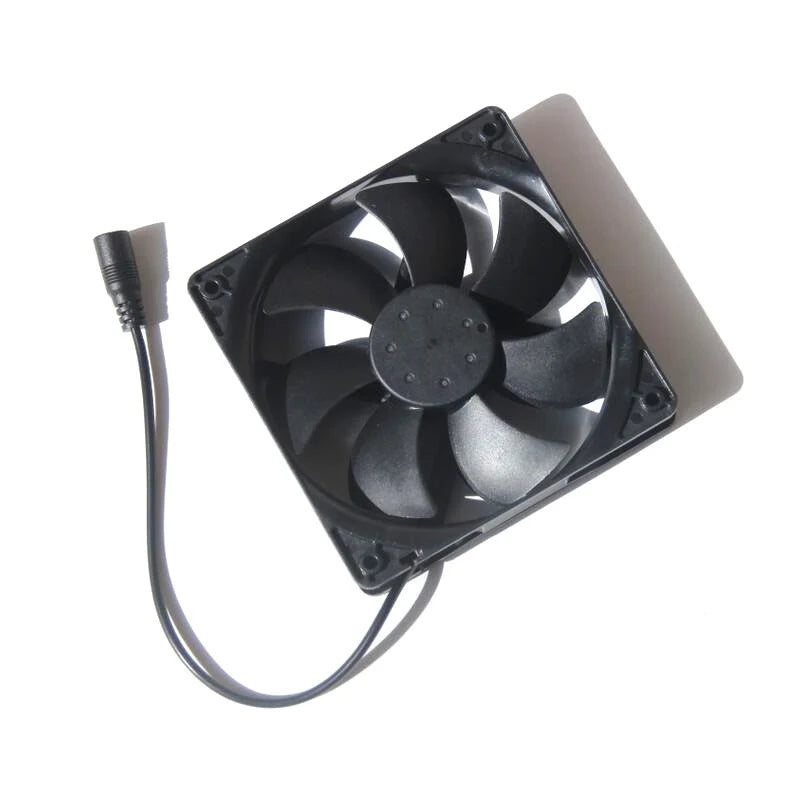

| Fan diameter | 120mm |
| Fan power | 3.84W |
| Fan current | 0.32A |
| Fan speed | 2500rpm ±10% |
| Fan airflow | 87.18CFM |
Key Features
- A separate 3m panel lead allows flexible placement toward the sun.
- The 120mm fan suits a suitably measured small opening.

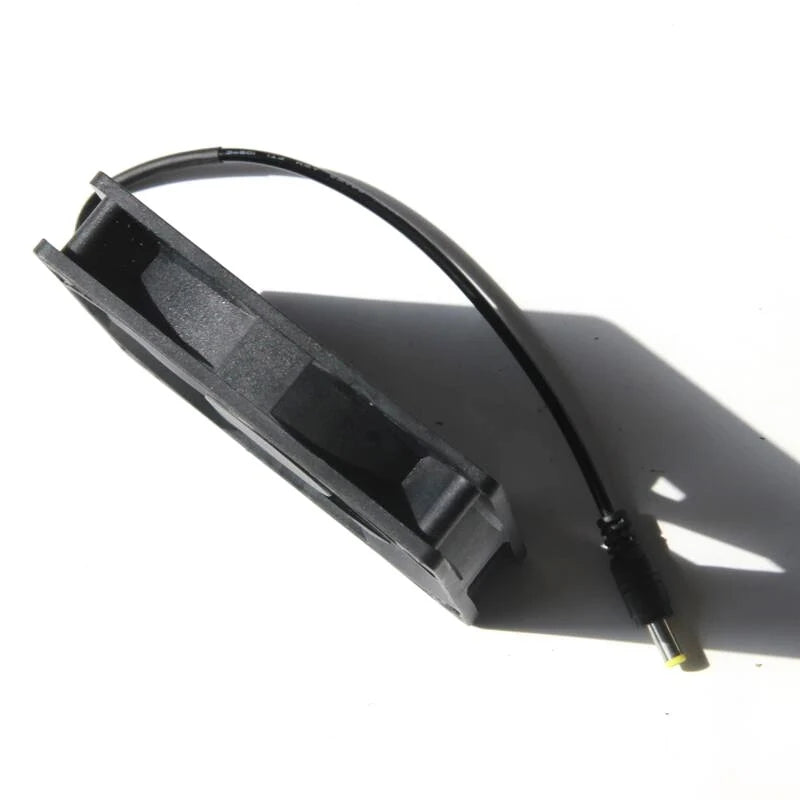

- DC5521 connections join the matched panel and fan components.
- The polycrystalline panel supplies power during available daylight.
Compatibility & Notes
Measure the mounting opening and keep the fan, cable joins and connector dry. Position the fan so blades remain clear of fingers and loose materials. The 6W figure is the solar panel rating; the fan itself is rated 3.84W. Air movement changes with sunlight, panel angle, temperature and installation resistance.
Package Contents

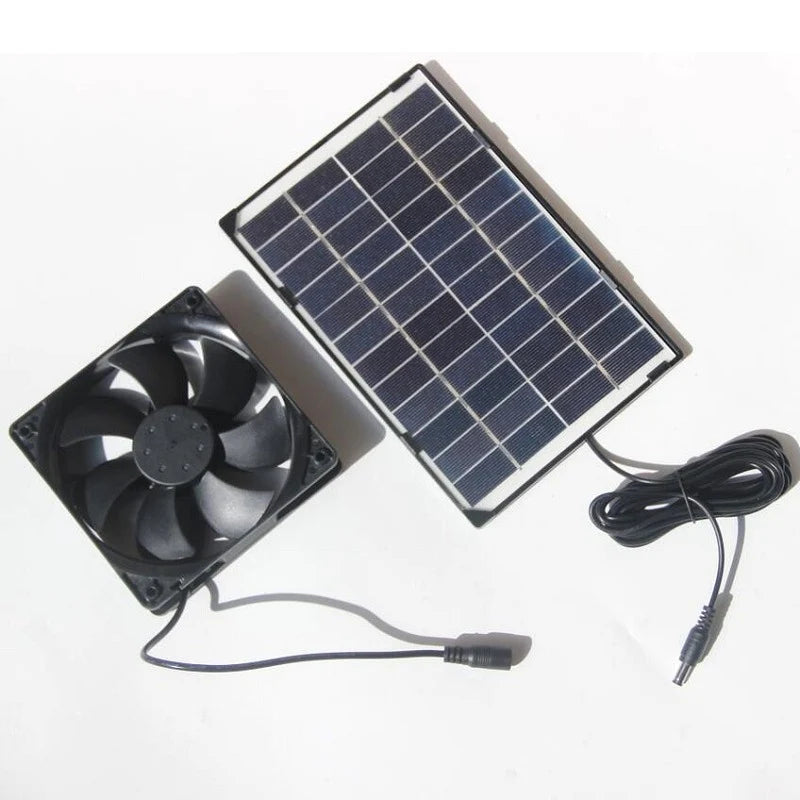

One 6W solar panel with approximately 3m cable and one 120mm DC fan assembly.
