80mm Round Solar Module, 0.5W 6V with Rear Contacts

LinkSolar  |  SKU: SP-STD-0P5W80-6V-REARSOLDERCONTACTSNOATTACHEDLEAD-01
$1776 USD
Steuern und Versand werden an der Kasse berechnet.

Merkmale
  • 0.5W rated solar panel output.
  • 6V working output.
  • Dimensions: 80mm diameter.
  • Connection: Rear solder contacts; no attached lead.

Product Overview

The 80mm round solar module provides a circular cell board with rear solder contacts for custom wiring. Its 0.5W rating and 6V working voltage suit a small, correctly matched solar circuit. The bare module has no attached cable, letting the system designer choose the wiring arrangement and any required battery charge-control components.

0.5W 80mm round solar module — round cell face

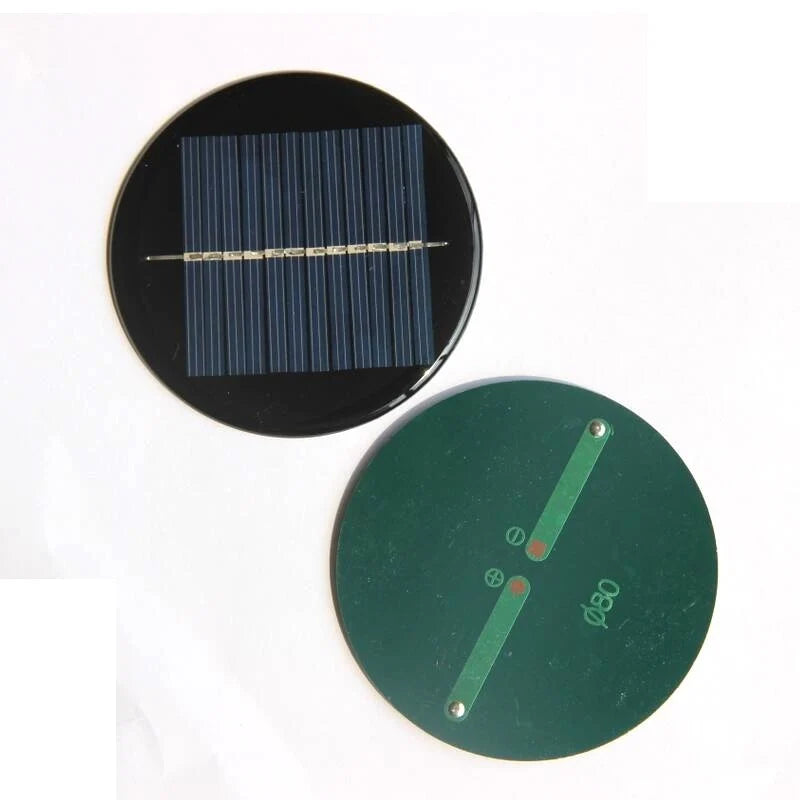

0.5W 80mm round solar module — front and rear views

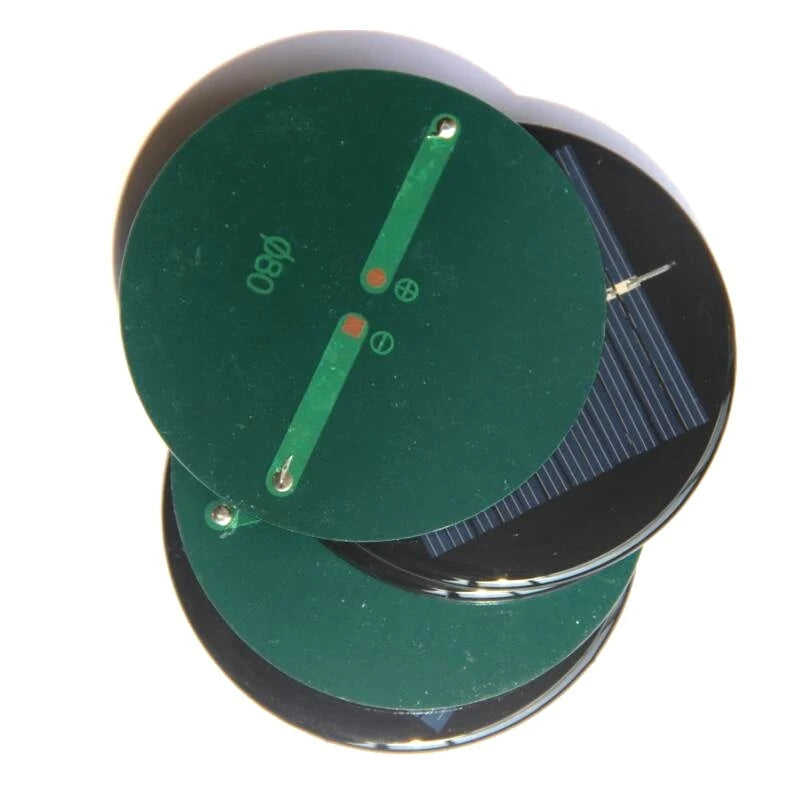

0.5W 80mm round solar module — rear and cell-face overlap

Key Features

  • 80mm circular module fits a round mounting area
  • 6V working output with a 0.5W panel rating
  • Rear solder contacts allow custom wiring
  • Epoxy-covered polycrystalline cell face
  • Approximately 18g module weight

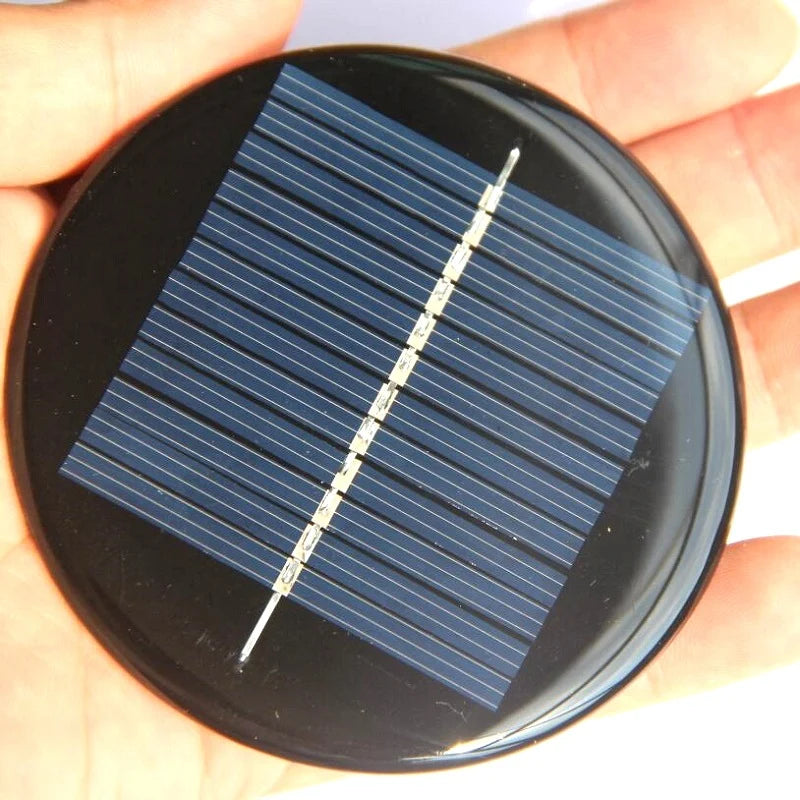

0.5W 80mm round solar module — round module held for scale
0.5W 80mm round solar module — thin circular edge

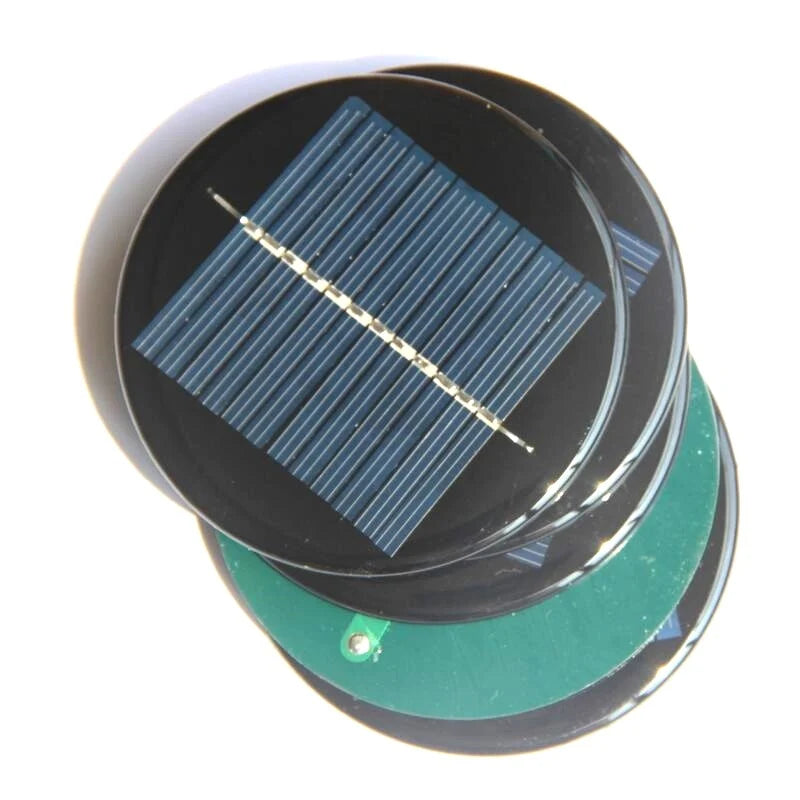

0.5W 80mm round solar module — round module stack

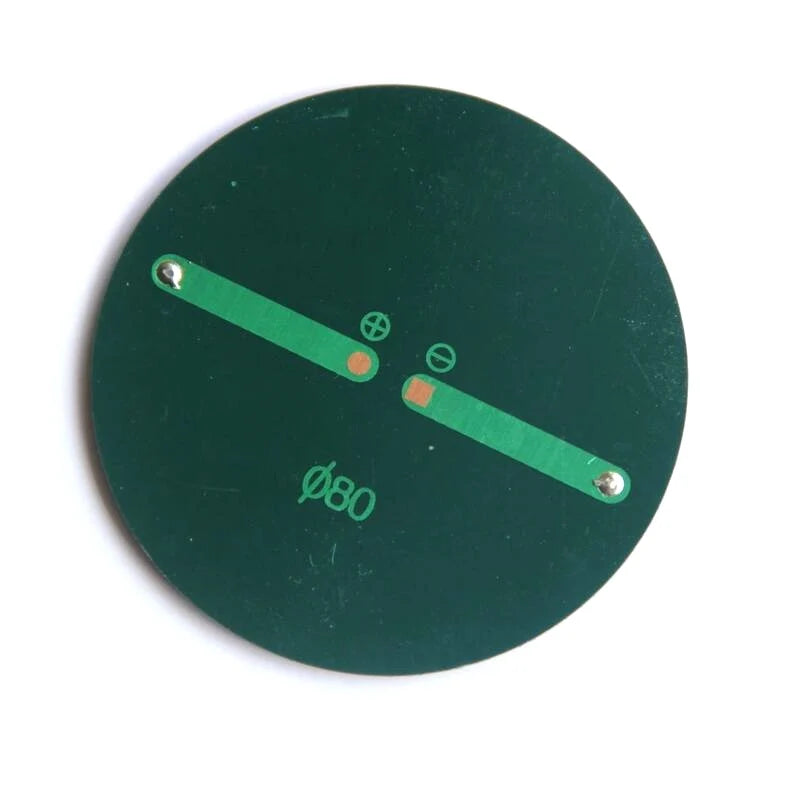

0.5W 80mm round solar module — rear contact pads

Details & Specs

Rated panel power 0.5W
Working voltage 6V
Dimensions 80mm diameter
Cell / surface Epoxy-covered polycrystalline silicon
Connection Rear solder contacts; no attached lead
Short-circuit current 80mA
Panel weight Approximately 18g
Included 1 round solar module

Compatibility & Notes

Verify voltage, polarity and circuit requirements before wiring. Use a suitable charge-control circuit for rechargeable batteries. The module generates power in sunlight and does not store energy.
