Product Overview

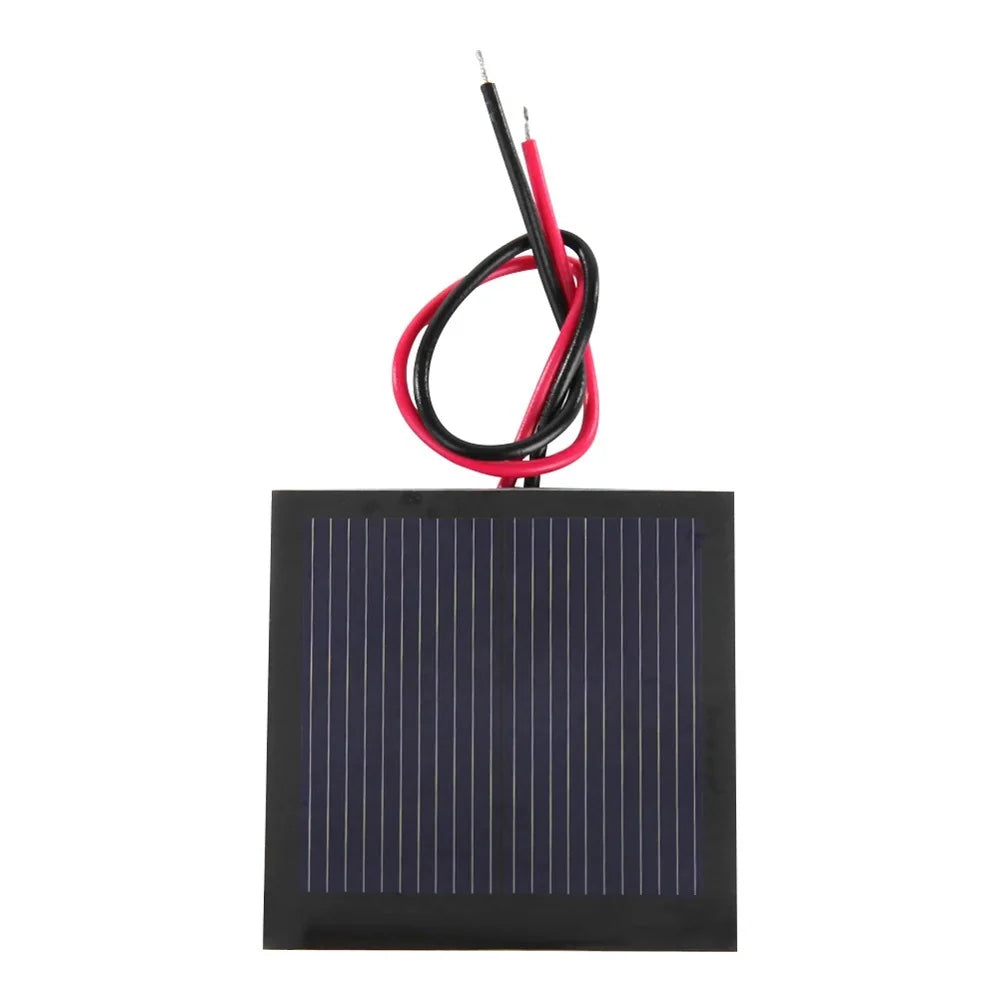

This 1V mini solar panel is a 40 × 40 × 2mm component for small solar experiments and appropriately matched low-power circuits. The polycrystalline laminated module has a 0.2W rating and approximately 5cm red and black leads, ready to connect into your own circuit.

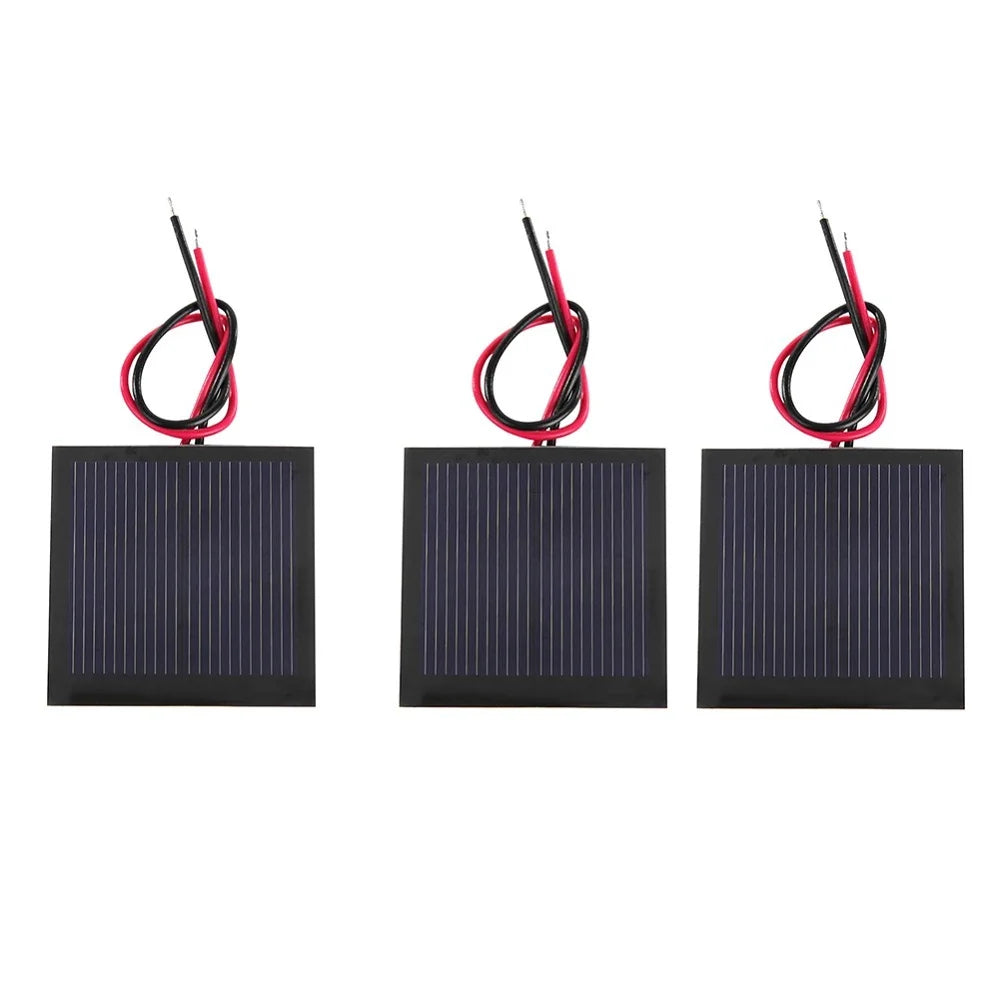

One module is supplied. Multiple modules in the gallery illustrate the product and do not indicate a three-piece pack.
Details & Specs
| Rated power | 0.2W |
|---|---|
| Working voltage | 1V |
| Working current | 0–200mA |
| Cell / construction | Polycrystalline / laminated |
| Module dimensions | 40 × 40 × 2mm |
| Lead length | Approximately 5cm |
| Quantity | One module |
Key Features
- Small square footprint for compact layouts.

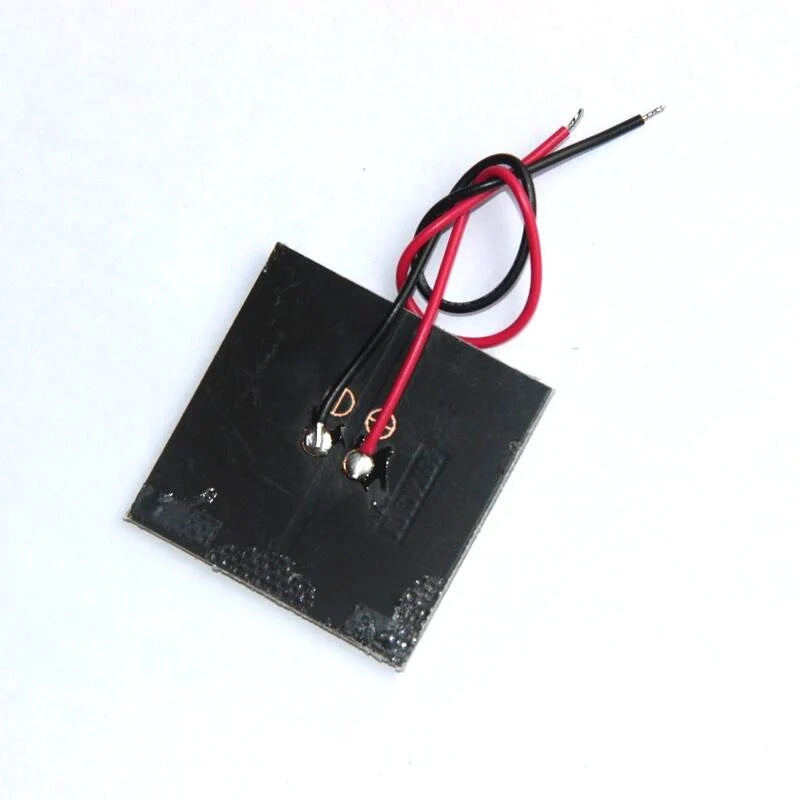

- Red and black leads identify the two electrical connections.
- 1V output for suitably designed low-voltage projects.
- Laminated cell assembly with a 2mm profile.
Compatibility & Notes
Match the circuit to the available voltage and current, and verify polarity before connection. This is a solar component, not a USB charger or complete battery-charging system. Add suitable charge management if the project includes a rechargeable battery.
Keep the cell face exposed to sunlight and protect the wire joints from strain and moisture. Actual output varies with illumination, orientation and load; no battery or other circuit components are included.
