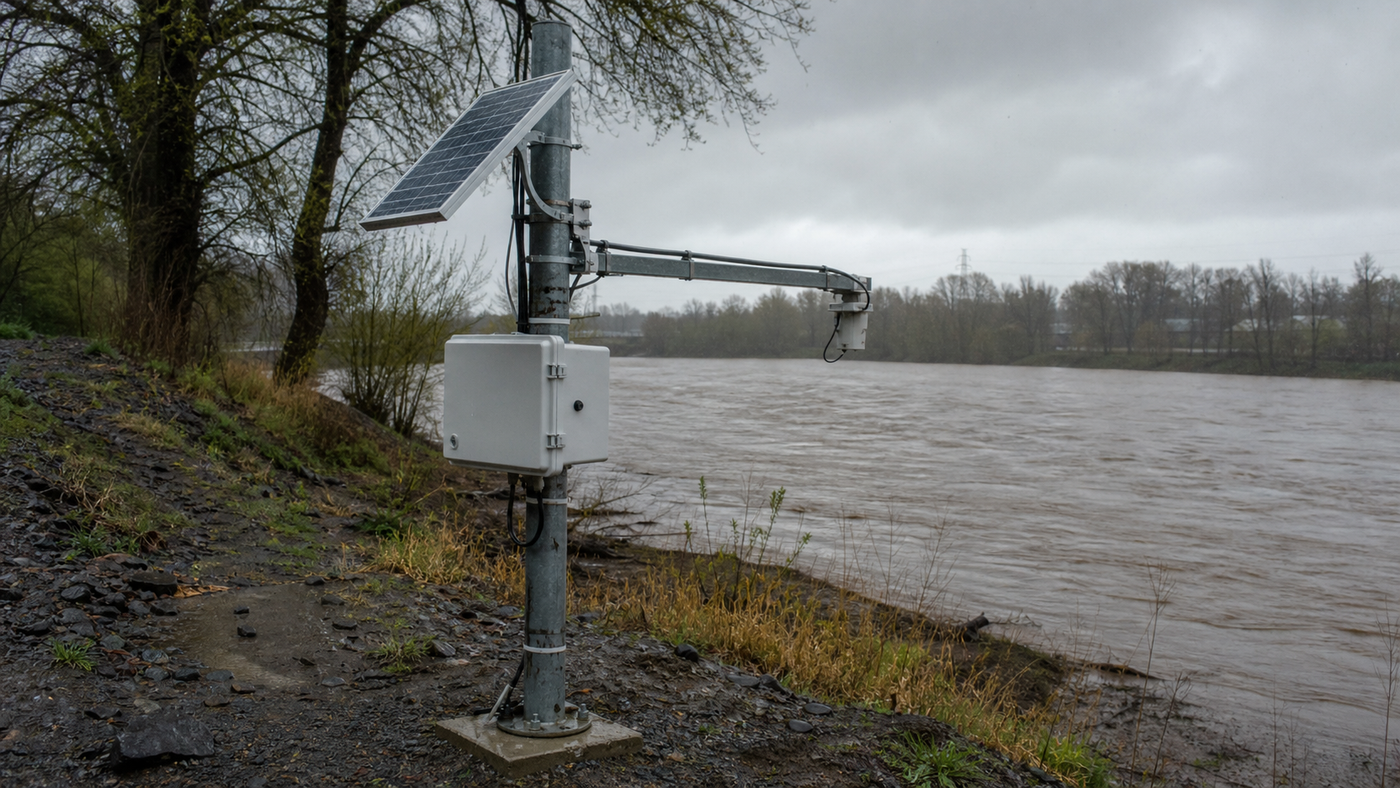

A solar-powered flood-monitoring station on a riverbank under an overcast stormy sky, with a radar water-level sensor arm extended over a swollen muddy river.

Solar Power for Flood Early Warning Systems

Keep unattended flood-warning stations online through storm-season overcast with a power platform sized for continuous sensing and telemetry, multi-day autonomy, and burst loads from sirens, strobes, cameras, and event-mode reporting.

Request a Flood Warning Power Quote

Quick answer

A flood early warning system has three operating layers: sensing, local decision logic, and alerting. LinkSolar supplies the power layer beneath them—solar panel, LiFePO₄ battery, controller, pole hardware, and IP-rated enclosure—sized against worst-month solar input and the higher consumption that arrives during a storm. Gauge-only stations and stations with sirens, strobes, cameras, or rapid telemetry should not share the same power budget.

Who this solution is for

  • Hydrology and environmental integrators

    Teams building or extending unattended flood-warning networks across river basins, dams, spillways, and stormwater systems.

  • Satellite-IoT and telemetry providers

    Providers that need the tower-side panel, battery, enclosure, mounting, and optional camera or siren power delivered as one coordinated specification.

  • Municipal engineers, utilities, and EPC contractors

    Project teams adding early-warning points to public infrastructure, low-water crossings, and remote water assets.

  • Government and NGO preparedness programs

    Programs deploying flood-preparedness networks against fixed procurement and seasonal readiness deadlines.

Technical considerations

Solar-powered flood monitoring station with a tilted panel, telemetry enclosure, antenna, and sensor cable beside a river.

Load profile

Power the sensing, decision, and alerting layers

Water-level and rainfall sensors are normally low, predictable duty-cycle loads. The logger or RTU adds a small continuous draw and must survive a brownout without corrupting its records.

The telemetry radio is often the largest continuous load. Consumption rises during an event when an hourly reporting interval changes to every few minutes. A siren, strobe, or public-address unit adds a short, high-current burst that must be checked against battery discharge capability as well as daily watt-hours.

Optional visual verification adds roughly 3–8 Wh/day for periodic photos or 8–15 Wh/day for video on the same battery bank. Budget these loads separately from normal sensing.

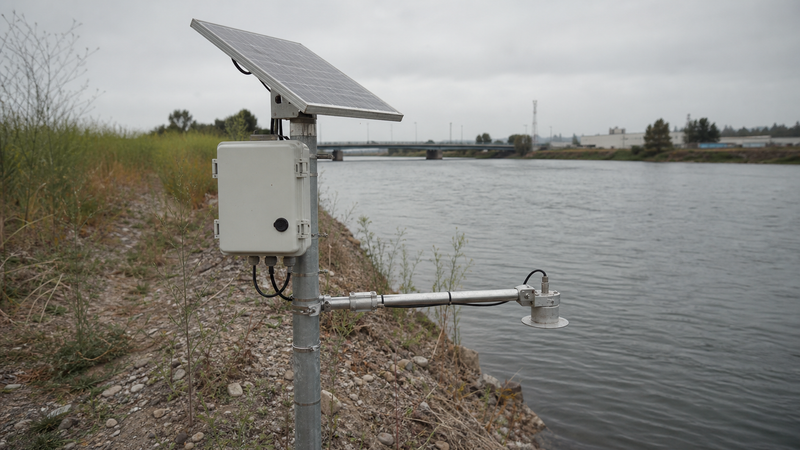

A remote water-level monitoring station on a riverbank with a tilted solar panel and weatherproof enclosure on a pole above the flood line and a radar sensor arm over the water.

Energy and autonomy

Size for the storm, not the annual average

Start with each load in watt-hours per day, including sleep current. A duty-cycled logger with hourly uplink may use about 1.5–3 Wh/day, while an always-on cellular gateway averaging 1.2 W uses about 28.8 Wh/day.

Add 20–30% for controller conversion, cable loss, and temperature derating, then divide by worst-month peak-sun-hours rather than the annual average. Flood season and the weakest solar month often overlap.

Apply the higher event-mode load for the likely storm duration and confirm that the battery can deliver siren or strobe peak current without falling below the low-voltage disconnect. Capacity alone is not enough.

Ordinary monitoring may tolerate 1–3 days of autonomy. A station that informs an evacuation or public-warning decision should normally be evaluated for 3–5 days or more, subject to site climate and risk requirements.

Review the water-level power sizing method

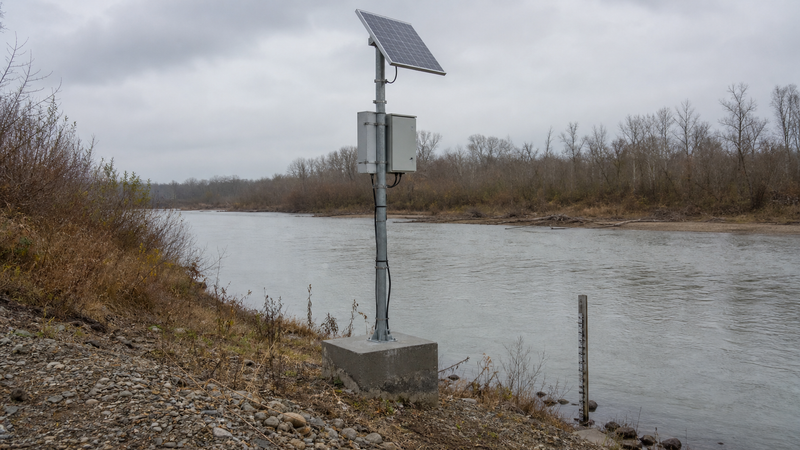

Solar-powered river gauge mounted on a tall pole and concrete foundation above the riverbank, with a staff gauge at the water.

Field reliability

Design for flood exposure and difficult access

Mount the panel, enclosure, and electronics above the design flood elevation, using site wind exposure rather than installer convenience to set the structure. Exposed panels may require a wind-load rating of at least 2,400 Pa.

Use an IP65 enclosure with an IP-rated breathable vent, drip loops at cable glands, and IP67 connectors—IP68 where a cable route may be submerged. Short DC runs and appropriate wire gauge reduce voltage drop.

A low-voltage disconnect or controlled shutdown protects logger data during long overcast periods. Separate fused 12 V rails keep a siren or camera burst from pulling down the sensor and logger supply.

Read the cold-climate battery field notes

Procurement and QA

Coordinate the power bill of materials and delivery schedule

LinkSolar acts as a sourcing and factory-side QA partner rather than claiming to manufacture every component. A flood-warning power platform may span panel, battery-pack, enclosure, and bracket suppliers; the goal is one reviewed electrical and mechanical specification, one pre-shipment QC record, and one coordinated shipment.

Custom mini-panel samples are typically available in 7–10 days. A representative schedule is 2–4 weeks for production, 4–6 weeks for ocean freight, and 1–2 weeks for the site installation window—roughly 8–13 weeks from sample approval to installation.

Pilot quantities can start from an MOQ of 5. Sensors and communication modules remain customer-supplied by default; consolidated purchasing can be reviewed per project.

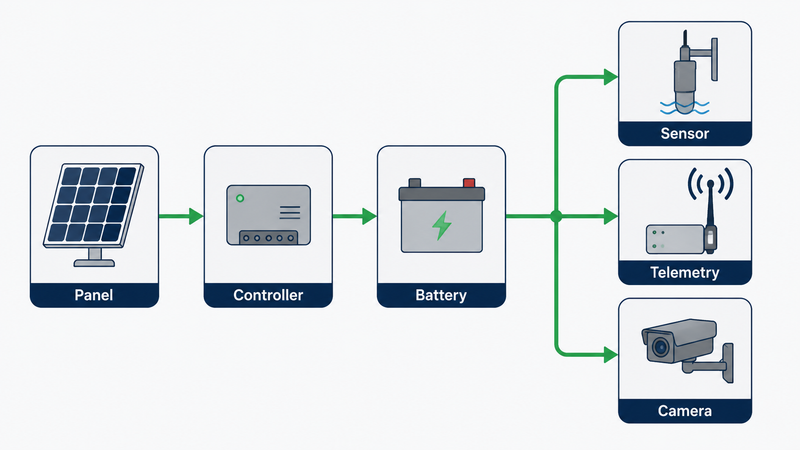

Diagram showing a solar panel, charge controller, and battery powering a stage sensor, telemetry radio, and optional camera.

Reference architecture

A resilient five-block power architecture

A typical station combines a 10–60 W monocrystalline panel, a 12 V LiFePO₄ battery in the 9–60 Ah range, an MPPT controller for systems above roughly 10 W, an IP65 enclosure mounted above the flood line, and protected DC outputs to the field equipment.

The panel is sized from worst-month solar availability. Battery capacity and discharge rate are checked against multi-day autonomy and alerting bursts. LiFePO₄ retains more usable capacity in cold conditions than lead-acid, although low-temperature charging limits still require design review.

Two fused 12 V outputs separate the sensor and logger from a siren, strobe, or camera. This reduces the risk that a high-current alerting event resets the equipment responsible for measurement and threshold logic.

Recommended products and kits

  • 12W solar panel kit, bracket and adapter plugs
    Low-load nodes

    12 W multi-voltage panel for low-load gauge nodes

    A component candidate for low-power gauge-only stations near the lower end of the 10–20 W range. It still requires a site-specific controller, battery, enclosure, and autonomy calculation; it is not presented as a complete flood-warning power system.

    View 12 W panel
  • cable.webp 25W solar panel with cable for outdoor power supply
    Telemetry nodes

    25 W panel with built-in MPPT for telemetry loads

    A component candidate for moderate telemetry loads where a 25 W panel fits the worst-month energy calculation. Confirm battery-interface compatibility, event-mode consumption, temperature range, and alerting peak current before selection.

    View 25 W MPPT panel
  • Side profile of aluminum pole mount with two hose clamps on a round pole.
    Field mounting

    Adjustable pole mount for 5–50 W panels

    An adjustable mounting option for panel sizes commonly used on remote monitoring nodes. Final pole diameter, mounting height, wind loading, fasteners, grounding, and flood elevation must be checked for the installation site.

    View pole mount kit

Reference configurations

Typical configurations for planning reference; final sizing depends on site and load data.

Scenario Reference solutionPanel and constructionExpected outcome
Gauge-only river or stormwater station

Duty-cycled water-level or rainfall sensing, a logger or RTU, and periodic cellular, satellite, or LoRa telemetry without a local siren.

Typical starting range: 10–20 W monocrystalline panel, 12 V LiFePO₄ battery sized for 3–5 days, charge controller, IP65 enclosure, and protected sensor/logger output.Reference configuration for unattended measurement and reporting; final sizing depends on the modem transmit profile, reporting interval, climate, and worst-month sun hours.
Telemetry station with visual verification

Water-level and rainfall sensing with faster event-mode telemetry plus periodic camera uploads for remote visual confirmation of stage conditions.

Typical starting range: 20–60 W panel, 12 V LiFePO₄ battery, MPPT controller, IP65 enclosure, and a protected camera supply. Periodic photos add roughly 3–8 Wh/day; video can add 8–15 Wh/day.Reference configuration for higher-data-volume event monitoring; it is not presented as a delivered project and requires site-specific energy and communications validation.
Flood-warning station with siren or strobe

A sensing and telemetry station that also triggers a local siren, strobe, or public-address load when the logger or RTU crosses an alarm threshold.

Typical starting range: 20–60 W panel, 12 V LiFePO₄ battery selected for both 3–5 days of autonomy and alerting peak current, MPPT controller, and dual fused 12 V outputs.Separating logger and alert rails reduces the risk that a high-current warning burst resets the sensing and decision equipment. Final siren duty cycle and discharge-rate checks are mandatory.

Frequently asked questions

What is a flood early warning system?

It is a network of field stations that measures water level and rainfall, evaluates readings against thresholds, and raises an alert early enough for people downstream to act. It combines sensing, decision logic in a logger or RTU, alerting through a control-room feed or local device, and an unattended power platform.

How much solar power does a flood warning station need?

A gauge-only station with duty-cycled telemetry often starts in the 10–20 W panel range with 3–5 days of battery autonomy. Stations with a siren or camera commonly move into the 20–60 W range. Final sizing must use worst-month sun hours and event-mode consumption rather than the annual average.

Does a siren need its own power system?

Usually it can share a properly sized battery bank, but it should use a separate fused output. A high-current siren burst on an unprotected shared rail can pull down the logger supply and reset the equipment at the moment the alarm is needed.

Does radar, pressure, or ultrasonic sensing change the power design?

Usually only modestly because these sensors are low-duty-cycle loads. The telemetry modem and reporting interval often have greater influence. Size around the modem transmit profile, then confirm that every sensor burst remains within the controller load rating.

What is the lead time for a flood warning power kit?

Custom mini-panel samples typically take 7–10 days. A full integrated platform may require roughly 8–13 weeks from specification through installation when ocean freight is included. Air freight can shorten transit at a higher unit cost.

Plan the power platform for your flood-warning network

Send the station count, sensor and modem datasheets, site region, reporting interval, and whether each location drives a siren, strobe, or camera. LinkSolar will review the load profile, propose a power-platform specification and sample route, and respond to the RFQ within one business day.
