50-Pack 52mm x 26mm Polycrystalline Solar Cells
50-Pack 52mm x 26mm Polycrystalline Solar Cells est en rupture de stock et sera expédié dès qu’il sera de retour en stock.
50-Pack 52mm x 26mm Polycrystalline Solar Cells
50-Pack 52mm x 26mm Polycrystalline Solar Cells est en rupture de stock et sera expédié dès qu’il sera de retour en stock.
Product Overview

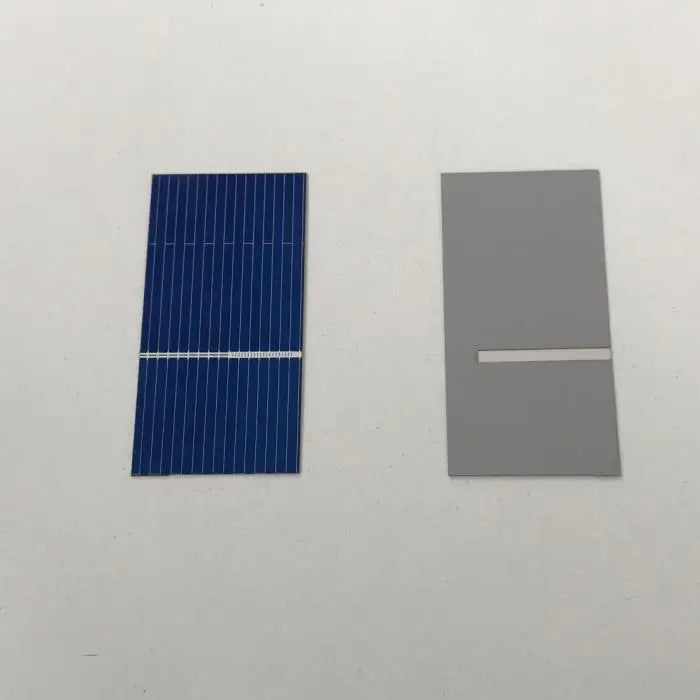

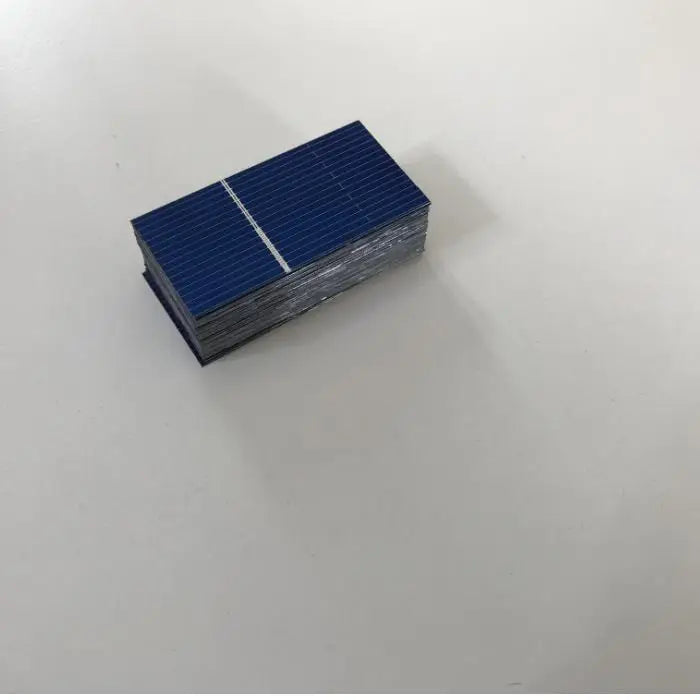

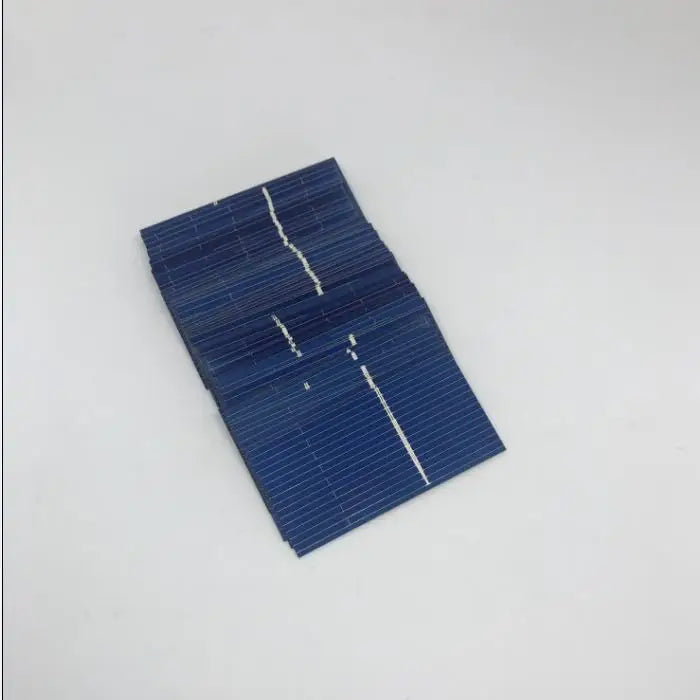

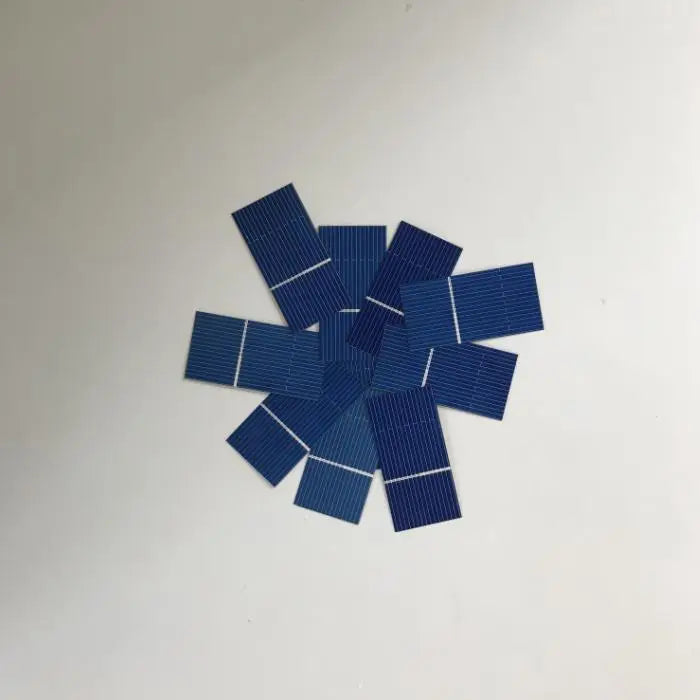

These 52mm x 26mm polycrystalline solar cells are supplied as a 50-piece pack for compatible miniature photovoltaic and DIY module projects. The compact rectangular format is useful where a full 52mm square cell does not match the planned layout.
Kit Contents
- 50 polycrystalline solar cells measuring 52mm x 26mm.
Flux, glass, encapsulation film, backsheet, framing, junction hardware, and a finished enclosure are not listed as included.
Cell Details

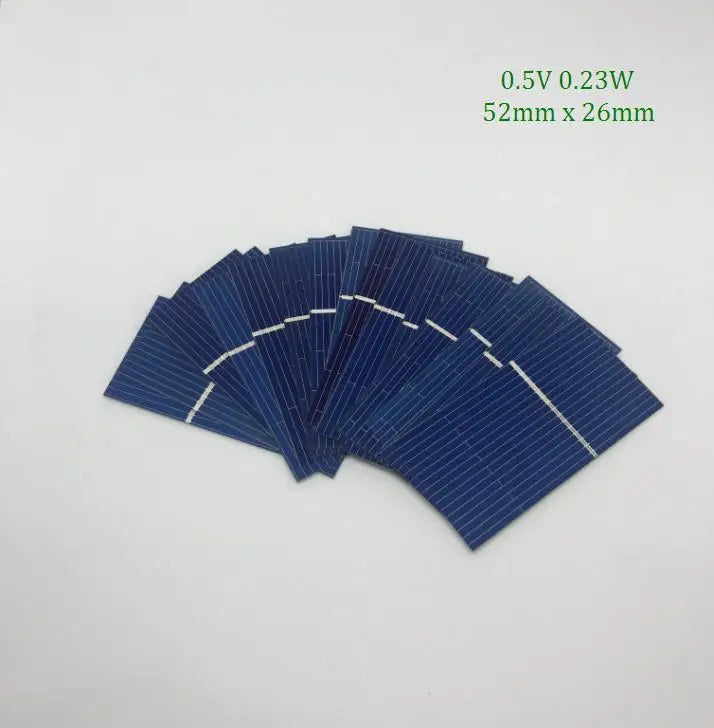

| Cell Material | Polycrystalline silicon |
|---|---|
| Cell Size | 52mm x 26mm |
| Rated Voltage | 0.5V per cell |
| Rated Power | 0.23W per cell |
| Pack Quantity | 50 cells |
Design & Handling Notes
Map the required series and parallel connections before assembly, then allow space for cell gaps and conductors. Bare cells need careful support during handling and soldering. Check polarity and representative output before encapsulation, and verify each string as work progresses. Finished voltage and power depend on the wiring layout, cell matching, irradiance, temperature, and assembly quality. This is a component kit, not a completed weather-protected solar panel.
