Product Overview

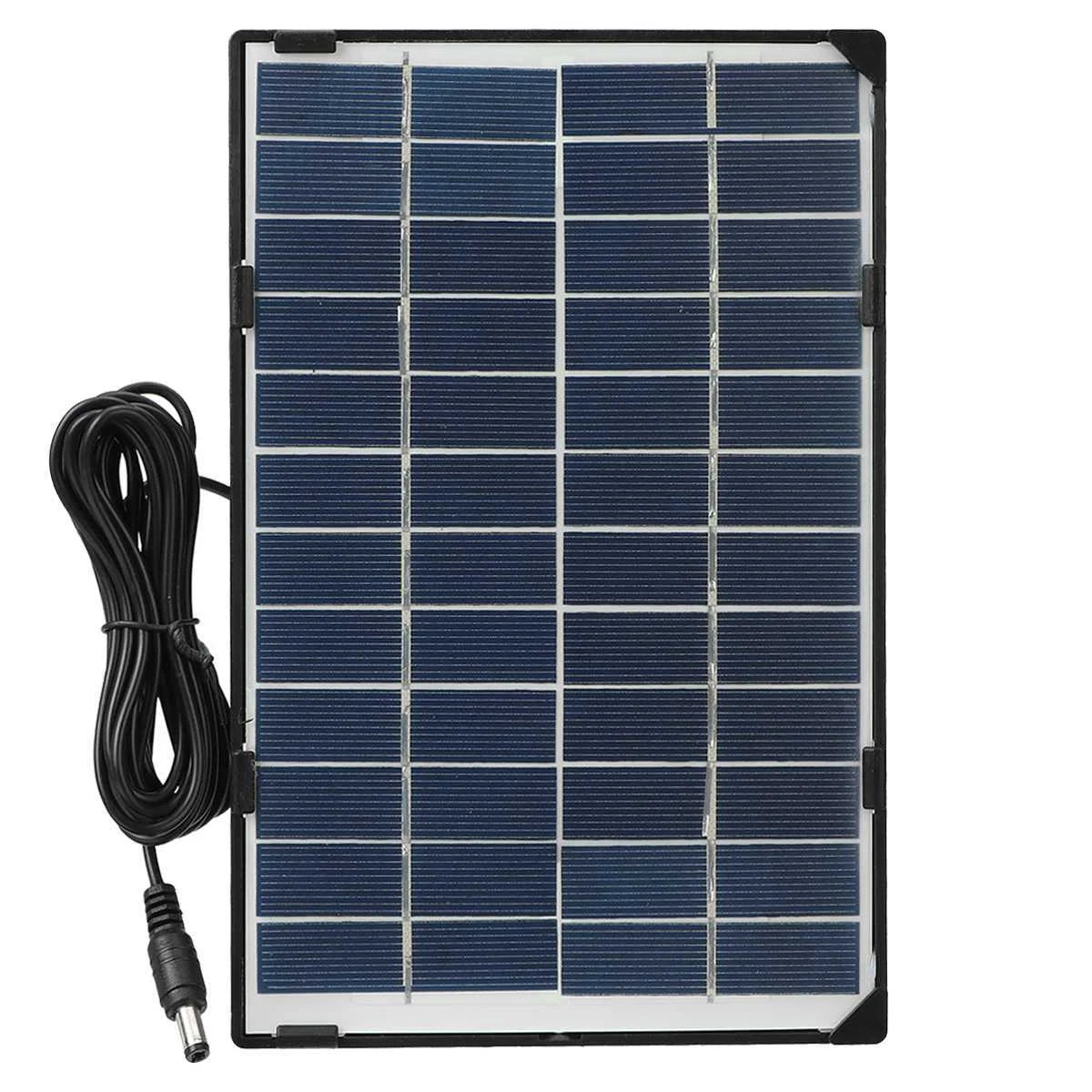

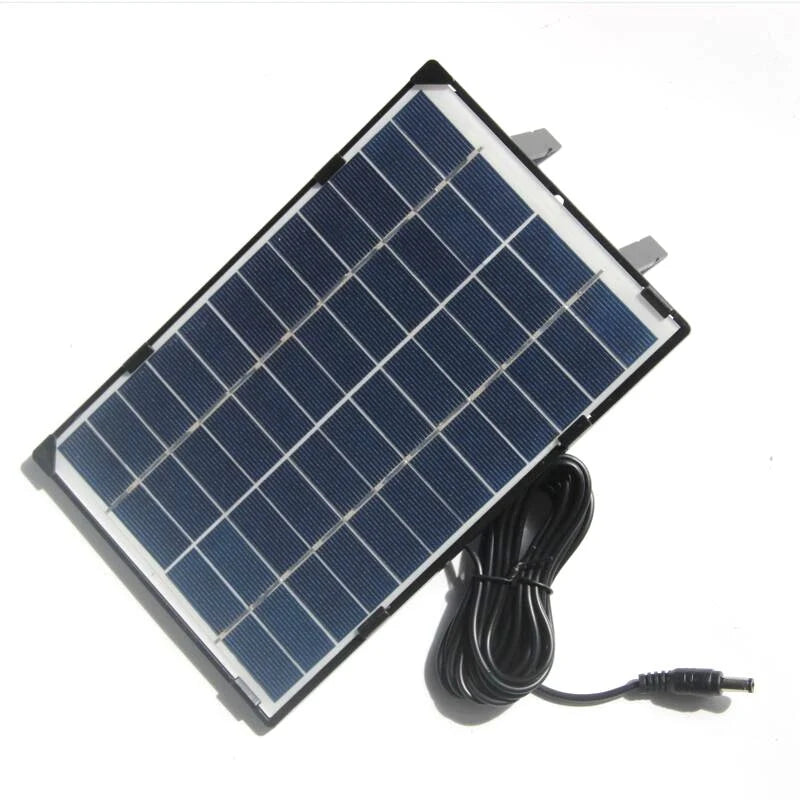

The 6W framed solar panel provides a 12V working output through a three-metre DC5521 cable. Its 210 × 135mm cell board sits in a black frame, with rear supports and mounting points for integration into a compatible small power system. The long lead allows the module to face sunlight away from the connected electronics.
Compatibility & Notes
Match working voltage, connector dimensions and polarity to your circuit. Battery charging requires a separate compatible charge controller. Available output depends on direct sunlight and load.
Key Features
- 6W polycrystalline module with 12V working output
- DC5521 connection on an approximately 3m lead
- 210 × 135mm cell board with a 5mm profile
- Black frame supports the module edges

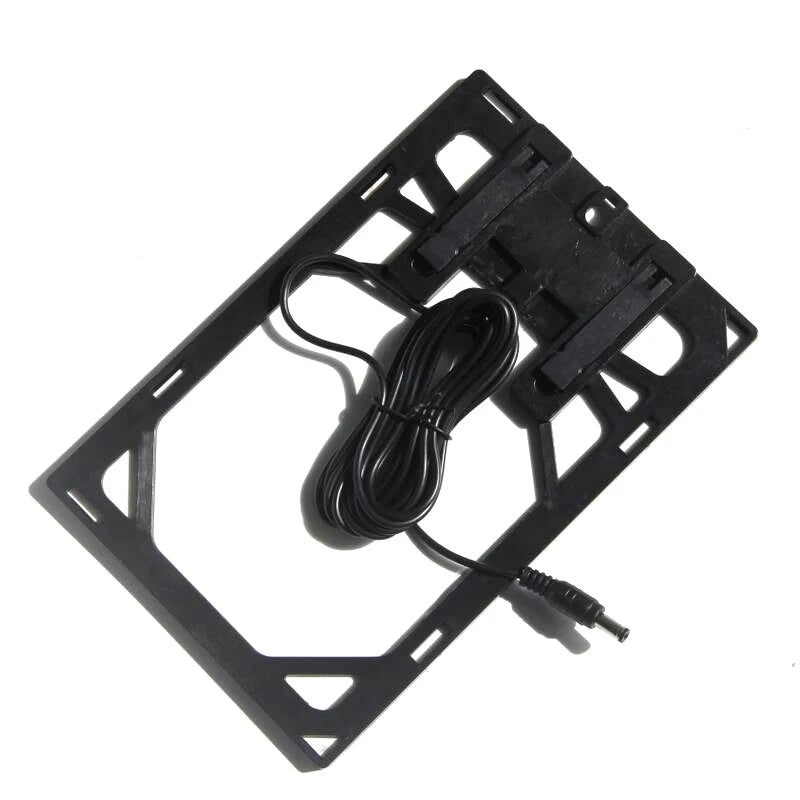

- Rear attachment points assist mounting integration
Details & Specs
| Rated panel power | 6W |
|---|---|
| Working voltage | 12V |

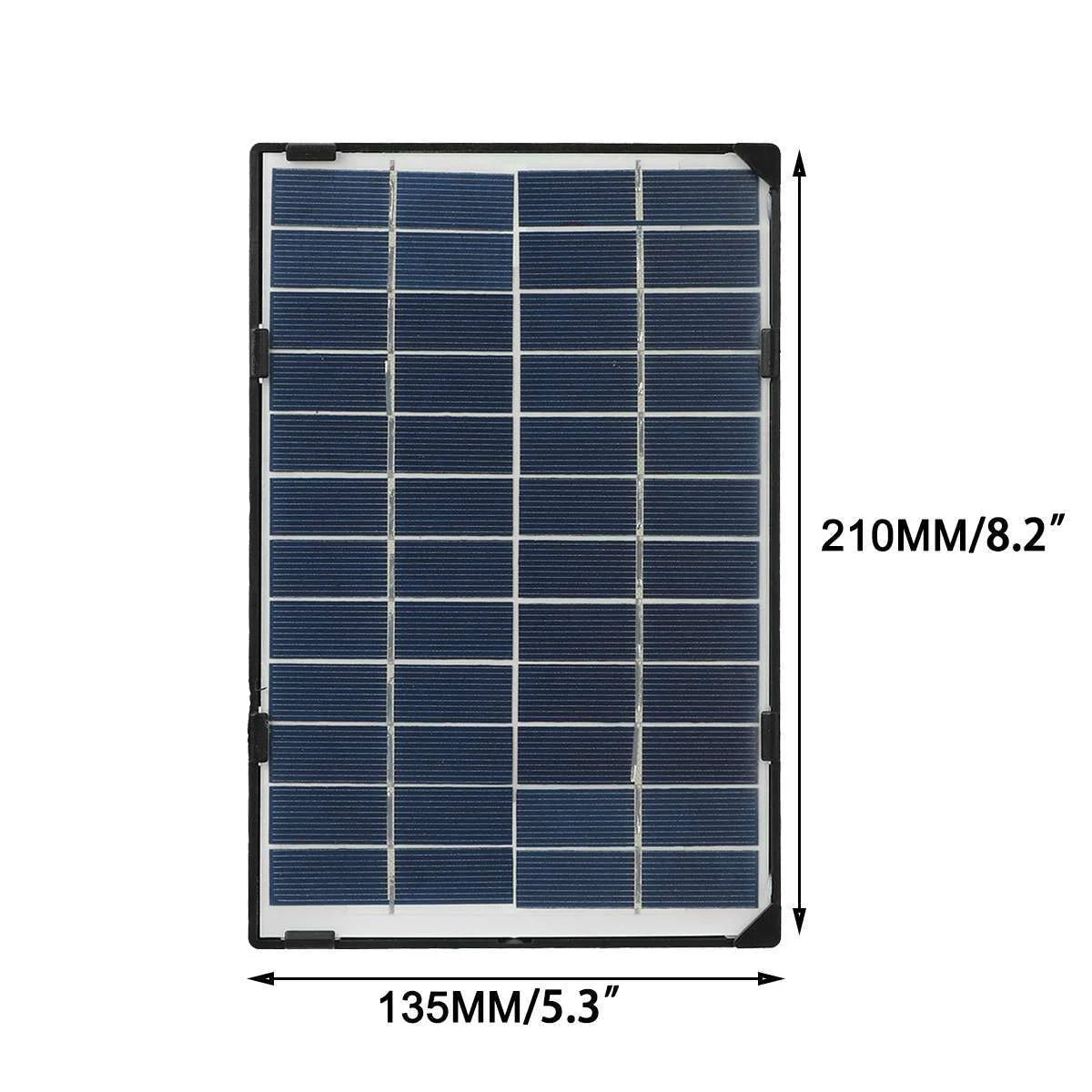

| Dimensions | 210 × 135 × 5mm |

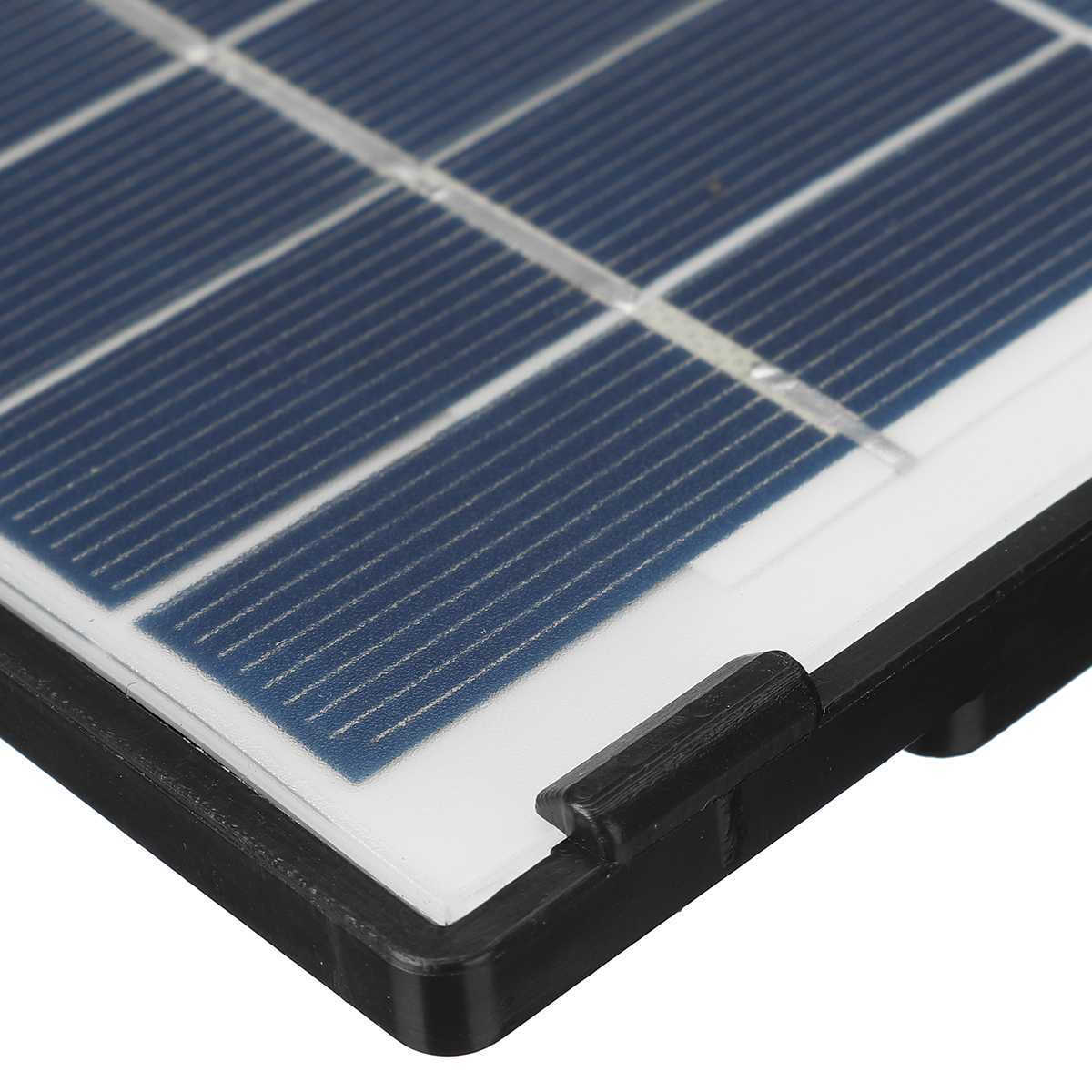

| Cell / surface | Polycrystalline silicon in a black frame |
| Connection | DC5521 plug with approximately 3m cable |
| Output current | 0–500mA |
| Short-circuit current | 600mA |
| Packed weight | Approximately 195g |
| Package dimensions | 220 × 150 × 40mm |
| Included | 1 framed solar panel with attached DC lead |
