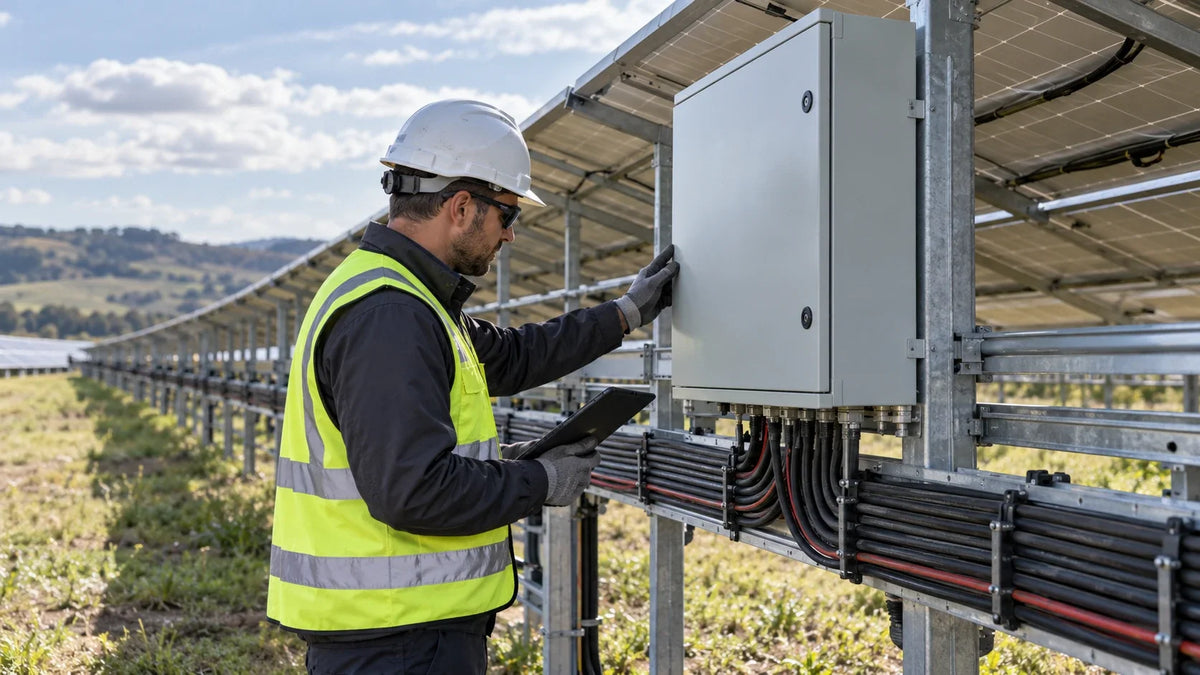

A solar project equipment list includes panels and an inverter, but the cable lengths, connector interfaces and isolation points remain undefined. That missing detail is where an eBOS solar discussion becomes practical: the electrical connections need their own design, specifications and purchasing responsibilities.
What does eBOS solar mean for a project?
Solar eBOS is the electrical balance of system that connects photovoltaic modules with the rest of a solar installation. The governing relationships include I = P ÷ V, voltage drop = I × R, and cable power loss = I² × R.
Here, I is current in amperes, P is power in watts, V is voltage in volts, and R is circuit resistance in ohms. For cable calculations, circuit resistance includes the outgoing and return conductors, plus any connection resistance included in the model.
The equipment boundary needs to be stated for each project. A procurement package can include module leads, extension cables, wire harnesses, combiner equipment, disconnects and protective devices, while another package assigns some of those items to the inverter supplier or installation contractor.
Modules generate electricity, and power conversion equipment changes its electrical form or operating conditions. The connecting electrical network has to carry that electricity within the ratings of every component along the route.
Mechanical mounting belongs in a separate scope even though cable routing depends on the mounting layout. Separating the electrical and mechanical lists helps buyers identify who supplies cable supports, who defines conductor routes and who checks the interfaces.
What does eBOS stand for in solar?
eBOS stands for electrical balance of system in solar, and the starting circuit relationship is current = power ÷ voltage. The acronym describes a group of electrical components rather than a particular voltage, panel size or complete installation design.
The wording Electrical Balance of systems also appears in searches, but a buyer needs a defined equipment schedule rather than an acronym alone. Writing eBOS on a purchase document leaves too much room for different interpretations of what is included.
Direct current, or DC, flows in the panel circuit; alternating current, or AC, is relevant where an inverter supplies an AC circuit. A small off-grid installation can also have a battery charging circuit and a regulated DC output, each with different operating currents.
A charge controller manages the panel-to-battery charging interface, while a DC converter changes one DC voltage to another. These devices should appear explicitly on the system diagram when the application needs them, rather than disappearing inside an undefined balance-of-system allowance.
A useful specification identifies each circuit by its endpoints. Panel to controller, controller to battery and battery to device are separate electrical paths, so the current calculated for one path should not automatically be used for another.
Business or medical searches containing the same letters concern a different context. For this article, solar eBOS means the electrical connections and associated equipment around the photovoltaic generation circuit.
How do you calculate an eBOS cable example?
An illustrative 240 W DC circuit operating at 24 V carries 10 A, and an assumed total cable-loop resistance of 0.20 Ω produces a 2 V drop and 20 W of cable heating. These are worked engineering assumptions, not measured results or product specifications.
The example treats the sending-end voltage and current as fixed. A real photovoltaic operating point changes with conditions and connected equipment, so this calculation explains the cable relationship without predicting daily energy yield.
- Define the circuit boundary. Assume a 24 V DC source supplies 240 W into one cable loop. The calculation begins at the source terminals and ends at the receiving equipment terminals.
- Calculate current. I = P ÷ V = 240 W ÷ 24 V = 10 A. Use this current only for the circuit described by those assumptions.
- Assign complete loop resistance. Assume the outgoing and return cable together have R = 0.20 Ω. Using only one conductor's resistance would leave part of the electrical path out of the calculation.
- Calculate voltage drop. ΔV = I × R = 10 A × 0.20 Ω = 2 V. The receiving-end voltage is therefore 24 V − 2 V = 22 V.
- Calculate cable heating and received power. P_loss = I² × R = 10² × 0.20 = 20 W. Receiving-end power is 22 V × 10 A = 220 W, consistent with 240 W − 20 W.
The table changes only the assumed loop resistance while holding source voltage and current constant. The results show why a panel wattage alone cannot specify a cable assembly.
| Assumed loop resistance | Current | Voltage drop | Cable loss | Receiving power |
|---|---|---|---|---|
| 0.10 Ω | 10 A | 1 V | 10 W | 230 W |
| 0.20 Ω | 10 A | 2 V | 20 W | 220 W |
| 0.40 Ω | 10 A | 4 V | 40 W | 200 W |
The calculation does not establish conductor ampacity, protective-device sizing or an acceptable voltage-drop limit. Those decisions require the actual installation conditions, equipment instructions and applicable electrical requirements.
How can identical panel wattage produce different eBOS requirements?
Identical panel wattage can produce different cable losses because circuit current depends on operating voltage: doubling voltage halves current and reduces I²R loss to one quarter when power and resistance remain fixed. This relationship gives a buyer a concrete way to compare electrical architectures.
Assume the same 240 W sending power and 0.20 Ω loop resistance. At 24 V, current is 10 A and cable loss is 20 W; at 48 V, current is 5 A and cable loss is 5 W.
The higher-voltage example is a comparison, not a recommendation to reconnect existing equipment. Controller input limits, module open-circuit voltage and device operating ranges still have to match the selected architecture.
The purchasing implication is that equal-wattage panels are not automatically interchangeable at the cable interface. Compare operating voltage and operating current alongside power; the guide to interpreting panel listing specifications addresses that specification-reading task.
A remote communications installation makes this distinction tangible because the cable route can separate the panel, storage enclosure and powered device. The solar-powered WiFi system guide provides application context for defining those electrical boundaries.
A layout with equipment spread across farm buildings also needs separate power and communications drawings. The guide to solar WiFi cameras across farm buildings is relevant when mapping the individual powered locations before specifying their cable assemblies.
Which hardware specifications should a buyer define?
Solar eBOS hardware should be selected against circuit voltage, current and the physical connection layout, with each component checked against its documented ratings. Panel selection and electrical-interface selection need to happen together.
For the module interface, record operating voltage and current separately from open-circuit voltage and short-circuit current. Operating values support performance calculations, while the other values help establish the electrical envelope that connected equipment must accommodate.
For cable assemblies, specify conductor material, cross-section and complete route length. Include termination details and installation conditions so resistance and current-carrying capability can be evaluated for the actual assembly.
A connector specification needs more than a photograph of the housing. Identify the mating interface, polarity, cable compatibility and assembly instructions, and verify that the intended connector pair is documented as compatible.
Protection and isolation equipment need a circuit-specific review. A fuse, breaker or disconnect cannot be selected by panel wattage alone because voltage rating, current and the circuit's available fault energy also matter.
For a custom panel, lead exit position and lead length affect the eBOS drawing even when module power remains unchanged. A defined cable exit can remove an unnecessary extension connection or change the route needed to reach the enclosure.
LinkSolar supports panel sourcing, specification and quality checks through partner factories. The custom panel specification options are relevant when the electrical interface needs to be considered alongside module dimensions.
FAQ
What does eBOS stand for in solar?
eBOS stands for electrical balance of system in solar. The term covers connecting electrical equipment, with the exact supply boundary established in the project equipment schedule.
Are solar panels included in eBOS?
Solar panels are normally identified separately from the electrical balance-of-system package. A purchase specification should still state where module leads end and where the separately supplied harness or extension cable begins.
Does eBOS mean WiFi equipment?
Solar eBOS does not mean WiFi equipment; WiFi equipment can be a load powered through a solar electrical system. A search such as eBOS wifi needs that distinction before panel power, controller interfaces or device supply voltage can be specified.
Can cable size be selected from panel watts alone?
Cable size cannot be selected from panel watts alone because current also depends on circuit voltage and voltage drop depends on loop resistance. Route length and installation conditions are also needed to evaluate the conductor and its terminations.
Next step
To get started with the panel side of an eBOS specification, compare the electrical and physical interface requirements on the custom solar panels page.
