Individuelle Solarlösungen, die Ihre Projekte vorantreiben.

Kundenspezifische & OEM-Solarpanels für IoT-Sensoren, Überwachungskameras und Wetterstationen.

Vom Prototyp bis zur Produktion – ein Lieferant, ein Ansprechpartner.
1 6

0.6W 6V Mini Solar Panel, 90 × 60mm Epoxy Module

LinkSolar  |  SKU: SP-A00121-001
$1764 USD
Steuern und Versand werden an der Kasse berechnet.

Merkmale
  • 0.6W rated solar panel output.
  • 6V working output.
  • Dimensions: 90 × 60mm.
  • Connection: rear positive and negative solder pads.

Product Overview

This 0.6W mini solar panel gives small experimental circuits a 6V solar input. Rear polarity-marked solder pads leave the wiring choice to your build, within a 90 × 60mm footprint.

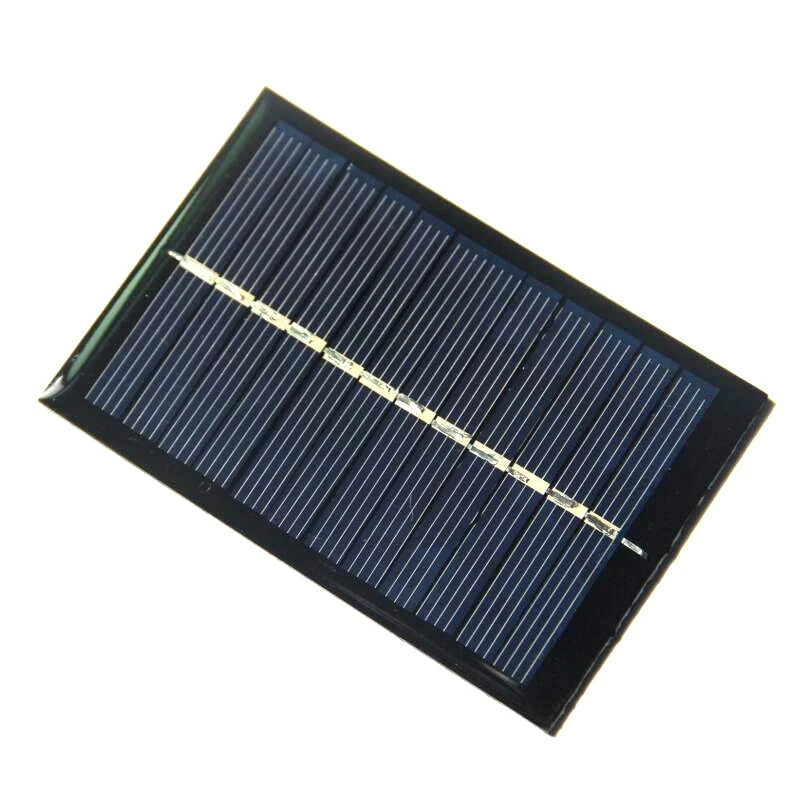

0.6W mini solar panel — mini panel front

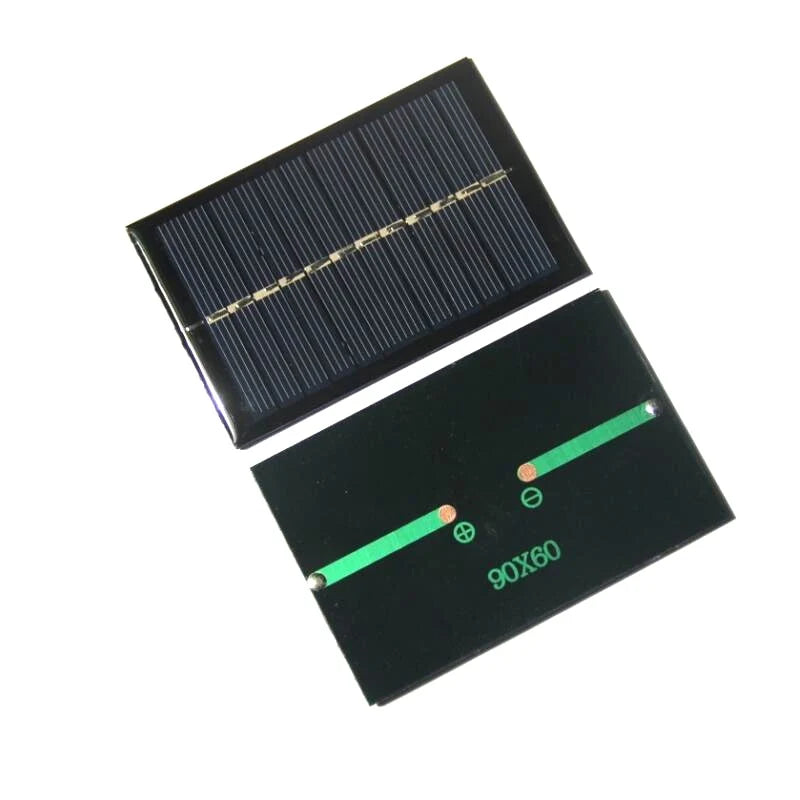

0.6W mini solar panel — front and rear module views

Details & Specs

Rated panel power 0.6W
Working voltage 6V
Dimensions 90 × 60mm
Cell / surface polycrystalline silicon with epoxy coating on PCB
Connection rear positive and negative solder pads
Output current 0–100mA
Included one unwired solar module

Key Features

  • 0.6W rated polycrystalline module
  • 6V working output up to 100mA
  • Epoxy-coated PCB construction
  • Rear solder pads with identifiable polarity
  • 90 × 60mm footprint for small builds

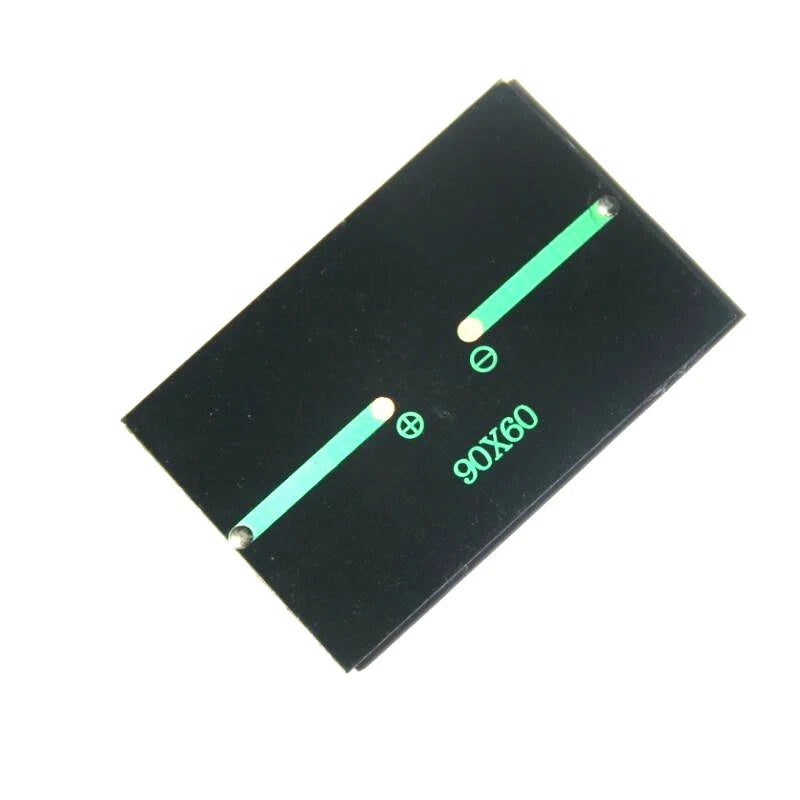

0.6W mini solar panel — rear solder contacts

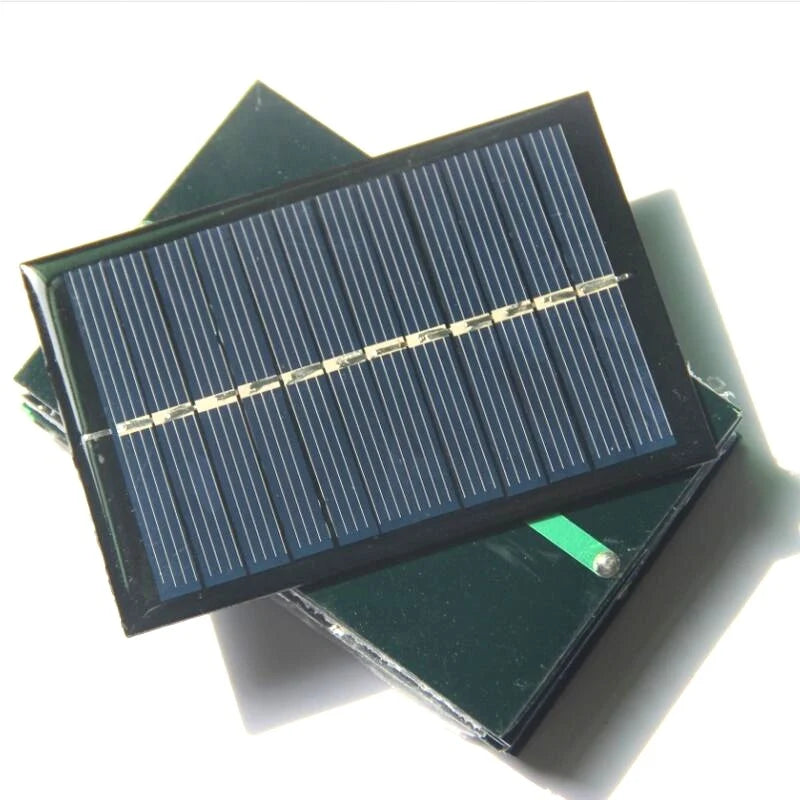

0.6W mini solar panel — stacked epoxy panels
0.6W mini solar panel — rear polarity markings

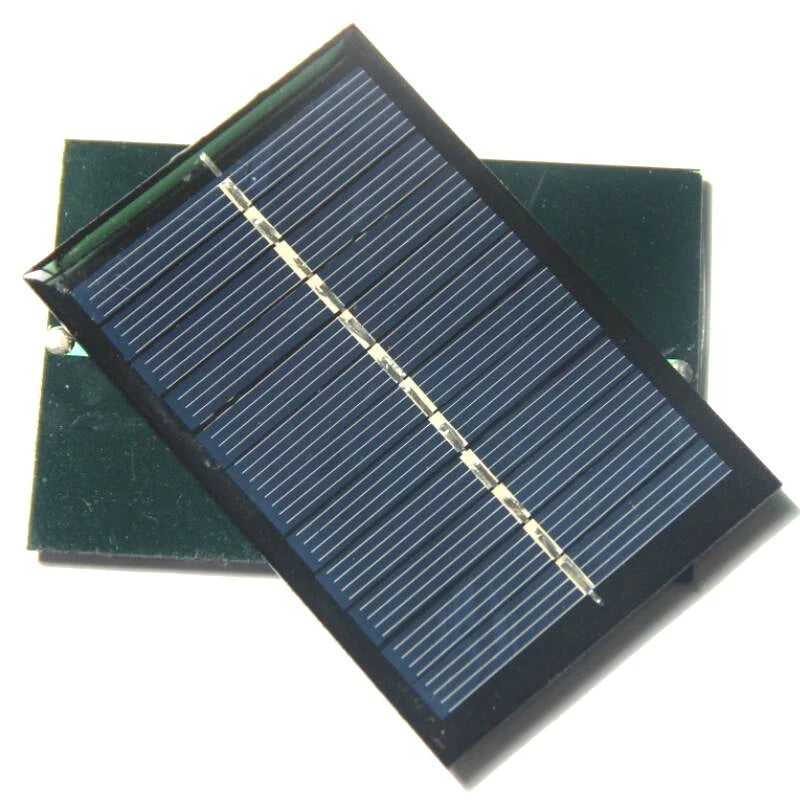

0.6W mini solar panel — stacked panel faces

Compatibility & Notes

Verify voltage, polarity and circuit requirements before wiring. Use a suitable charge-control circuit for rechargeable batteries. The module generates power in sunlight and does not store energy.
