2W Glass Solar Panel with Frame, 12V DC5521
$2153 USD
Grundpreis
Key Features
- 2W panel rating with 12V working output
- Glass-laminated polycrystalline cell face
- Black frame measures 135 × 140 × 15mm

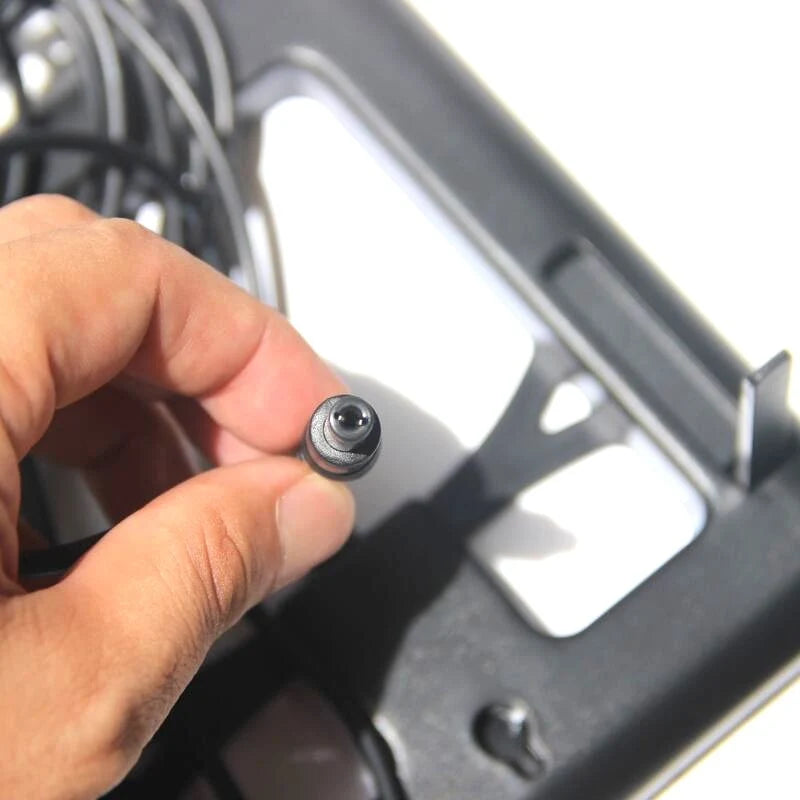

- Approximately 3m cable ends in a DC5521 plug

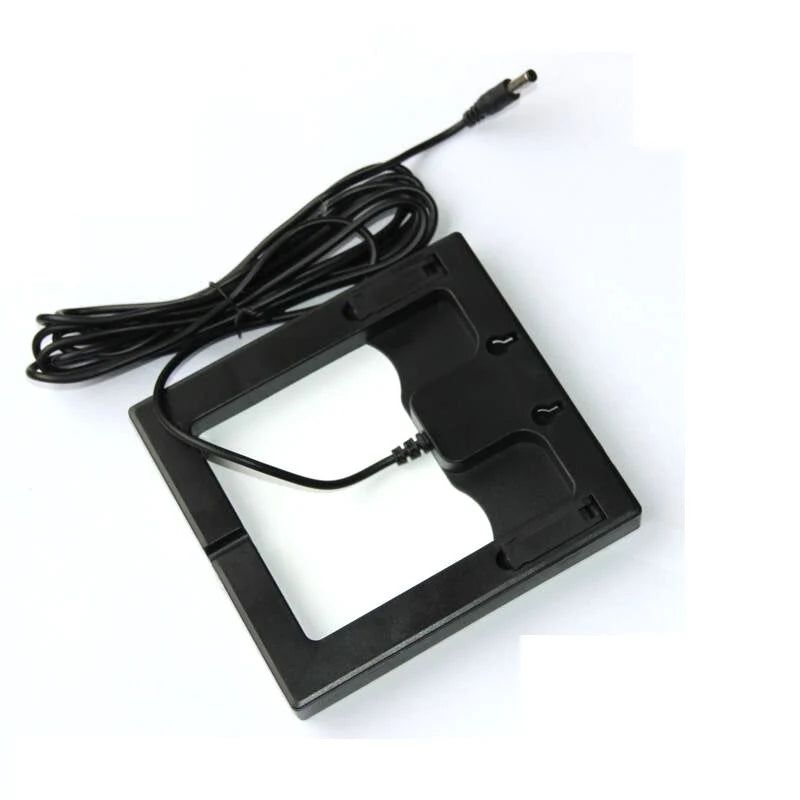

- Rear frame supports provide attachment points
Product Overview

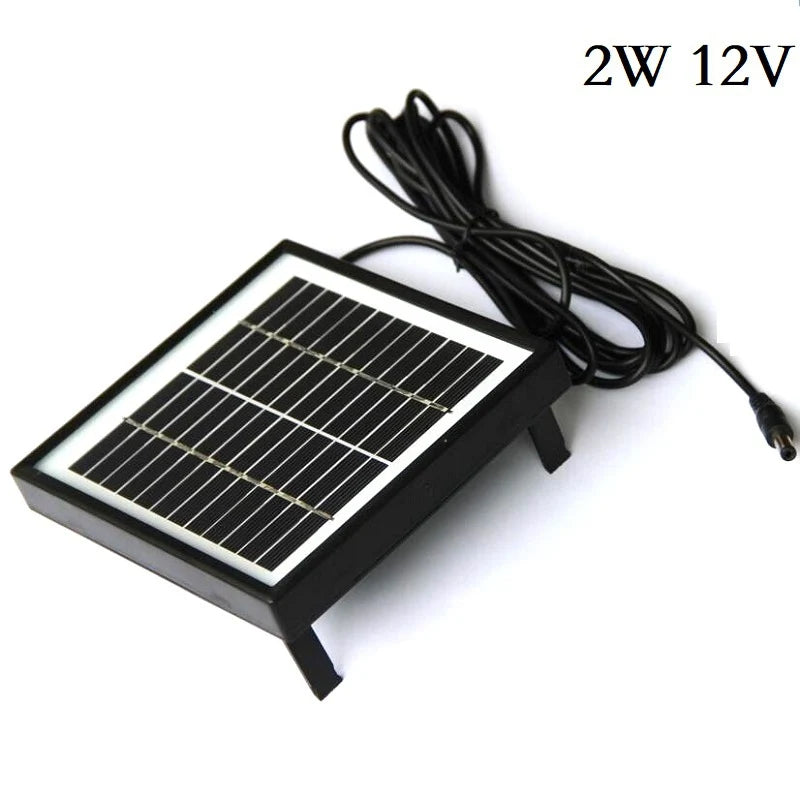

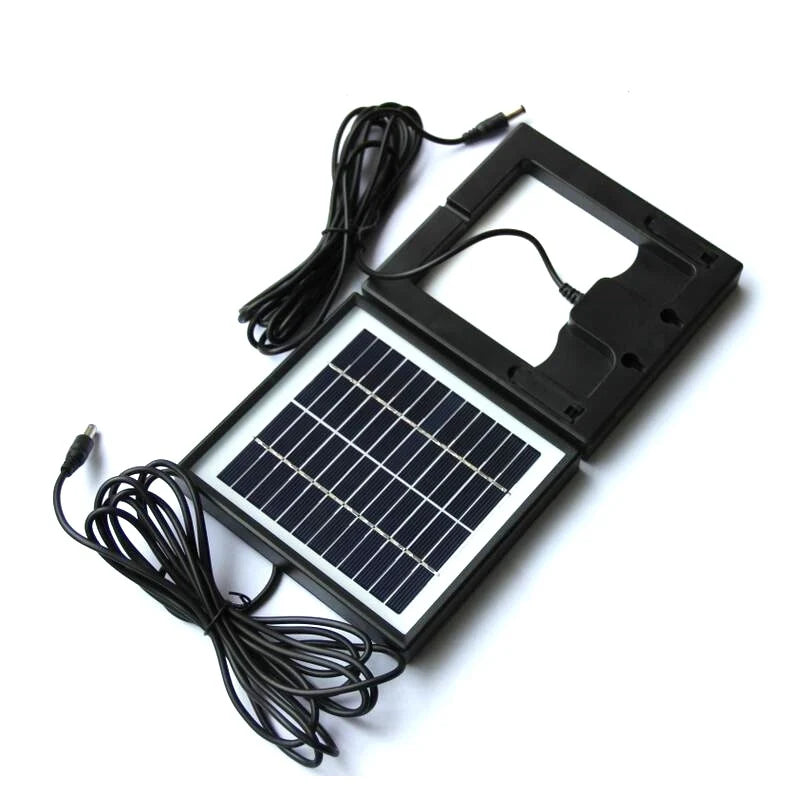

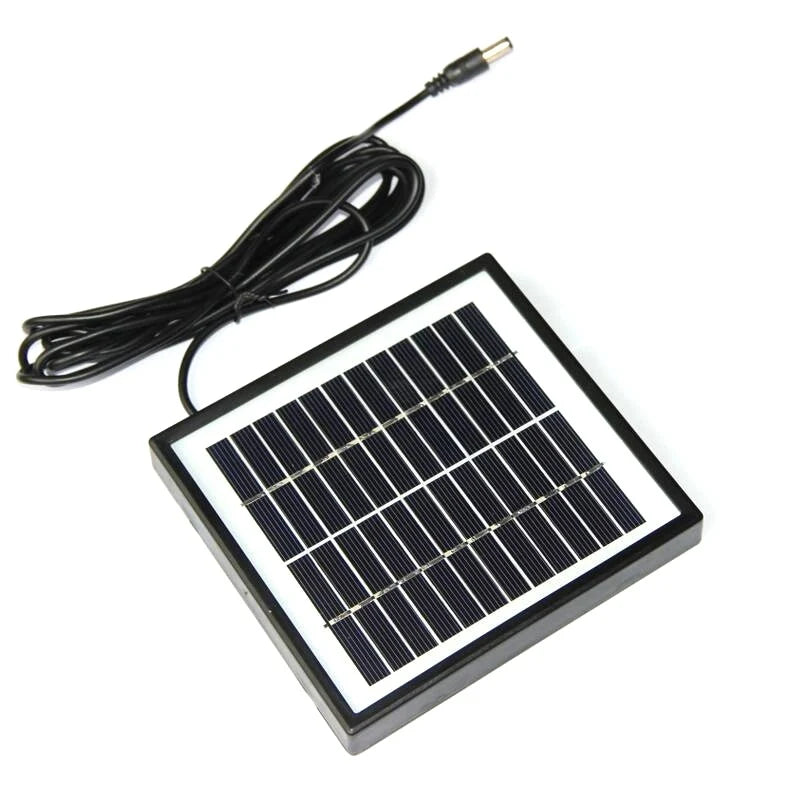

The 2W glass solar panel combines a small polycrystalline module with a black support frame and a three-metre DC5521 lead. Its 135 × 140mm footprint suits a compact 12V circuit with separately selected control electronics. Rear supports hold the cell assembly, while the cable provides a connection away from the collection surface.
Details & Specs
| Rated panel power | 2W |
|---|---|
| Working voltage | 12V |
| Dimensions | 135 × 140 × 15mm |
| Cell / surface | Glass-laminated polycrystalline silicon with black frame |
| Connection | DC5521 plug with approximately 3m cable |
| Output current | 0–166mA |
| Open-circuit voltage | 13.5V |
| Short-circuit current | 220mA |
| Panel weight | Approximately 208g |
| Included | 1 framed solar panel with attached DC lead |
Compatibility & Notes
Match working voltage, connector dimensions and polarity to your circuit. Battery charging requires a separate compatible charge controller. Available output depends on direct sunlight and load.
