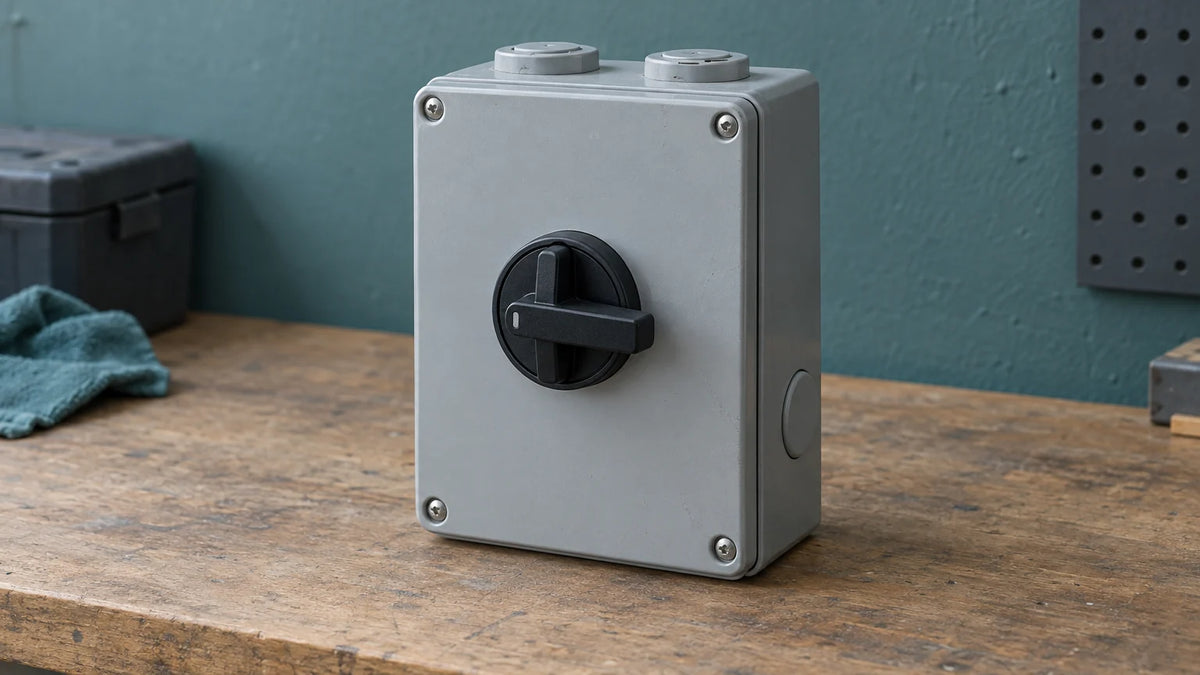

A solar disconnect switch is selected for a particular circuit and job. A device intended for the PV DC side, an inverter's AC side or a battery circuit can appear under the same “solar switches” heading. Start with the required function before comparing products or looking for a replacement.
Quick Answer: Choose a solar disconnect switch for the circuit where it will operate and the functions the design requires. Check documented DC or AC duty, load-break capability and isolation. Where fault protection is also required, a suitable breaker or fusible switch may combine functions. Confirm the exact model and configuration.
Choose the circuit first: PV DC, AC or battery
Identify the circuit location before choosing a device family. PV DC, the inverter AC side and battery/ESS circuits each need an applicable device specification. A matching current number does not answer which application a switch supports.
Eaton's solar safety-switch range presents AC and DC offerings separately. A rating listed for one side should remain attached to that model and duty; the collection name does not create an interchangeable AC/DC rating.
Battery applications need the same care. ABB's OTDC range covers both PV and energy-storage applications, with distinct offerings and configurations. That breadth is a reason to find the applicable variant, rather than assume every device in the family is suitable for both uses.
Write the location as a requirement: PV circuit, inverter AC output or the specified battery/ESS circuit. Then identify whether the design needs switching under load, isolation, fault protection or a combination. Keep unresolved functions open for the responsible designer. The manufacturer examples here illustrate selection boundaries; they do not approve a device for your equipment.
Compare switching, isolation and protection
Check each function independently, even when one device combines them. Load break concerns the stated ability to make or break a circuit under load. Isolation is a separately documented function. Fault protection concerns the protective device's specified response. A product name alone does not establish all three.
Socomec describes SIRCO MC PV as a DC load-break switch providing PV isolation. A different example, the Littelfuse LPHV holder data sheet, describes maintenance isolation but explicitly excludes load-break duty. Isolation wording therefore cannot establish under-load switching by itself.
| Device or assembly | Function to establish | Selection boundary |
|---|---|---|
| PV DC load-break switch-disconnector | Documented PV switching under load and isolation | Do not infer fault protection from the switch name. |
| PV circuit breaker | Protection plus any documented switching and isolation functions | A suitable model may combine these functions; verify its scope. |
| Fuse link and holder | Fuse protection and the holder's specified duty | The LPHV example is not designed for load break. |
| Fusible switch assembly | Switching duty plus protection from the specified fuses | Confirm the complete assembly and applicable components. |
| AC disconnect | Applicable AC switching and isolation duty | Its AC rating does not establish PV DC suitability. |
Both combined-function exceptions matter. ABB's S800PV-SP offers PV string protection, selective shutdown under load and all-pole disconnection. Eaton's range includes fusible and non-fusible AC and DC options. Thus, neither “a breaker can never disconnect” nor “a switch can never include protection” is a reliable selection rule.
Three practical device-choice situations
1. The PV circuit needs switching under load
Consider the category of a documented PV DC load-break switch-disconnector. The SIRCO example supports that category, but its family description is not the final model choice. Confirm the specified duty and exact reference against the circuit requirements.
If a product only documents a separately defined isolation use, leave load-break capability unresolved. An accessible handle or a removable fuse carrier does not supply the missing evidence. Select from documented functions without using a live demonstration to infer capability.
2. The requirement is on the inverter AC side
Choose an applicable AC device for that location. Eaton's separate AC and DC offerings show why this is a different selection branch, even though both are marketed for solar equipment. Check the model's AC rating and required functions together.
Do not carry a PV DC product choice across the inverter by assumption. The device specification should identify the duty at its actual location. This comparison does not prescribe a number of disconnects or claim that every jurisdiction requires the same arrangement.
3. The design needs protection and disconnection
Compare a documented combined-function device with the separate components specified by the design. The S800PV-SP example demonstrates why a breaker cannot be ruled out by category alone. A fusible switch is another possible combined assembly; its protective function depends on the specified fuses and assembly.
The responsible designer must approve the chosen arrangement. Count fulfilled functions, rather than assume that adding another switch always resolves a missing function. For miniature-panel projects, the mini-panel connection guide provides circuit-layout context; these high-voltage manufacturer examples are not miniature-panel recommendations.
When the specified disconnect is unavailable
A higher voltage or current rating does not establish a substitute on its own. If the required model is unavailable, use its exact reference and approved duty as the starting point. A larger number answers one field, leaving the remaining functions and configuration to compare.
Compare the proposed device's application, DC voltage or applicable AC rating, rated current, load-break and isolation functions, and pole configuration. Include any protective function that the original design assigns to it. A candidate with a higher current number but an unresolved duty remains an unresolved replacement.
The SIRCO reference table ties ratings and configurations to individual product references. ABB's OTDC offerings also distinguish applications and configurations. These are evidence that catalogue-family maxima cannot describe every member. They are not instructions to bridge poles or calculate a rating from a pole count.
Ask the responsible designer to approve the proposed alternative against the complete requirement. If the original part combined functions, verify that the substitute retains each required function or that the revised design provides it elsewhere. Availability can motivate a change; it cannot establish equivalence. Keep that design decision separate from the supplier's statement that a candidate can ship.
Common choice questions
Can a circuit breaker also serve as a solar disconnect?
A documented suitable model can combine protection and disconnection. The S800PV-SP example includes protection and shutdown under load. Confirm the exact device and configuration against the required functions; a generic “DC breaker” label is insufficient to approve a replacement.
Can a fuse holder be opened under load?
Do not infer that capability from its isolation description. LPHV holders are expressly not designed for load break. Check the exact holder documentation and the approved operating requirements. This guide gives no fuse-removal procedure and does not extend one holder's limitation to every design.
Is a higher voltage or current rating enough for a replacement?
No. Compare application, the complete ratings and configuration, plus the functions the original device performs. A higher number does not resolve a missing switching or protection function. If a seller cannot document the proposed model's relevant duty, that aspect of the substitution remains open.
