1W Mini Solar Panel, 6V, 110 × 60mm with Contacts

LinkSolar  |  SKU: SP-A00185-001
$1808 USD
Impuestos y envío calculados al finalizar la compra.

Características
  • 1W rated solar panel output.
  • 6V working output.
  • Dimensions: 110 × 60mm.
  • Connection: Rear solder contacts.

Product Overview

The 1W mini solar panel is a 110 × 60mm polycrystalline module for a compatible 6V circuit. Its rectangular cell face and rear contact points support integration into a compact assembly with separately supplied wiring. At approximately 24g, the board is straightforward to position close to a small solar-powered load.

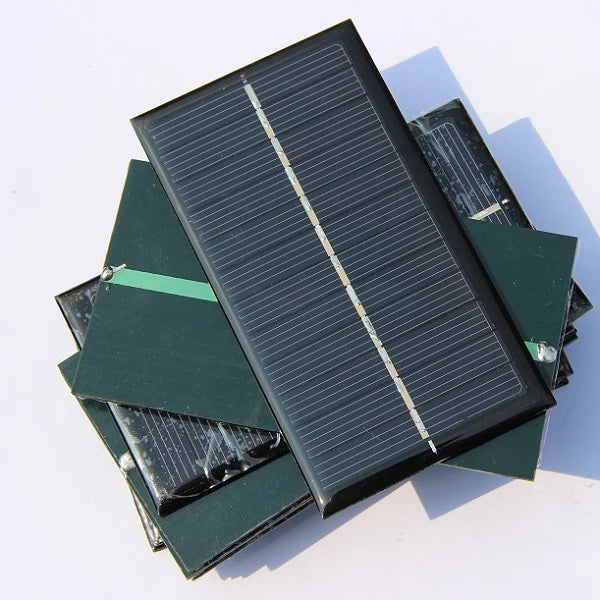

1W 1W mini solar panel — small rectangular panel face

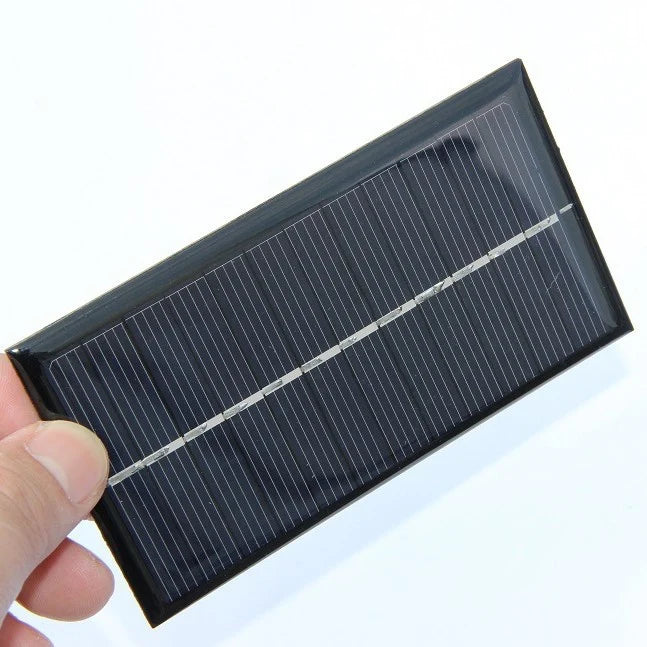

1W 1W mini solar panel — panel held for scale

Compatibility & Notes

Verify voltage, polarity and circuit requirements before wiring. Use a suitable charge-control circuit for rechargeable batteries. The module generates power in sunlight and does not store energy.

1W 1W mini solar panel — English small-solar application examples

Key Features

  • 110 × 60mm rectangular cell board
  • 6V working output through rear contacts
  • Polycrystalline silicon under an epoxy-covered face
  • Peak working current specified as 0–160mA
  • Approximately 24g module weight

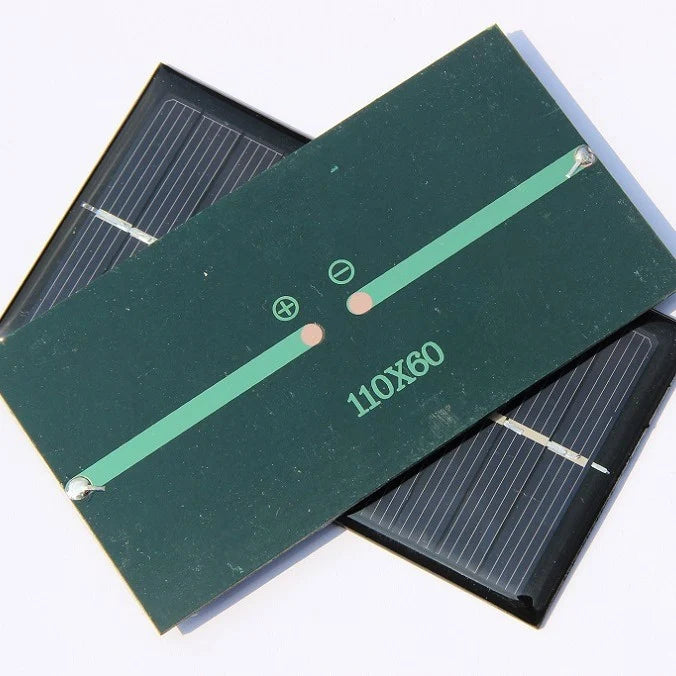

1W 1W mini solar panel — front and rear solder pads

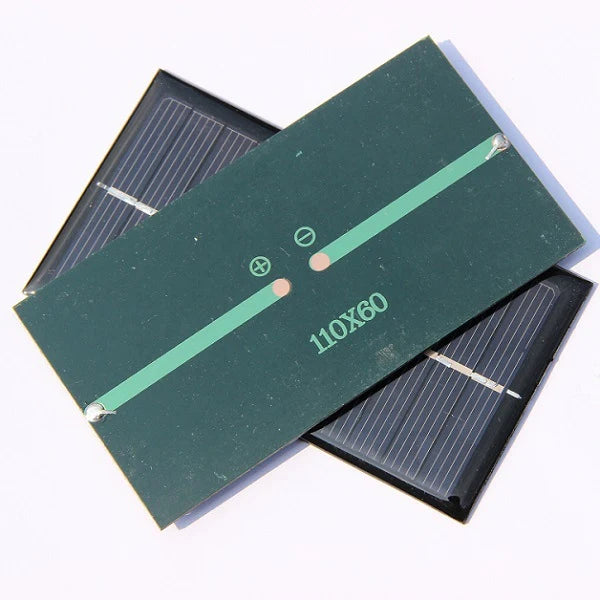

1W 1W mini solar panel — rear polarity markings

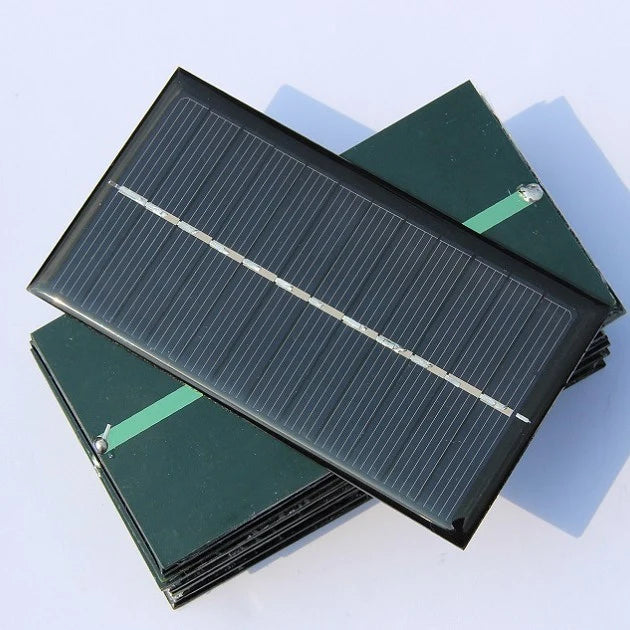

1W 1W mini solar panel — panel stack and cell face

Details & Specs

Rated panel power 1W
Working voltage 6V
Dimensions 110 × 60mm
Cell / surface Epoxy-covered polycrystalline silicon
Connection Rear solder contacts
Peak working current 0–160mA
Panel weight Approximately 24g
Included 1 solar panel
1W 1W mini solar panel — English one-watt six-volt electrical and dimensional data
