Product Overview

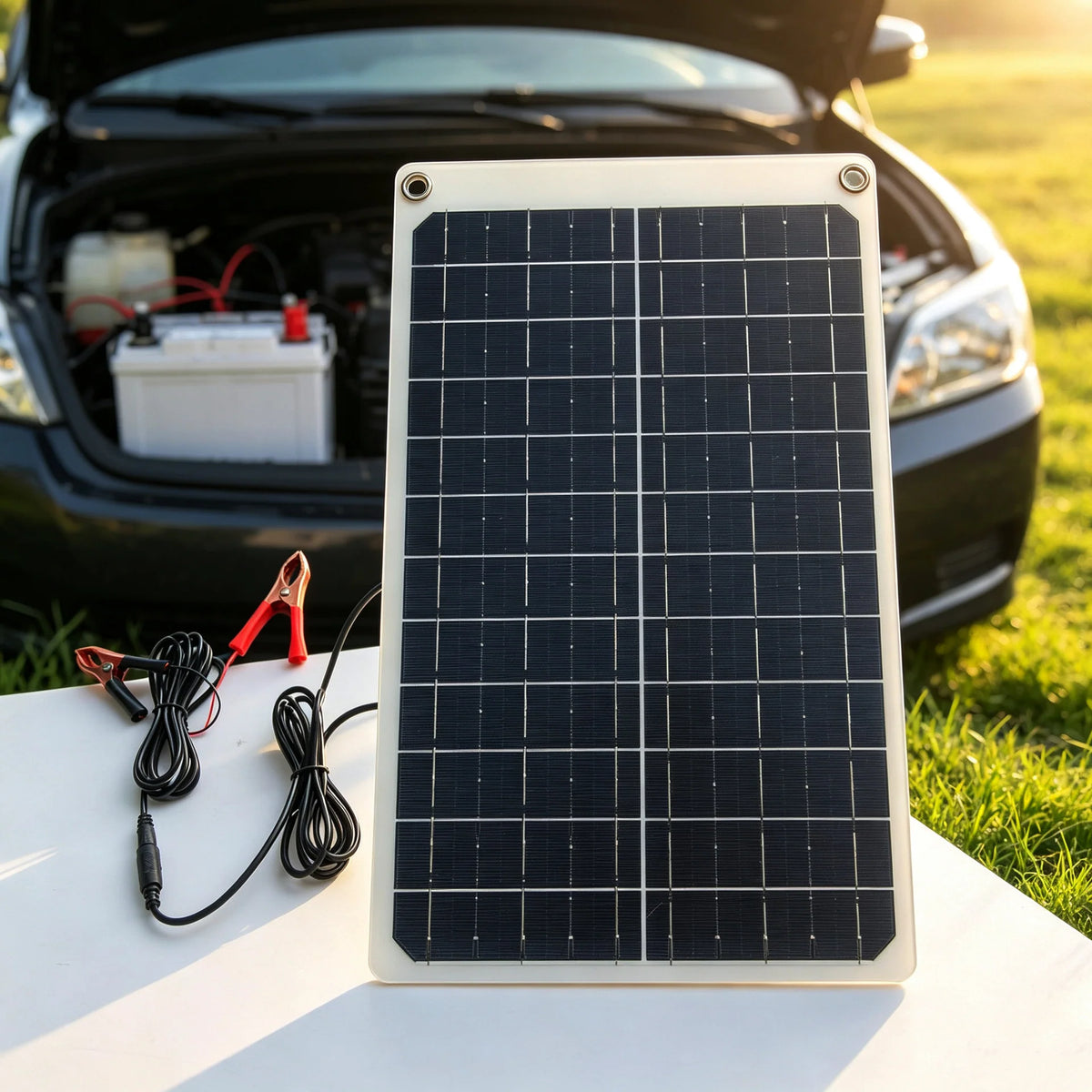

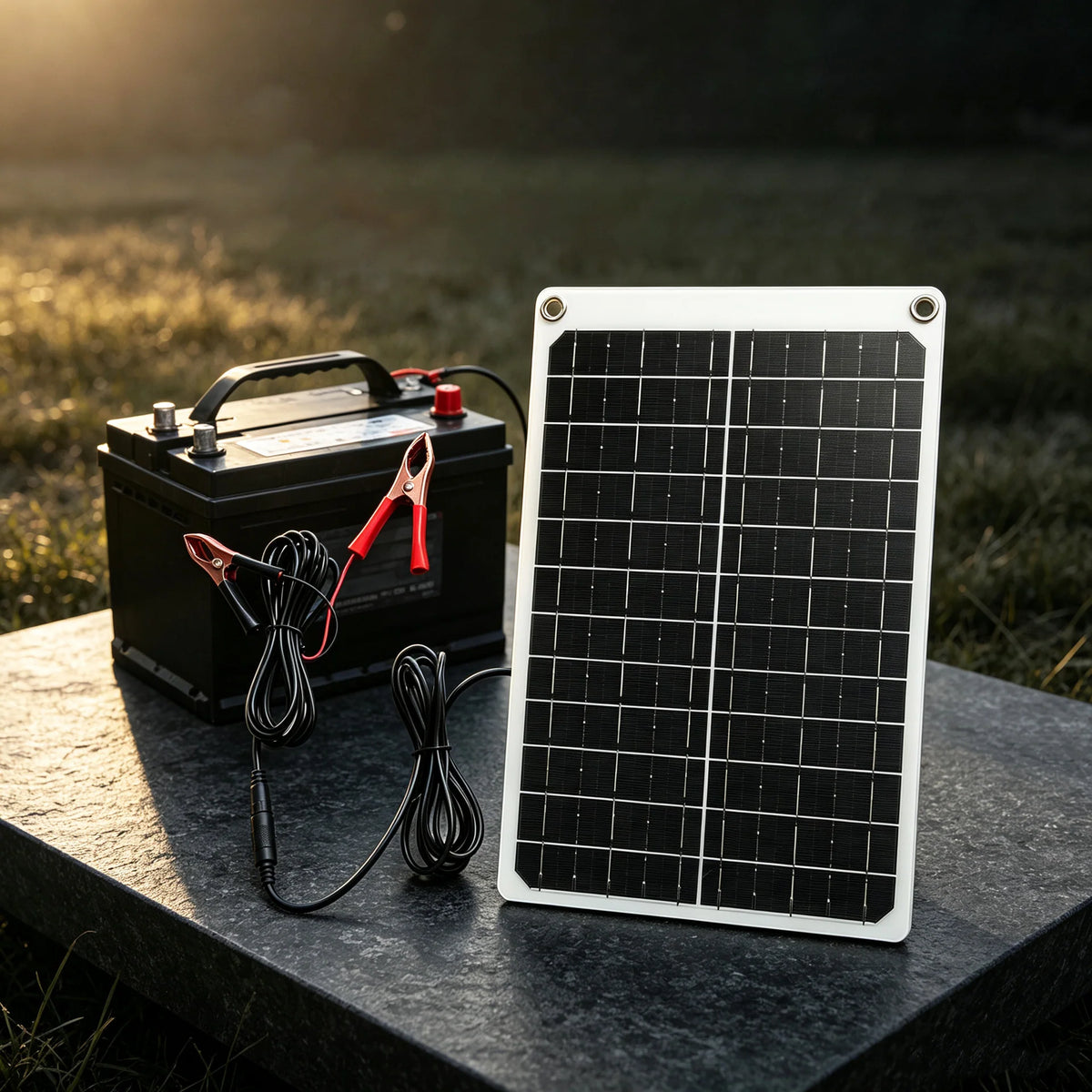

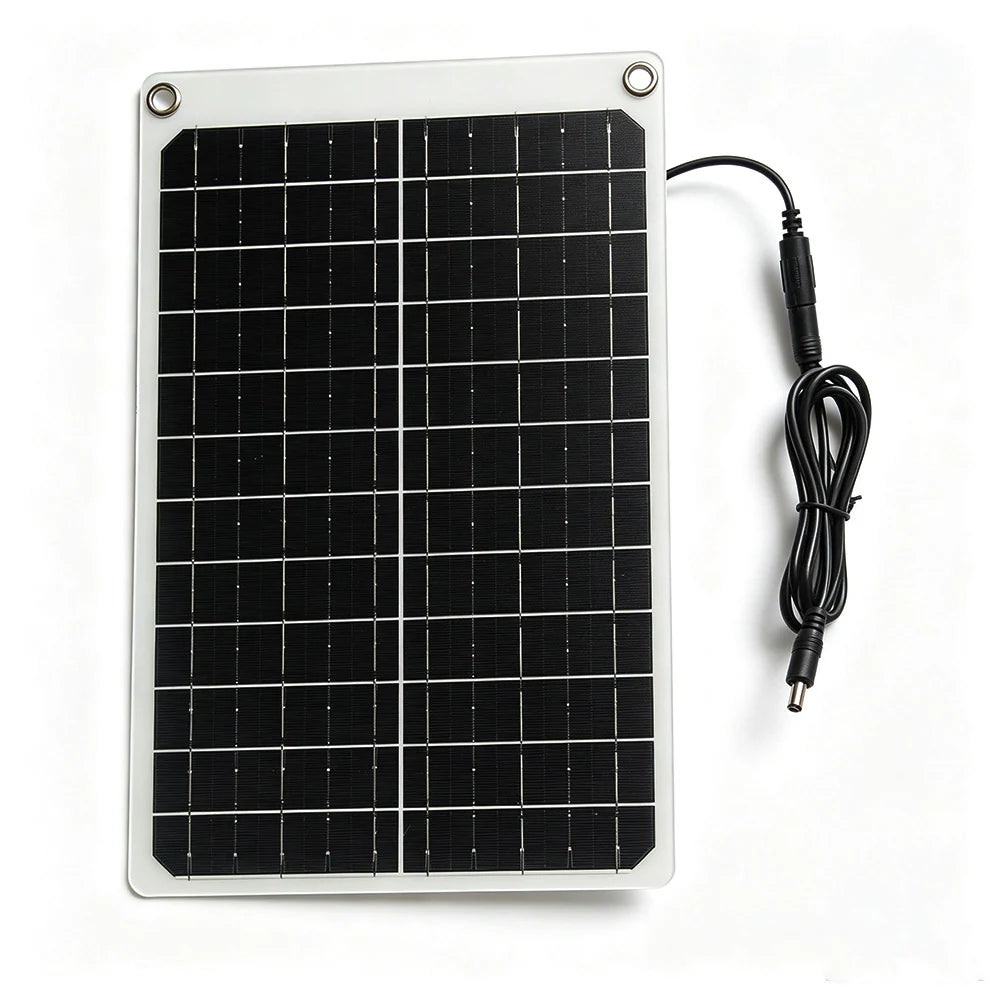

This 15W 12V flexible monocrystalline solar panel measures 315 × 200 × 15mm and has a DC5521 female output. Select the standard accessory kit, or the standard kit plus a controller rated from 10A to 100A.
The selected package is shown in the option menu. Check that the solar panel, controller and battery system are electrically compatible before connection.
Package Options

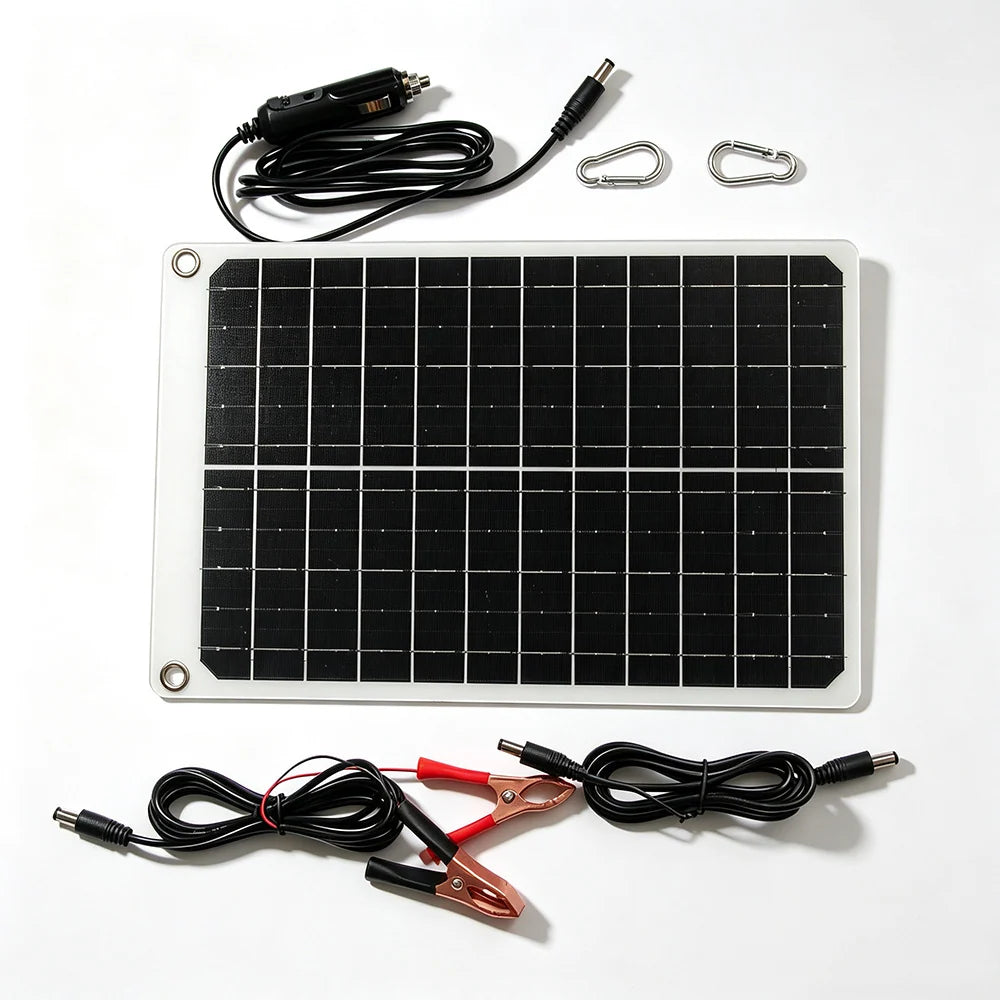

- Standard Kit: one panel, one 1m double-ended DC5521 cable, one 1.5m battery-clip lead, one 1.5m vehicle-plug lead and two carabiners.

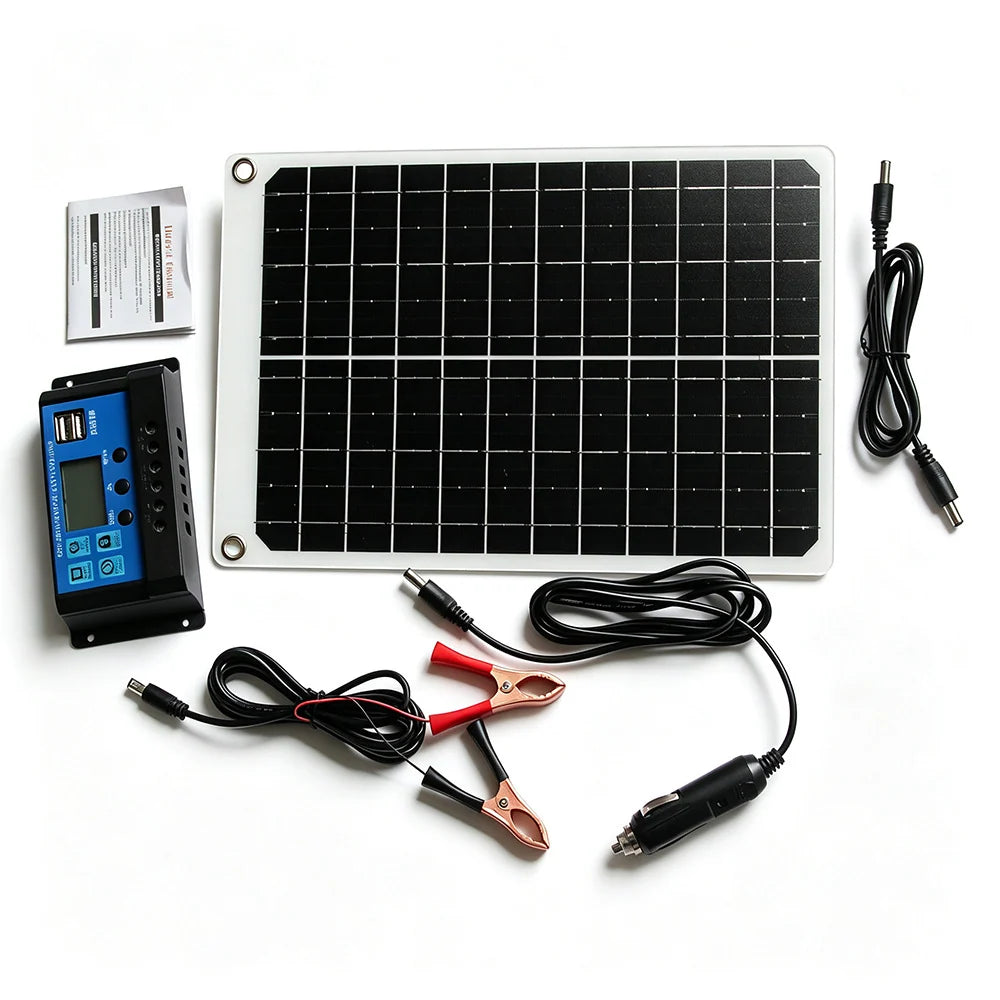

- Standard Kit + Controller: all standard-kit components plus one controller of the selected 10A–100A rating.
The controller rating names the optional controller, not the solar panel output current.
Details & Specs
| Panel rating | 15W |
|---|---|
| Working voltage | 12V |
| Working current | 0–1000mA |
| Short-circuit current | 1300mA |
| Cell type | Monocrystalline silicon |
| Panel size | 315 × 200 × 15mm |
| Panel output | DC5521 female |
| Attached lead | Approximately 1.5m |
| Panel net weight | Approximately 182g |
Key Features
- The flexible PET-laminated panel suits temporary outdoor placement.
- Choose only the leads and accessories needed for your setup.
- Two carabiners in standard-kit options provide hanging points.
- Optional controllers are offered in ten distinct current ratings.
Compatibility & Notes
Use a charge controller suitable for the battery chemistry and voltage. Observe connector polarity and all controller input ratings; a higher controller ampere label does not increase this 15W panel’s output. Actual generation varies with sun, panel angle, temperature and load. Keep connectors dry.
