0.45W 5V Mini Solar Panel - 60 x 60mm PET, 10-Pack
Product Overview

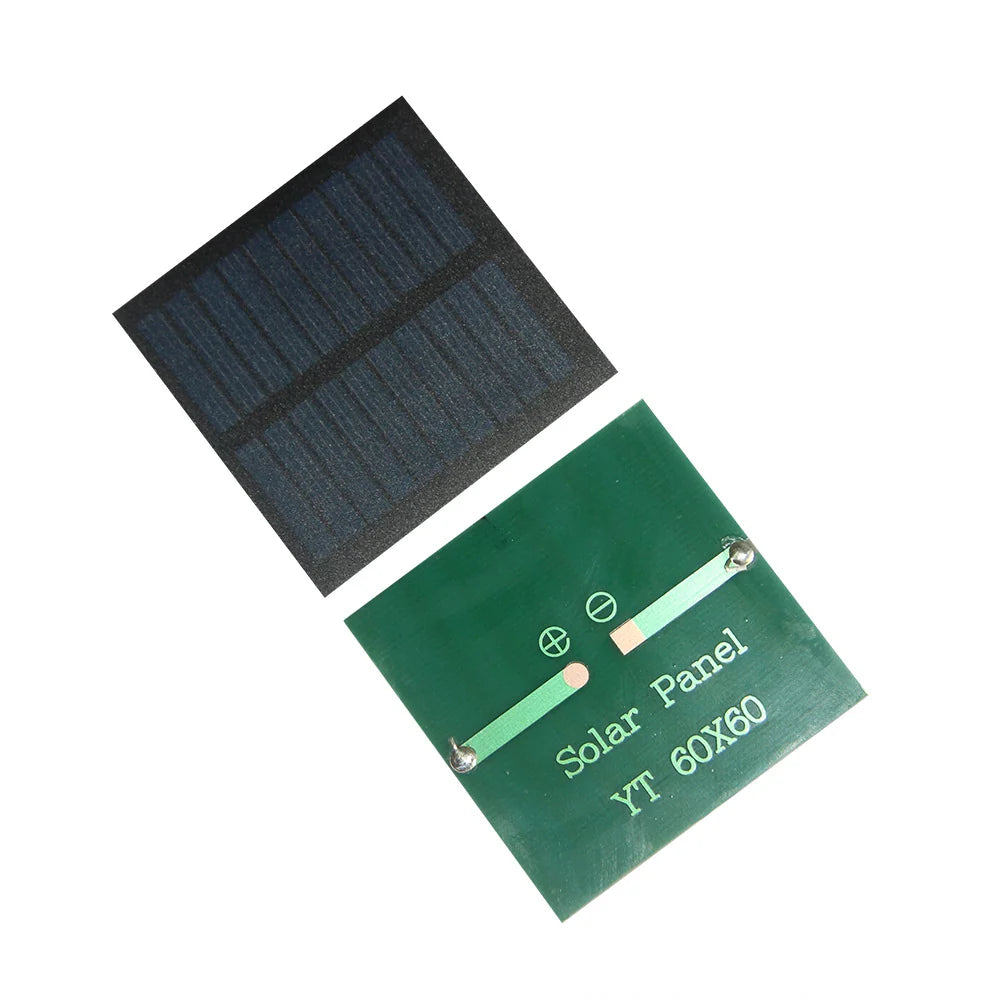

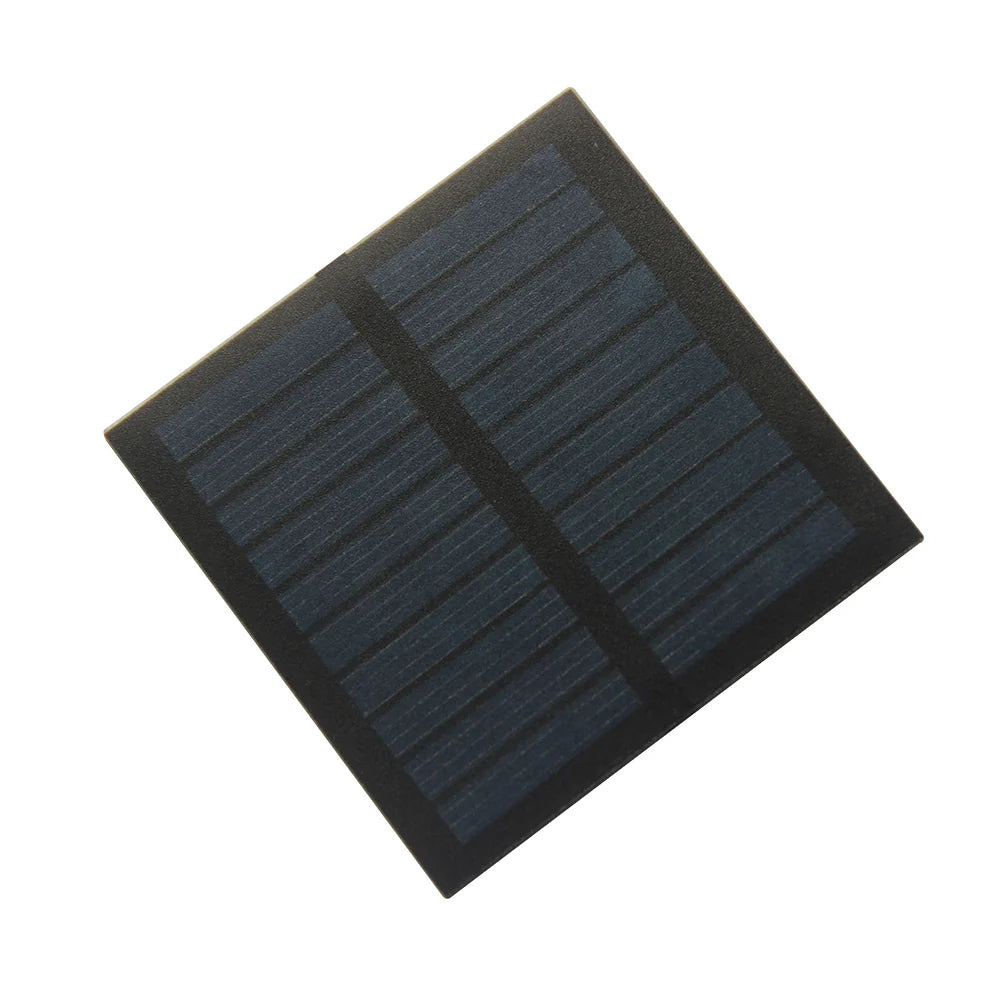

This 0.45W 5V mini solar panel is supplied as a 10-pack of individual square PET-laminated modules for small electronics builds. Each purchase includes ten panels for separate projects or matched solar demonstrations. Each polycrystalline panel measures 60 x 60mm and weighs approximately 9g, making it easy to incorporate into a lightweight model or demonstration housing.

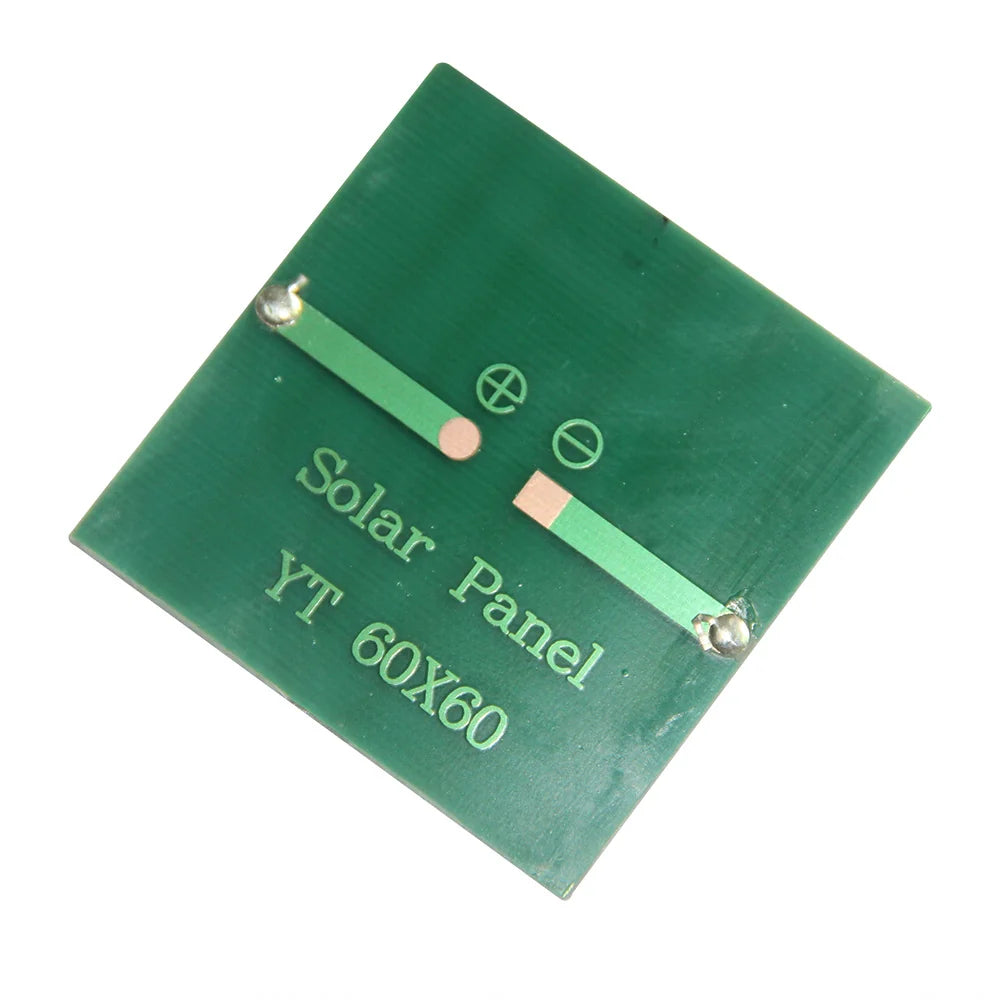

Rear positive and negative solder pads provide the connection points for project wiring. The compact board is a component for integration with an appropriate circuit.
Best For
Choose it for low-current solar learning projects, compact toy circuits and small lighting experiments whose power needs fit the module. Check the complete circuit's demand before assembly, including any motor start-up current or converter losses.
The square footprint suits small flat openings and prototype enclosures. Ten individual boards per pack let you prepare multiple assemblies with the same module specification.
Key Features
- Ten individual panels per pack support multiple small electronics assemblies with the same specification.
- A square 60 x 60mm footprint helps fit compact prototype enclosures.
- PET lamination covers the polycrystalline cell surface.
- Rear solder pads with polarity marks identify the electrical connection points for project wiring.
Details & Specs
Electrical ratings, dimensions and weight apply to each panel unless stated otherwise.
| Pack quantity | 10 individual panels per purchase |
|---|---|
| Rated power | 0.45W |
| Working voltage | 5V |
| Working current | 0-90mA |
| Cell material | Polycrystalline silicon |
| Cell conversion efficiency | Approximately 19% |
| Surface | PET laminated |
| Dimensions | 60 x 60mm |
| Weight | Approximately 9g |
| Electrical connection | Rear solder pads with polarity marks |
Compatibility & Notes
Provide suitable support for the board, connect the marked pads with correct polarity and insulate the completed joints. Protect the rear of the module according to the enclosure and operating environment.
Solar current changes with light level and panel orientation; the 5V working rating does not make this a regulated USB supply. For rechargeable batteries, add a charging circuit appropriate to the battery chemistry and voltage. Place the cell face in direct sunlight and keep it clear of shading when testing the finished project.
Package Contents
10 x 0.45W 5V mini solar panels, each with a 60 x 60mm PET-laminated polycrystalline board and rear solder pads. One cart quantity equals one 10-pack.
