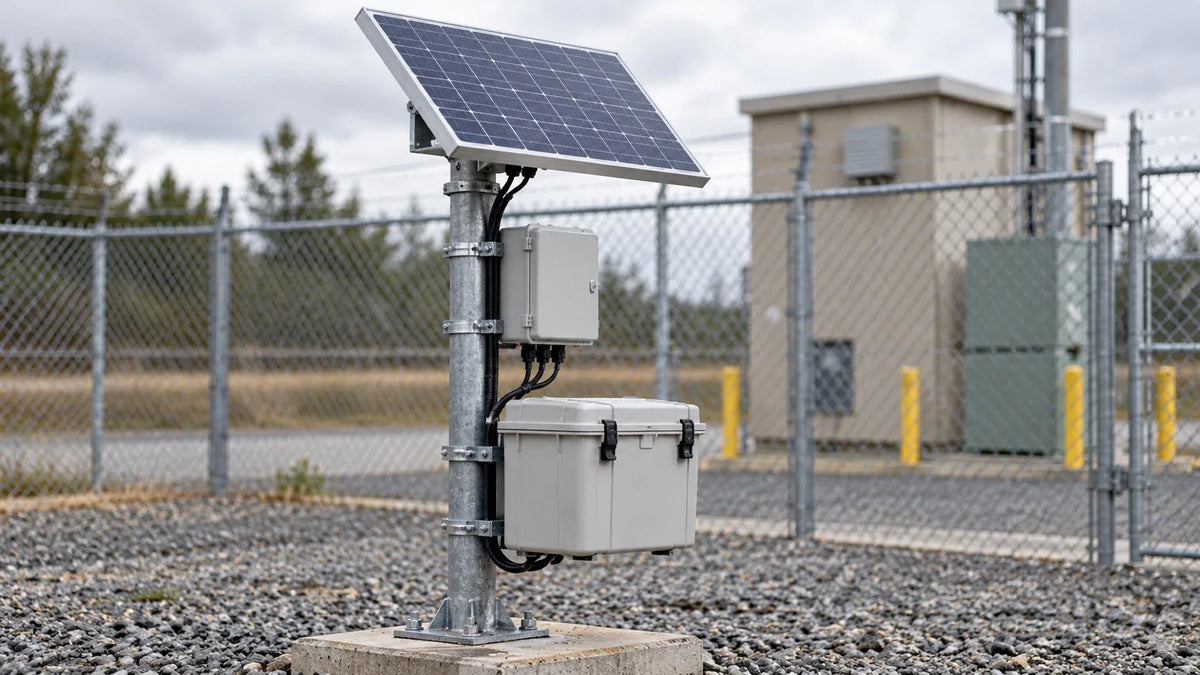

AI scenario illustration: A compact unbranded solar panel, closed controller and protected battery serve a small remote field installation. Other scene images in this guide are AI-generated too; none shows a specific product, measured output or verified connection.
Your camera needs to stay online overnight, or your garage door needs to open after several cloudy days. A solar battery kit listing gives you panel watts and battery amp-hours, but those numbers alone do not tell you whether the equipment will keep working at your site.
The purchasing decision starts with energy consumption and ends with a compatible charging path. A kit can contain suitable individual components yet still need a different panel size, battery configuration or mounting arrangement for your application.
What is a solar battery kit, and what does it include?
A solar battery kit is a coordinated set of solar generation, battery charging and storage components intended to supply a defined electrical load. The term does not establish which components are included, so the bill of materials must identify the battery, controller and load interface separately.
A standalone DC installation normally connects the panel to a charge controller, the controller to the battery, and the battery to the load through suitable protection. An AC load also needs an inverter with suitable continuous and startup ratings.
Panel watts describe power; battery watt-hours describe stored energy. Calculate energy as Wh = W × operating hours: an assumed 40 W load running for five hours consumes 40 × 5 = 200 Wh, or 0.2 kWh.
A battery supplies energy during periods when solar generation is insufficient. The explanation of nighttime solar power and battery backup covers that distinction, while the solar and battery system guide provides broader system context.
For mini solar panels with battery storage, controller standby consumption and connector compatibility deserve attention alongside panel dimensions. Plan for locally sourced batteries matched to the agreed charging specification, and identify the included hardware explicitly.
Buying checklist: which solar battery kit requirements should you confirm?
A solar battery kit buying checklist should establish daily energy demand, peak load current, backup duration and installation conditions before component selection. These requirements determine whether a proposed kit can support the actual equipment.
- Calculate daily consumption. Multiply each operating power by its daily runtime, then add the results. Include standby operation and any power conversion losses.
- Record peak demand. Obtain startup current, surge duration and acceptable input voltage from the equipment documentation.
- Choose the backup duration. State how long the load must operate with no useful solar input and whether any functions can be reduced.
- Describe the site. Provide location, winter shading, installation orientation and the battery's expected temperature exposure.
- Request compatibility evidence. Obtain component datasheets, a wiring diagram and operating limits for the proposed configuration.
For a solar powered garage door opener with battery backup, calculate motor energy per opening cycle and standby energy separately. The electric battery and wiring must also support the motor's startup current; a daily energy calculation cannot establish that capability.
A security camera has a different load profile. Recording, communications and illumination can change consumption, so use measurements or documented operating modes rather than assuming that the camera draws its lowest stated power continuously.
For cold sites, confirm the battery's permitted charging temperature and the controller's response outside that limit. The cold climate battery monitoring guide addresses the temperature checks relevant to outdoor battery operation.
Mounting requirements belong in the checklist. Solar battery brackets must match battery mass and enclosure attachment points, while panel brackets must match panel geometry and the supporting structure; the two mounting tasks require separate drawings.
Comparison: which battery capacity and system voltage fit your use case?
Solar battery kit options should be compared by usable watt-hours at the specified discharge limit, with system voltage and current capability assessed separately. Amp-hours alone cannot compare batteries operating at different voltages.
The same Penn State sizing guide sizes battery capacity using critical-month daily energy, autonomy days, system voltage and allowable depth of discharge, which ranges from 20 to 80 percent depending on battery type.
For an illustrative calculation, assume 200 Wh daily demand measured at the battery terminals, three days without useful charging and a nominal 12 V battery. Battery capacity is Ah = daily Wh × autonomy days ÷ (nominal V × allowable discharge fraction); at an assumed 80 percent discharge allowance, 200 × 3 ÷ (12 × 0.8) = 62.5 Ah.
| Assumed allowable discharge | Required nominal storage | Required capacity at 12 V | Usable energy |
|---|---|---|---|
| 80% | 750 Wh | 62.5 Ah | 600 Wh |
| 50% | 1,200 Wh | 100 Ah | 600 Wh |
| 20% | 3,000 Wh | 250 Ah | 600 Wh |
These are calculated configurations, not product offers or chemistry recommendations. Actual selection must account for the battery's documented discharge limits and capacity under the intended temperature and discharge conditions.
The same Penn State guide describes small PV systems as usually 12 V and larger systems as preferably 48 V. At an assumed 240 W electrical load, current is 240 ÷ 12 = 20 A at 12 V, versus 240 ÷ 48 = 5 A at 48 V.
Higher voltage reduces current for the same power, but voltage must suit the equipment and controller. Adding a converter introduces another component whose efficiency, standby draw and current rating belong in the energy calculation.
The Florida Solar Energy Center's batteries and charge control report, FSEC-CR-1292-01 gives design discharge allowances reaching 80 percent for deep-cycle batteries, compared with 15 to 25 percent for starting batteries.
A starting battery's amp-hour rating does not establish suitability for repeated solar cycling. A lithium battery requires charging settings and protection matched to its specific chemistry.
Sourcing assessment: what compatibility and order requirements must match?
A solar battery kit sourcing assessment must match panel voltage, controller limits, battery charging requirements and load input limits, then define the requested hardware and acceptance checks. A matching nominal voltage label does not establish a complete electrical match.
Check panel open-circuit voltage against the controller's maximum input voltage under the expected cold conditions. Check operating voltage against the controller's charging requirements, then verify charge-current limits against the selected battery documentation.
Connector appearance is insufficient evidence of compatibility. Record connector type, polarity, cable length and conductor size, and include protective devices in the wiring drawing.
For outdoor storage, enclosure selection must address cable entries, battery restraint and the battery's thermal requirements. The battery enclosure selection guide is relevant when the kit needs a separate protected storage compartment.
If a specification uses the phrase battery framework storage, replace it with a drawing that identifies the frame, enclosure and battery attachment arrangement. An ambiguous mechanical description cannot establish service access or mounting compatibility.
The sourcing package should state which parts already exist and which parts are requested. An existing battery installation may need a compatible panel and controller, while another project needs mounting hardware; specify those components individually.
When evaluating a proposed solar battery kit, compare component evidence against the same electrical specification and installation drawing. Require panel electrical data and mounting dimensions, then define how conformity will be checked; a supplier ranking cannot replace those checks.
LinkSolar is a China-based B2B supplier of custom & OEM solar panels, solar cells and mounting hardware. The purchasing specification should define acceptance checks, including dimensions, polarity and electrical output under stated test conditions.
How quickly can the kit recharge after cloudy weather?
A solar battery kit's recovery time equals the energy deficit divided by daily charging energy remaining after the operating load is supplied. A panel that barely covers daily consumption can take much longer to replenish the battery than its watt rating suggests.
Assume a 200 Wh daily load at the battery terminals, three peak sun hours daily and an overall panel-to-battery energy factor of 0.75. Peak sun hours express daily solar irradiation as equivalent hours at full reference irradiance; the assumed factor accounts for collection and charging losses in this example.
Daily charging energy is panel W × peak sun hours × energy factor. An assumed 100 W panel yields 100 × 3 × 0.75 = 225 Wh, leaving 25 Wh after the daily load; replenishing a 600 Wh deficit therefore takes 600 ÷ 25 = 24 days under constant conditions.
Under those assumptions, a 200 W panel leaves 250 Wh daily and restores the deficit in 2.4 days; a 300 W panel leaves 475 Wh daily and takes approximately 1.26 days. These are energy-balance estimates, not measured recharge times, and battery charge-current limits can extend recovery.
A shadow and solar yield calculator is useful when its output represents the actual mounting location and winter obstructions. Compare predicted daily charging energy with the operating load; a positive annual total can conceal a winter daily deficit.
For battery security camera solar panel winter shade manufacturer guidance, request supported panel input and charging limits for the specific camera. A manufacturer guide should identify whether winter shade performance represents a measured site, a simulation or an assumption before its results enter the sizing calculation.
FAQ
What is the best battery for a solar power system?
The best battery for a solar power system is a rechargeable battery whose usable capacity, charging limits and discharge current match the application. Compare documented operating limits and cycling suitability rather than choosing by chemistry name alone. Deep-cycle lead-acid and lithium options require different charging specifications.
How do I choose a mini solar panel for IoT in a cold climate?
A mini solar panel for IoT in a cold climate needs sufficient winter charging energy and electrical ratings compatible with the controller at the site's lowest expected temperature. Confirm battery charging temperature limits separately. For an assumed 5 W device running for 12 hours overnight, usable storage must cover 5 × 12 = 60 Wh before additional conversion losses.
Can a solar battery kit use a battery you already own?
A solar battery kit can use an existing battery when the controller's charging settings and the load's electrical requirements match the battery's documented operating limits. Confirm usable capacity and permitted charge current before choosing the panel and controller. Include the existing battery's documentation in the sourcing package so the proposed hardware can be assessed as a complete configuration.
Can you buy and install your own solar panels and battery kit?
Buyers can source standalone solar panels and battery kit components themselves, but installation requirements depend on system voltage, application and local rules. Confirm protection, wiring and mounting requirements before assembly. The proposed wiring diagram should identify where each protective device belongs and which installation checks require a qualified installer.
Does a larger battery solve winter shade?
A larger battery extends solar battery kit runtime during winter shade but cannot correct a persistent charging deficit. Calculate both storage autonomy and net daily recharge energy. Relocating the panel or reducing consumption can address an energy shortfall that extra storage only postpones.
