Cold-Climate Battery Performance for Transmission Line Monitoring: What Works at -40°C

Quick Answer

The Cold-Chemistry Problem

Battery capacity does not decline linearly with temperature. It falls off a cliff. For utility engineers deploying self-powered transmission line monitors across Minnesota, Alberta, or Alaska, that cliff determines whether a sensor stays online through February or goes dark for three weeks.

The mechanism is well understood. Lithium-ion cells rely on the movement of Li+ ions between graphite anode and metal-oxide cathode through an electrolyte. At -20°C, electrolyte viscosity increases and charge-transfer resistance at the electrode surface rises sharply. As a typical range, a standard NMC (nickel manganese cobalt) cell retains roughly 70% of its 25°C capacity at -20°C. By -30°C, retention drops to 45-55%. At -40°C, many commercial cells deliver less than 30% of rated capacity.

The discharge curve also changes shape. At room temperature, a LiFePO4 cell holds a flat voltage plateau near 3.2V for most of its cycle. At -40°C, that plateau collapses. Voltage sags under load, and the battery management system (BMS) may trigger low-voltage disconnect before the cell is chemically depleted. A 100 Ah battery rated for 20 hours at 25°C might deliver only 30-40 Ah effective capacity at -40°C under realistic line-monitoring loads (2-5W continuous, 15-20W peak during telemetry bursts).

Charging below 0°C carries a separate risk: lithium plating. When charging at sub-zero temperatures, metallic lithium can deposit on the anode surface instead of intercalating into graphite. This plated lithium is irreversible capacity loss. Worse, dendrites can grow and puncture the separator, creating an internal short. For this reason, cell makers limit charge current below 0°C or require active heating. A cold-climate solar system that charges a frozen battery is not just inefficient; it is destructive.

Chemistry Comparison for Cold Climates

Not all battery chemistries respond to cold the same way. Here is how the main options stack up for remote line-monitoring installations.

LiFePO4: Best Cycle Life, but Mediocre Cold Performance

LiFePO4 (lithium iron phosphate) dominates the stationary storage market for good reason. It offers 3,000-6,000 cycles, thermal runaway resistance above 270°C, and flat discharge curves. For CT-powered line monitors in moderate climates, it is the default choice.

In the cold, however, LiFePO4 struggles. Typical LiFePO4 capacity retention is roughly 75% at -10°C, 60% at -20°C, and 45% at -30°C. At -40°C, retention falls to 35-45% depending on discharge rate. The chemistry is safer than NMC at low temperatures (no cobalt, lower risk of plating-induced shorts), but the capacity penalty is real.

For line monitoring in cold climates, bare LiFePO4 is viable only if the battery bank is heavily oversized. A 100 Ah nominal bank effectively becomes 35-45 Ah in deep winter. That math works if the enclosure has space and budget for 200-300 Ah of cells. It does not work if the pole-top box is already cramped.

Low-Temperature LiFePO4 (With Heating): Performance Boost at an Energy Cost

Some manufacturers now offer "low-temperature" LiFePO4 packs with built-in silicone heating pads. These pads draw 5-15W from the battery itself or from a separate heater supply. The pack warms to 5-10°C before charging begins, eliminating lithium plating risk and restoring most of the lost capacity.

The tradeoff is parasitic load. A 10W heater running 8 hours per day during a January charging window consumes 80 Wh. For a line monitor drawing 3W continuous (72 Wh/day), the heater adds over 100% to the daily energy budget. The solar array and battery must be sized for load + heater + cold-derated capacity. A heated battery can need a substantially larger array than an unheated one; size it from your heater's actual winter duty cycle.

Sodium-Ion Batteries: -40°C Operation, Emerging Supply Chain

Sodium-ion (Na-ion) chemistry has attracted attention because its electrolyte remains fluid at temperatures where lithium-ion gels. When CATL announced its first Na-ion cell in 2021, it stated more than 90% capacity retention at -20°C.

Cold figures vary by maker, so ask for the datasheet discharge curve at your design minimum temperature. The chemistry does not use cobalt or nickel, which eases supply-chain and cost concerns. Cycle life claims range from 3,000-4,000 cycles, comparable to mid-tier LiFePO4.

The catch is availability. Sodium-ion cells in the 100-300 Ah range suitable for line monitoring still come from few makers, so confirm availability and lead time before you commit a deployment date to them.

Lead-Acid: Cheap, but Cold-Intolerant

Sealed lead-acid (SLA) and absorbed glass mat (AGM) batteries are still found in legacy line-monitoring installations because of low upfront cost. At -20°C, however, AGM capacity drops to 50-60% of the 25°C rating. At -40°C, effective capacity is 25-30%. The electrolyte approaches freezing, and internal resistance spikes.

Lead-acid also suffers from poor cycle life at partial state of charge (PSOC), a common condition in solar-powered systems during winter weeks with limited sun. In cold climates AGM banks typically need replacing much sooner than LiFePO4, and the lower purchase price can be erased by replacement labor and helicopter transport to remote tower sites. For new line-monitoring deployments, lead-acid is a false economy in cold regions.

Lithium Thionyl Chloride (Li-SOCl2): Primary Cells for Ultra-Long Life

Li-SOCl2 is a primary (non-rechargeable) lithium chemistry with the highest energy density of any commercial cell: 350-400 Wh/kg. It operates from -60°C to +85°C. Capacity retention at -40°C exceeds 80%. These properties make Li-SOCl2 attractive for sensors that must run 10-15 years without maintenance.

The limitation is obvious: no solar charging. A Li-SOCl2 pack is sized for the full design life. For a 3W line monitor drawing 26 kWh/year, a 15-year deployment needs roughly 390 kWh of primary energy. At 350 Wh/kg, that is 1,114 kg of cells. The weight and cost are prohibitive for most pole-top installations. Li-SOCl2 makes sense only for ultra-low-power sensors (sub-1W) or sites where solar panel vandalism risk makes rechargeable chemistries unworkable.

Heated Enclosures vs Buried Batteries

Once the chemistry is chosen, the next decision is where to put the battery. Two approaches dominate cold-climate line monitoring: heated above-ground enclosures and buried (ground-mounted) battery boxes.

Heated Enclosures: 5-15W Draw, Easy Access

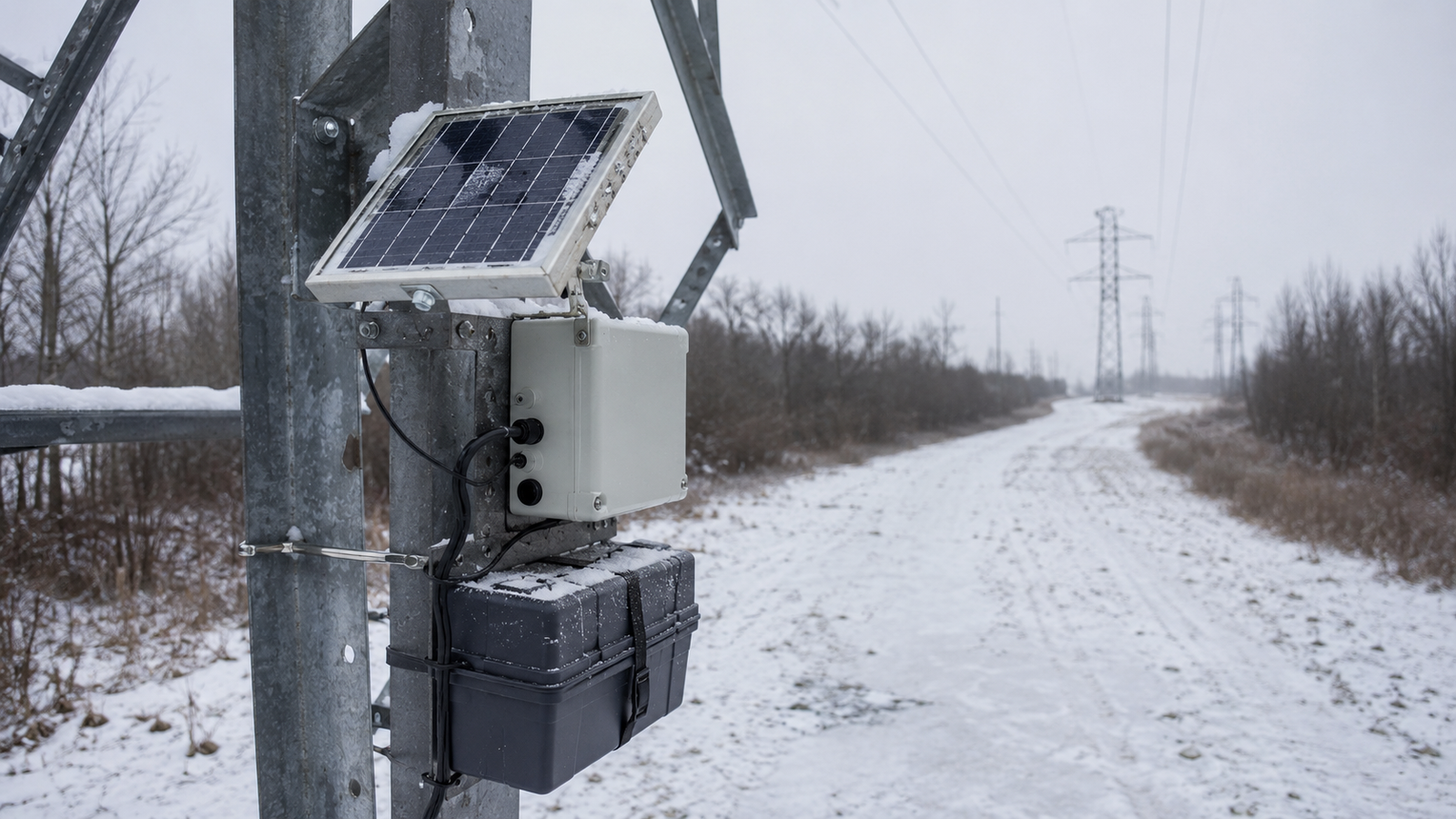

A heated enclosure mounts on the pole or tower near the solar panel and monitoring equipment. It contains the battery, BMS, heater pad, and insulation. A typical 40L enclosure with 25mm polyurethane foam insulation and a 10W silicone heater maintains an internal temperature of 5-10°C when ambient is -30°C.

The advantage is accessibility. Technicians can open the box without excavation. The disadvantage is the heater draw. During a cloudy January week in Manitoba, the heater may run 24 hours per day if the battery is not receiving enough solar to warm itself. That scenario can drain a marginally sized battery into deep discharge. Heated enclosures work best when paired with oversized solar arrays (minimum 3:1 panel-to-load ratio in winter) and a BMS that prioritizes heater shutdown below a critical state-of-charge threshold.

Buried Batteries: Stable Ground Temperature, Zero Heater Draw

Burying the battery 1 meter below ground exploits geothermal stability. At 1m depth, soil temperature in Minnesota or Alberta stays between 2°C and 8°C year-round, even when air temperature hits -35°C. The battery operates in a near-ideal temperature band without any heater energy.

The challenge is installation. A buried battery box must be watertight (IP68), rodent-resistant, and marked for future excavation. In permafrost regions (northern Alaska, Yukon), digging 1m may require thawing the active layer, which adds cost and environmental permitting complexity. Weigh that higher installation cost against the heater energy and maintenance a buried battery avoids.

For line monitoring on wooden H-frame structures without ready ground access, burial may be impractical. For guyed towers with a small equipment pad at the base, burial is often the lower-life-cycle-cost option.

Real-World Data: Capacity Retention by Chemistry and Temperature

The table below gives indicative planning values for approximate DC capacity retention at a 0.2C discharge rate relative to the 25°C rated capacity.

Indicative values for planning, not results from a single test. They vary by cell maker, discharge rate and state of charge; confirm them on the datasheet of the cell you buy.

Two patterns stand out. First, the gap between standard LiFePO4 and heated LiFePO4 at -40°C is roughly 30 percentage points. That gap justifies the heater energy cost in most deployments. Second, sodium-ion is the only rechargeable chemistry that approaches heated LiFePO4 performance without parasitic heater draw. When Na-ion supply chains mature, it will likely become the default for new cold-climate installations.

Design Rules for Cold-Climate Line Monitoring

Based on the data above, here are five design rules for specifying cold-climate battery systems for line monitoring.

1. Oversize the Battery by 2-3x Nominal

A line monitor drawing 3W continuous needs 72 Wh per day. In a Minnesota January, expect 2-3 equivalent peak sun hours from a south-facing solar panel. A 50W panel produces 100-150 Wh/day. After charge-controller losses (assumed here at about 97.5% for an MPPT unit; check its datasheet), net solar harvest is 98-146 Wh/day.

That seems sufficient. But add a 10W heater running 6 hours per day (60 Wh). Now the daily budget is 132 Wh. On a cloudy day with 1.5 sun hours, the panel delivers only 75 Wh. The battery must carry the deficit. A 100 Ah LiFePO4 at 12.8V nominal is 1,280 Wh. At -30°C with 45% retention, effective capacity is 576 Wh. That covers roughly 4 days of autonomy (load + heater) without sun. For a 7-day autonomy target common in utility specs, the bank needs to be 200-250 Ah effective, which means 400-500 Ah nominal at -30°C. The 2-3x oversize rule captures this reality.

2. Use a Low-Temperature BMS with Charge Cutoff

Any lithium battery deployed outdoors in a climate with sub-zero winters needs a BMS that disables charging below 0°C. Some low-cost BMS units only monitor cell voltage and current. They will happily charge a -20°C battery until it plates lithium internally. A cold-climate BMS should have a temperature probe on the cell surface and a hard cutoff at 0°C (or -5°C for low-temp electrolyte formulations). .

3. Heat Only During Charge Windows

The most efficient heater control strategy is "charge-only heating." The BMS activates the heater only when solar input is available and cell temperature is below the charge threshold. This avoids draining the battery to heat itself during dark hours. Compared with a thermostat that heats around the clock, charge-only heating spends far less stored energy on heat in winter.

Implementation requires the BMS to read solar panel voltage (or a charge-controller signal) and cell temperature simultaneously. Not all BMS units support this logic. For line-monitoring battery packs, specify charge-only heating as a default.

4. Size Solar for December, Not June

Solar designers often size arrays based on annual average insolation. For cold-climate line monitoring, that is a mistake. The critical design month is December or January, when sun hours are lowest and heater draw is highest. PVWatts data from NREL shows that a fixed-tilt panel in Minneapolis receives 2.3 kWh/m2/day in December versus 5.8 in June. The array must be sized for the 2.3 figure, or the system will fail in its hardest month.

5. Plan for a 10-Year Battery Replacement Cycle

Even with perfect temperature management, LiFePO4 cells degrade. Cycle depth and calendar age both wear cells down. Line monitors cycle less deeply (typically 30-50% DOD), but calendar aging still applies. Budget for a battery swap in year 10, and design the enclosure or burial vault for accessible replacement.

Sample Specs for Minnesota, Canada, and Alaska Deployments

Below are three example specification snapshots for cold-climate battery systems for utility line monitoring. These are starting points, not one-size-fits-all solutions. Custom panel voltages are quoted on your drawing; complete systems are a separate quote-to-order line.

Spec A: Minnesota (-30°C Design, Heated Enclosure)

Spec B: Southern Ontario (-35°C Design, Buried Battery)

Spec C: Northern Alaska (-45°C Design, Hybrid Primary + Solar)

These specs illustrate a key sourcing principle: the "right" battery depends on the site, not the catalog. A Minnesota wood-pole line with easy ground access favors buried LiFePO4. A remote Alaska guyed tower with no road access favors primary cells. A Canadian Hydro corridor with standardized maintenance windows favors heated enclosures that technicians can inspect quickly.

What to Specify When Sourcing

If you are writing a procurement specification for cold-climate line-monitoring batteries, include these five lines. They will filter out suppliers who have never deployed below -20°C:

1. Capacity retention at -40°C: Require a manufacturer datasheet showing discharge capacity at -40°C, not just -20°C. Many "low-temp" batteries are only tested to -20°C.
2. BMS low-temperature charge cutoff: Specify a hard cutoff at 0°C or below, with temperature sensing on the cell surface (not ambient air).
3. Heater energy budget disclosure: If the pack includes a heater, require the supplier to state heater wattage and estimated daily energy consumption at the design minimum temperature.
4. Cycle life at partial state of charge: Ask for cycle-life data at 50% average state of charge, which reflects real solar cycling better than 100% DOD lab tests.
5. Enclosure IP rating and insulation R-value: For above-ground deployments, IP65 minimum and 25mm equivalent insulation. For buried, IP68 and rodent-proof conduit entry.

Ask any supplier for test reports against the above criteria.

Bottom Line

At -40°C, battery chemistry is not a theoretical choice. It is a survival decision for your sensor network. Standard LiFePO4 without heating will leave you with 35-40% of rated capacity. Heated LiFePO4 restores performance but adds 50-100% to your daily energy budget. Sodium-ion promises the best of both worlds, but procurement teams should confirm availability first. Lead-acid is a replacement-cost trap. Li-SOCl2 primary cells solve the cold problem entirely, but only for low-power, non-rechargeable applications.

The design rules are simple: oversize 2-3x, heat only during charge, size solar for December, and use a BMS that protects against cold charging. Get those four right, and your line monitors stay online through the coldest weeks. Get them wrong, and you will be dispatching crews in January to swap frozen batteries on poles you cannot reach.
