10-Pack 0.3W Flexible Solar Panel, 1.5V Amorphous Module
Product Overview

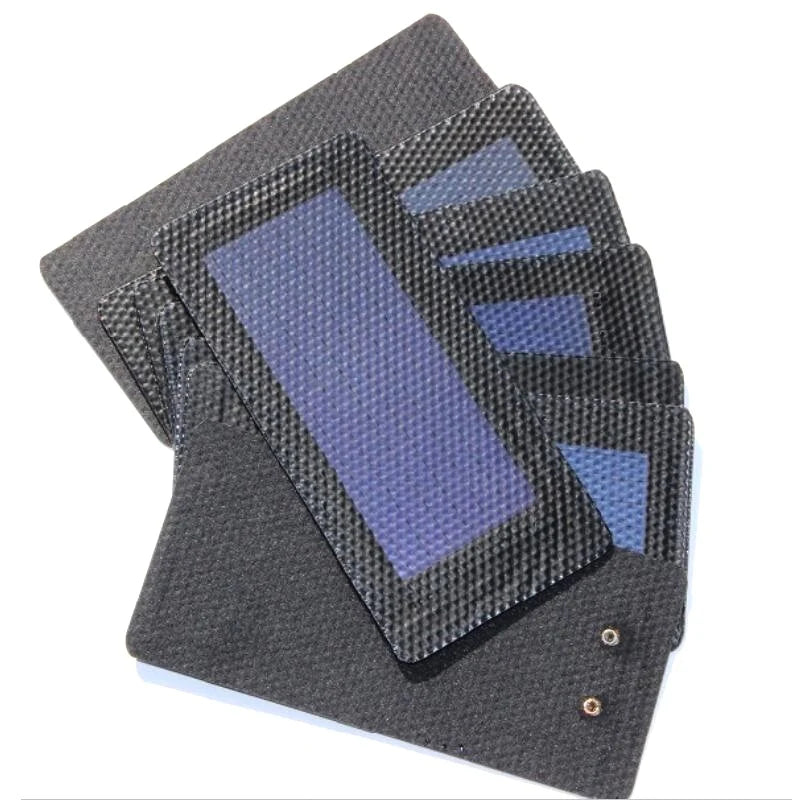

This 10-pack of 0.3W flexible solar panel modules provides ten separate amorphous silicon units, each with two rear electrical contacts. Each module measures 120 x 60 x 0.5mm and supplies 1.5V working output for a compatible low-voltage circuit. The thin-film construction, ETFE front and EVA adhesive suit custom integrations where a thin solar source is needed.
Key Features
- 0.3W triple-junction amorphous silicon module
- 1.5V working output up to 200mA
- 2V open-circuit voltage
- ETFE front film and EVA adhesive

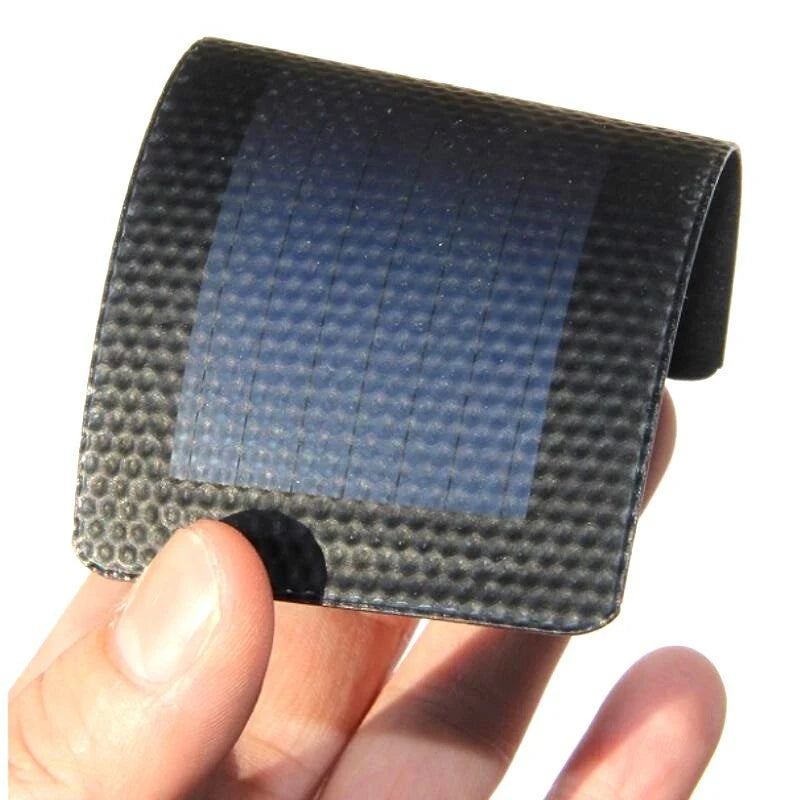

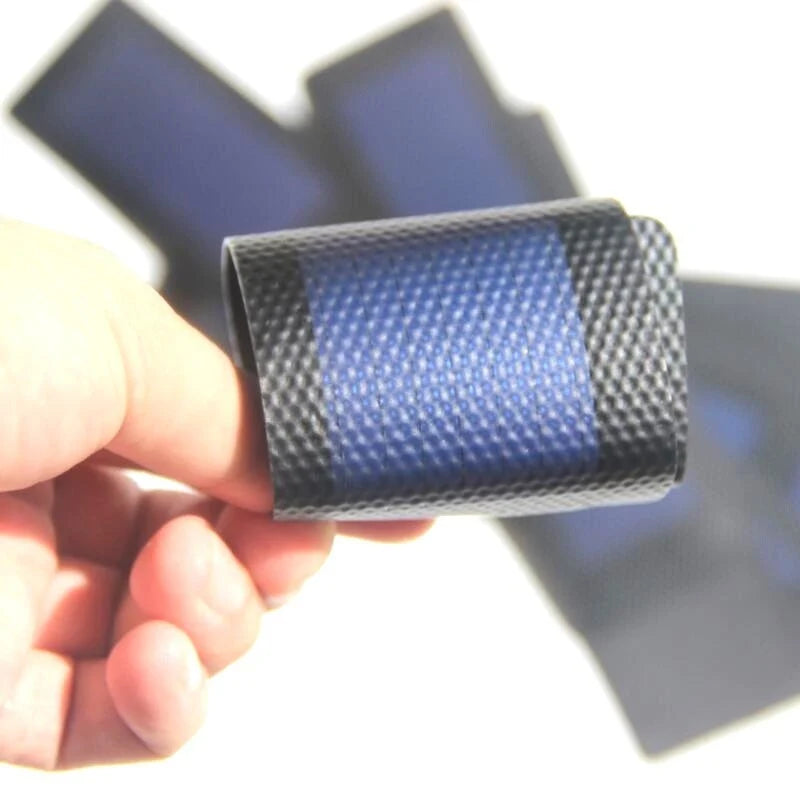

- 120 × 60 × 0.5mm flexible construction
Details & Specs
Electrical ratings, dimensions and individual panel weights apply to each panel. One purchased pack contains 10 separate panels.
| Pack quantity | 10 panels |
|---|---|
| Rated panel power | 0.3W |
| Working voltage | 1.5V |
| Dimensions | 120 × 60 × 0.5mm |
| Cell / surface | triple-junction amorphous silicon with ETFE front and EVA adhesive |

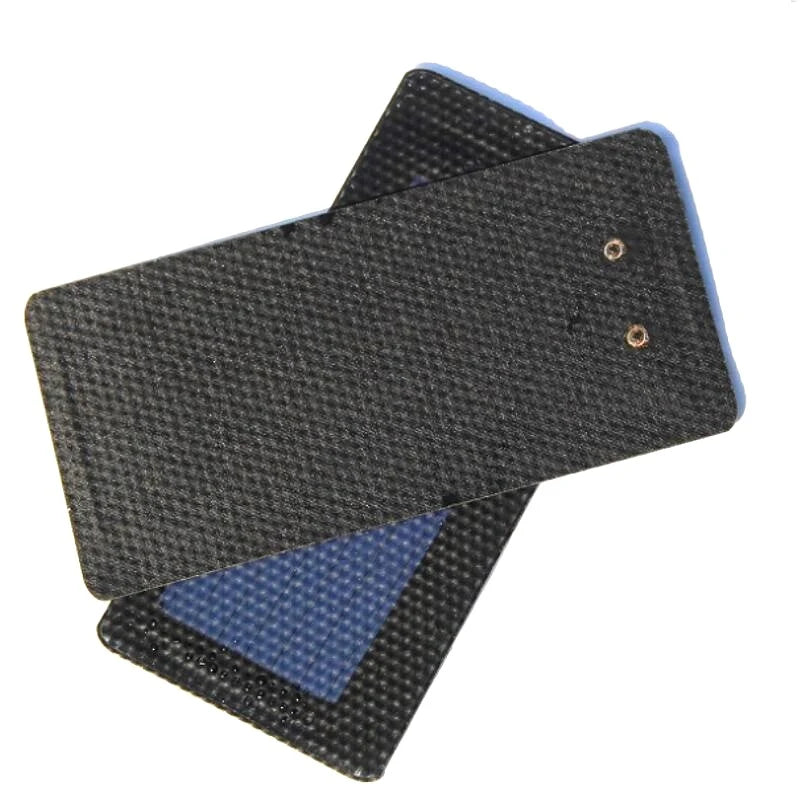

| Connection | two rear electrical contacts |
| Output current | 0–200mA |
| Open-circuit voltage | 2V |
| Short-circuit current | 220mA |
| Module weight | approximately 10g |
| Operating temperature | −40°C to 80°C |
| Electrical test conditions | 1000W/m² irradiance; AM1.5; cell temperature 25°C |
| Included | 10 unwired flexible solar modules, each with two rear electrical contacts |
Compatibility & Notes
Verify voltage, polarity and circuit requirements before wiring. Use a suitable charge-control circuit for rechargeable batteries. The module generates power in sunlight and does not store energy.
