10-Pack 0.5W Round Mini Solar Panel, 6V, 80mm with Leads
Product Overview

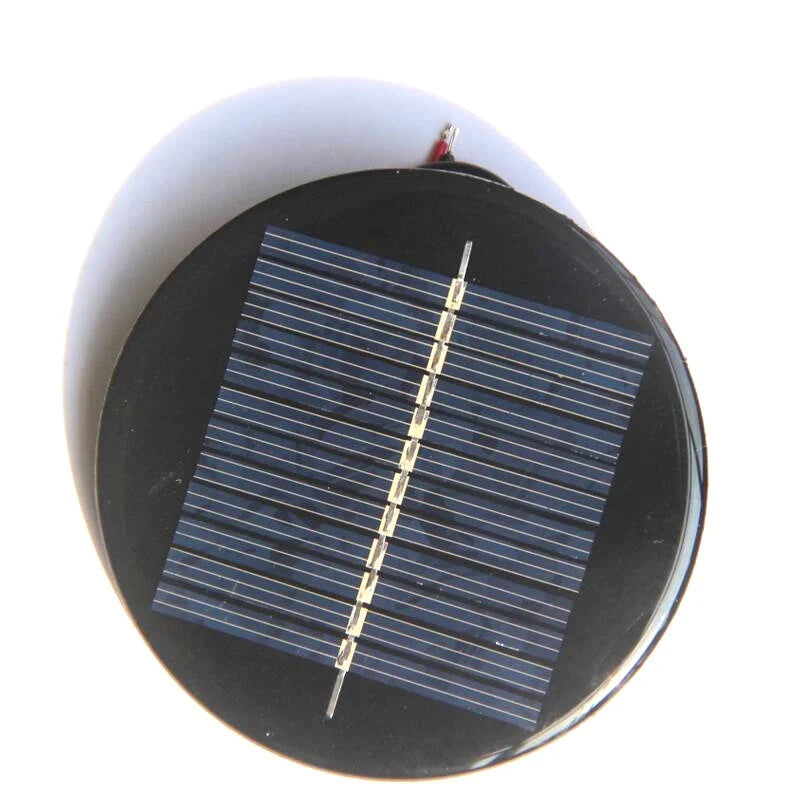

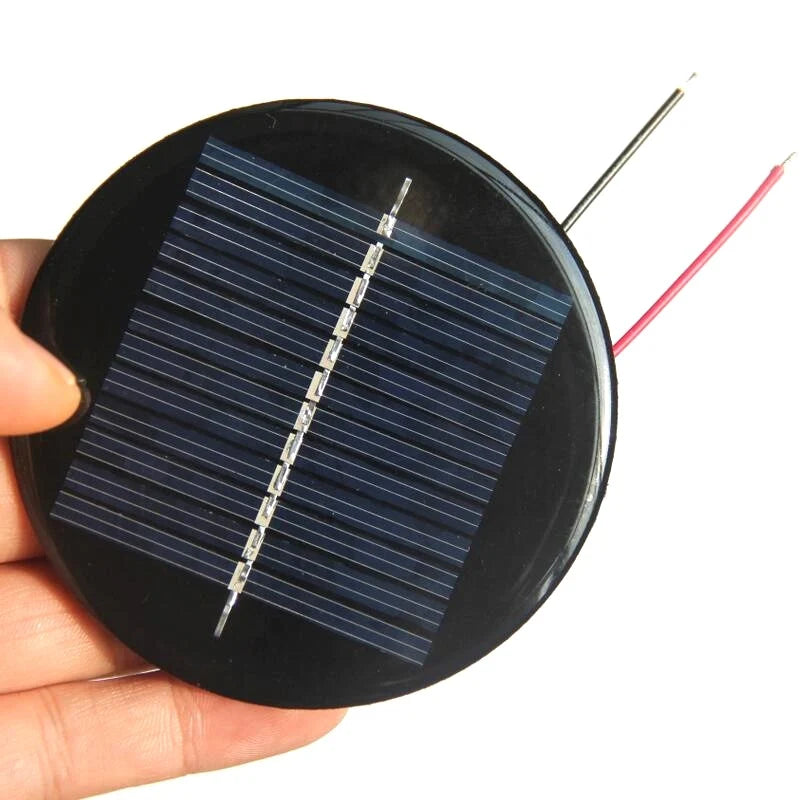

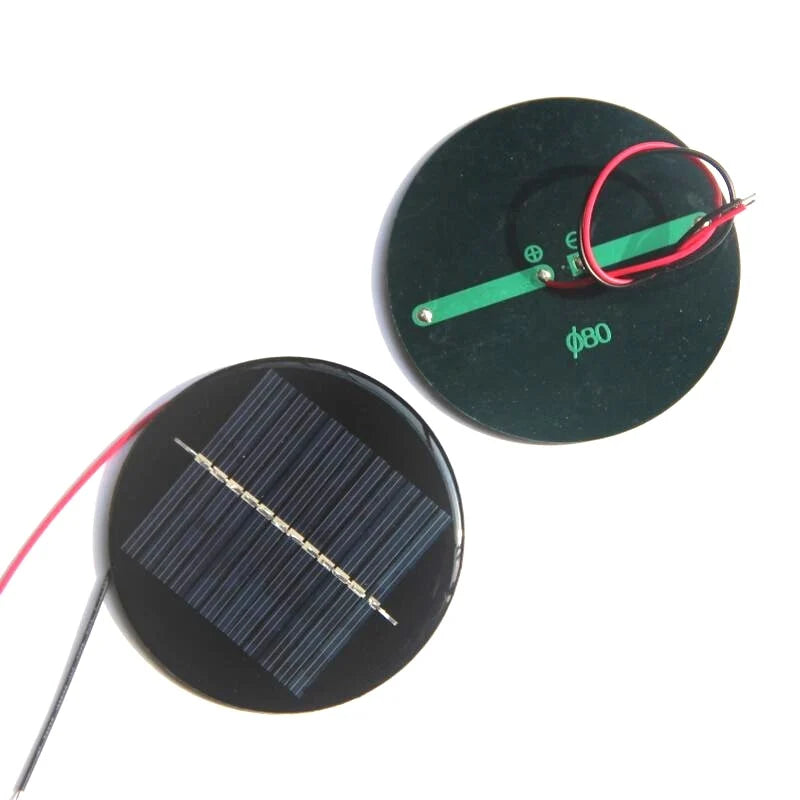

The 0.5W round mini solar panel is supplied as a pack of 10 separate modules, each providing 6V working output through attached red-and-black wires. Each 80mm circular board suits a compact round mounting space. Its epoxy-covered polycrystalline face and approximately 12-15cm leads provide a small solar source for a separately designed circuit, with control electronics selected to match the load.
Compatibility & Notes
Verify voltage, polarity and circuit requirements before wiring. Use a suitable charge-control circuit for rechargeable batteries. The module generates power in sunlight and does not store energy.
Key Features
- 80mm circular board for a compact round mounting space
- 6V working output through attached flying leads
- Approximately 12–15cm cable length
- Epoxy-covered polycrystalline cell construction
- Approximately 18g panel weight
Details & Specs
Electrical ratings, dimensions and individual panel weights apply to each panel. One purchased pack contains 10 separate panels.
| Pack quantity | 10 panels |
|---|---|
| Rated panel power | 0.5W |
| Working voltage | 6V |
| Dimensions | 80mm diameter |
| Cell / surface | Epoxy-covered polycrystalline silicon |
| Connection | Red and black flying leads, approximately 12–15cm |
| Output current | 0–66mA |
| Short-circuit current | 80mA |
| Panel weight | Approximately 18g |
| Included | 10 round solar panels, each with attached red-and-black leads |
| 10-panel pack shipping weight | Approximately 350g, including packaging |
