10W ETFE Flexible Solar Panel with USB-C and USB-A

LinkSolar  |  SKU: SP-A00162-001
$2843 USD
تُحسب الضرائب والشحن عند إتمام الطلب.


الميزات

  • 10W rated solar panel output.
  • 5V working output.
  • Dimensions: 340 × 180 × 20mm.
  • Connection: USB-C and USB-A output sockets.

Product Overview

The 10W ETFE flexible solar panel offers a single-piece cell face with USB-C and USB-A sockets. A long hanging slot and two carabiners help position the 340 × 180mm module at a sunny outdoor stop.

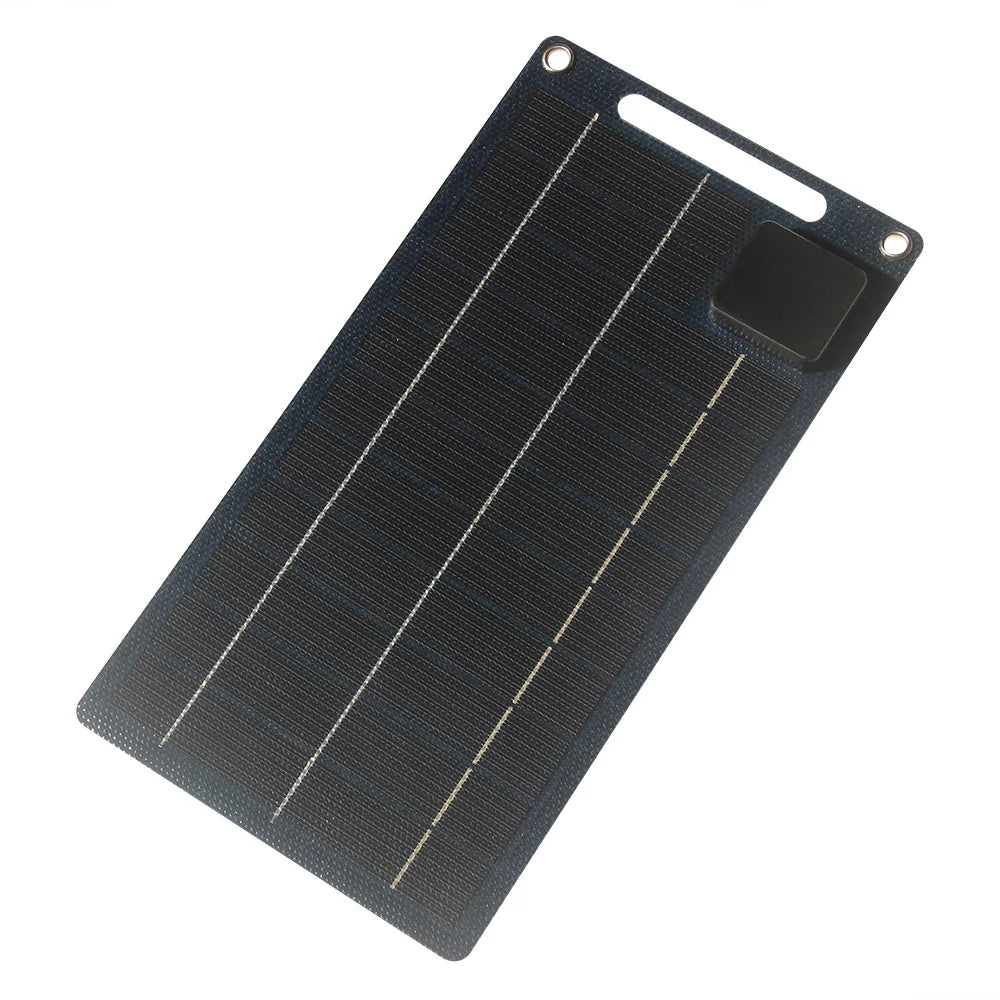

10W solar panel — flexible ETFE panel face

Details & Specs

Rated panel power 10W
Working voltage 5V
Dimensions 340 × 180 × 20mm
Cell / surface monocrystalline silicon with ETFE laminate
Connection USB-C and USB-A output sockets
Output current USB interfaces up to 2A; sunlight-limited delivery
Panel weight approximately 163g
Package dimensions 360 × 190 × 30mm
Panel surface rating IPX6; keep output ports dry
Included one flexible panel and two carabiners

Key Features

  • 10W monocrystalline module
  • USB-C and USB-A output ports
  • 5V interfaces rated up to 2A
  • ETFE front and fabric rear
  • Two included carabiners for hanging

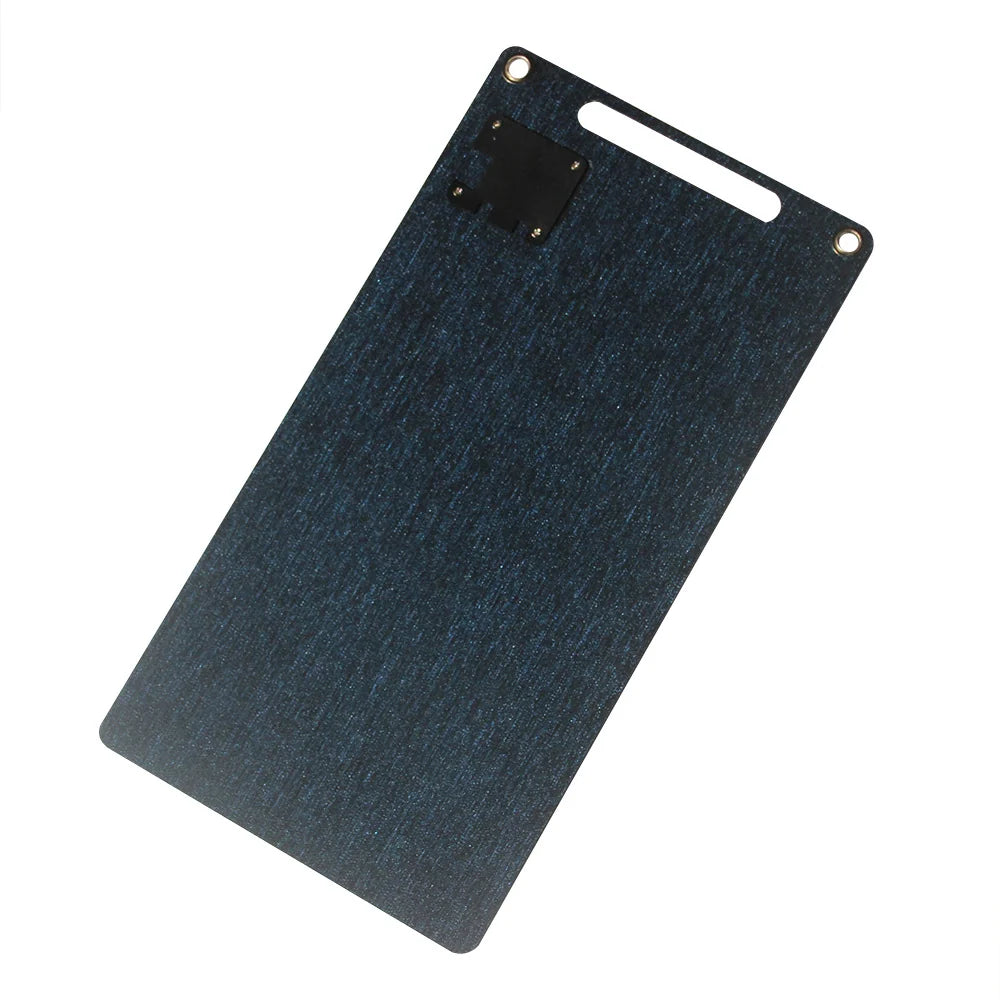

10W solar panel — fabric rear and output module

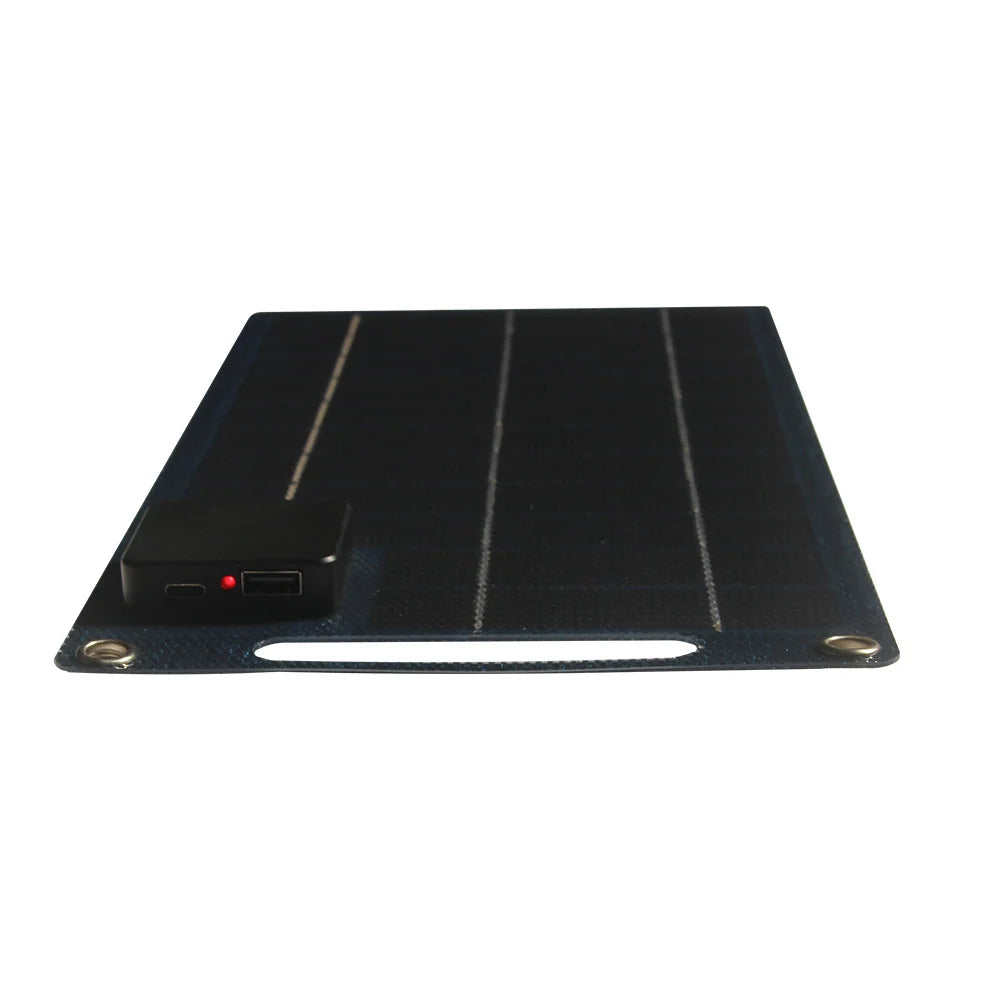

10W solar panel — USB-C and USB-A module
10W solar panel — panel with hanging clips

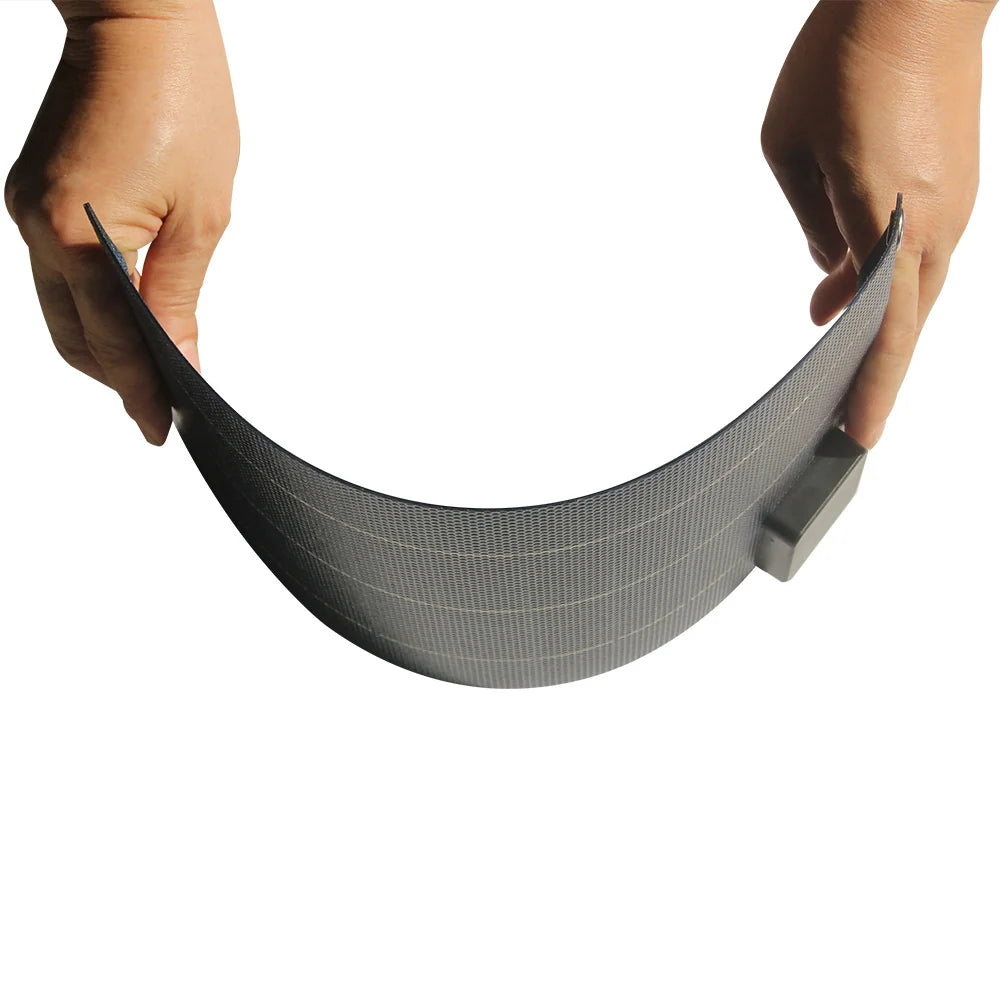

10W solar panel — panel bending demonstration

Compatibility & Notes

The panel has no built-in battery. Face it toward direct sunlight and keep ports dry. Interface ratings are limits rather than a guarantee of continuous output. Verify your device requirements before connection.

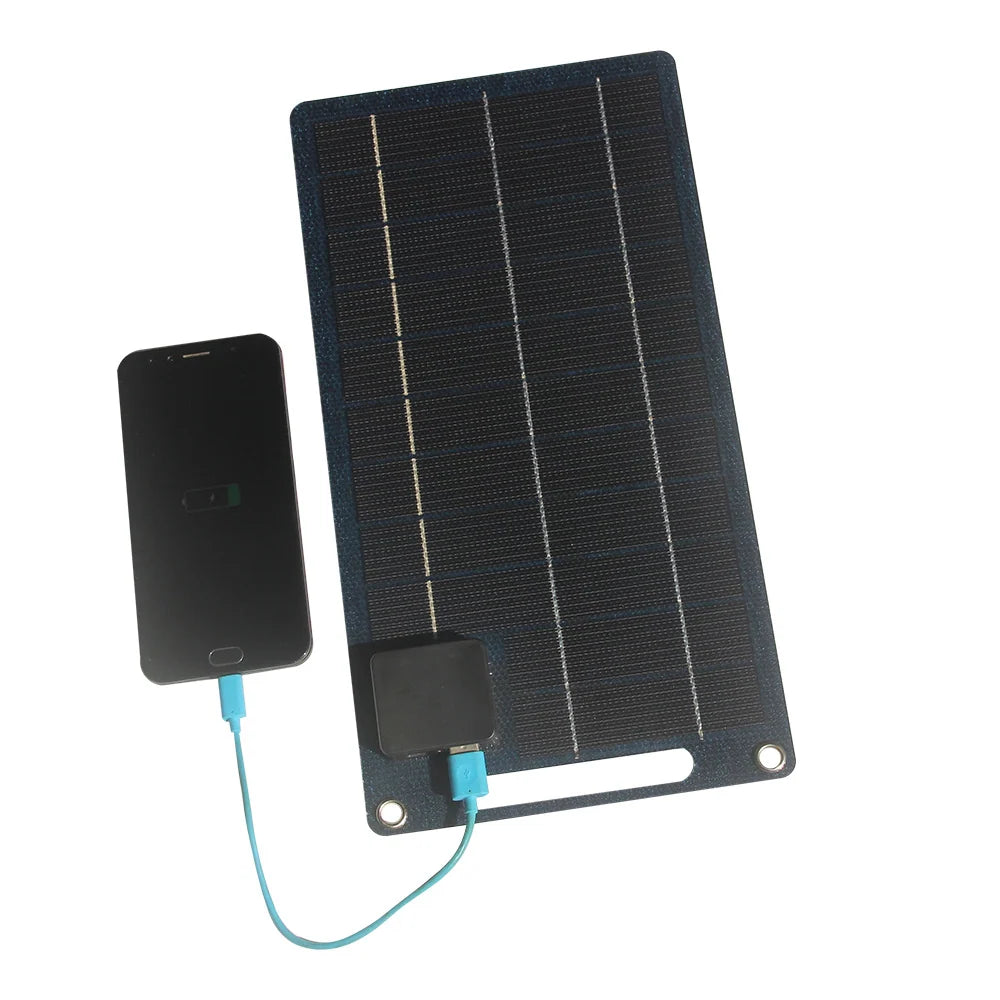

10W solar panel — phone charging demonstration
