حلول طاقة شمسية مخصصة حسب الطلب تدفع مشاريعكم إلى الأمام.

ألواح شمسية حسب الطلب وتصنيع OEM لأجهزة استشعار إنترنت الأشياء وكاميرات المراقبة ومحطات الطقس.

من النموذج الأولي إلى الإنتاج — مورد واحد، وجهة اتصال واحدة.

3.5W Camera Solar Panel with 3m Connector Options

LinkSolar  |  SKU: SP-A00125-001
$2216 USD
تُحسب الضرائب والشحن عند إتمام الطلب.


الميزات

  • 3.5W rated solar panel output.
  • 5V working output.
  • Dimensions: 150 × 130 × 2mm.
  • Connection: 3m Micro-USB, USB-C or DC5521 lead by variant.

Product Overview

This 3.5W camera solar panel offers three lead choices: Micro-USB, USB-C or DC5521. Each configuration uses a 150 × 130mm PET-laminated module with a 3m lead for positioning near a compatible 5V device.

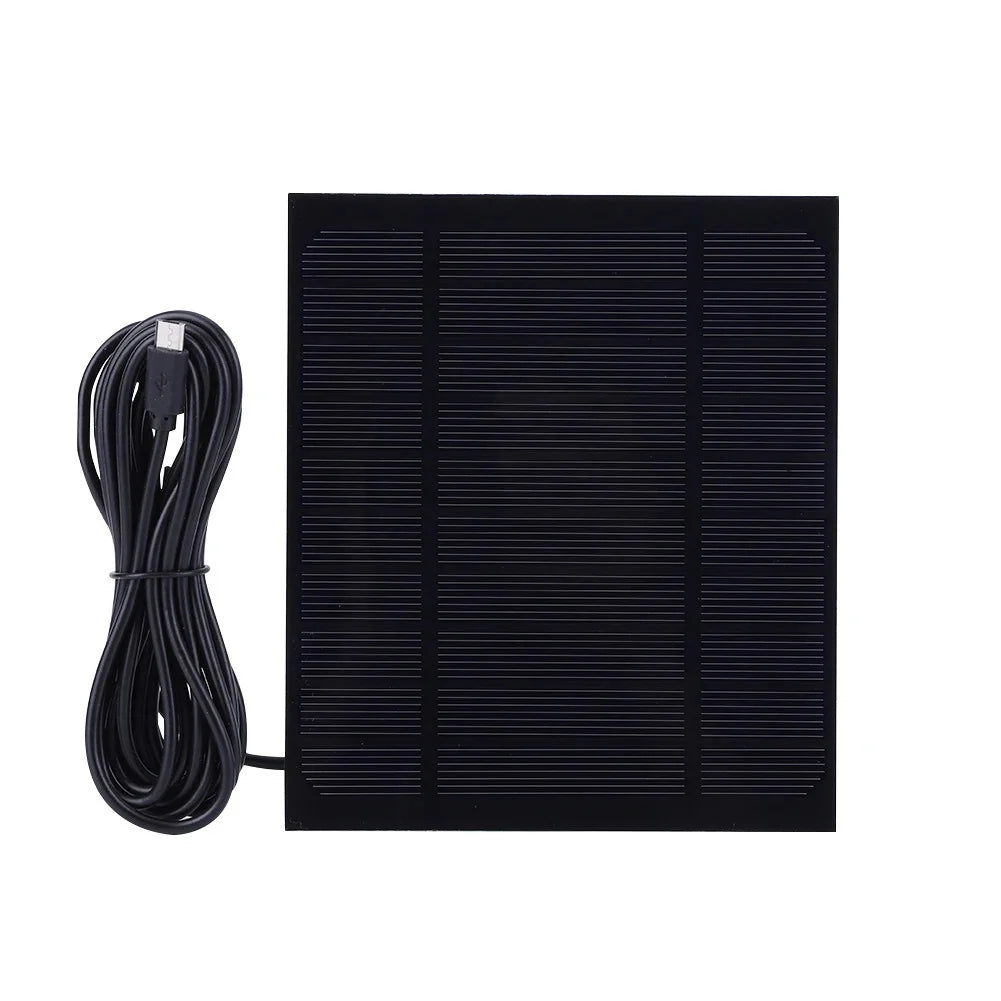

3.5W camera solar panel — Micro-USB panel

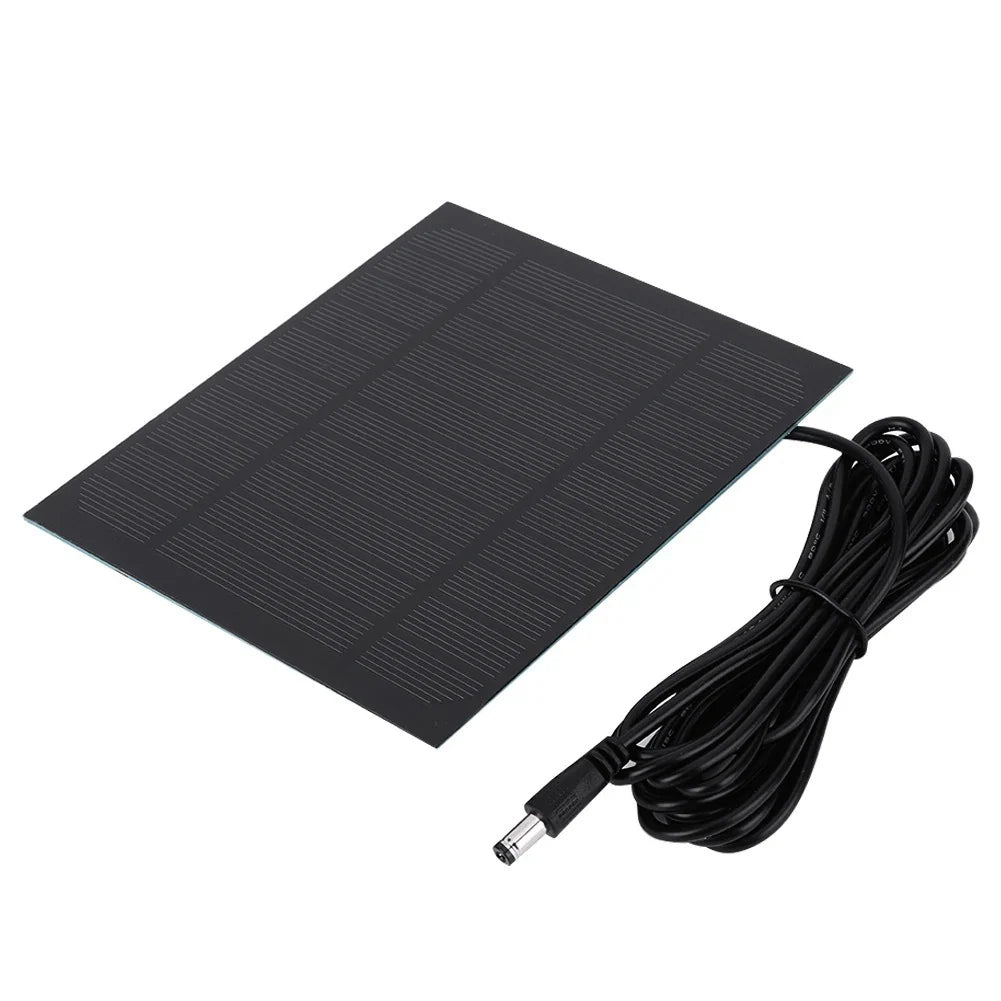

3.5W camera solar panel — angled DC panel
3.5W camera solar panel — panel with attached lead
3.5W camera solar panel — panel face
3.5W camera solar panel — angled panel face

Key Features

  • 3.5W monocrystalline module
  • 5V working output up to 660mA
  • Micro-USB, USB-C and DC5521 variants
  • 3m attached lead for each offered configuration
  • Thin 150 × 130 × 2mm panel

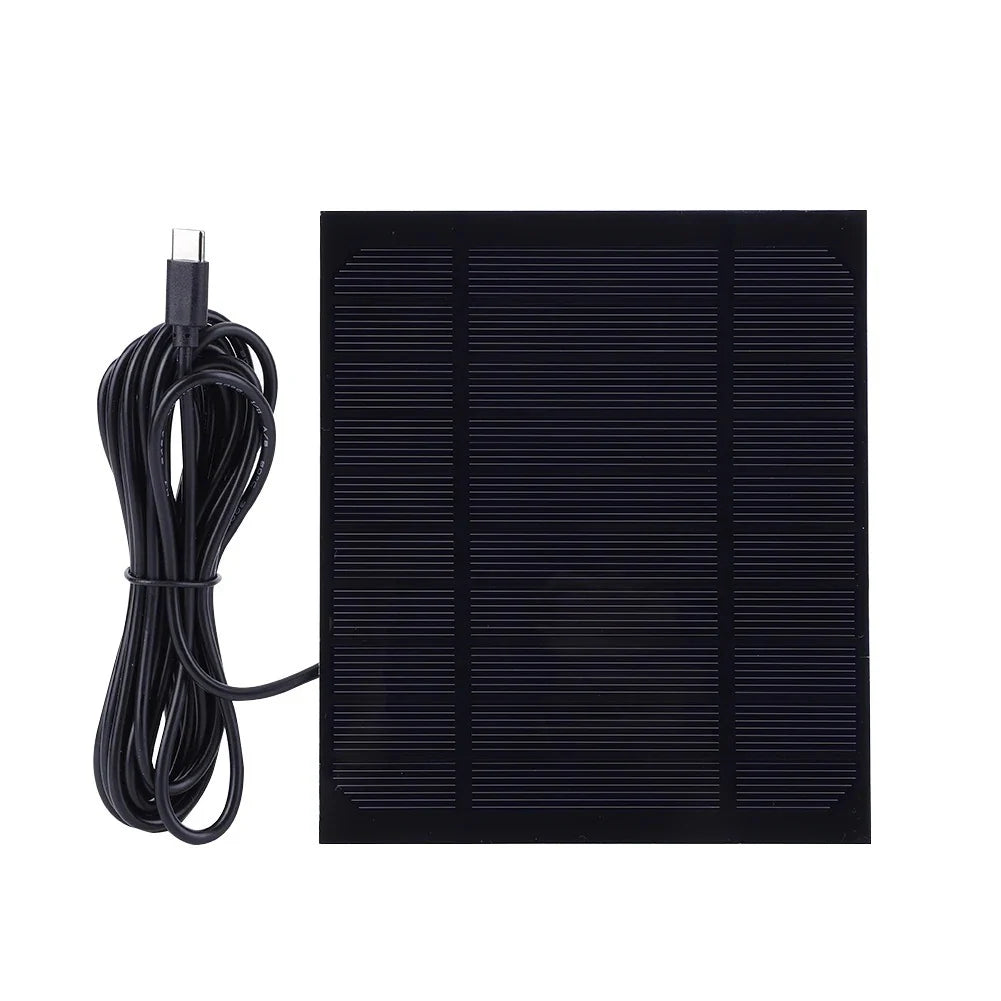

3.5W camera solar panel — USB-C panel

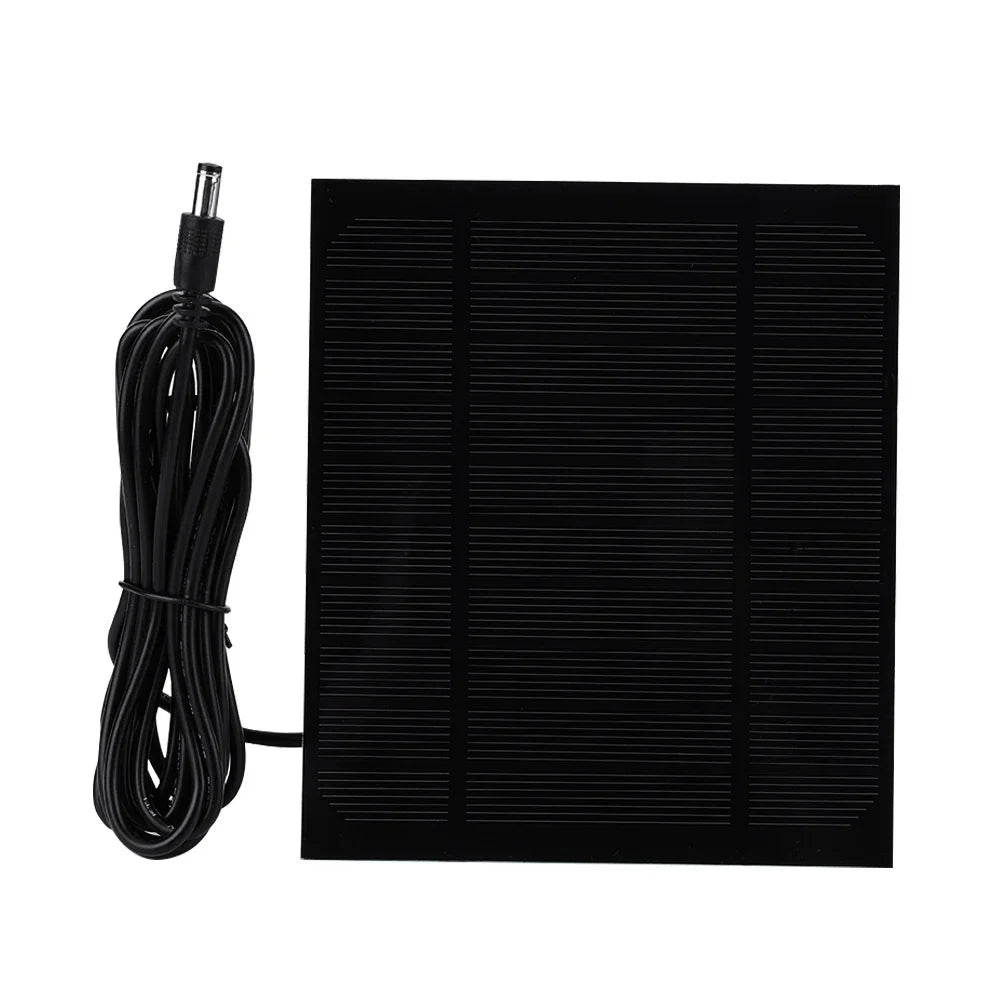

3.5W camera solar panel — DC panel
3.5W camera solar panel — rear junction box

Details & Specs

Rated panel power 3.5W
Working voltage 5V
Dimensions 150 × 130 × 2mm
Cell / surface monocrystalline silicon with PET laminate
Connection 3m Micro-USB, USB-C or DC5521 lead by variant
Output current 0–660mA
Packed weight approximately 137g
Included one panel with the selected connector lead
3.5W camera solar panel — 150 × 130 × 2mm dimensions

Compatibility & Notes

Check the exact camera input voltage and connector before selecting a configuration. Place the panel in unobstructed sunlight and secure the cable with sufficient slack for the mounting angle. Camera not included.
