80W Foldable Solar Panel with Type-C PD 60W and DC Output

Product Overview

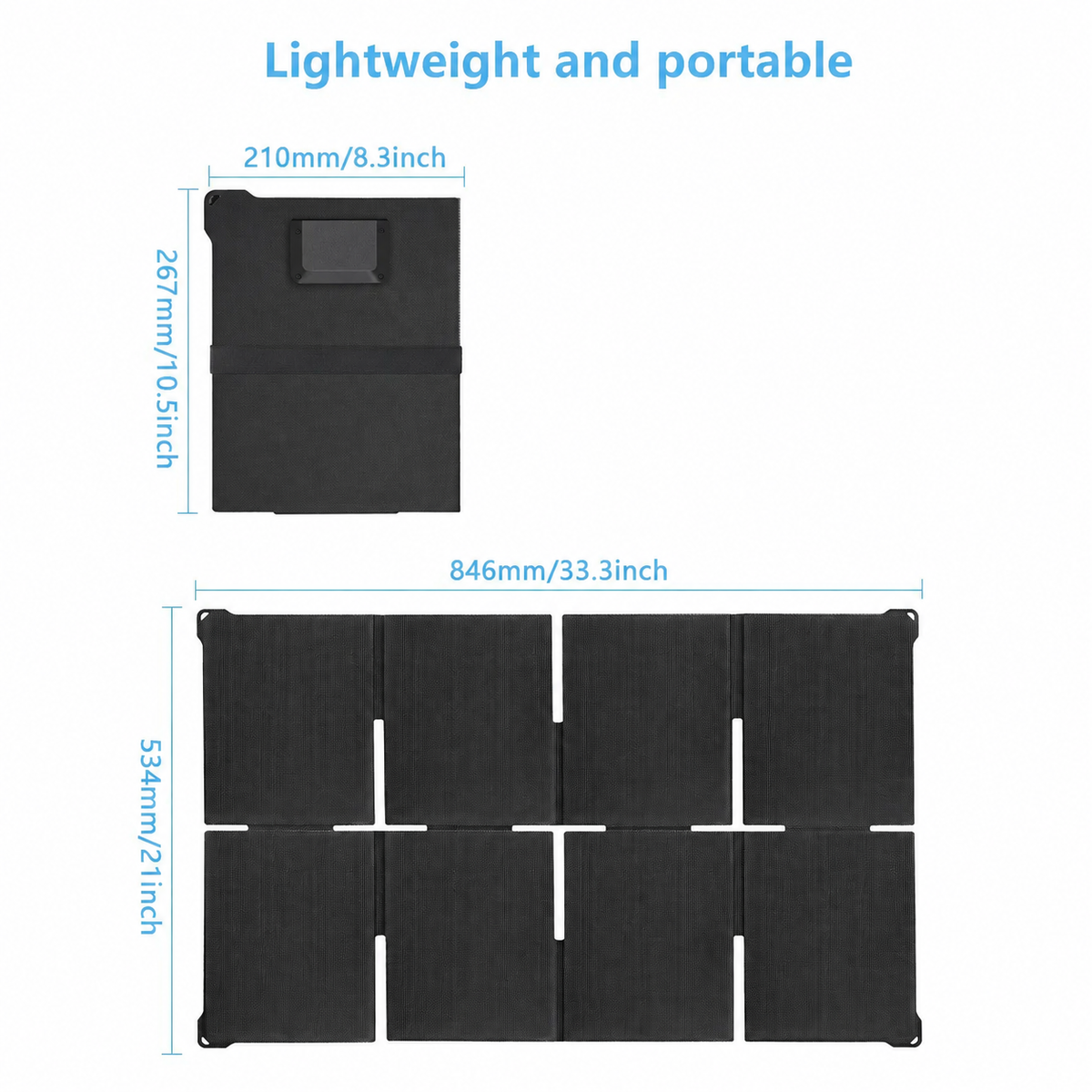

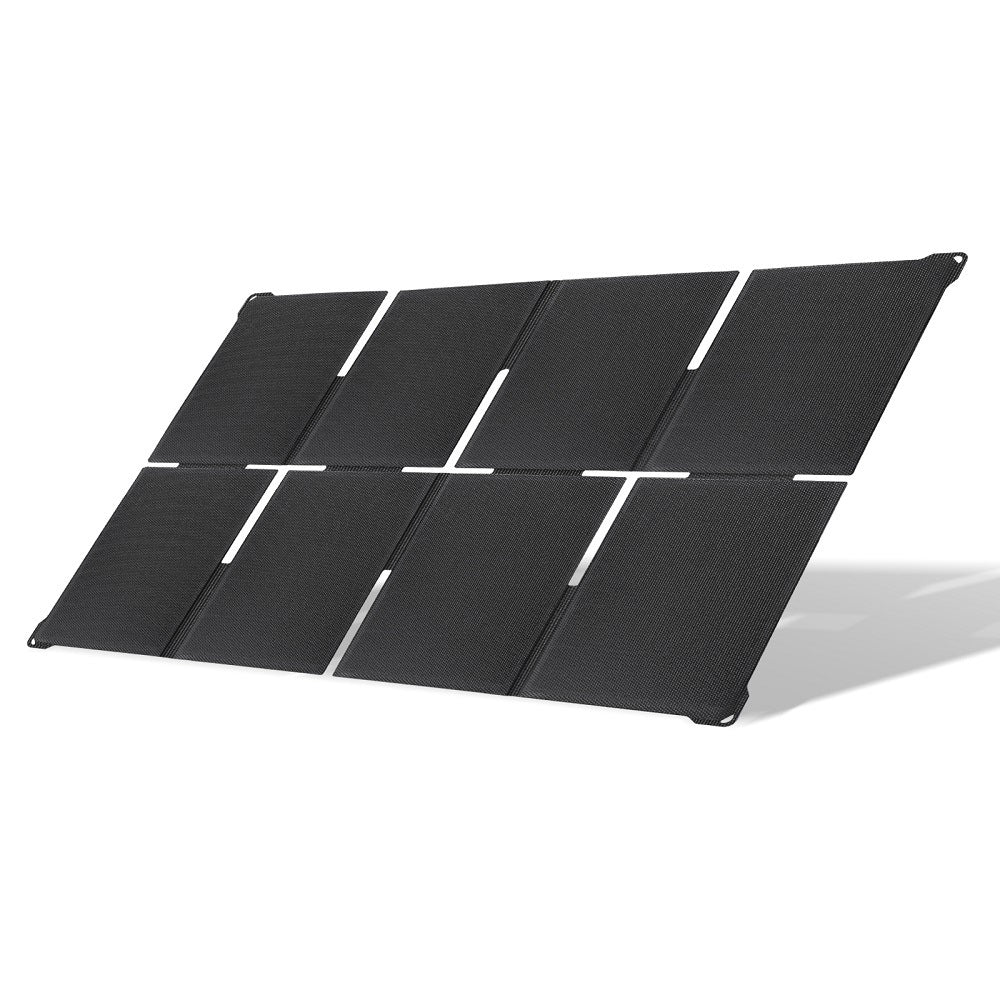

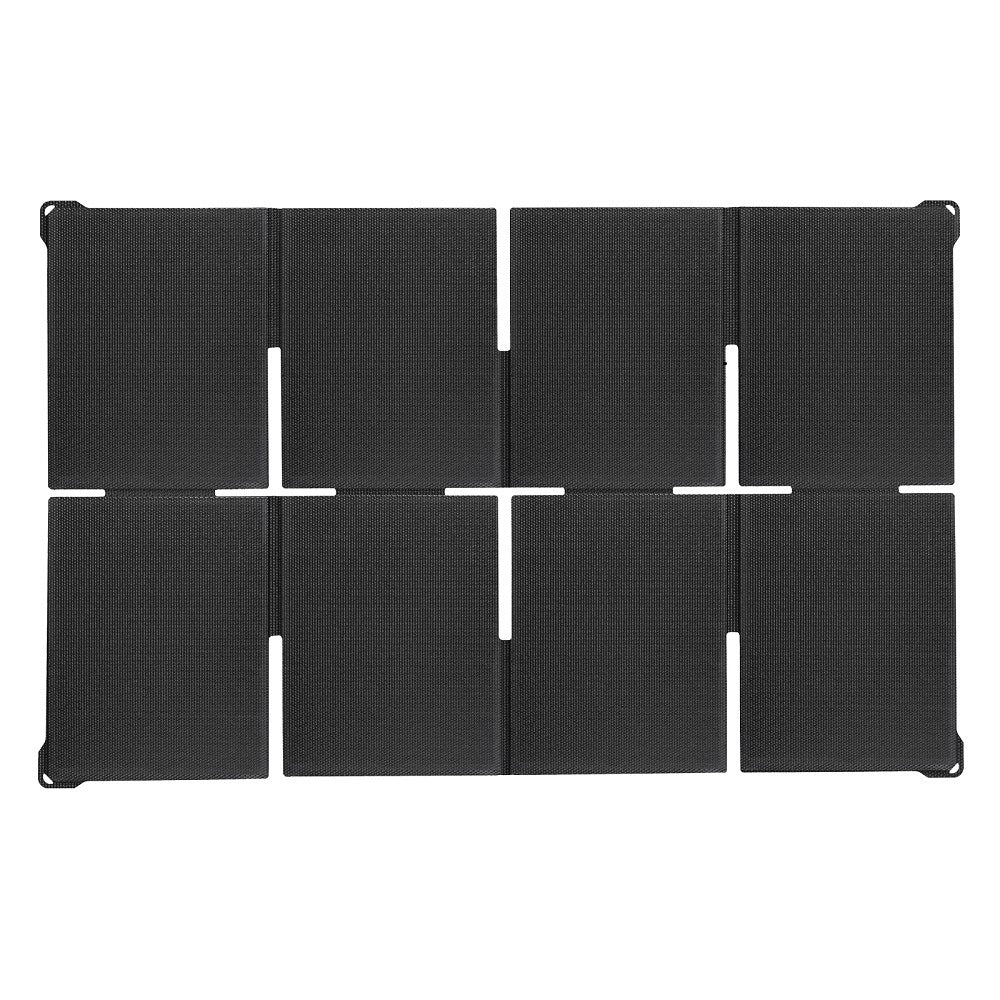

This 80W foldable solar panel provides three connection routes for an outdoor charging setup: Type-C Power Delivery, USB-A and a DC output. Eight cell sections unfold into an 846 x 534mm surface, then pack into a compact black fabric-backed assembly.

The ETFE-laminated monocrystalline construction suits portable use at a campsite or during an outdoor work stop. Choose the output that matches your device rather than treating the panel's 80W rating as the power available at every port.

Details & Specs

Compatibility & Notes

For a portable power station or DC device, check the permitted solar input voltage, current, polarity and connector before connection. A supplied adapter tip only changes the physical connection; it does not make an incompatible voltage safe. Use a suitable charge controller for battery systems.

Type-C Power Delivery needs a compatible device and cable to select higher voltage profiles. USB and DC maxima describe separate operating modes and should not be added together as a simultaneous power promise. Actual output depends on sunlight, shading, temperature and device demand.

Key Features

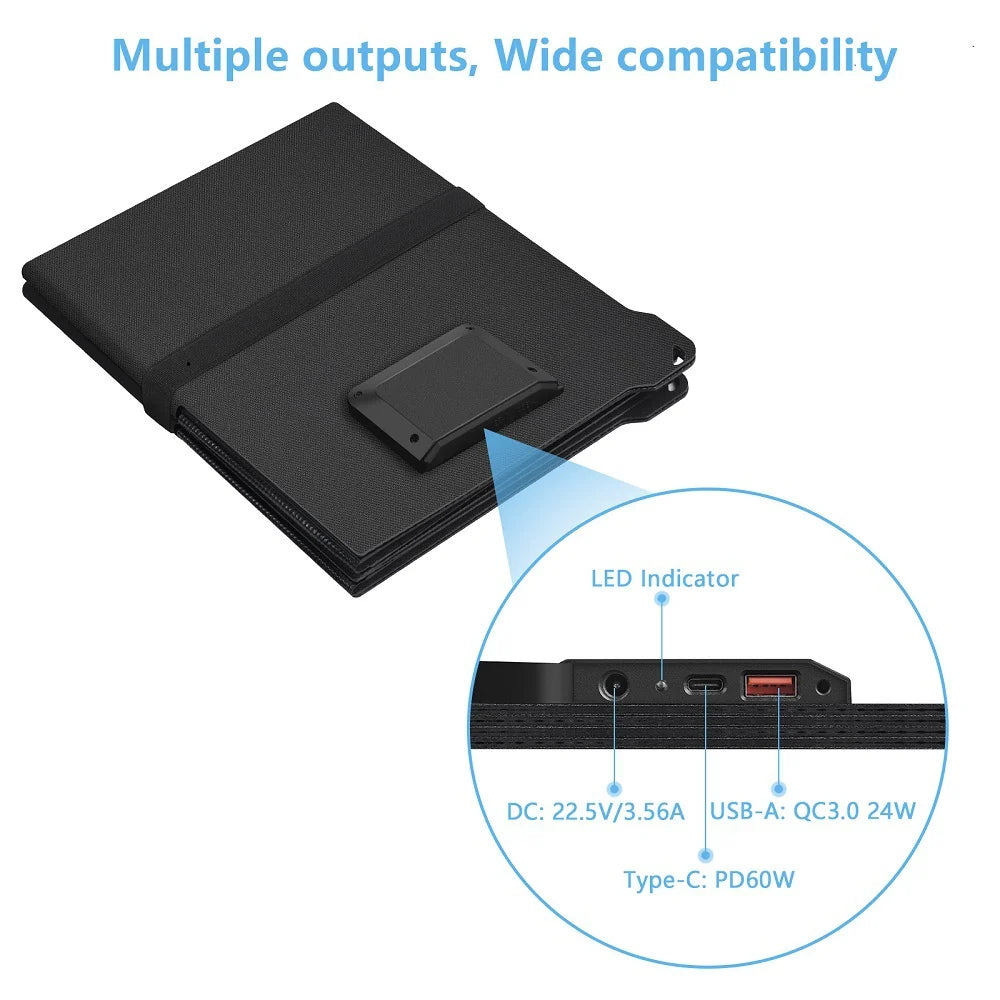

• Type-C PD supports compatible devices requiring voltage profiles up to 20V.
• The DC connection and supplied adapter lead provide options for matched portable power inputs.
• Covered sockets and a folding fabric assembly support transport and storage.
• Two carabiners attach through the hanging points for positioning on a suitable support.

Package Contents

• One 80W folding solar panel.
• Two carabiners.
• Three laptop-style adapter tips: 7909, 5525 and 35135.
• One approximately 2m DC5521 three-way lead with Anderson 30A, XT60 female and DC5521 connectors.

Keep open ports, plugs and connected electronics dry. Close unused covers, avoid submersion and fold along the intended joints without creasing the cell sections. The panel supplies energy in sunlight and does not store it for use after dark.
