Quick Answer: Choose a solar cable entry gland by the outside diameter of each cable, the number of entries and the seal against your roof or hull. Keep conductor size in mm² separate from sheath diameter, and obtain confirmation for both the cable seals and the base seal before ordering.
A product title or a waterproof claim cannot answer every fit question. The checks below turn those missing details into a parts enquiry, without treating a cable-entry accessory as an electrical box.
Manuscript last updated: October 6, 2026.
Start With the Cable Route and Number of Entries

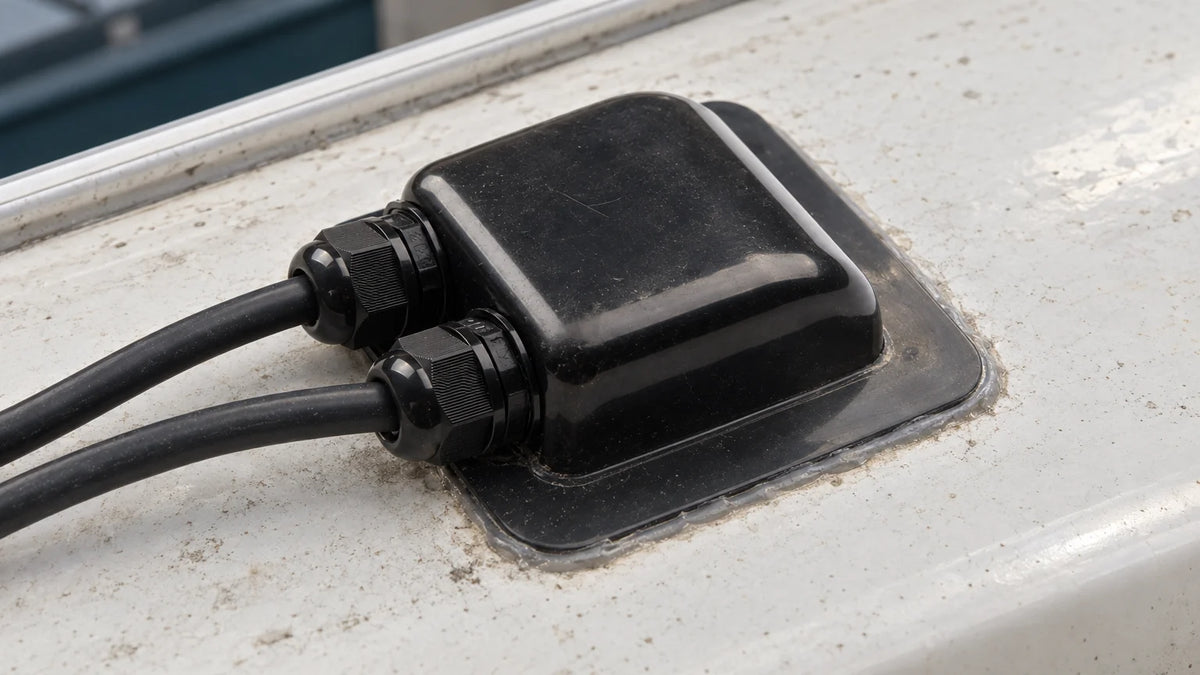

Count the cables that will actually cross the roof or hull, then check how they approach the entry. A double cable entry gland is a candidate for two cables, but the number of openings alone does not establish a suitable fit.
Record the route direction and available bend space beside the enclosure. Include a photograph or sketch showing nearby panel mounts, roof equipment and the intended cable approach; ask for the proposed model's drawing before accepting its envelope.
Keep the route description separate from electrical cable selection. This purchase check concerns the enclosure and seals around existing cables, rather than choosing conductor size or changing the solar circuit.
If an opening will remain unused, ask how that exact model closes it. Do not assume a cable seal also works as a blanking plug, or order a second opening for future expansion without confirming its closure arrangement.
Match the Seal to Cable Outside Diameter
Match each seal to the outside diameter of the complete cable sheath. Conductor cross-section in mm² describes a different dimension and cannot establish whether a seal fits around the jacket.
Give the supplier a separate outside-diameter value for each cable, including its stated tolerance where available. Keep the conductor cross-section in another field so an apparently familiar cable designation does not replace the measurement the seal needs.
A manufacturer's model specification illustrates the distinction: its DS-HD6-BLK is specified for two cables with 5–6 mm diameters. That range belongs to that model and its seal arrangement; it is not a universal range for double-entry products.
The listed LinkSolar double-entry gland needs a different clarification. Its public variant descriptions use 2–6 mm² and 6–12 mm², so the title's “2–12mm” should not be treated as a verified sheath-diameter range.
Ask for the allowable cable outside diameter for each proposed variant and each supplied seal. If the two cables differ, require confirmation for both rather than a single “fits solar cable” response.
For sample approval, compare the supplied seal identification and dimensional information with the actual cables intended for the order. A supplier's written fit confirmation should name the proposed variant, not simply repeat the product family.
Check the Roof Surface and the Base Seal
Check the cable seals and the enclosure's base-to-roof seal as separate interfaces. A suitable opening around each cable does not, by itself, establish that the base will seal against your mounting surface.
Describe the surface material, thickness, curvature and any coating. Include the roof or hull manufacturer's restrictions where available, because a generic material name leaves the supplier without the full mounting context.
Ask whether the proposed base arrangement needs a gasket, sealant, adhesive, fasteners or another specified component. Request the exact model's instructions and a parts list rather than selecting an installation material from a photograph.
| Interface | Buyer supplies | Supplier confirms |
|---|---|---|
| Cable to gland | Each sheath diameter and tolerance | Matching seal and permitted range |
| Base to surface | Material, curvature and coating | Base seal arrangement and compatible mounting materials |
| Unused opening | Required active entry count | Specified closure and supplied parts |
A mounting drawing should let you check the base position and nearby cable approach without guessing from the product image. If the surface is curved or coated, ask the supplier to address that condition explicitly in the proposed arrangement.
For the listed ABS product, roof compatibility and installation-material compatibility remain enquiry items. This guide does not establish an adhesive choice, drilling procedure or tightening torque for it.
Ask What the Waterproof Claim Actually Covers
Read a waterproof claim with its exact model and installation conditions attached. A rating for one manufacturer's assembly does not verify another enclosure, its seals or the completed penetration in your roof.
The cited manufacturer's model page identifies IP68 for its DS-HD6-BLK. Use that as a model-specific example of a documented claim, not as a rating for the LinkSolar ABS product.
Ask which assembly and components the supporting document covers, and whether the proposed seals and cable diameters match that evidence. Also request any conditions that apply to the base seal or mounting arrangement.
The manufacturer's model-specific installation instructions are useful evidence of why parts and installation conditions matter. Their procedures should not be transferred to a different product.
No verified IP rating, UV data or temperature data for the listed LinkSolar gland is established here. If these are acceptance requirements, put them in the enquiry and request applicable evidence before approving the part.
Compare the Box, Glands and Included Parts
Compare the proposed assembly and supply list, rather than judging the enclosure alone. The listed LinkSolar product describes an ABS double-entry box with two glands and two rubber seals.
Its public list does not establish an included adhesive, sealant or screw package. Ask the supplier to identify what arrives with the order and what must be obtained separately for the confirmed mounting arrangement.
Keep seal identity attached to the variant throughout the quotation. A matching enclosure color or familiar outline cannot tell you whether the supplied inserts suit both cable jackets.
Before accepting a sample, reconcile the quotation, parts list and model drawing. Note any substituted gland or seal and seek fit confirmation again, since the original answer may describe a different assembly.
For repeat orders, retain the approved variant and supplied-parts description with the purchase record. This makes an unnoticed parts change easier to identify.
Send a Complete Cable Entry Gland Enquiry
Send a compact enquiry that lets the supplier answer the fit question for a specific assembly. Start with the cable measurements and surface, then add the quantity and documents needed for approval.
| Field | What to send or request |
|---|---|
| Cables | Count; each sheath diameter and tolerance; conductor mm² separately |
| Route and surface | Approach sketch; bend space; surface material, thickness, curvature and coating |
| Assembly | Proposed variant, seals, unused-port closure and included parts |
| Approval | Drawing, mounting instructions and applicable protection evidence |
| Order | Sample and batch quantities, color, destination, required date and packaging |
Ask the response to separate confirmed fit from unanswered requirements. Unknown dimensions, protection data or mounting compatibility should remain open items rather than becoming assumptions in the purchase order.
Use the solar accessories collection to compare the listed options, then request a quote with the outside diameter of each cable, cable count, roof material, mounting arrangement and quantity. LinkSolar is a sourcing partner; model-specific suitability still needs confirmation.
Solar Cable Entry Gland FAQ
Is cable outside diameter the same as mm²?
No. Outside diameter measures the complete cable sheath; mm² describes conductor cross-section. Send both values in separate fields, and ask the supplier to confirm each seal against the actual jacket diameter and tolerance.
Should I buy a single or double entry?
Start with the number of cables crossing the surface and their approach. Confirm a suitable seal for every cable. If a double-entry model has an unused opening, request its specified closure instead of assuming it seals without a cable.
Can the entry enclosure replace a junction box?
A cable-entry accessory provides a passage and sealing arrangement. Do not treat it as an electrical junction box or string combiner. Any required electrical connection or protection function needs its own suitable component and documentation.
What should I send for fit confirmation?
Send each sheath diameter, tolerance, cable count, route sketch and mounting-surface details. Add the proposed variant, quantity and required documents. Ask for a written answer covering both the individual cable seals and the base-to-surface seal.
