PERC Solar Cells: Meaning, Performance and Buying Decisions

작성자: Dean D.  •   읽는 시간 8분

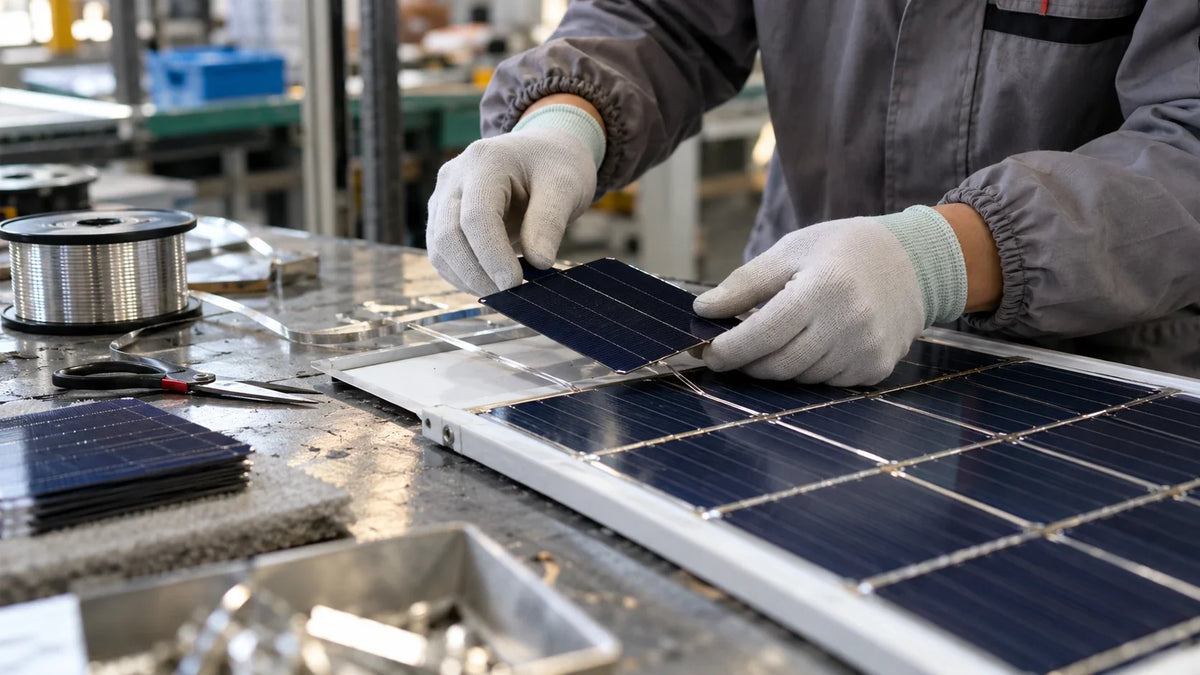

A technician handles silicon solar cells beside a partially assembled photovoltaic module.
PERC solar cells are silicon photovoltaic cells with a passivated rear surface that reduces charge-carrier recombination and helps recover light otherwise lost at the back. Compare actual output using power = irradiance × cell area × efficiency. PERC, TOPCon and module construction describe different attributes, so the technology label alone cannot settle a purchase.

Your panel drawing fixes the available area, but the cell options carry different technology labels and efficiency figures. Choosing PERC solar cells means understanding what the rear-surface design changes, then checking whether that advantage survives the electrical layout and packaging of the finished panel.

What does PERC solar cells mean?

PERC is a silicon solar-cell architecture commonly expanded as Passivated Emitter and Rear Cell. The governing power relation is P = G × A × η, where G is incident irradiance, A is the stated cell area and η is conversion efficiency under the same test conditions.

Passivation reduces the rate at which electrons and holes recombine before the electrical contacts collect them. The rear structure also helps reflect some light back into the silicon, giving that light another opportunity to generate electrical charge.

A conventional silicon cell already converts light into electricity through a semiconductor junction. PERC modifies the rear interface; the label does not specify the dimensions, electrical output or construction of the complete panel.

According to the U.S. Department of Energy's photovoltaic cell basics guide, silicon is by far the most common semiconductor material used in solar cells. PERC belongs within that silicon family, rather than describing a separate absorber material.

Keep the hierarchy clear when comparing solar panels, cells, and modules: a cell is the electricity-generating semiconductor device; a module connects and protects cells; solar panel commonly refers to that assembled module. A cell efficiency figure and a module efficiency figure therefore use different area boundaries.

Are PERC solar panels better than conventional panels?

PERC solar panels are better for an area-limited design when their measured module efficiency is higher under matching conditions, because output per unit area equals irradiance × module efficiency. The PERC label alone does not establish the size of that advantage.

For an assumed comparison, raising efficiency from 20% to 22% increases power at equal area and irradiance by (22 ÷ 20 − 1) × 100 = 10%. That is a relative power increase; the efficiency difference is two percentage points.

These assumed efficiencies illustrate the calculation, rather than rating PERC against another technology. A buyer needs the candidate modules' actual specifications to make that comparison.

Check the complete module footprint, including borders and spaces between cells. Higher cell efficiency can be offset by a layout that fits less active silicon into the available enclosure.

The same distinction matters when comparing a finished panel with loose cells for assembly. The comparison of back-contact and standard monocrystalline cells addresses a related construction choice: contact placement and interconnection affect how a cell fits the build.

Which is better, TOPCon or PERC solar cells?

TOPCon solar cells are the better choice when the candidate's verified efficiency and operating characteristics produce more usable energy within the project's constraints; calculate the equal-area power ratio as ηTOPCon ÷ ηPERC. A technology name cannot substitute for those candidate specifications.

TOPCon means Tunnel Oxide Passivated Contact. The architecture uses a thin oxide and a doped silicon contact layer to limit recombination while allowing charge collection, whereas PERC uses rear passivation with localized electrical contacts.

For assumed efficiencies of 24% and 22%, the equal-area power ratio is 24 ÷ 22 = 1.091, or approximately 9.1% more power. Those inputs are hypothetical and establish no measured performance difference between commercial TOPCon and PERC cells.

Mono PERC combines monocrystalline silicon with PERC architecture. The term n-type describes the silicon's doping, while TOPCon describes a contact architecture; those labels answer different technical questions.

Half-cut describes dividing cells and arranging their electrical connections. A comparison between mono PERC half-cut and TOPCon panels must therefore compare complete modules, including their rated power, dimensions and temperature coefficients.

The DOE's photovoltaic research primer gives silicon cells a theoretical maximum efficiency of about 32%. That theoretical ceiling is neither a commercial PERC specification nor an expected output for a purchased TOPCon module.

What does PERC change inside a solar panel?

PERC in solar panels describes the rear-surface architecture of the cells, while panel power still follows P = Vmp × Imp at the maximum power point. PERC does not determine the panel's output voltage, number of cells or external dimensions.

A PERC silicon cell cross section shows the rear passivation layer and localized electrical contacts beneath the absorber.

Vmp is voltage at maximum power, and Imp is current at maximum power. Open-circuit voltage is measured with no load connected, so multiplying that voltage by a loaded current does not give a valid operating power.

Series-connected cells add voltage, while parallel-connected strings add current. The assembly needs compatible cell currents and an electrical layout suited to the connected controller or load.

Bifacial describes the ability to collect light from both faces. PERC describes cell architecture, so bifacial and PERC are not opposing categories; a panel's rear-light contribution depends on its construction and installation.

For small assemblies, specify the electrical connection points as carefully as the cell technology. A cell with suitable efficiency but inconvenient contact geometry can require more interconnection space than the enclosure allows.

How do you calculate cell output step by step?

Solar cell metal interconnect connectors on white background
Solar cell metal interconnect connectors on white background

A hypothetical 100 cm² cell at 22% efficiency produces 2.2 W under an assumed irradiance of 1,000 W/m², using P = G × A × η. With an assumed five peak sun hours, the idealized daily energy is 11 Wh before additional losses.

  1. Define the area. Assume the efficiency uses a cell area of 100 cm², which equals 0.01 m².
  2. State the irradiance. Assume 1,000 W/m² reaches the cell surface; incident power is 1,000 × 0.01 = 10 W.
  3. Apply the efficiency. At an assumed 22%, electrical output is 10 × 0.22 = 2.2 W.
  4. Estimate daily energy. At five assumed peak sun hours, energy is 2.2 × 5 = 11 Wh.
  5. Check the operating point. Confirm that the controller can accept the assembly's voltage and current before applying a separate system-loss allowance.

Peak sun hours express daily irradiation as equivalent hours at 1 kW/m². They do not mean that the cell holds its rated output throughout that many clock hours.

Calculated outputs for equal cell area and assumed illumination
Assumed efficiency Cell area Power at 1,000 W/m² Energy at 5 peak sun hours
20% 100 cm² 2.0 W 10 Wh
22% 100 cm² 2.2 W 11 Wh
24% 100 cm² 2.4 W 12 Wh
Calculated power at three assumed cell efficiencies For 100 square centimeters at 1000 watts per square meter, efficiencies of 20, 22 and 24 percent give 2.0, 2.2 and 2.4 watts.Equal area: calculated cell power20%22%24%2.0 W2.2 W2.4 W
Source: P = G × A × η, using the hypothetical inputs stated in the worked example.

Can a lower-efficiency cell deliver more power inside the same enclosure?

A lower-efficiency cell layout can deliver more power inside a fixed enclosure when its greater silicon coverage outweighs the efficiency difference, following P = G × Aenvelope × coverage × η. This packaging calculation adds a decision that technology comparisons alone cannot resolve.

Assume a 100 cm² panel envelope under 1,000 W/m². A layout with 24% cell efficiency and 80% coverage gives 10 × 0.80 × 0.24 = 1.92 W before assembly losses.

A second layout with 22% efficiency and 90% coverage gives 10 × 0.90 × 0.22 = 1.98 W on the same basis. The lower-efficiency cells produce 0.06 W more because the drawing accommodates more silicon.

Cell coverage can reverse an efficiency comparison Within an assumed 100 square centimeter envelope at 1000 watts per square meter, 24 percent efficiency with 80 percent coverage gives 1.92 watts; 22 percent efficiency with 90 percent coverage gives 1.98 watts, before assembly losses.Same envelope, different silicon coverage24% cell efficiency80% silicon coverage22% cell efficiency90% silicon coverage1.92 W1.98 W
Source: calculated hypothetical layouts using irradiance × envelope area × silicon coverage × cell efficiency, before assembly losses.

Coverage is the fraction of the envelope occupied by cell area on the same basis used for efficiency. This calculation treats electrical mismatch and encapsulation losses separately; a finished-panel measurement remains necessary.

For micro solar cells or custom solar cells, evaluate cut geometry and connection clearances before selecting the architecture. The custom mini panel specification page is relevant when the required deliverable is an assembled panel that must fit a defined envelope.

Which hardware details should a buyer specify?

PERC cell selection should start with required operating power and available area, followed by electrical compatibility and assembly geometry. LinkSolar supports the sourcing decision by specifying hardware and checking it through partner factories.

For loose cells, define the dimensional drawing and the area basis used for efficiency. Include contact locations, intended series arrangement and the measurement conditions used to accept electrical output.

For finished panels, compare module power against the full external footprint. Keep cell efficiency separate from module efficiency, and ask for voltage and current at maximum power rather than relying on open-circuit voltage.

Buyers selecting solar cells for university research should also distinguish an experimental device from repeatable assembly hardware. The university research cell buying guide addresses that purchasing context, including the importance of choosing cells for the intended experiment.

The NLR research-cell efficiency chart tracks the highest confirmed conversion efficiencies across photovoltaic technologies from 1976 to the present. Use that chart to check research records, while evaluating a purchase against the supplied device's own specifications.

FAQ

Are PERC solar panels better?

PERC solar panels are better for a constrained footprint when verified module specifications show higher usable output under comparable conditions. Compare watts per external area and controller compatibility before choosing the technology.

Which is better, TOPCon or PERC solar cells?

TOPCon or PERC solar cells should be selected using candidate-specific efficiency, electrical characteristics and available assembly area. At equal area and irradiance, divide the efficiencies to calculate the power ratio; use complete module specifications when purchasing panels.

What is PERC in solar panels?

PERC in solar panels identifies cells with a passivated rear surface and localized rear contacts. The architecture reduces recombination and helps recover some rear-reaching light, while the assembled panel's voltage depends on its electrical layout.

Is bifacial better than PERC?

Bifacial and PERC describe different attributes, so neither term alone establishes better performance. Bifacial concerns light collection from both faces; PERC concerns cell architecture, and rear-side energy requires suitable illumination.

Next step

To get started, compare small solar cell options for your required footprint and electrical layout using the dimensions and operating-power requirements from your design.
