200W Six-Section Folding Solar Panel - 24V MC4
Product Overview

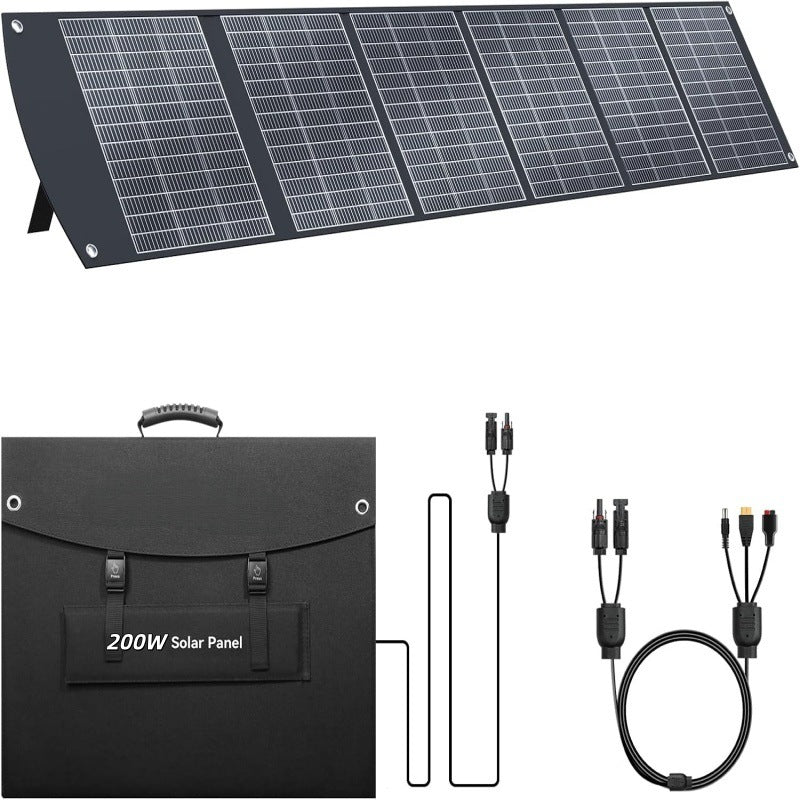

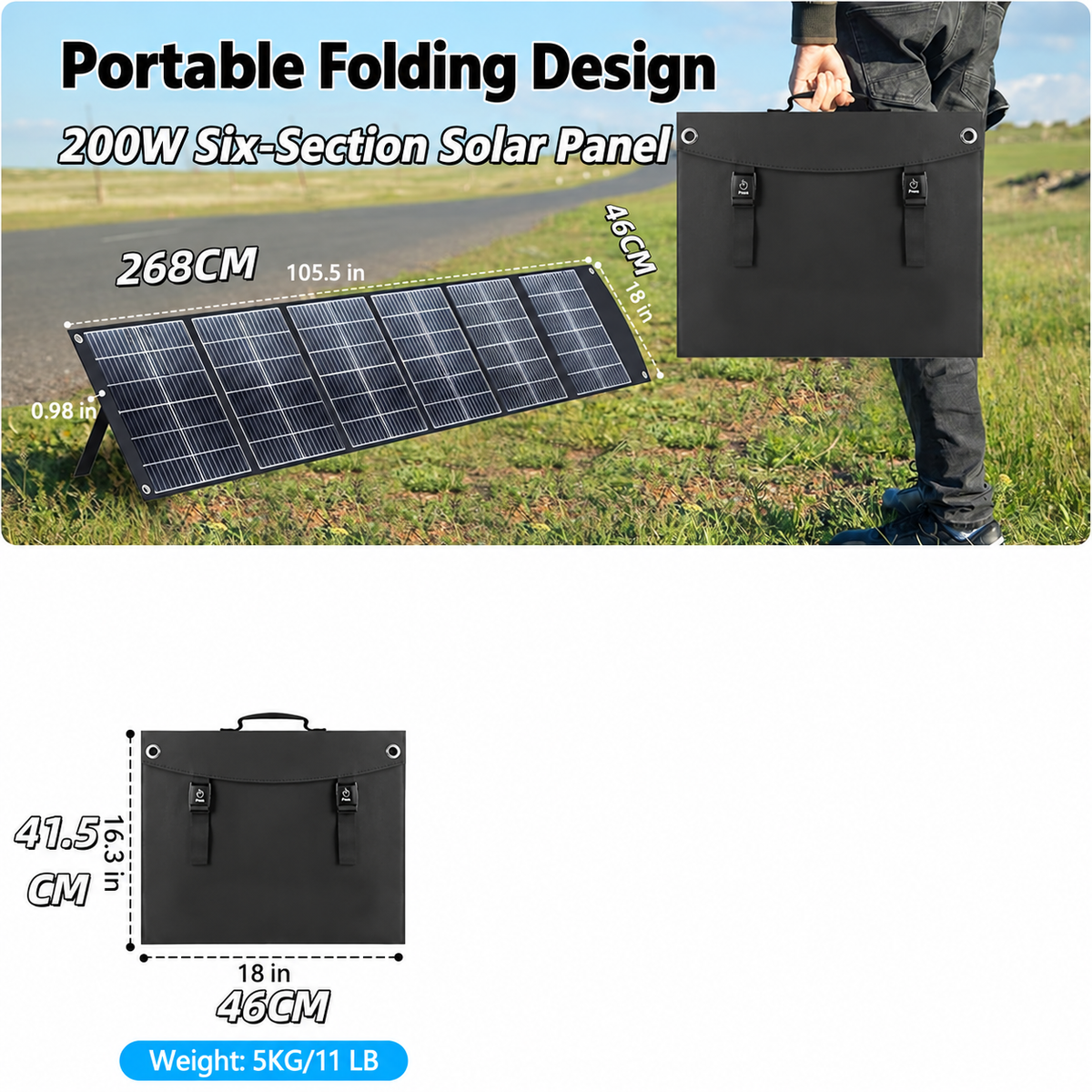

The 200W six-section solar panel opens into a 268 x 46cm collection surface for temporary outdoor solar setups. Its six linked sections fold into a 46 x 41.5cm carrying format with a handle. The 5kg assembly gives you a defined transport weight and setup footprint when planning space around a campsite or portable charging station.
Folding Construction & Connections

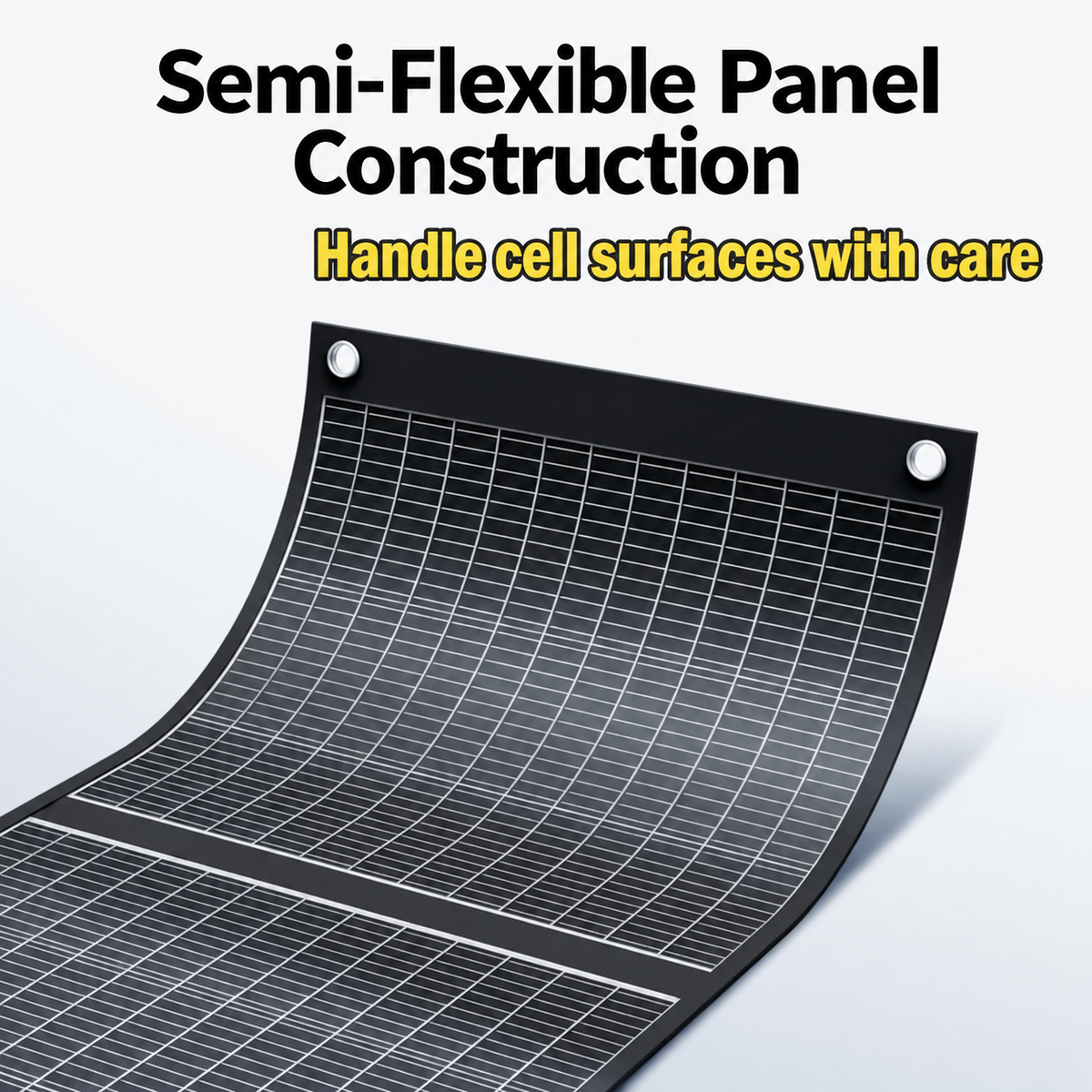

CPC construction and a semi-flexible panel format support a portable assembly that can be packed between uses. Integrated rear supports help position the sections toward sunlight. Use the designated folds when packing; a semi-flexible surface is not a reason to crease or sharply bend the cells.
- 200W rated panel power and six-section layout.

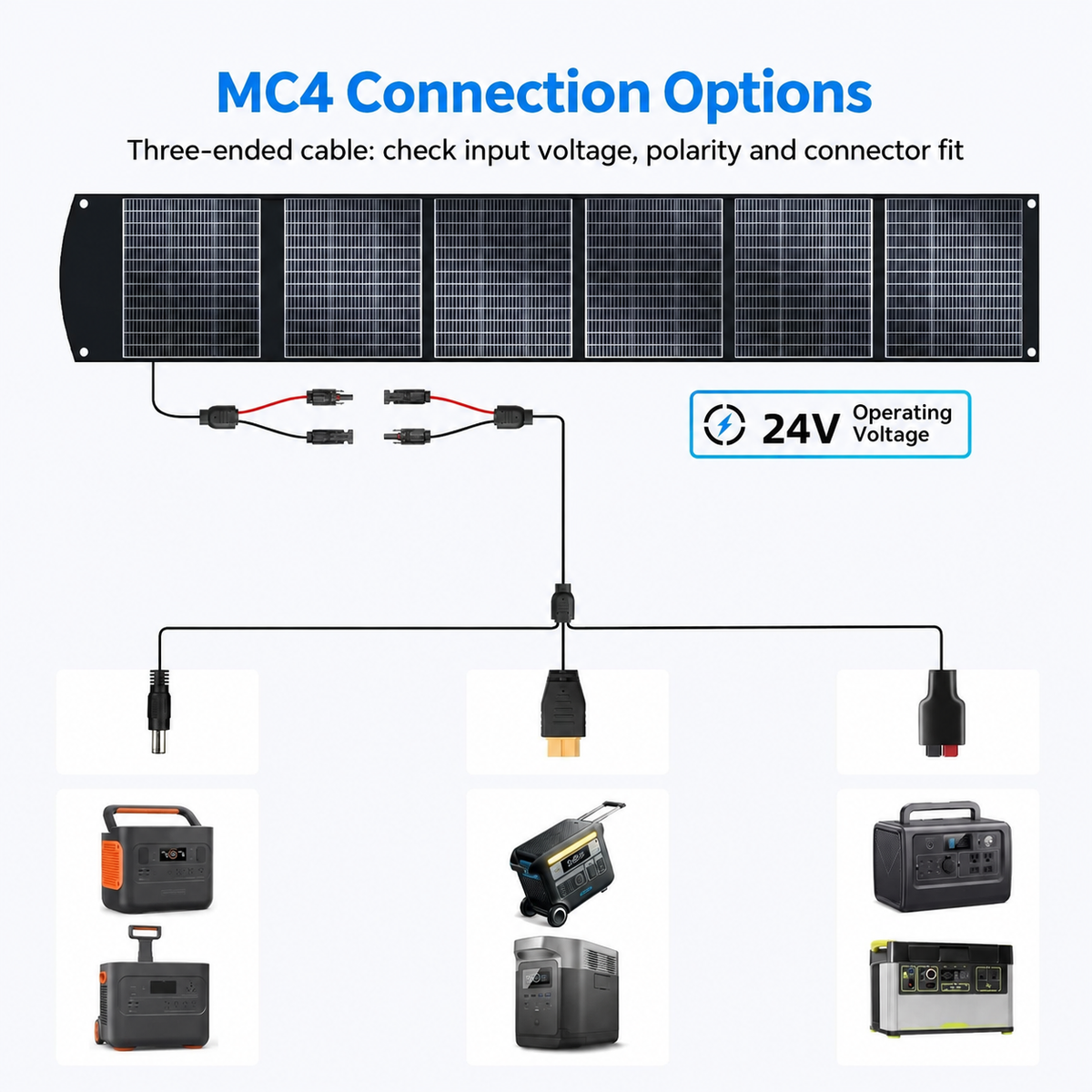

- 24V operating voltage with MC4 connections.
- Three-ended cable connection options.
- Carry handle, edge eyelets and rear supports.
- 5kg weight and 46 x 41.5cm folded face size.
Details & Specs
| Rated power | 200W |
|---|---|
| Folding sections | 6 |
| Construction | CPC |
| Panel format | Semi-flexible folding assembly |
| Operating voltage | 24V |
| Panel connection | MC4 |
| Cable connection format | Three-ended adapter cable |
| Unfolded face size | 268 x 46cm |
| Unfolded thickness | 0.98in |
| Folded face size | 46 x 41.5cm |
| Weight | 5kg |
| Positioning supports | Rear kickstands |
Input Matching & Handling
Check the receiving equipment's allowed solar-input voltage and current, connector dimensions and polarity before use. An MC4 connection or adapter tip alone does not confirm suitability for every portable power station. Choose the matching connection rather than forcing a plug, and arrange cables so they do not pull against the panel when the position changes.
Open all six sections into direct sunlight and keep shadows off the cells. Available power varies with sunlight strength, temperature and panel angle; rated output is not a continuous charging guarantee. Keep electrical connectors dry, disconnect the cable before folding and protect the cell surfaces from sharp objects or concentrated pressure during storage and transport. Allow enough clear space for the full unfolded length.
