30W Three-Fold Portable Solar Panel
$6896 USD
단가
Overview

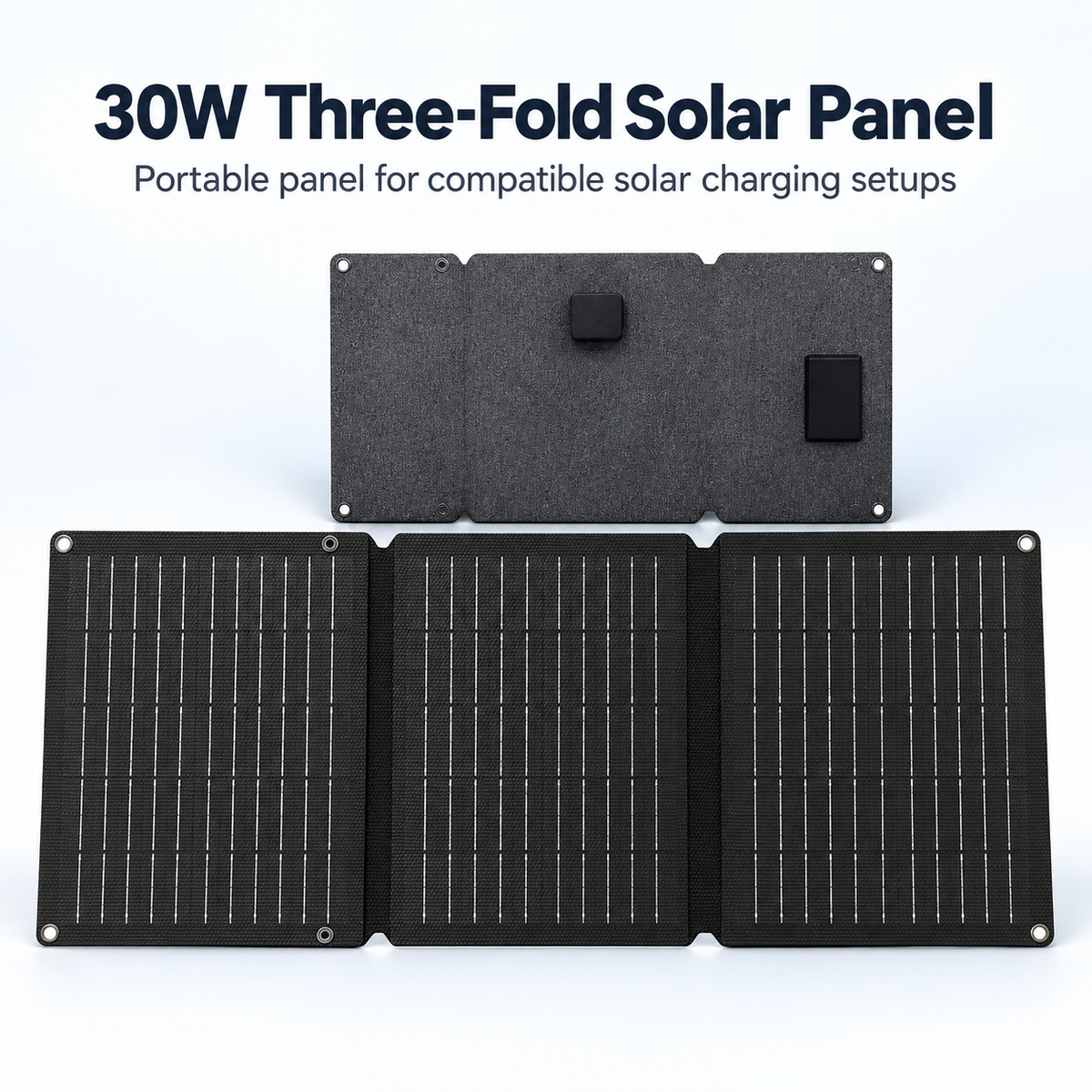

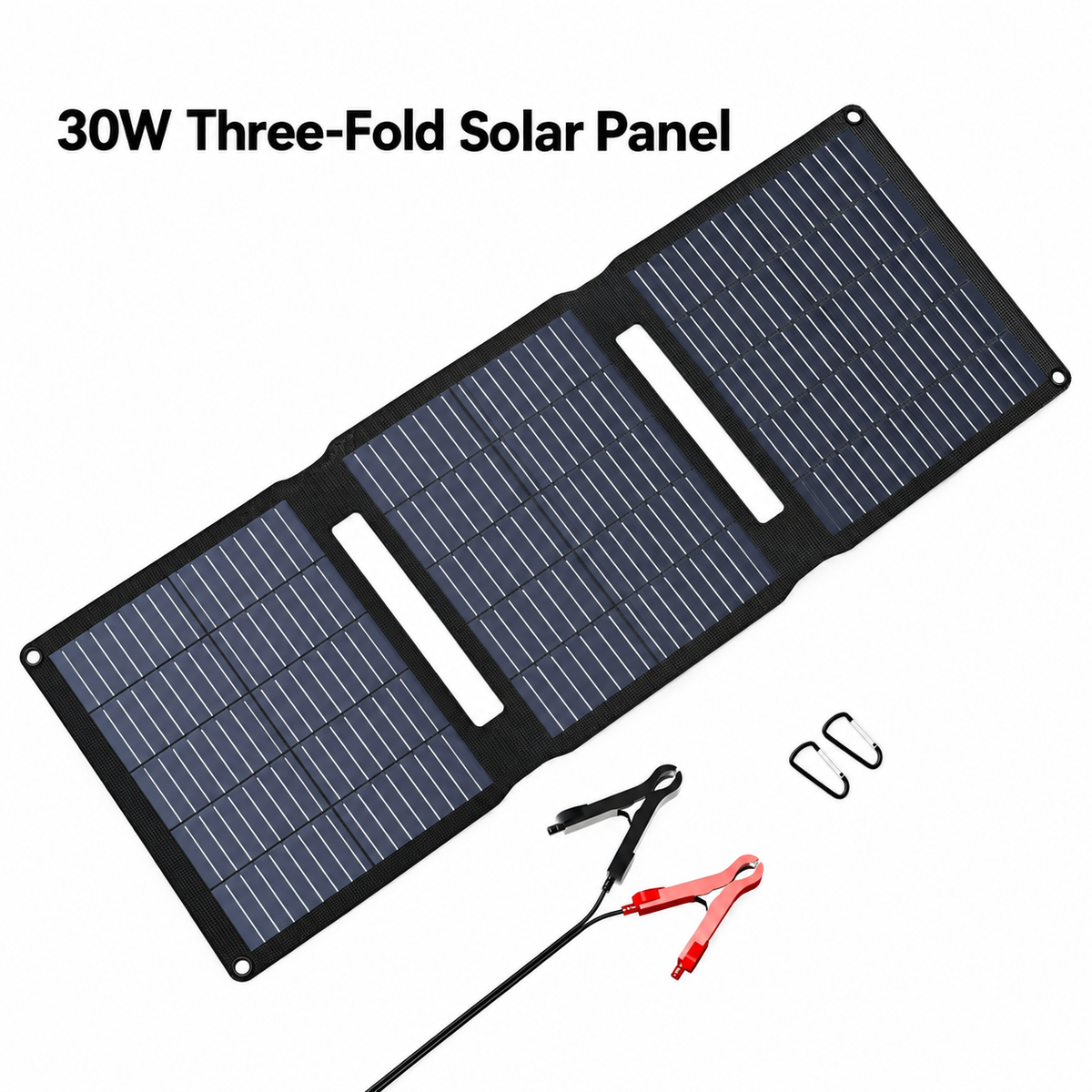

The 30W three-fold solar panel opens to a compact three-section solar surface. Its dark fabric-backed design folds for carrying and includes reinforced corner eyelets and two slot openings between the sections.
Portable Layout
The panel can be opened at a campsite or other outdoor location, then folded down for transport. It measures 634 × 318 mm open and 218 × 318 mm folded; allow room for placement and keep the panel secure in use.
Technical Specifications
| Rated panel power | 30W |
|---|---|
| Panel layout | Three-fold |
| Working voltage (Vmp) | 20.52V |
| Working current (Imp) | 1.46A |
| Short-circuit current (Isc) | 1.54A |
| Unfolded size | 634 × 318 mm |
| Folded size | 218 × 318 mm |
Construction & Connections

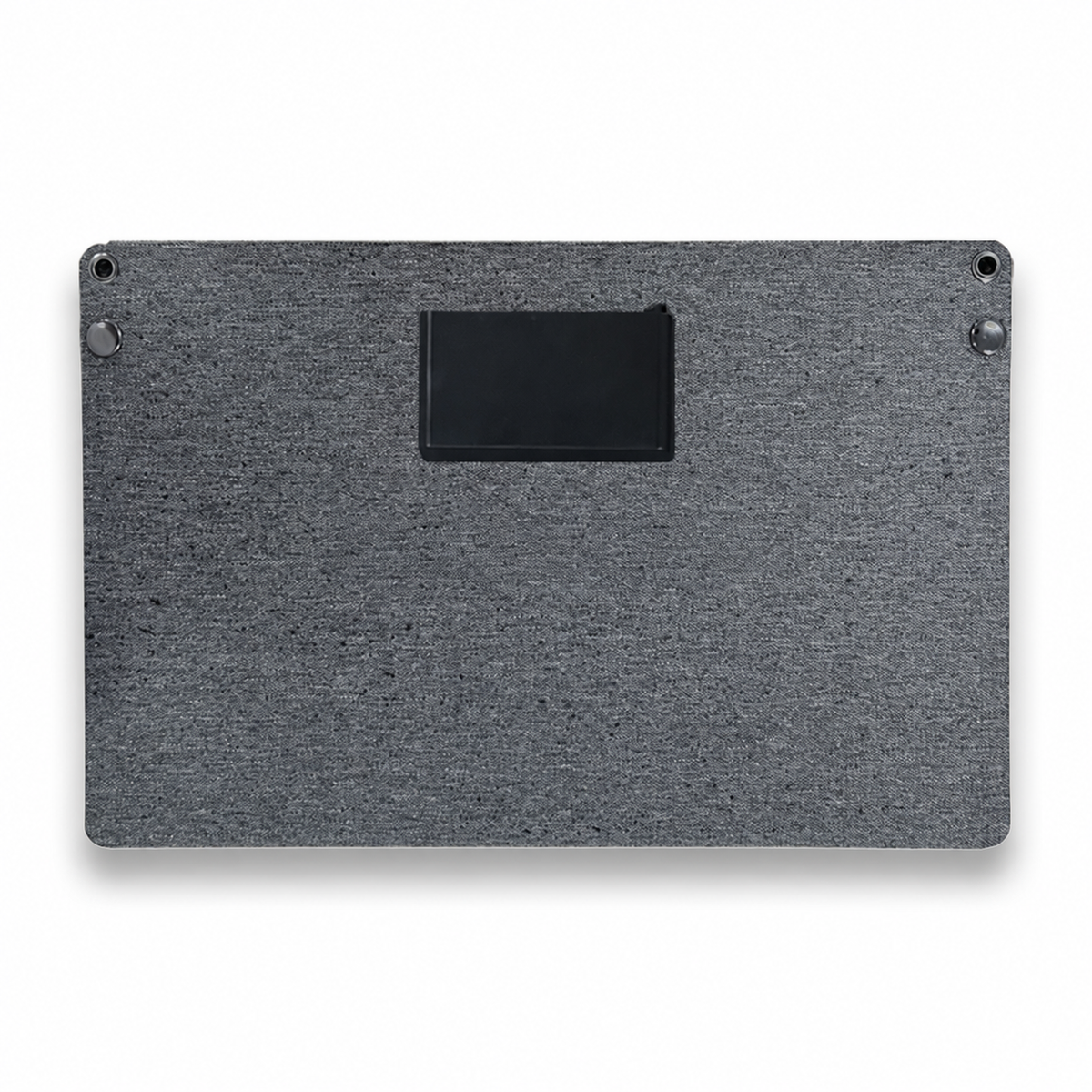

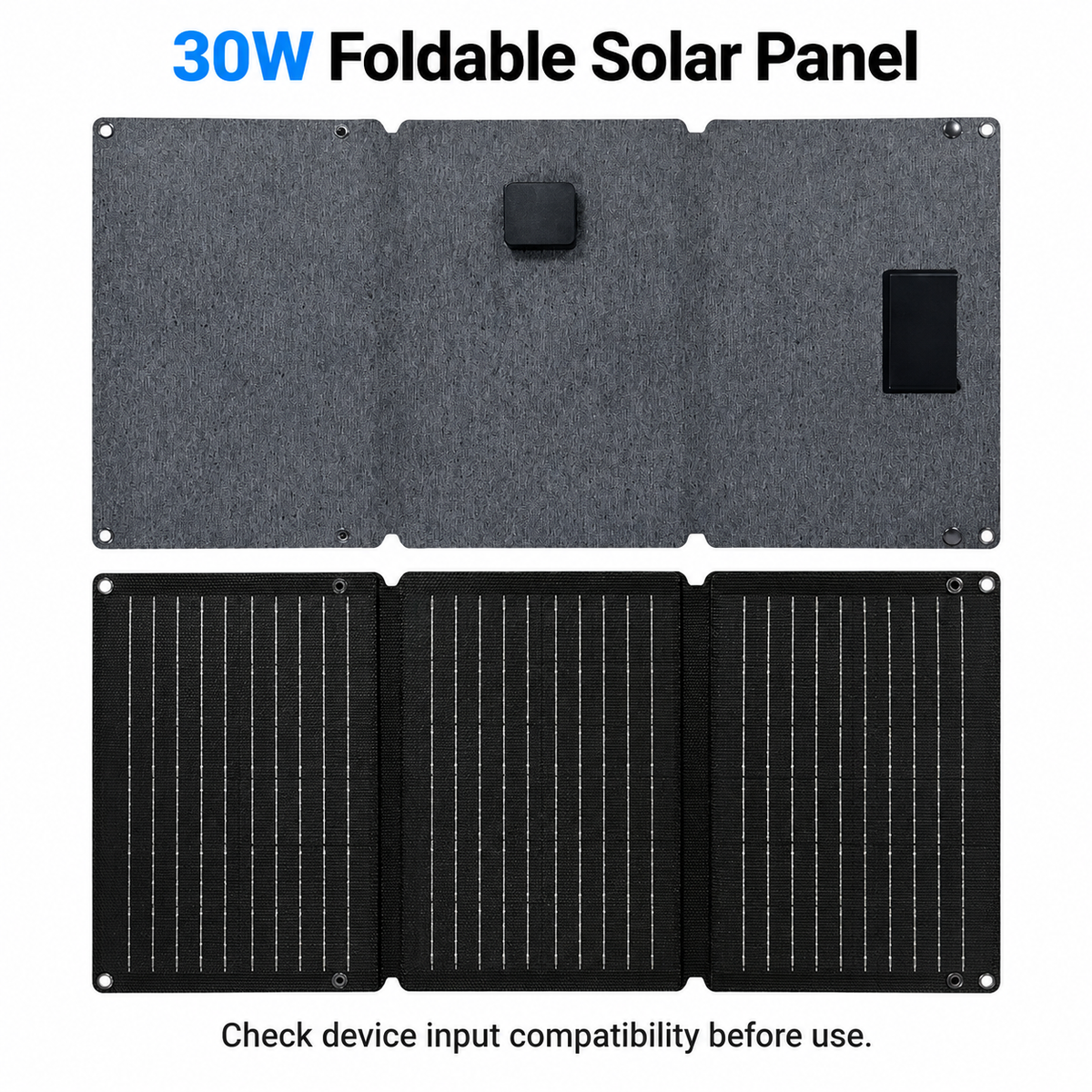

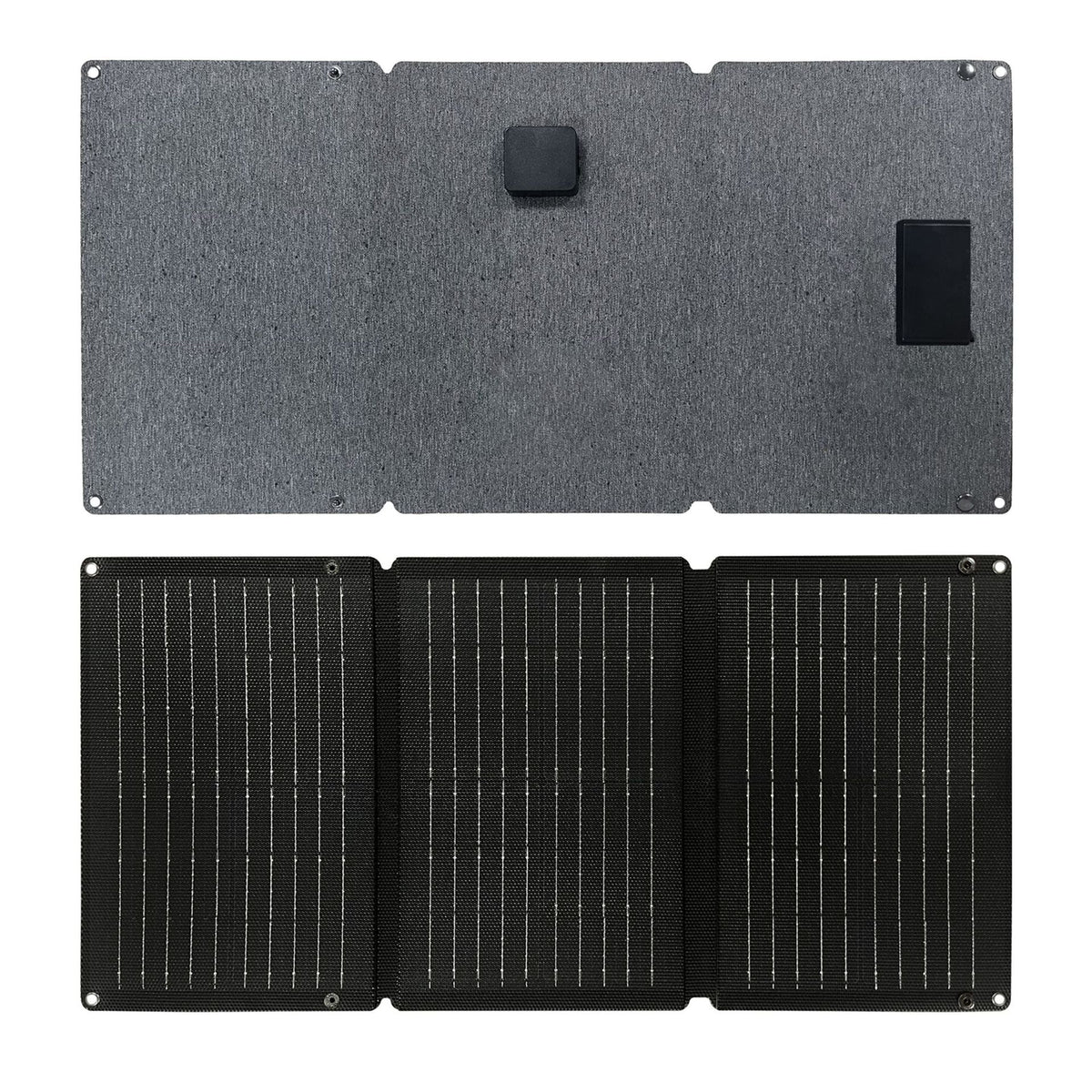

- Front and back: three solar sections on one side and a dark fabric backing on the other.
- Connection module: a small output module sits on the back. Check the port configuration against your device before ordering.
- Securing points: metal eyelets and panel openings provide securing and handling points.
Connection Guidance
Check your device or charge controller input ratings and connector type before use. Use only electrically compatible equipment, and check the package contents before ordering any required cables. Output changes with sunlight and operating conditions.
