2W 12V Mini Solar Panel with Wire Leads, 110 × 136mm

LinkSolar  |  SKU: SP-A00136-001
$2062 USD
Steuern und Versand werden an der Kasse berechnet.

Merkmale
  • 2W rated solar panel output.
  • 12V working output.
  • Dimensions: 110 × 136mm.
  • Connection: 15–20cm red and black wire leads.

Product Overview

This 2W mini solar panel provides a 12V working output through a short red and black wire pair. The 110 × 136mm module offers a compact starting point for a controlled low-power solar circuit.

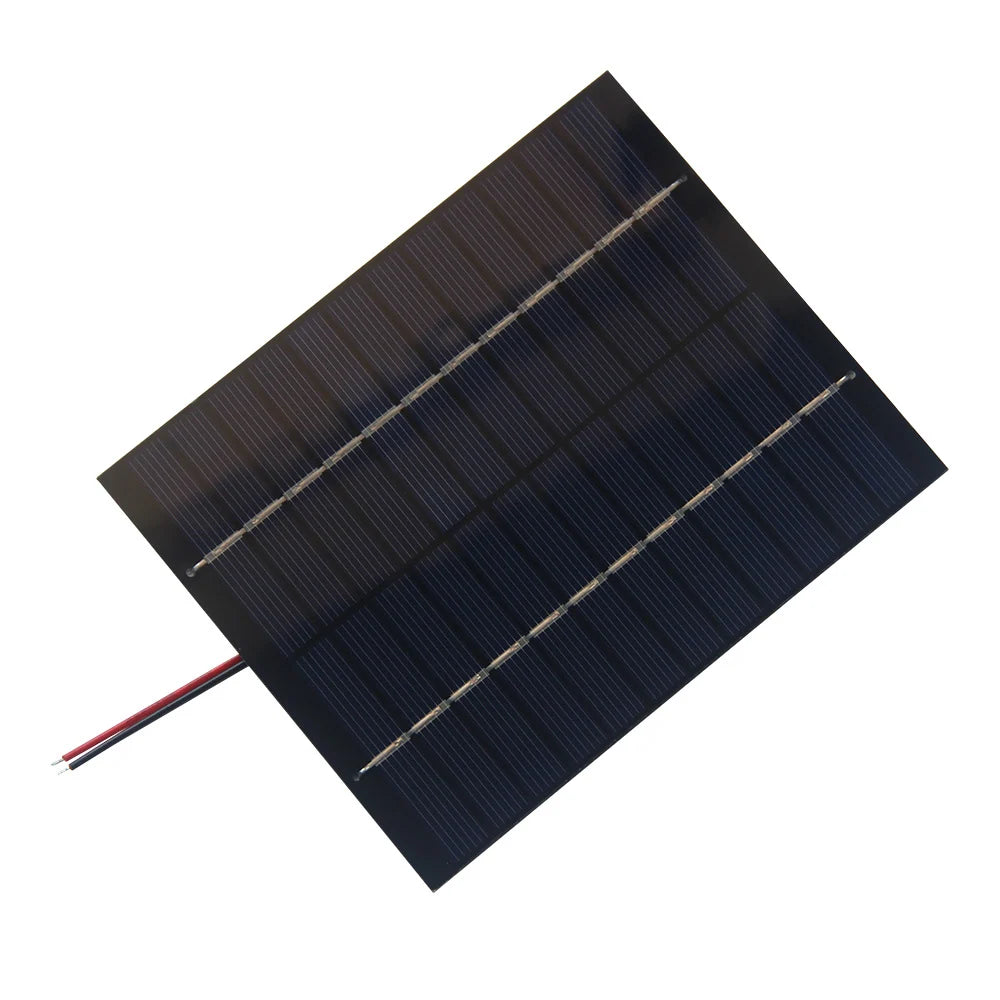

2W mini solar panel — wired polycrystalline panel face

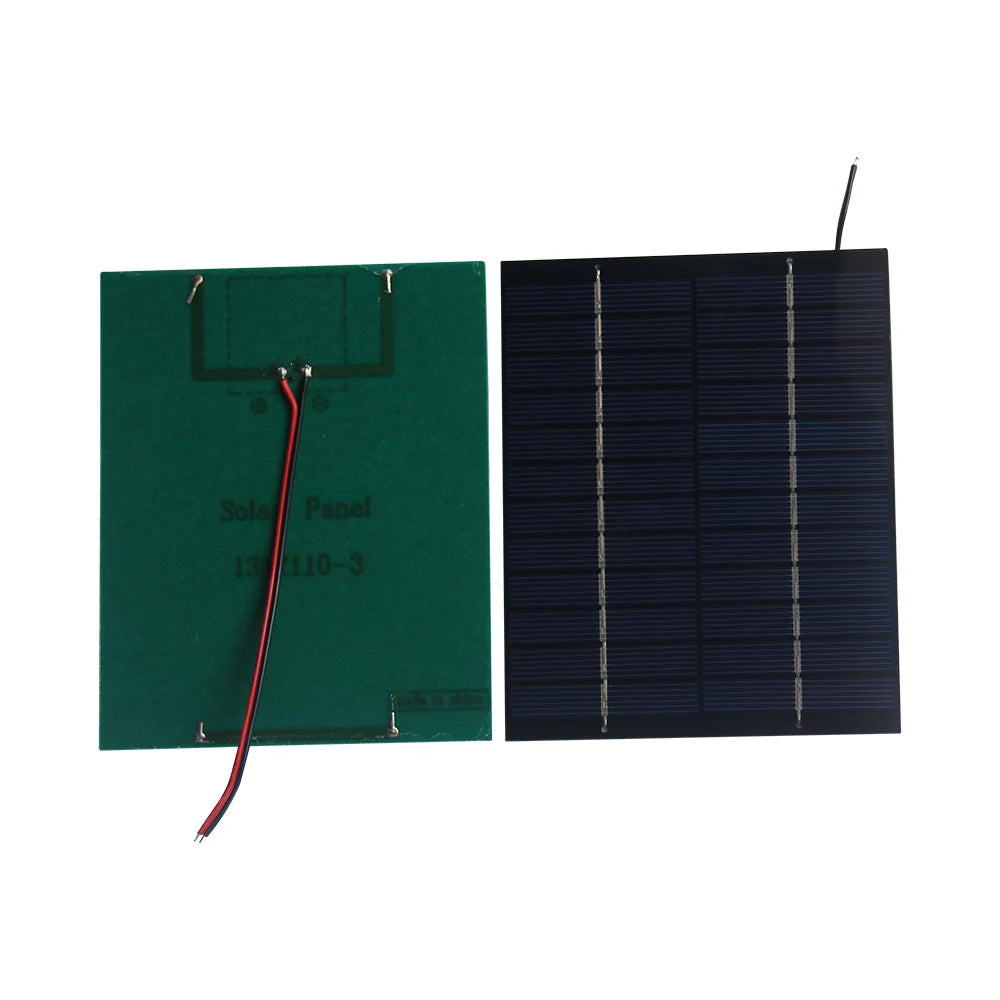

2W mini solar panel — front and rear panel views

Details & Specs

Rated panel power 2W
Working voltage 12V
Dimensions 110 × 136mm
Cell / surface polycrystalline silicon laminate
Connection 15–20cm red and black wire leads
Output current 0–167mA
Open-circuit voltage 13.2V
Panel weight approximately 52g
Included one panel with attached wire pair

Key Features

  • 2W rated polycrystalline module
  • 12V working output up to 167mA
  • Attached red and black leads
  • Approximately 15–20cm wire length
  • 110 × 136mm rectangular footprint

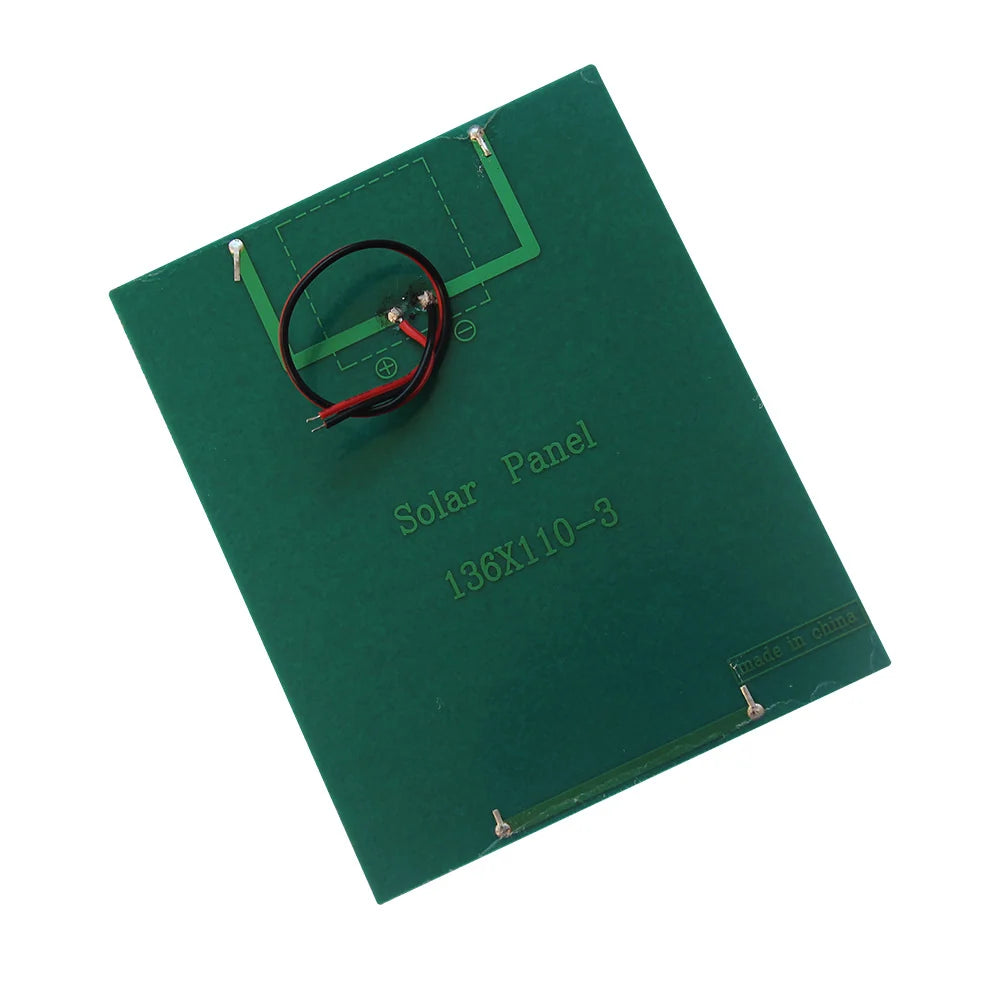

2W mini solar panel — rear soldered wire terminals

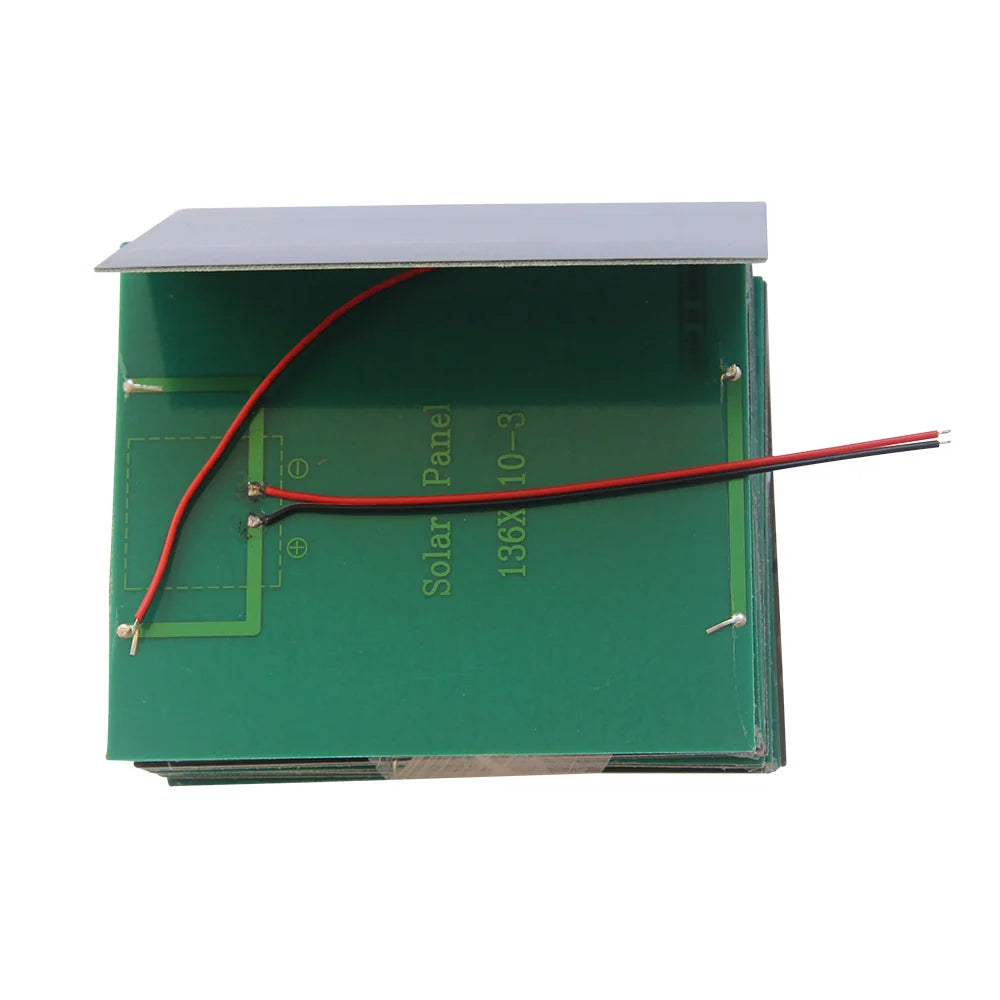

2W mini solar panel — stacked rear PCB and leads

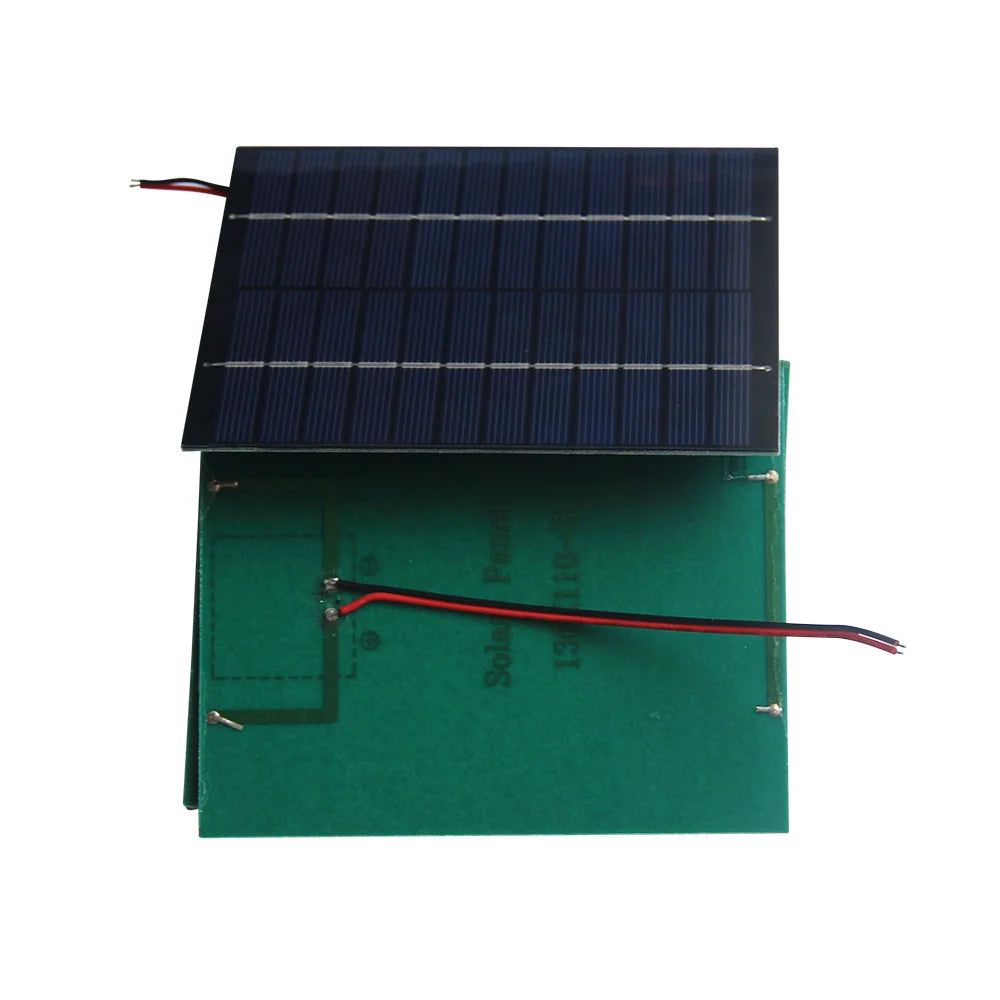

2W mini solar panel — panel face over rear PCB

Compatibility & Notes

Verify voltage, polarity and circuit requirements before wiring. Use a suitable charge-control circuit for rechargeable batteries. The module generates power in sunlight and does not store energy.
