Des solutions solaires sur mesure pour propulser vos projets.

Panneaux solaires sur mesure et OEM pour capteurs IoT, caméras de surveillance et stations météorologiques.

Du prototype à la production en série — un seul fournisseur, un seul interlocuteur.
1 5

1.1W Mini Solar Panel, 5V, 90mm Monocrystalline

LinkSolar  |  SKU : SP-STD-1P1W90902-5V-REARSOLDERCONTACTS-01
$1855 USD
Taxes et frais de port calculés au moment du paiement.

Caractéristiques
  • 1.1W rated solar panel output.
  • 5V working output.
  • Dimensions: 90 × 90 × 2mm.
  • Connection: Rear solder contacts.

Product Overview

The 1.1W mini solar panel uses a 90mm square monocrystalline board for a compact 5V circuit. Its 2mm profile and rear contact pads support integration into a small assembly with separately supplied wiring. At approximately 23g, the module provides a lightweight cell board for a suitably matched load and charge-control design.

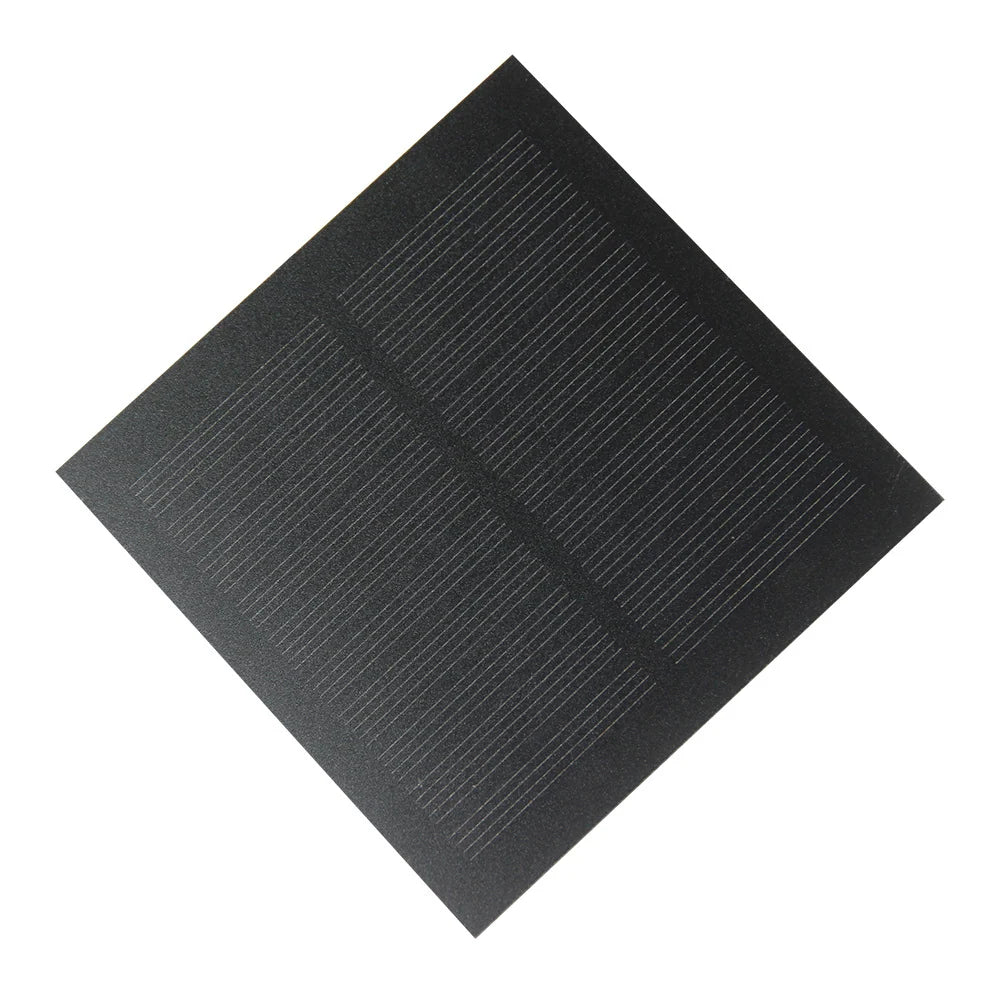

1.1W 1.1W mini solar panel — square monocrystalline cell face

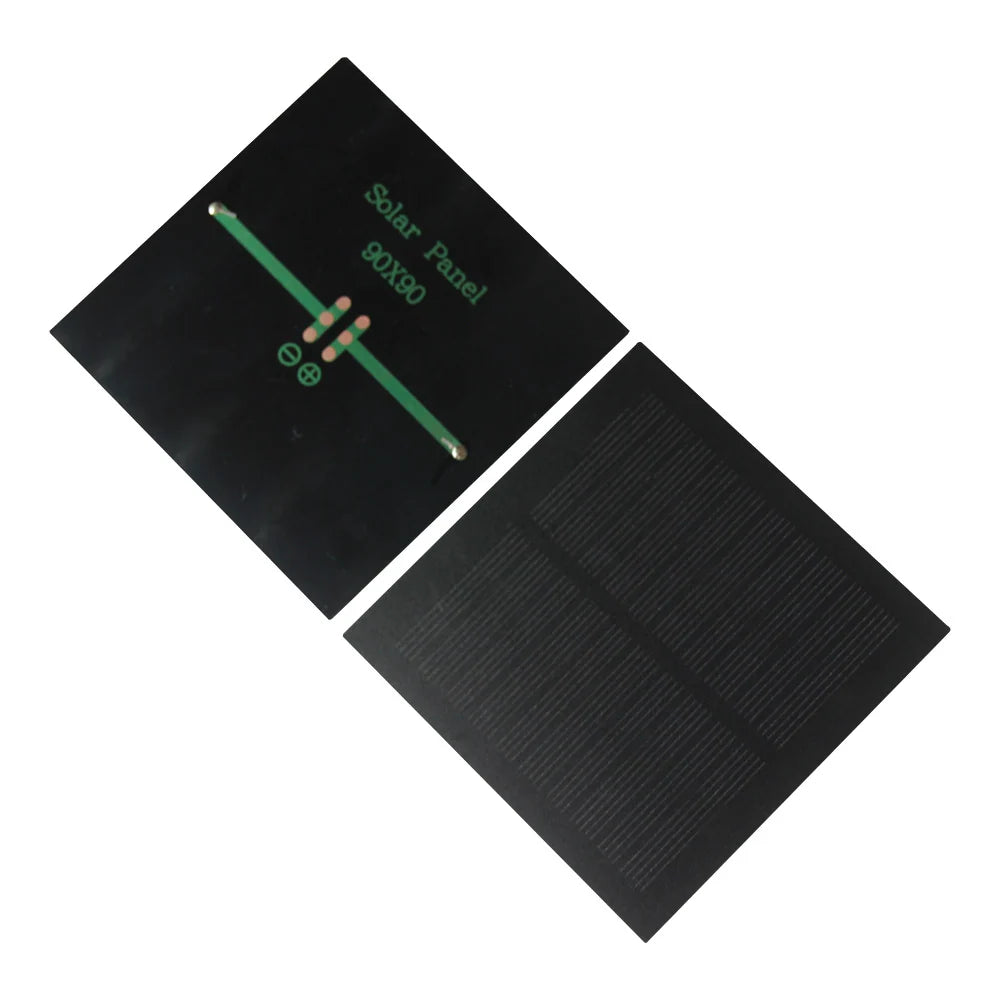

1.1W 1.1W mini solar panel — panel front and rear
1.1W 1.1W mini solar panel — two square panel views

Key Features

  • 90 × 90mm square monocrystalline cell board
  • 5V working output
  • Rear contact pads for soldered integration
  • 2mm panel profile
  • Approximately 23g module weight

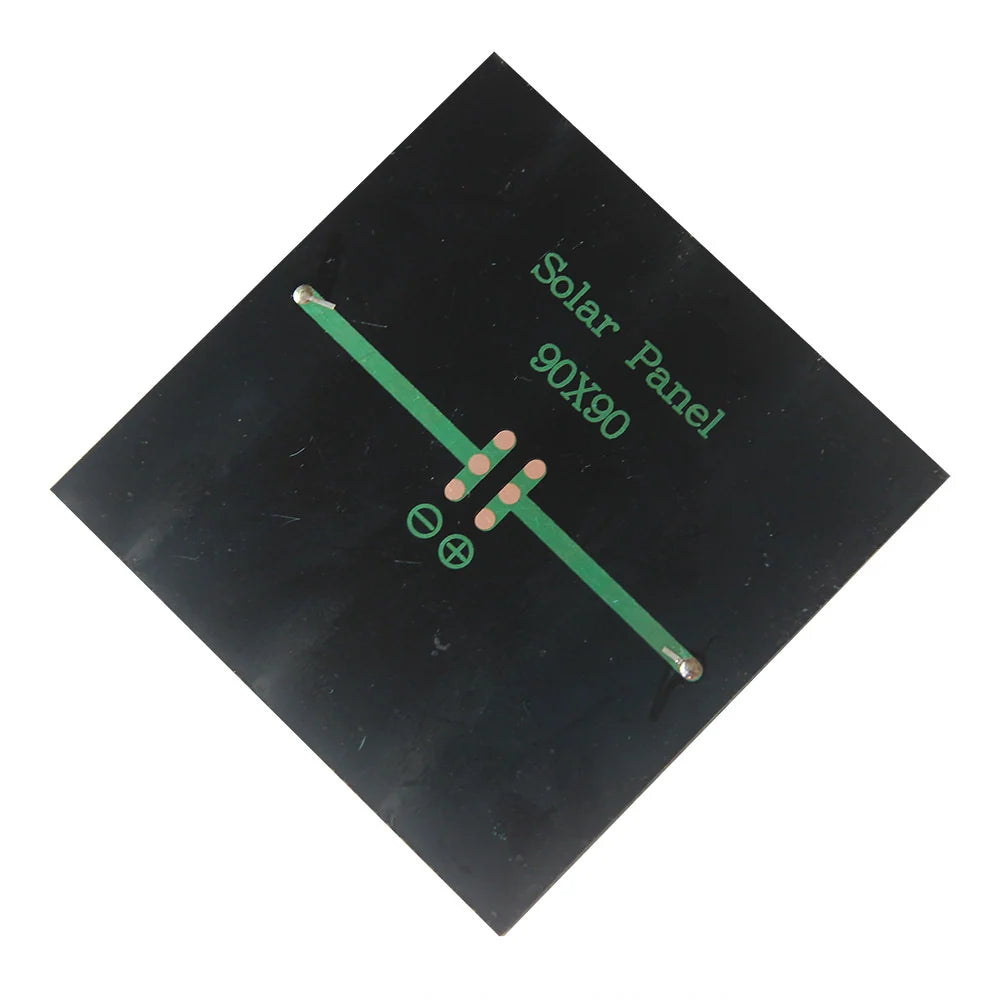

1.1W 1.1W mini solar panel — rear polarity pads

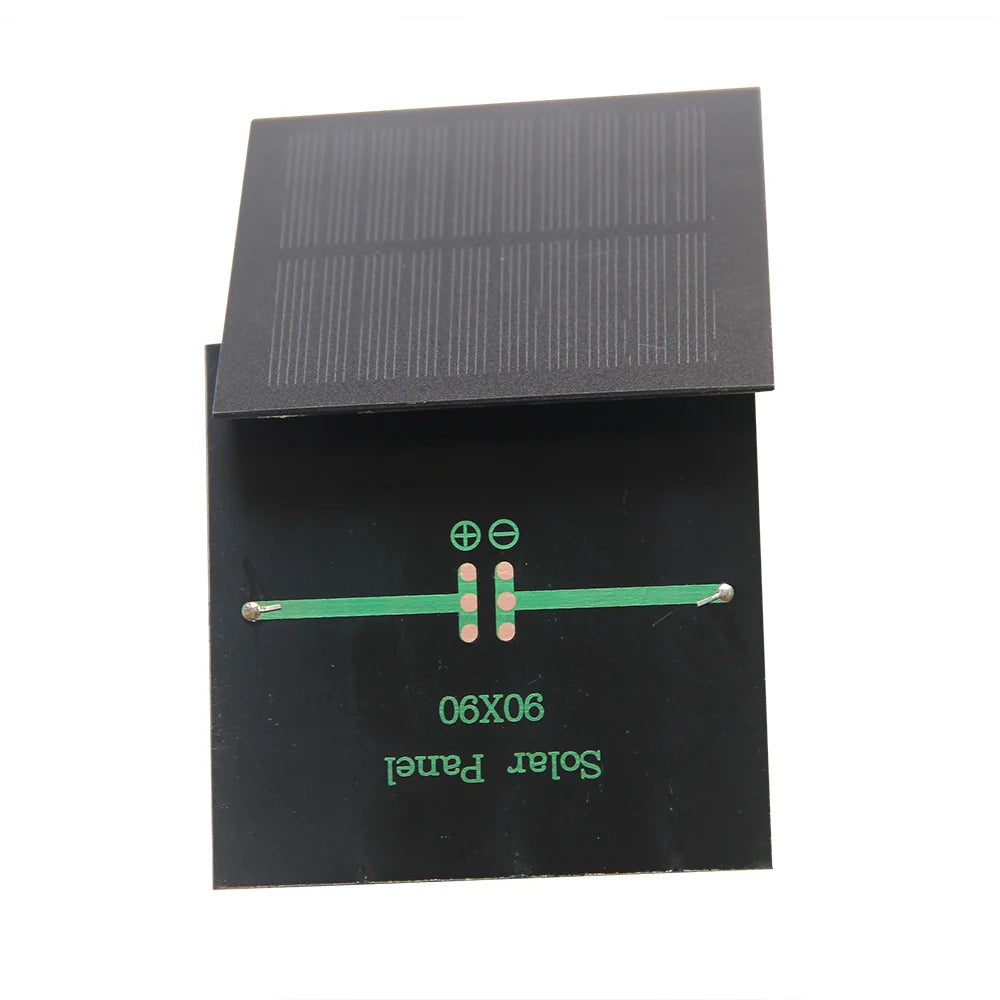

1.1W 1.1W mini solar panel — front and rear overlap

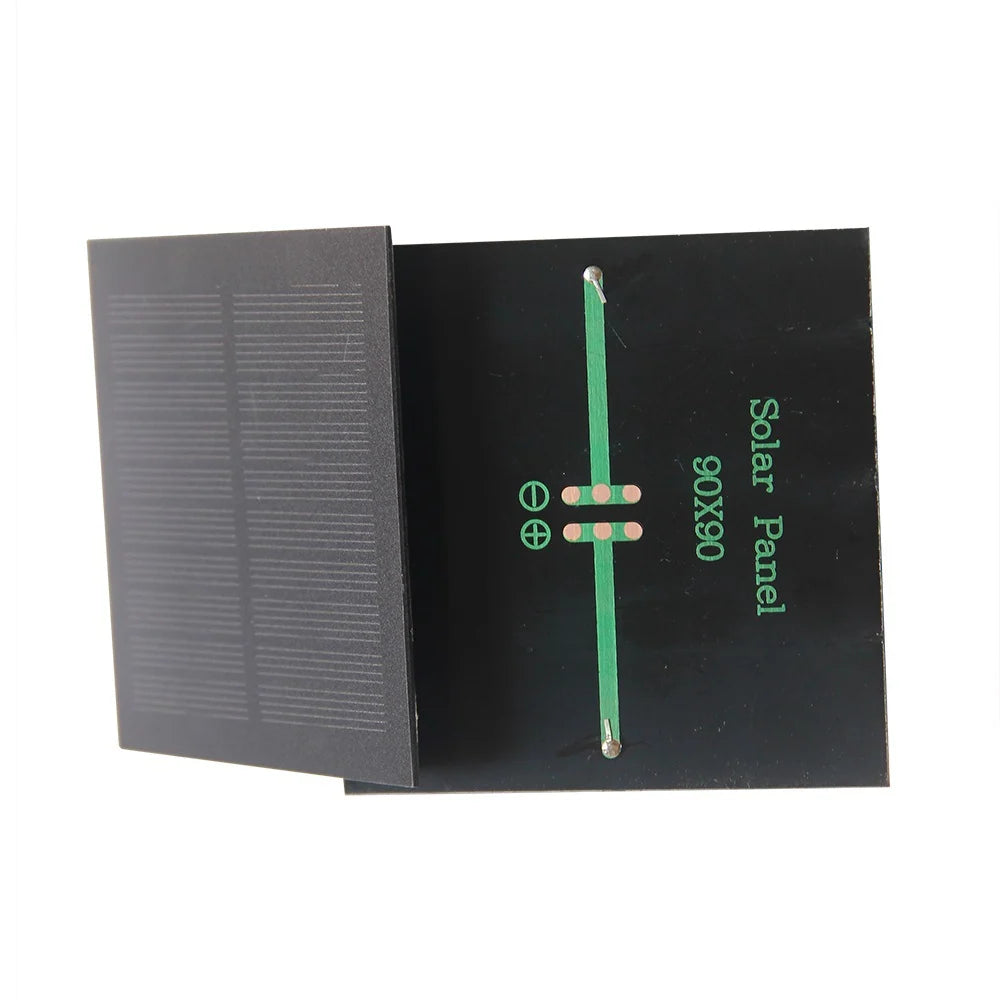

1.1W 1.1W mini solar panel — rear contacts and cell face

Details & Specs

Rated panel power 1.1W
Working voltage 5V
Dimensions 90 × 90 × 2mm
Cell / surface Monocrystalline silicon
Connection Rear solder contacts
Output current 0–220mA
Panel weight Approximately 23g
Included 1 solar panel

Compatibility & Notes

Verify voltage, polarity and circuit requirements before wiring. Use a suitable charge-control circuit for rechargeable batteries. The module generates power in sunlight and does not store energy.

1.1W 1.1W mini solar panel — English small-solar application examples
