1.2W 5V Mini Solar Panel - 120 x 60mm Monocrystalline, 10-Pack

Product Overview

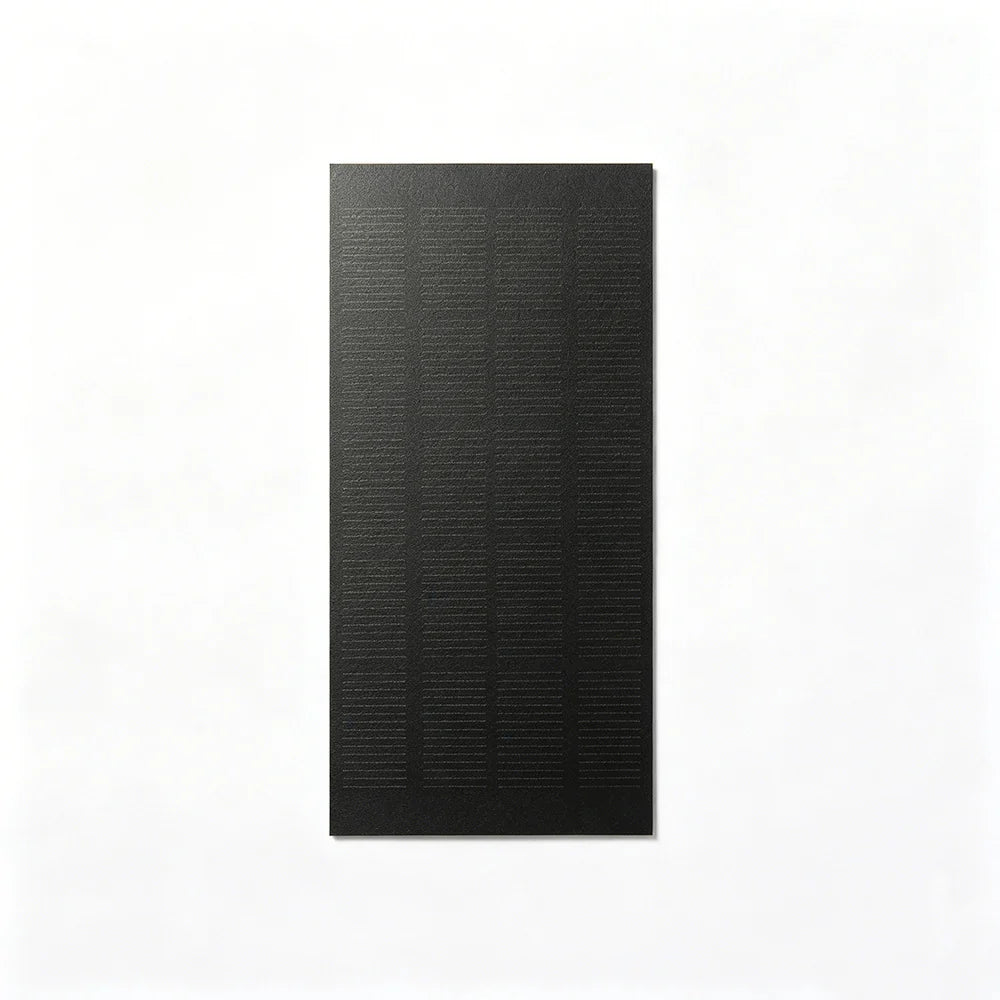

This 1.2W 5V mini solar panel is supplied as a 10-pack of individual monocrystalline modules for compact electronics builds. Each purchase includes ten panels for separate projects or matched educational assemblies. Each panel has a 120 x 60mm footprint and 2mm thickness, making it easy to plan the panel opening and support inside a custom assembly.

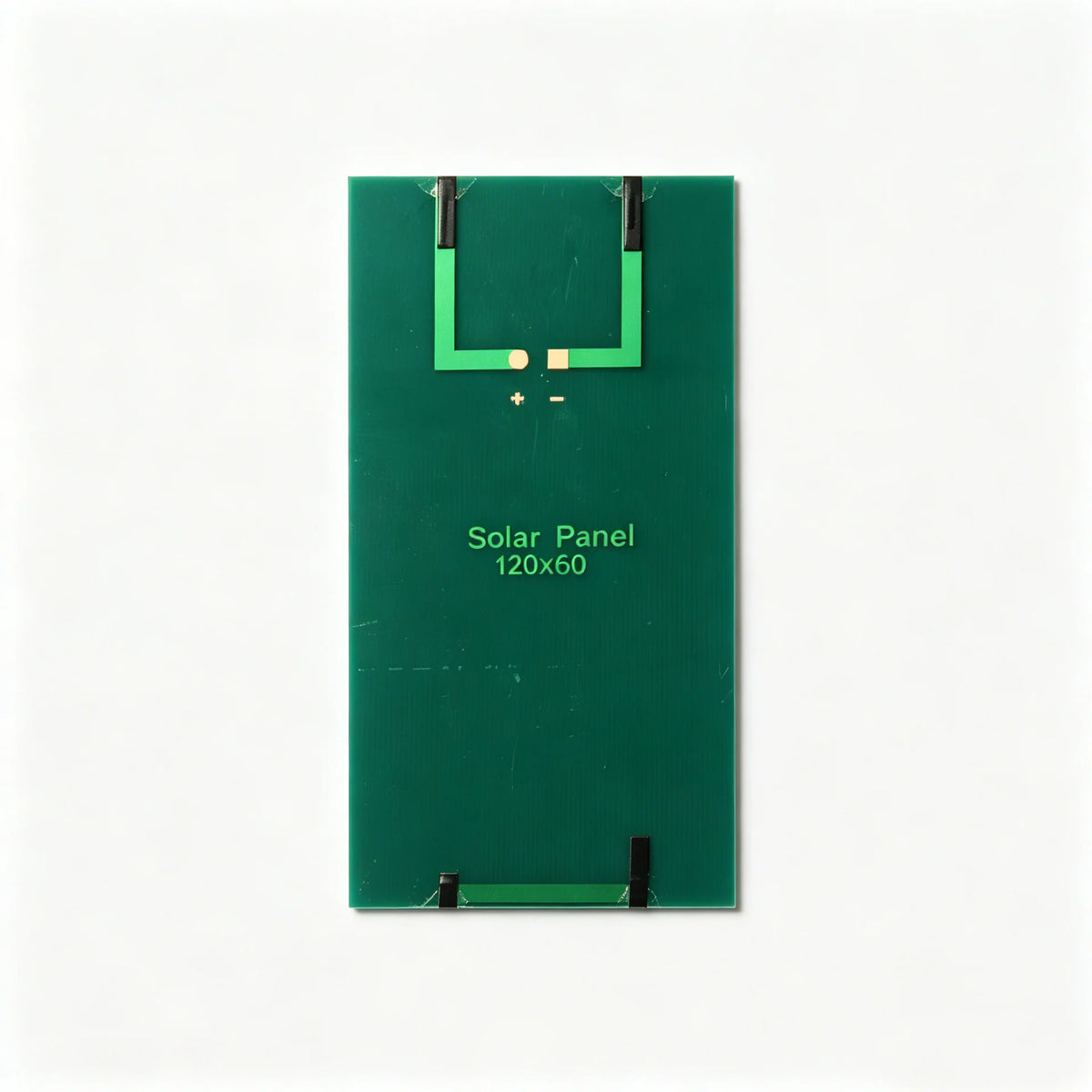

The rear board carries positive and negative solder pads for your own wiring. At approximately 20g per panel, each module adds little mass to a small model or low-power solar demonstration.

Compatibility & Notes

This is a component panel. Provide the wiring, mounting support and any voltage regulation or charging electronics required by your circuit. Check polarity before soldering, insulate the joints and avoid cable strain on the connection pads.

The 5V working rating and 6.5V open-circuit figure describe different conditions. Select downstream electronics with suitable input limits and expect output to vary with sunlight and load. Use a battery charging circuit matched to the battery chemistry rather than connecting cells directly.

Details & Specs

Electrical ratings, dimensions and weight are per panel unless stated otherwise.

Best For

A useful size for solar learning kits, small sensor experiments and low-power model electronics. Match the circuit's current demand and any motor start-up load to the panel's available power before assembly.

Support the board evenly, leave the cell face exposed to sunlight and protect the rear electronics as appropriate to the finished enclosure. Each pack contains ten separate panels, so you can prepare multiple assemblies using the same module specification.

Package Contents

10 x 1.2W 5V monocrystalline mini solar panels, each measuring 120 x 60 x 2mm with rear solder pads. One cart quantity equals one 10-pack.
