1W USB Solar Panel, 5.5V Epoxy Module, 95 × 95mm
Product Overview

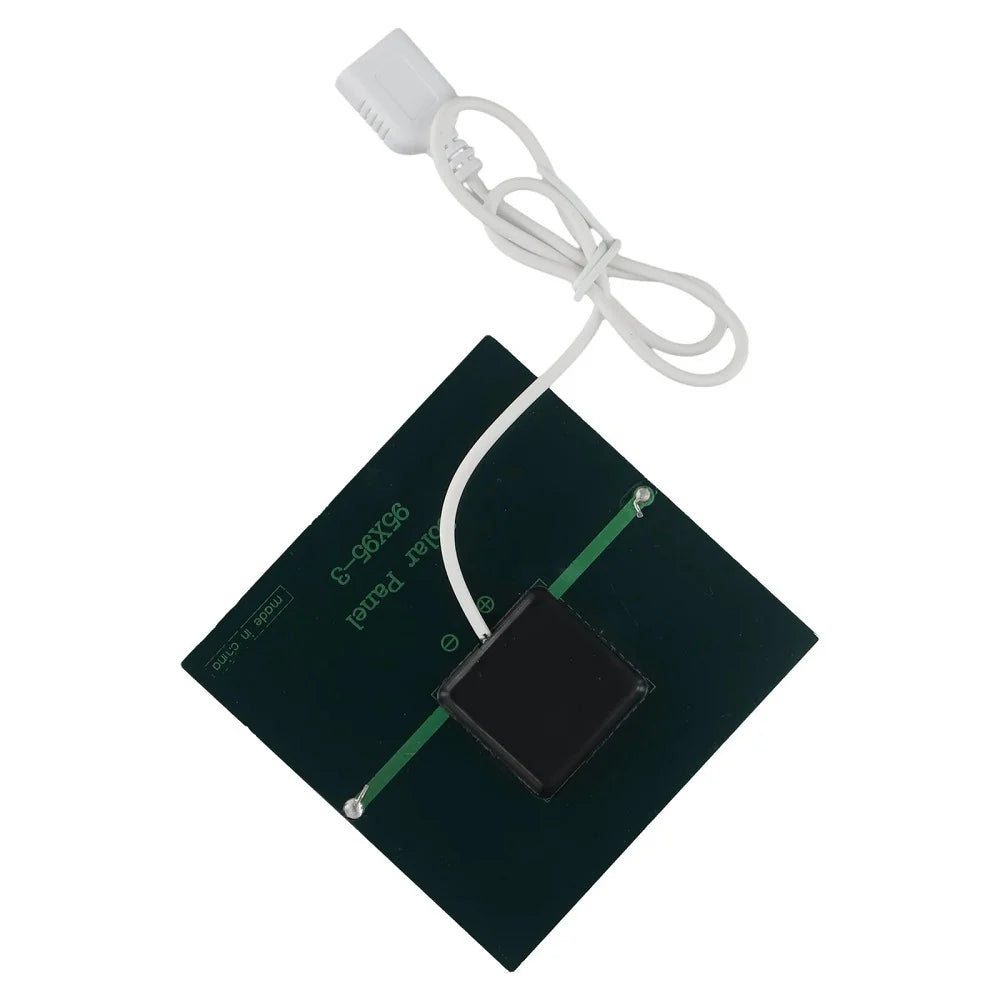

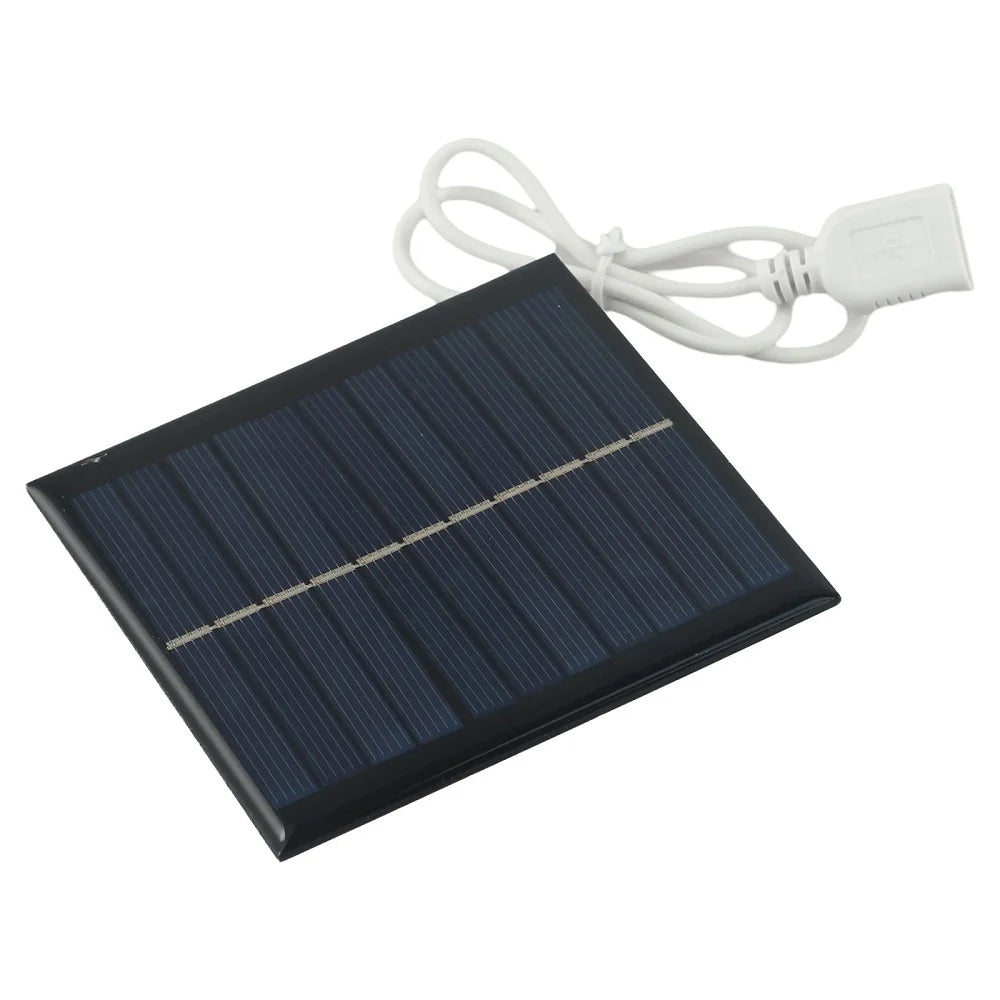

This 1W USB solar panel is a square epoxy-coated polycrystalline module for appropriately matched low-power projects. Its 95 × 95 × 3mm body weighs approximately 45g and has a white lead terminating in a USB-A female socket.

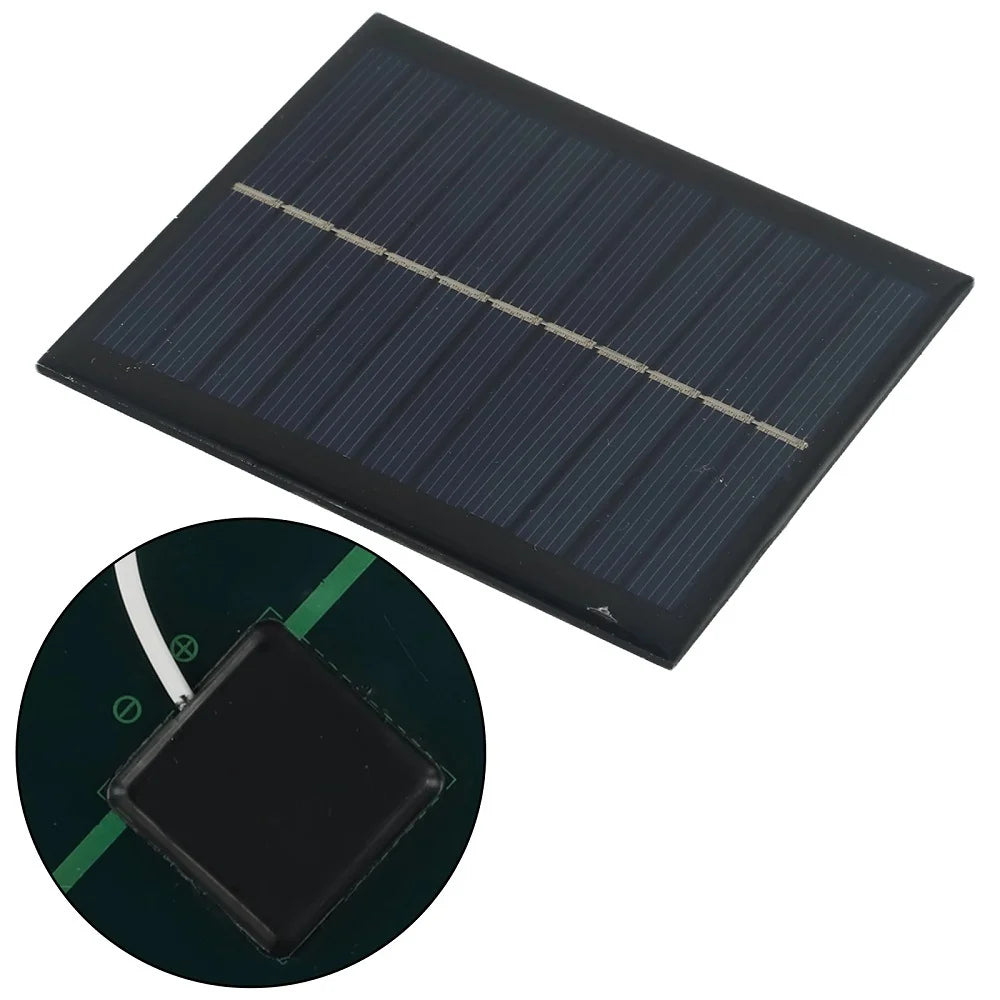

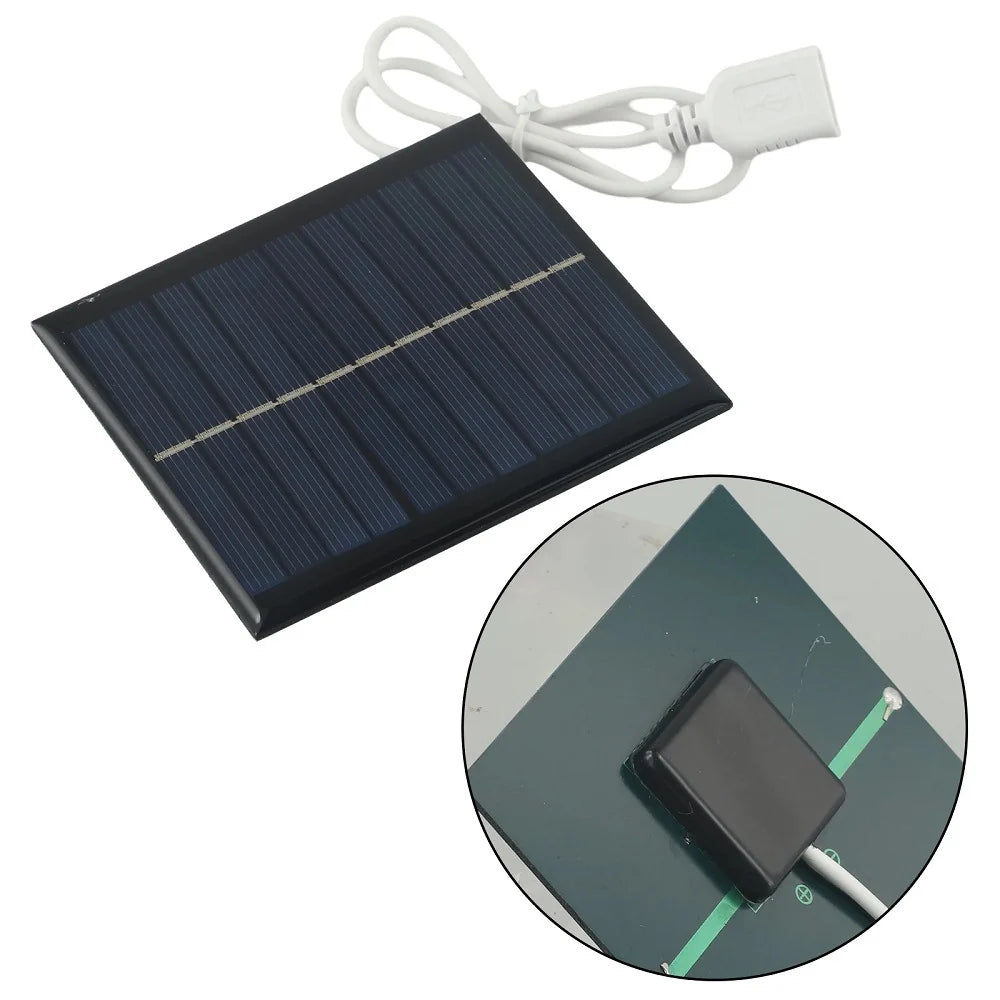

The compact panel provides 5.5V working output with up to 180mA current. A rear connection housing joins the attached cable to the module, leaving the front cell surface clear for sunlight.
Key Features
- Square 95mm footprint for small layouts.
- Epoxy coating over the polycrystalline cell assembly.
- Fitted USB-A socket for an appropriate device cable.
- Approximately 45g module weight.
Details & Specs
| Power | 1W |
|---|---|
| Working voltage | 5.5V |
| Working current | 0–180mA |
| Short-circuit current | 182mA |
| Cells / surface | Polycrystalline / epoxy coating |
| Dimensions | 95 × 95 × 3mm |
| Weight | Approximately 45g |
| Output | USB-A female socket on attached lead |
Compatibility & Notes
Check the connected circuit accepts the stated voltage and low available current. USB connector shape does not establish charging compatibility. Use suitable charge management for rechargeable batteries; this module does not include a battery or a separate controller.
Keep the cell surface unshaded and the connections dry. Output changes with sunlight and load. Minor adhesive marks may occur on the rear surface. The package contains one solar module with its attached USB lead; device cables and receiving equipment are not included.
