200W Folding Solar Panel - 24V, Four Sections with Kickstands
Product Overview

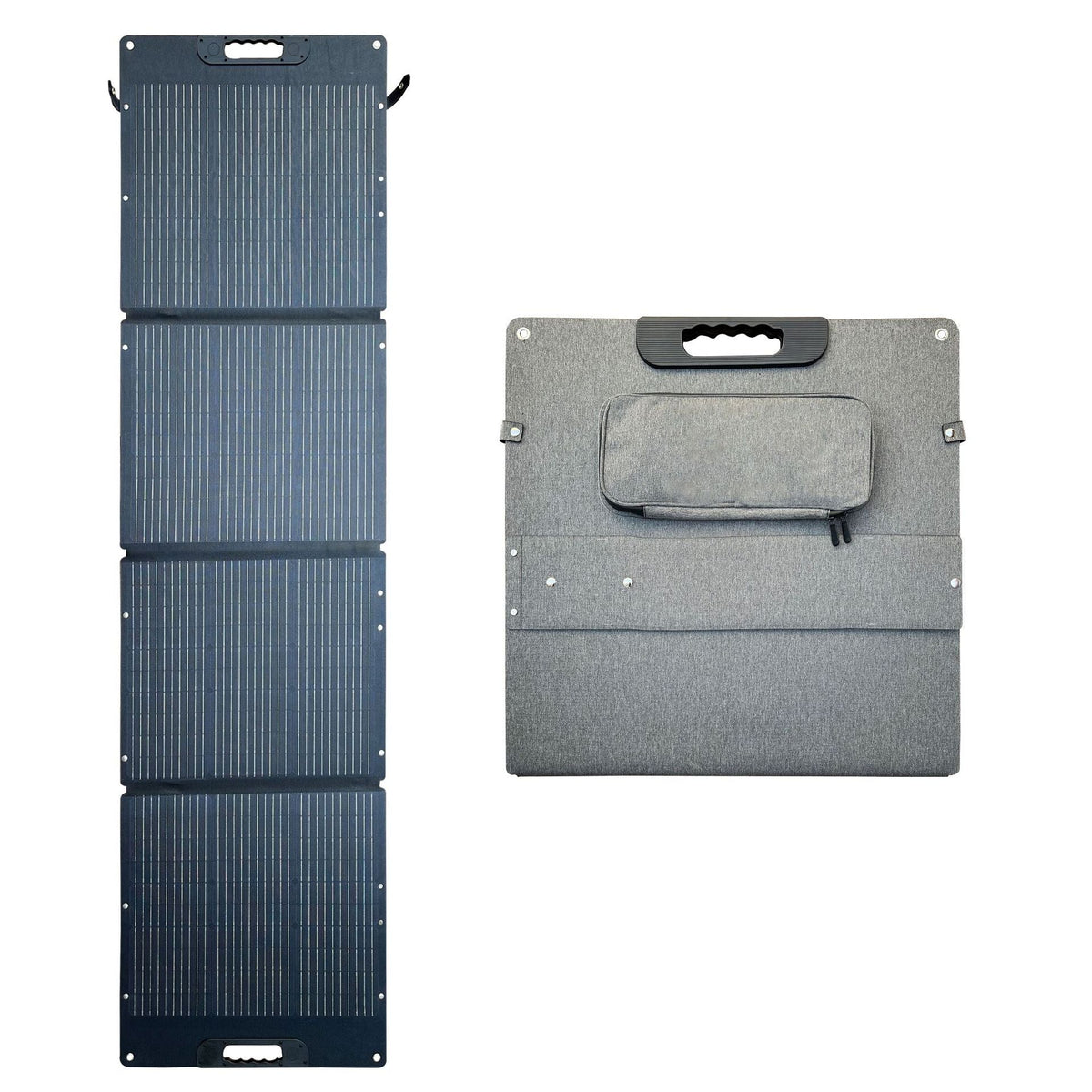

This 200W folding solar panel combines four solar sections with a fabric-backed carrying format for camping and portable power setups. Open the panel for solar collection, then fold it for storage between trips. Monocrystalline cells and an ETFE surface form the solar-facing assembly, while rear kickstands help position the unfolded panel.
Key Features

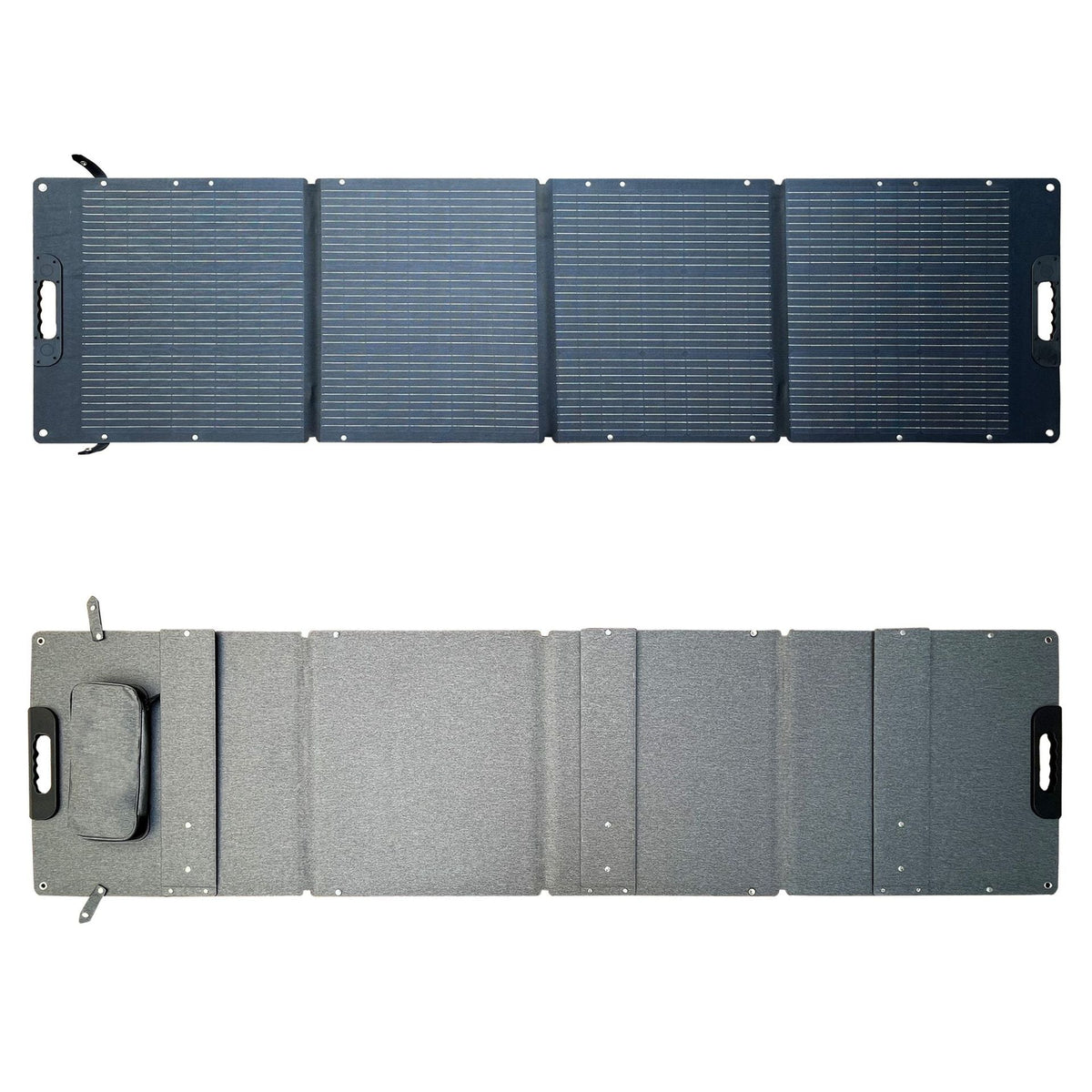

- Four-section folding layout separates the collecting surface into manageable panels.

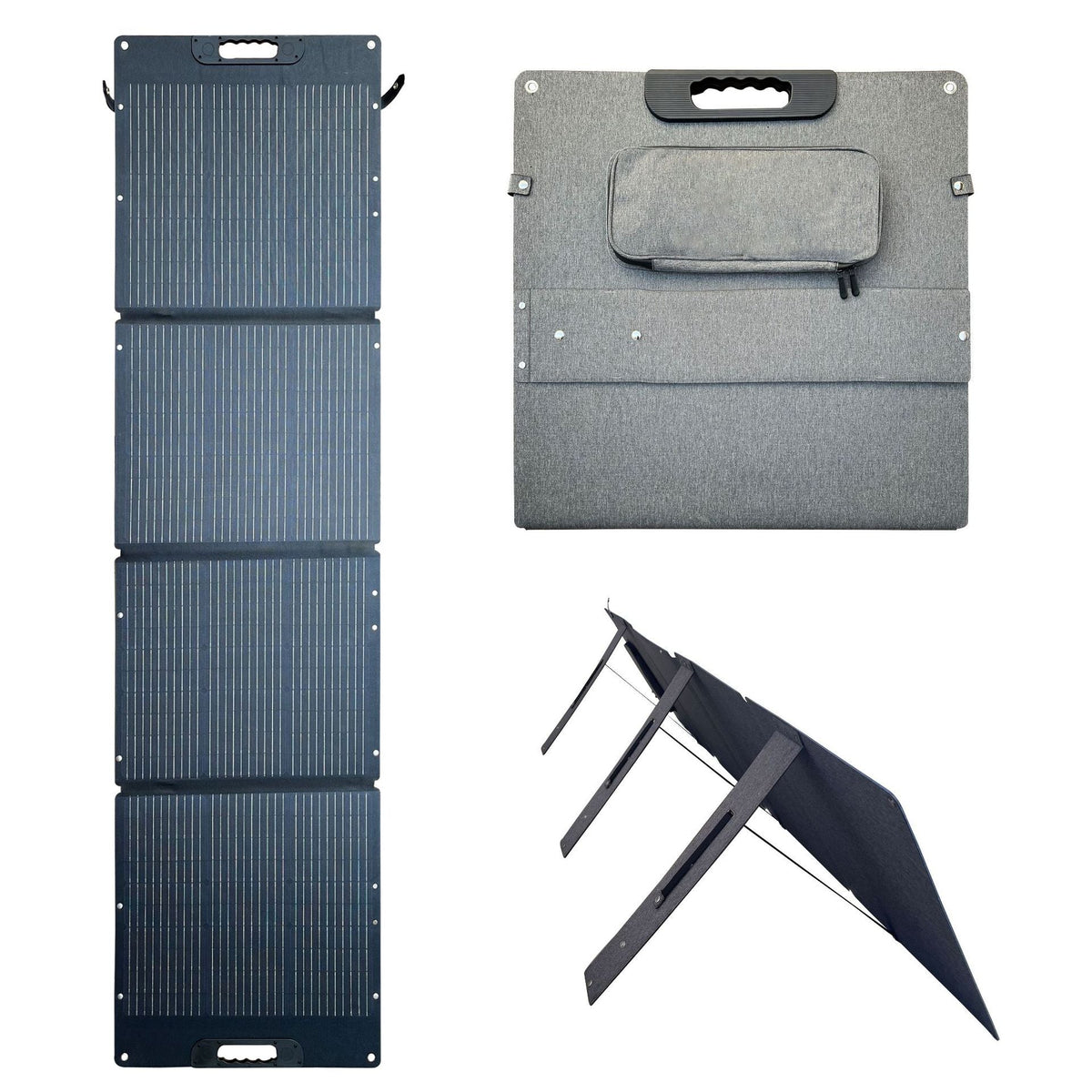

- Rear kickstands support an angled setup on suitable ground.
- ETFE surface covers the monocrystalline solar cell assembly.
- Carry handle makes moving the folded panel more convenient.

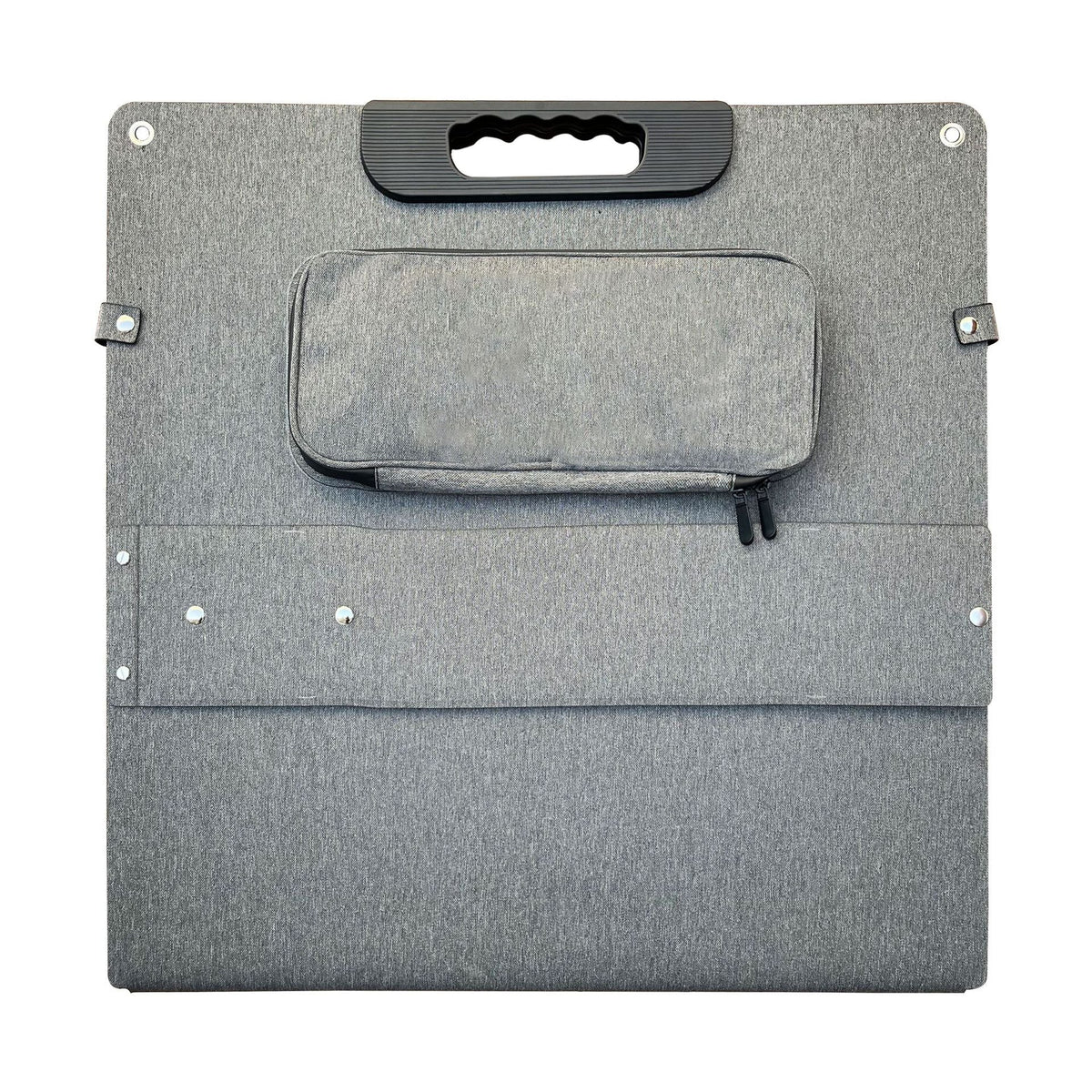

- Rear zippered storage pouch keeps the connection area accessible.
Details & Specs
| Rated power | 200W |
|---|---|
| Cell type | Monocrystalline |
| Surface material | ETFE |
| Solar sections | 4 |
| Maximum power voltage (Vmp) | 24V |
| Maximum power current (Imp) | 8.33A |
| Open-circuit voltage (Voc) | 28.8V |
| Short-circuit current (Isc) | 9.12A |
| Unfolded dimensions | 2060 x 608mm |
| Folded dimensions | 579 x 608mm |
| Support | Rear kickstands |
| Storage | Rear zippered pouch |
Connection Planning
Before connecting a portable power station or charge controller, compare its solar input voltage range with the panel's operating and open-circuit voltages. Confirm connector type, polarity and allowable input current separately. A matching plug alone does not establish electrical compatibility. Use an appropriate controller for battery charging rather than connecting the panel directly to a battery.
Setup & Care
Unfold all four sections and place the solar-facing surface in direct sunlight. Adjust the kickstands so the panel faces the sun, and keep neighbouring sections free from shadows cast by equipment or trees. Solar output varies with sunlight, temperature and positioning; the power rating is not a constant charging output. Keep connections dry, disconnect before packing, and avoid folding across the cell surfaces. Check the folded size against your available storage space before choosing this panel.
