Product Overview
The 1W 5V ETFE mini solar panel is supplied as a 10-pack of separate unwired modules for compact DIY circuits. Each monocrystalline panel has an ETFE-laminated face, an 80 x 80 x 2mm outline and polarity-marked solder pads on the rear. Its working current is up to 200mA per panel; match the circuit and charge-control components to the individual module ratings.
Details & Specs
Electrical ratings, dimensions and individual panel weights apply to each panel. One purchased pack contains 10 separate panels.
| Pack quantity | 10 panels |
|---|---|
| Rated power | 1W |
| Working voltage | 5V |
| Working current | up to 200mA |
| Cell / surface | monocrystalline cells with ETFE surface |
| Dimensions | 80 × 80 × 2mm |

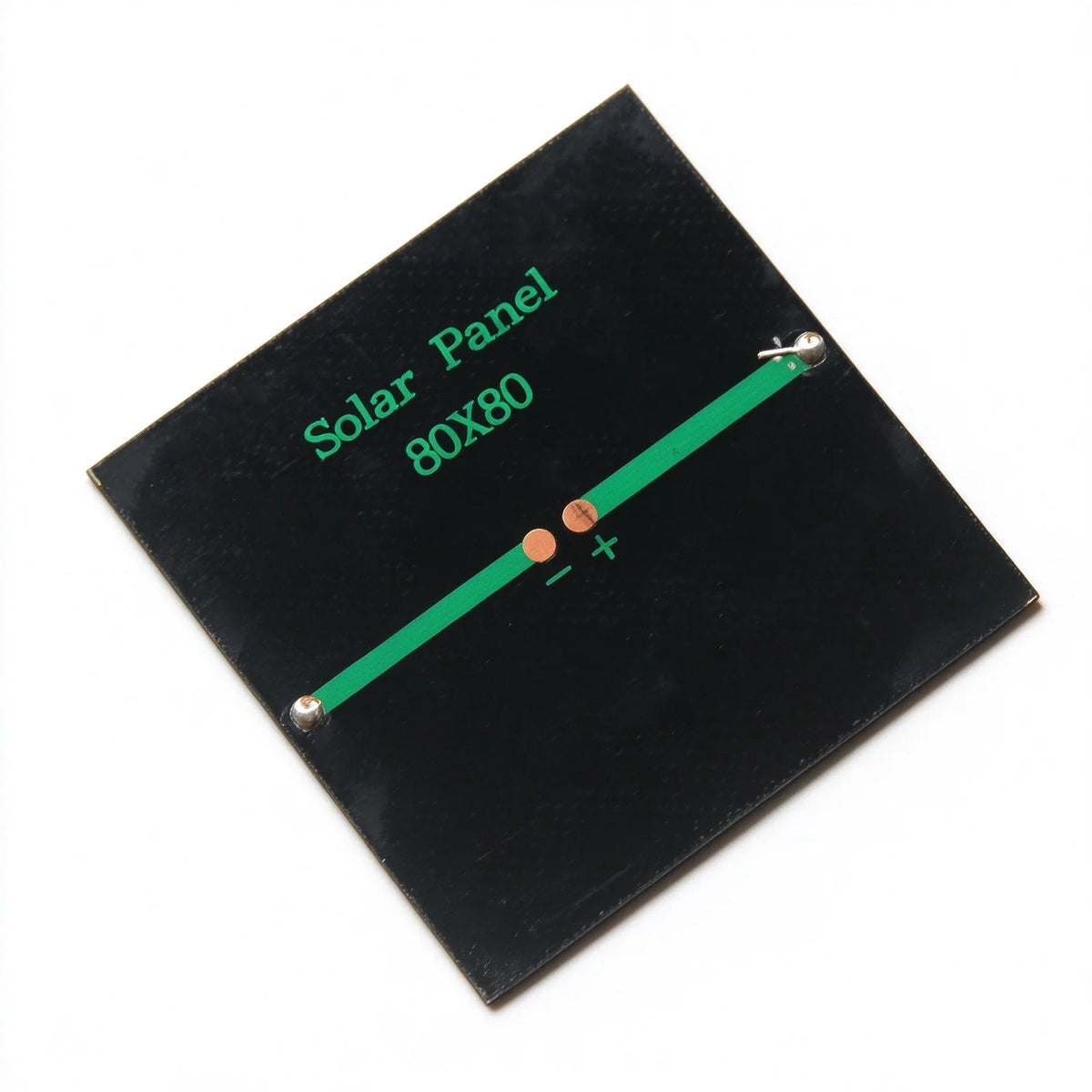

| Connection | solder pads on rear |
| Included | 10 unwired solar panels with rear solder pads |
| 10-panel pack shipping weight | Approximately 200g, including packaging |
Key Features
- 80 × 80mm square format fits small builds
- Rear solder pads are marked for polarity
- ETFE-laminated face over monocrystalline cells
- Ten matching unwired modules provide separate panels for multiple compatible compact builds.
Compatibility & Notes
Check voltage, current, polarity and mounting dimensions against your circuit. A separate charge controller is required for rechargeable batteries; the panel alone is not a complete charger.
