How to Choose Solar Mounting Brackets for Pole-Mounted CCTV

Choosing Solar Mounting Brackets for Pole-Mounted CCTV Systems

A good solar panel on a bad bracket is still a bad system.

For pole-mounted CCTV and solar cameras, solar mounting brackets do far more than “hold the panel.” They decide how much sun the panel actually sees, whether the structure survives storms and vibration, and how painful the site will be to service or expand later.

This guide explains how to choose the right solar mounting brackets for pole-mounted CCTV systems—from small single-panel poles to high-power multi-panel arrays. If you’re sourcing bracket options for field installs, start with Solar Panel Pole Mount hardware.

What solar mounting brackets really do in a CCTV pole system

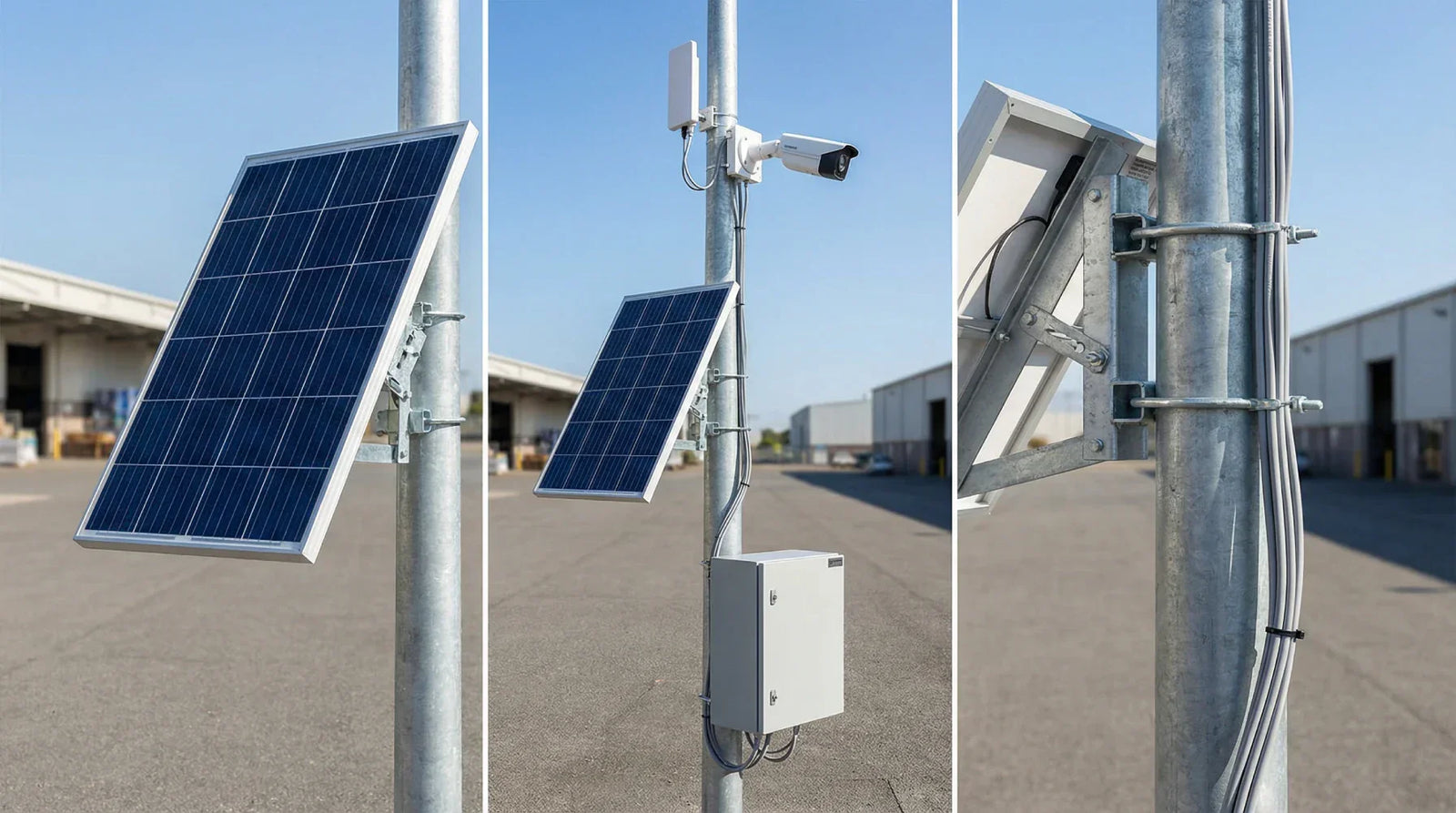

In a typical pole-mount solar CCTV system, you have solar panels, a battery/controller enclosure, cameras (and sometimes a router or other devices), and a pole carrying the full mechanical load.

The bracket is the mechanical link between those parts. In practice, it does four critical jobs:

• Anchors panels to the pole and carries wind and weight loads.
• Sets tilt and orientation, which directly affects daily energy yield.
• Controls service access to the enclosure and wiring (clearance, reach, and tool space).
• Defines cable routing and protection paths (strain relief, conduit alignment, and “what gets snagged”).

That’s why bracket selection is a structural and electrical decision, not a cosmetic one.

Four questions to answer before you pick a bracket

Before opening a catalog, write down four facts about your project. These will narrow bracket choices more than any filter:

1. What are you powering?

   Is it one small camera with a 10–20 W panel, or a 100–300 W array feeding several cameras and a router? Bracket choice changes quickly as panel area and wind load increase.

2. What type of pole is available?

   Note diameter range, round vs square, material, and wall thickness. Many “universal” clamps are only universal on paper.

3. Where is the site?

   Wind, ice, and corrosion risk (coastal salt, industrial pollution) should influence material choice and fastener strategy.

4. How will technicians service it?

   Ladder or bucket truck? Do you need seasonal tilt adjustments? Service method determines how much adjustability is helpful versus how much becomes a maintenance liability.

Common bracket types for solar CCTV poles

1) Side-of-pole mounts

Side-of-pole mounts are the workhorse for smaller poles and single panels—often in the 10–200 W range—powering one or two cameras. They typically use arms or rails that project the panel away from the pole, plus tilt adjustment (and sometimes rotation). Clamping is usually done with stainless bands or U-bolts.

2) Top-of-pole frames

Top-of-pole frames show up when you move into multi-panel arrays—often 200–400+ W—supporting several cameras, radios, or other loads. These designs usually have a central hub at the pole top and a frame holding multiple panels in a radial or rectangular arrangement. The entire array often tilts together.

The tradeoff is structural: top-of-pole systems must be engineered carefully for wind and torsion, and installation/maintenance tends to require better access equipment.

3) Compact camera + panel brackets

Some light-duty setups use combined mounts that hold both camera and panel on one arm. They’re convenient, but they often force compromises: the camera wants one viewing angle while the panel wants a different sun-facing angle. Load capacity and adjustability are also commonly limited.

For serious deployments, using separate camera brackets and solar mounting brackets usually produces better uptime and easier servicing.

What to look for in a good bracket

Regardless of bracket type, strong pole-mount designs tend to share the same qualities.

Strength and wind performance

Match the bracket to the panel size and your local wind reality. Look for structural aluminum or galvanized steel, adequate band width, and multiple clamps when loads are high. Under-building a bracket is a classic “it worked until the first storm” failure mode.

Adjustability

You want enough tilt range to aim panels toward the sun even if the pole location is constrained. In practice, many installs benefit from something like a mid-range tilt capability (often roughly 15–60° depending on design). If seasonal tilt changes matter for your energy budget, it’s worth using hardware that supports repeatable adjustments instead of “bend it and hope.” For tilt-focused options, see Solar Panel Tilt Mount.

Corrosion resistance

Outdoors is unforgiving. Hot-dip galvanizing, anodized surfaces, and stainless fasteners reduce seizing and staining. Coastal or chemically aggressive environments need extra care—this is where cheap hardware quietly becomes expensive.

Integration with enclosures and cameras

A bracket choice can create (or eliminate) service headaches. Good integration means: enough vertical spacing between panel and enclosure for safe access; panel placement that doesn’t shade cameras or sit inside the camera’s field of view; and clear, protected cable paths down to the enclosure.

When panel frames, brackets, and enclosure interfaces are designed as a set (instead of assembled from unrelated parts), the installation looks cleaner—and behaves more predictably over time.

Simple selection checklist

Use this as a fast screening tool before you get deep into part numbers.

In all cases, standardizing on a small set of bracket + panel combinations makes life easier for installers and for your spare-parts inventory. Consistency is a reliability tool.
