How to Choose the Right Panel and Battery for the Woods
Trail cameras are supposed to disappear into the background: you strap one to a tree, walk away, and come back weeks later to a full SD card and a healthy battery.

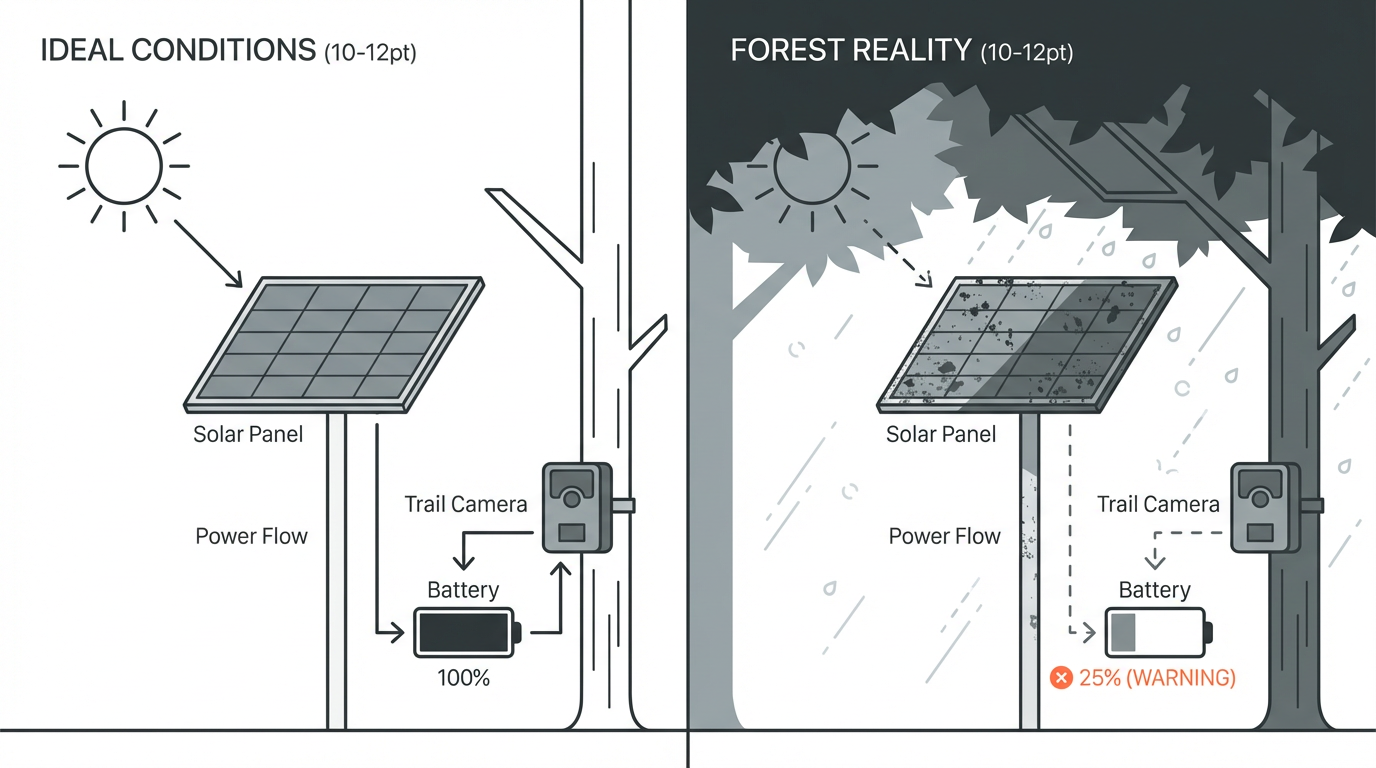

In the woods, reality is usually messier. The trail camera solar panel that looked fine on paper barely charges under tree cover, the battery meter falls to zero after a few cloudy days, and animals (plus UV, rain, and ice) slowly “test” every cable, bracket, and connector you left exposed.
If you want a solar trail camera setup that lasts a whole season—not just a weekend—you have to design for the way trail cameras really behave: long sleep periods, short power spikes, and inconsistent sunlight.
In this guide you’ll learn:
- How trail cameras actually use power (and why averages can be misleading).
- How to size a solar panel for trail camera use in wooded terrain.
- How to choose a battery for long unattended periods.
- What to look for in mounting, cables, and connectors so the system survives outdoors.
How a trail camera actually uses power
A trail camera does not draw power steadily like a router or an always-on CCTV recorder. Most of the time it’s asleep, sipping almost nothing, while a PIR sensor (or a timer) waits for a trigger. When something moves, the camera wakes, captures a burst of photos or a short video, writes to storage, and then drops back into sleep.
Cellular models add one more burst: the modem wakes up to send a clip or thumbnail, then shuts down again. That “turn the radio on / send / turn it off” cycle is the main reason cellular trail cameras tend to land higher on Wh/day than non-cellular models.
Because energy arrives in short spikes, a well-tuned non-cellular trail camera can be surprisingly low on average—often 1–3 Wh/day. Cellular models with occasional uploads are commonly closer to 3–6 Wh/day. That profile is friendly to small solar, as long as you size for your real trigger rate and your real light conditions (not the best-case day you remember).
From Wh/day to panel wattage
The sizing math is simple. The tricky part is picking honest inputs for “woods + weather + winter.”
Daily solar energy ≈ Panel_Watts × Effective_Sun_Hours × System_Efficiency
In forests and fields, you’re usually fighting two things: canopy shade and long stretches of mixed cloud cover. A practical planning band looks like this:
- Effective sun hours (after trees + weather): ~2–4 h/day in many open woodland edges.
- System efficiency (controller + wiring + battery): ~50–70%.
If your camera is under dense canopy (true “green tunnel”), effective sun hours can fall below 2 hours/day. In that case, your best move is often to relocate the panel to a clearer patch of sky—even if the camera stays on the tree.
Non-cellular trail camera
Assume:
- Energy use: 2 Wh/day
- Sun hours: 3 h/day
- Efficiency: 60%
Required panel watts:
2 ÷ (3 × 0.6) ≈ 1.1 W
On paper, a 1–2 W panel could work. In practice, most reliable setups step up to a 3–5 W class panel to cover shade, dirt, and the “bad week” of weather that always arrives at the wrong time. This is where a purpose-built module matters more than marketing claims. For example, LinkSolar’s trail camera solar panel options include compact glass mini modules and small outdoor-focused panels that are easier to mount and clean than many generic kits.
If you want a concrete reference point, the 113×113 mm 2.3 W glass mini panel is a good example of the “small but rugged” class—useful when you have intermittent sun and you want packaging that survives outdoor exposure.
Cellular trail camera
Cellular trail cameras typically land in the 4–6 Wh/day range for moderate upload behavior. Using the same sun and efficiency assumptions:
For 5 Wh/day:
5 ÷ (3 × 0.6) ≈ 2.8 W
That makes ~3 W the bare minimum in decent conditions. Many field deployments move to 5–7 W for better winter resilience—especially when the camera is in partial shade or the site is expensive to visit.
If you’re building a cellular wildlife setup, this section in our sizing guide provides a practical baseline (including panel and battery bands for low-duty wildlife monitoring): Cellular Solar Security Camera Power Guide.
One more note for wooded sites: if your mounting constraints push you toward flexible modules, thin-film can be a useful form factor. When you need a waterproof flexible option in the sub-6W range, see: Flexible Amorphous Silicon Solar Panel (0.3W–6W).
Battery sizing for long unattended periods
Your battery has to carry the camera through every night, several days of poor sun, and the short high-power bursts that happen during capture (and upload, if cellular). A simple sizing approach works well:
- Pick a target autonomy (days of poor sun you want to survive).
- Multiply by your daily Wh estimate.
- Add margin for cold temperatures and battery aging.
Example: 3 Wh/day with 4 days autonomy:
3 × 4 = 12 Wh usable
To avoid deep cycling, you might choose a 20–30 Wh nominal battery in a moderate climate—and more if the site is cold or truly hard to access.
Most consumer kits quote capacity in mAh. To convert to watt-hours (Wh):
Wh ≈ (mAh ÷ 1,000) × nominal voltage
For a 3.7 V pack, that becomes:
- 5,200 mAh ≈ 19.2 Wh
- 10,400 mAh ≈ 38.5 Wh
Mounting, cables and connectors
Power design doesn’t end with panel and battery. In the woods, mechanical and wiring details often decide whether the system lasts a season or becomes “field trash” after a month.
Mounting in wooded terrain
Aim for sky, not convenience. Panels should see maximum open sky, which often means mounting the panel a short distance away from the camera (on a clearer tree edge or a small post) rather than forcing it onto the same trunk. Tilt and rotation matter too—especially in winter—so an adjustable bracket is worth it.
If you need a simple way to dial in seasonal angle, use an adjustable solution like the products in our Solar Panel Tilt Mount collection. For post or pole installations where you want a wide tilt range and strong clamping, the Universal Pole Mount Kit (5W–50W) is a common field-friendly approach.
Cables and connectors
Wildlife sites punish cables. Use UV-resistant jackets, add strain relief near both ends, and route wiring tight to the tree or post so animals can’t easily snag it. Connectors should have basic sealing—unprotected barrel plugs corrode quickly outdoors.
When is a generic kit enough?
A branded solar panel for trail camera kit is often adequate when you only run one or two cameras, the site is easy to visit, and the climate is moderate. In that situation, the biggest wins usually come from honest wattage, decent mounting, and connectors that don’t rot in the rain.
Look for kits that clearly state wattage (not just “works great”), provide real battery specs, include a bracket that fits your trees/posts, and give you enough cable length to place the panel in the sun instead of the shade.
You should consider a more tailored solution when you manage dozens of cameras (ranch, park, research project), access is difficult or expensive, or you’re building your own trail camera product. In those cases, designing a mini solar power module with the right wattage, mounting geometry, cabling, and encapsulation will give you a more predictable and maintainable system than stacking consumer kits and hoping they behave.
