From DIY Kits to Professional Power Systems
On farms and ranches, solar cameras for farms usually do three jobs at once: they watch gates and driveways, cover fence lines and pasture edges, and keep an eye on high-value assets like tanks, sheds, and equipment yards.
It’s easy to start small—one DIY kit on the main gate, another near a shed—and call it done. The trouble shows up later, when you add more locations and the “simple” setup turns into a patchwork: one camera runs fine all summer but goes offline in winter, batteries die early because the load and climate were underestimated, and every gate ends up using a different kit (which makes spares, troubleshooting, and training a headache).
This guide reframes ranch monitoring from the power side. We’ll classify common site types, explain what each one really needs from a solar power system, and show when it’s time to standardize on a few repeatable power templates instead of buying random kits. If you want a deeper sizing walkthrough for cameras, routers, and gate hardware, see: Solar for Security Cameras & Gate Systems.
1. Three common farm and ranch camera scenarios

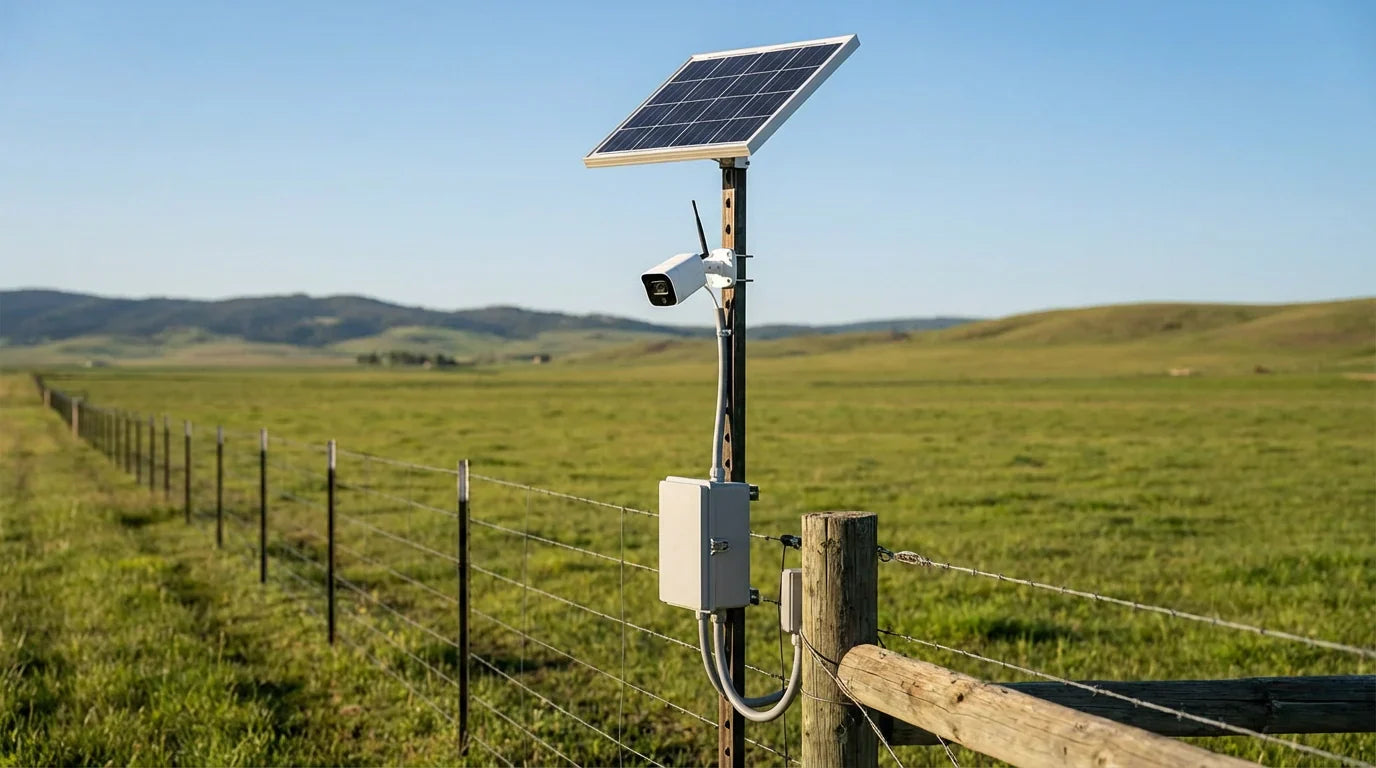

1.1 Farm gates and driveways
Gate sites usually have one or two cameras at an entrance, often with no grid power nearby. That makes them an ideal use case for 4G/LTE solar cameras when you want remote alerts and live viewing.
A typical starting design for a single gate camera looks like this:
- 8–15 W panel per gate camera (more if winter sun is weak or live viewing is frequent).
- 30–40 Wh battery class for ~3–4 days of autonomy in mild conditions (size up when winters are harsh).
- Panel mounted for a clear sky view; camera mounted at vehicle height (or above tampering reach where possible).
Mounting matters more than most people expect. If you’re aiming small panels on posts and rails, a compact bracket like the 5W–10W Wall/Pole Mount Bracket helps you put the module where it can actually see the sun instead of wherever there happened to be a screw hole.
1.2 Fence lines and boundaries
Fence coverage is the opposite problem: many potential points, low average activity, and serious consequences when a rare event happens. Running power or data cabling is rarely worth it, so the design usually favors long idle periods with short bursts of recording.
Typical builds here use trail/box cameras paired with compact solar:
- 3–7 W mini panels with 20–40 Wh batteries for low-duty deployments.
- Simple brackets for fence posts, T-posts, and quick replacement.
- Firmware and settings optimized for sleep behavior and short clip bursts.
This is exactly the deployment style our Mini Solar Panels are built for: small modules that are easy to mount, easy to replace, and predictable when you’re rolling out dozens of points.
1.3 Yards and asset areas
Equipment yards, barns, tanks, and feed areas usually need wider coverage and often longer daily runtime. These sites are best served as multi-camera systems on one or more poles, not as a pile of independent mini kits.
A common architecture is several cameras plus a 4G router or radio bridge, powered from a shared solar system with hundreds of watts of panels and a larger battery bank. Cameras can be powered via DC or PoE from a central enclosure.
2. Power considerations by site type
2.1 Gates and driveways – moderate loads, higher visibility
Gate cameras see moderate activity (vehicles and people), need dependable alerts and decent night vision, and are also the easiest for vandals to spot. From a power standpoint, start by budgeting in Wh/day rather than shopping by panel watts alone.
As a starting point, many single gate cameras land around 5–10 Wh/day once you include real usage (IR at night, cellular overhead, and “just checking live view”). The practical wins are usually boring but decisive: keep panels out of shade from gate hardware and trees, and use separate mounts if the camera’s best view conflicts with the panel’s best sun angle.
2.2 Fence lines – many points, low individual usage
Fence cameras are spread out, so installation speed and replacement simplicity matter more than squeezing the last few percent of efficiency. Power designs here should be aggressively low-duty—think 1–3 Wh/day if you can. That’s how you avoid turning “boundary coverage” into weekly battery maintenance.
A 3–7 W panel with a 20–40 Wh battery is often enough when firmware is tuned for low duty cycle and the panel is mounted where it actually gets winter sun. If you’re building custom modules for a large roll-out, starting from known cell options helps avoid mismatched laminates later: Solar Cells.
2.3 Yards and barns – higher loads, smaller number of sites
Treat each yard like a small solar CCTV site rather than “three separate solar cameras.” Shared infrastructure reduces failure points and makes the system easier to troubleshoot.
- Use a shared DC bus or PoE system powered by a 250–500 W solar array and 1–2 kWh of batteries (climate and usage decide where you land).
- Keep wiring serviceable: central enclosure, labeled circuits, clean strain relief, and a clear disconnect path.
- Build one or two reusable yard templates so every new yard feels familiar to install and maintain.
For pole deployments where shade moves and snow/grass grows, standardized mounting is the difference between “works for years” and “works until the next season.” A field-friendly option for compact systems is the Universal Solar Panel Pole Mount Kit (5W–50W).
3. From DIY kits to standard farm templates
The transition most farms go through is predictable:
- DIY phase – one or two kits at a gate or shed.
- Expansion phase – more gates, a few fence cameras, maybe a yard pole.
- Pain phase – inconsistent hardware, varying reliability, rising maintenance cost.
- Template phase – a small set of standardized power solutions.
A simple template set might look like:
- Gate template – 4G camera + 8–15 W panel + 30–40 Wh battery + gate-post bracket.
- Fence template – trail camera + 3–7 W panel + compact battery + fence-post mount.
- Yard template – multi-camera pole system with a defined panel and battery spec.
LinkSolar’s OEM work is often about turning templates into concrete, repeatable kits—matched panel voltage, mounts that fit your posts and poles, and cables/connectors that installers recognize. If you’re standardizing across multiple properties or integrator deployments, start here: Custom Solar Panels.
4. Practical advice for choosing hardware
Don’t mix random kits unless you absolutely have to. Standardizing reduces spare parts, training, and “mystery failures” caused by slightly different controllers and connectors.
Treat winter as the design month, not summer. Summer performance is cheap. Winter uptime is where most farm deployments succeed or fail.
Ask for Wh/day, not just W and mAh. Wh/day is how you compare options fairly across camera models, duty cycles, and radios.
Think about trucks: every trip to reset a camera or swap a battery has a real cost. If a template avoids even a few unnecessary site visits each season, it pays for itself quickly.
And if you’re wiring your own small systems, use a clean, repeatable wiring standard rather than improvising each time: How to Connect Mini Solar Panels.
When you start from a few well-designed templates and stick to them, farm and ranch monitoring stops being a patchwork of gadgets and becomes a coherent power system you can actually maintain.
