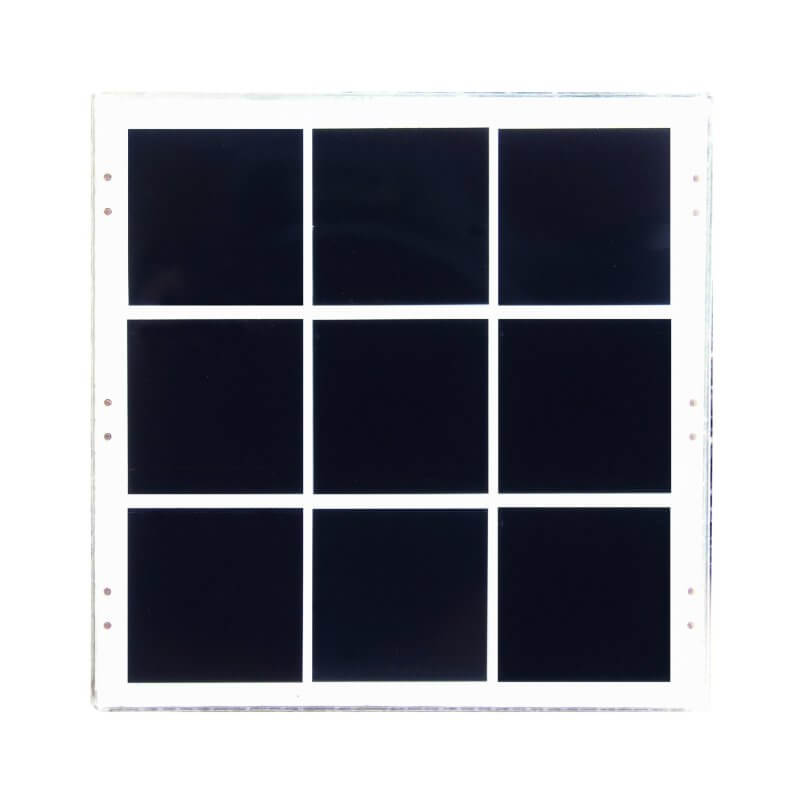

Mini solar panels are small, powerful tools for generating electricity from sunlight. They work well for DIY projects, portable gadgets, or off-grid setups. Unlike larger solar panels, mini panels need careful wiring to get the best performance. This guide explains how to connect them safely and efficiently.
Understanding Electrical Specifications
Before connecting mini solar panels, check their electrical details:
- Voltage (Vmp) and Current (Imp): These show the panel’s power under sunlight.
- Open-circuit voltage (Voc): The max voltage when not connected—important for choosing a charge controller.
- Panel size: Mini panels range from 5x5 cm to 30x30 cm.
- Efficiency: Monocrystalline panels (15–22% efficiency) work better in small spaces than polycrystalline.
- Avoid shading: Even small shadows can reduce power output significantly.
Wiring Configurations
Mini solar panels can be connected in two main ways:
-
Series Connection
- Adds voltages (e.g., two 6V panels = 12V).
- Keeps current the same.
- Best for higher-voltage systems.
-
Parallel Connection
- Adds currents (e.g., two 1A panels = 2A).
- Keeps voltage the same.
- Needs branch connectors or a combiner box.
Tips for wiring:
- Use 18–22 AWG UV-resistant wires for durability.
- MC4 connectors work for panels over 10W; smaller panels may need soldering.
- Fuse parallel connections to prevent reverse current.
- Always test with a multimeter before finalizing.
Charge Controllers and Load Matching
A charge controller protects batteries and optimizes power:
- PWM controllers: Affordable for systems under 20W but waste extra voltage.
- MPPT controllers: Better for mixed panels—adjusts voltage to maximize power.
Key steps:
- Match panel voltage to the battery (e.g., 12V panel for a 12V battery).
- Calculate daily energy needs: Panel wattage × peak sun hours (e.g., 10W × 4h = 40Wh).
- Add a Schottky diode to stop battery drain at night.
- For DC loads (like LED lights or small fans), ensure the controller can handle the total current.
Battery Considerations
Battery Type | Voltage Range | Best For Mini Panels? |
---|---|---|
Lead-acid | 6V, 12V | Yes (cost-effective) |
Li-ion | 3.7V–12V | Yes (lightweight) |
NiMH | 1.2V–12V | Limited (lower efficiency) |
Note: Overcharging damages batteries—always use a controller.
Common Applications
Mini solar panels power various small devices:
- Portable chargers: Phones, GPS, or cameras (5W–10W panels).
- Garden lights: 1W–3W panels with built-in batteries.
- DIY projects: Robotics, sensors, or backup power (custom wiring).
Safety tip: Keep panels clean and angled toward the sun for best results.
Troubleshooting
If your setup isn’t working:
- Check connections: Loose wires or corroded contacts block current.
- Test voltage: Use a multimeter—panels should show ≈80% of Voc in shade.
- Inspect the controller: Red lights often indicate faults (refer to the manual).
For complex setups, consult a wiring diagram specific to your panel model.
