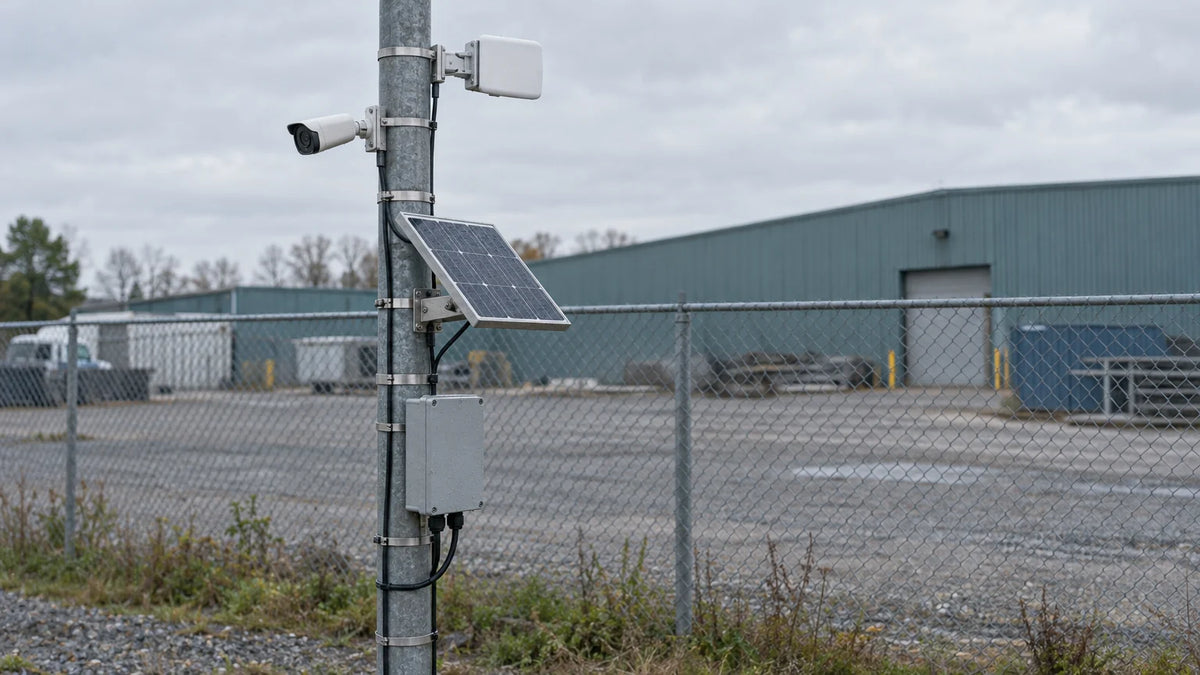

A camera and a wireless bridge can share a solar battery, yet need different PoE outputs. Before ordering a 24V solar PoE system, identify how each device receives power: a standard camera port and a passive bridge port are separate requirements.
Quick Answer: A 24V solar battery can support an 802.3af/at camera and a 24V passive wireless bridge through compatible power electronics. Choose a standards-based PoE source for the camera and a verified passive output for the bridge. Check the battery’s actual operating range, each device’s requirements, and the combined power budget before ordering.
Why a 24V solar PoE system needs two output checks
The camera and bridge need separate output checks because standard and passive PoE deliver power differently. IEEE 802.3af and 802.3at are standards-based Power over Ethernet; a suitable source detects a compatible powered device before supplying power.
Passive PoE supplies power without that standards-based detection. A bridge labelled “24V passive” still has model-specific requirements for voltage, polarity, Ethernet wiring and power, so the label alone does not establish a match.
A nominal 24V battery also changes voltage as it charges and discharges. The equipment feeding both branches must accept that operating range, rather than matching only the number printed on the battery.
Choose a power path for the PoE camera and wireless bridge
Choose either a suitable mixed-output DC switch or separate compatible power branches. The camera branch needs power sourcing equipment (PSE): the switch or injector that supplies standards-based PoE over Ethernet.
For a 24V bank, that camera branch may need a DC boost stage as part of a suitable PSE solution. A voltage converter alone does not establish 802.3af/at operation; confirm the complete source’s supported standard and available port power.
A mixed-output switch can reduce the number of components if its input range and individual outputs match both devices. Confirm which ports provide standard PoE and which provide passive power, rather than assuming all ports behave alike.
Separate branches allow the camera source and bridge output to be selected independently. Ask for the proposed power path and each port’s rating in the quotation, including enough capacity for the two devices to operate together.
Keep the Ethernet data connection in the proposal as well as the power connection. Identify the camera connection, bridge connection and upstream network path. A suitable power output does not establish the wireless link, so the network equipment and its installation remain part of the project review.
For camera-specific load questions, start with the solar power requirements for security cameras. Night operation can change the load that the shared system must support.
Check PoE converter direction before ordering
A converter’s input and output direction determines whether it belongs in your system. The MikroTik RBGPOE-CON-HP product specification describes a high-voltage PoE input converted to a 24V passive output.
| Parameter | Official value | Buying implication |
|---|---|---|
| PoE input | 42–57V | Requires a suitable higher-voltage upstream source. |
| Passive output | 24V, up to 1A | Match the connected passive device. |
| 802.3af upstream limit | 12.95W | The upstream source limits available power. |
This converter cannot be reversed to turn a 24V battery into a standard PoE camera source. Its output rating also does not mean the full output is available from every upstream supply.
Could a battery-backed PoE switch be the starting point?
A battery-backed standard PoE switch can be a candidate for the camera branch. MikroTik’s netPower Lite 8P has standard 802.3af/at outputs and supports an external 24V battery for backup.
That does not establish a direct 24V passive output for your bridge. Review the bridge branch separately, and check the official netPower Lite 8P manual for battery, charging and shared power limits before choosing the switch.
A backup charger and a solar charge controller have different roles. Confirm how the proposed solar charging arrangement works with the battery and switch instead of treating a UPS feature as a complete off-grid design.
Size solar power after the camera and bridge power path
Size the solar panel and battery around the complete load, including the camera, wireless bridge and power electronics. Daily energy depends on operating hours and changing loads, while the output equipment must also support simultaneous demand.
Use site-specific winter solar conditions and the required cloudy-weather coverage when selecting storage and panel capacity. Match the solar charge controller to the panel arrangement and battery chemistry; a larger battery cannot correct an undersized charging system.
If you already own the battery and panel, say so at the enquiry stage. Their labels or datasheets help establish which parts can be retained and which power electronics still need to be supplied. Ask the proposed supplier to identify any assumptions about those existing components before comparing quotations.
Our battery selection for remote monitoring guide covers storage choices. If your project instead uses a low-power gateway, solar sizing for a LoRa gateway addresses that different application.
Start a remote solar PoE enquiry with the device models
Start with the camera and wireless bridge models, site location, quantity and delivery destination. Those details allow a proposed configuration to be discussed before every electrical measurement is available.
Use those details to request a quote for remote solar power. Further specifications can be requested during the enquiry, and the project quotation should confirm the included components and their compatibility.
When requesting a quote, distinguish a complete supply request from a request for selected parts. A buyer-supplied battery, an existing bridge or a separately purchased camera changes the supply scope. The quotation should identify what is supplied, what stays with the buyer and which checks are needed before the components are connected at the site.
24V solar PoE questions
Can a 24V battery directly power an 802.3af/at camera?
A 24V battery alone is not an 802.3af/at PoE source. Use a compatible standards-based PSE with an input range suitable for the battery; if the camera also accepts a separate DC input, check that input independently in its manufacturer documentation.
Will a passive PoE output work with every wireless bridge?
No. Match the wireless bridge’s specified input range, polarity, wiring and power requirement to the passive output. Standard PoE support on another port does not confirm passive compatibility, even when both devices connect through Ethernet cables.
Is a battery included in a solar PoE quotation?
Only the actual project quotation confirms whether a battery is included. Check the component list and delivery scope for your destination before ordering; the term “solar PoE system” alone does not define the supplied battery, panel or power electronics.
MikroTik is a trademark of its respective owner. Its products are discussed as independent equipment options; this article does not imply affiliation, endorsement, LinkSolar stock availability or confirmed compatibility with a quoted system.
