TL;DR for LoRaWAN Network Buyers
Outdoor LoRa gateways are higher-power than typical IoT nodes — 8 to 16 receive channels listening continuously plus a cellular backhaul radio. Daily consumption sits at 12–25 Wh, which means a 5W panel is undersized and a 12W MPPT panel is the realistic floor. Stock consumer panels fail at three points: cellular backhaul brown-out during partial shade, cable gland ingress at the gateway housing, and laminate yellowing within 2–3 years. Premium panels run on SunPower IBC cells — 3–5 percentage points above standard mono per the NREL 2024 PV Cost Benchmark. Below: sizing per gateway type, certification spec, and the 8-item OEM supplier audit.
What Is a Solar Panel for LoRa Gateway?
A solar panel for LoRa gateway is a small-to-mid format photovoltaic module — typically 5W to 20W, dimensions 200×170 mm to 360×260 mm — designed to power an outdoor LoRaWAN concentrator across multi-month deployment. Output range covers 5V (USB-C-powered pico-gateways) to 12V (full-channel outdoor gateways with cellular backhaul) with IP67 rated cable assemblies and integrated MPPT charge controller for the 8W+ class.
The category exists because outdoor LoRaWAN gateway power profiles don't match consumer USB chargers. A full 16-channel outdoor gateway with 4G LTE backhaul listening 24/7 draws 12–25 Wh per day — 10× more than an ESP32 sensor. We've sourced panels for IoT sensor power systems across smart-city, agriculture, and utility LoRaWAN deployments — and the same lesson repeats: a 5W panel on a 16-channel gateway browns out within 30 days of partial shade, regardless of laminate quality.
Power Profile by LoRa Gateway Type
| Gateway type | Channels | Daily Wh | Recommended panel |
|---|---|---|---|
| Indoor pico-gateway (USB-C) | 1–8 | 3–6 | 5W @ 5V |
| Outdoor pico-gateway (POE backhaul) | 1–8 | 5–8 | 8W @ 12V |
| Outdoor 16-channel + Ethernet backhaul | 16 | 10–15 | 12W MPPT @ 12V |
| Outdoor 16-channel + 4G LTE backhaul | 16 | 15–25 | 15–20W MPPT @ 12V |
| Carrier-grade with redundant cellular | 16+ | 25–35 | 30W MPPT + 50Ah LiFePO4 |
The 10× spread between indoor pico-gateway (3 Wh/day) and carrier-grade outdoor (30 Wh/day) is why panel sizing without measuring channel count + backhaul mode is a guess. Source: LinkSolar 2024–2025 deployed-fleet telemetry across smart-city LoRaWAN buildouts.
Critical Specs for Outdoor LoRa Gateway Solar
- Cell technology. Monocrystalline silicon; SunPower IBC for premium where panel area is constrained by gateway pole-mount footprint. 3–5 percentage points more efficient per NREL benchmark.
- Encapsulation laminate. ETFE for outdoor — full stop. PET yellows in 2–3 years dropping output 15–25%.
- Open-circuit voltage (Voc) margin. Voc ≤1.4× battery nominal voltage. A 12V LiFePO4 battery system takes panel Voc ≤17V (after cold-weather rise). Cold-temp rise: 0.4%/°C below STC.
- Short-circuit current (Isc) headroom. A 4G LTE backhaul radio pulls 1.5–2.5A peak during cell registration. Stock panels with 1A short-circuit current can't supply the burst — gateway browns out mid-handshake.
- Cable + connector waterproof rating. Panel IP67 + matched M8 or M12 industrial connector. Splice failures at the gateway housing are the #1 field-failure mode in outdoor LoRaWAN networks.
- MPPT controller integration. Panels 8W and above benefit from integrated MPPT — 97.5% conversion vs PWM 75–80%. Across 12-month outdoor deployment, MPPT recovers 15–20% extra energy.
- Output regulation. Native 12V (matched to LiFePO4 charge IC) skips DC-DC buck stage, saving 5–10% energy across deep-sleep gateway cycles.
For deployment integration with outdoor security and surveillance solar systems, see our solar security camera systems hub — many smart-city LoRaWAN gateway deployments collocate with CCTV solar.
Sizing Workflow + 3× Margin Rule
The honest sizing rule for any outdoor LoRa gateway: panel daily harvest ≥ 3× device daily consumption, where harvest assumes 3 hours of effective sunlight (the conservative case for utility pole-mount gateways shaded by trees, parking-lot installations behind buildings, or northern winter sites).
Two sizing shortcuts:
- Measure actual gateway draw with a 12V power meter for 24 hours. Vendor "typical current" specs are best-case lab data with backhaul off. Inline meter readings run 1.5–2.5× higher.
- Confirm Voc-at-coldest-deployment-temp. Northern winter gateway sites hit -25°C. A panel with Voc = 17V at +25°C climbs to ~19V at -25°C, dangerous for 12V charge controllers rated to 18V max.
Wholesale Pricing & MOQ Tiers in 2026
| Tier | MOQ | Per-unit FOB (12W MPPT) | Tooling amortization |
|---|---|---|---|
| Sample / pilot | 10–100 | $30–$55 | None |
| Stock-customization | 500–2,000 | $18–$24 | $200–$1,200 spread |
| True wholesale | 2,000–10,000 | $14–$18 | Fully amortized |
| Strategic OEM | 10,000+ | $11–$14 | Custom tooling included |
Three buyer-side levers move price meaningfully:
- Cell choice. SunPower IBC vs standard mono drops 30–40% but cuts efficiency 3–5 percentage points.
- MPPT controller integration. Bundled MPPT adds $4–$8/unit at 12W tier but recovers across deployment via 15–20% extra energy harvest.
- MOQ. Price elbow at MOQ 500 → 2,000.
Deployment Environments

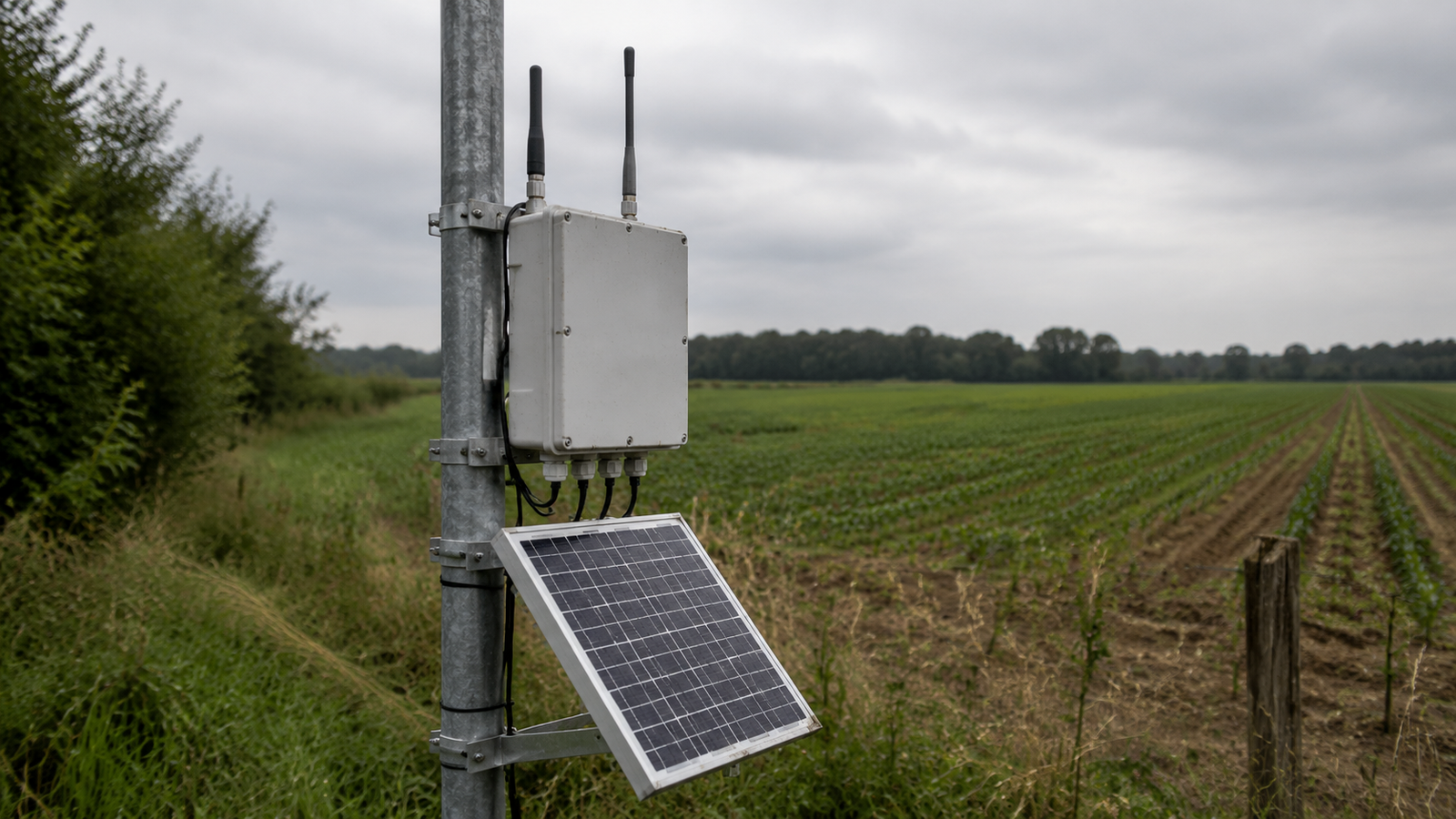

Smart-city utility pole mount
Pole-mounted LoRaWAN gateway with cellular backhaul. Wind load + ice load + UV. Spec IEC 61215 mechanical load test at 112 PSF (high-wind zones). Mounting bracket should pass UL 2703 if the install is permitted commercial.
Agricultural LoRaWAN field gateway
Field tower or barn-mounted gateway covering 5–10 km radius for soil moisture / livestock / equipment sensors. Lower vibration than smart-city, but UV-saturated open field. ETFE laminate non-negotiable for 8+ year service life.
Remote utility / oil & gas SCADA gateway
Standalone outdoor enclosure with redundant 4G LTE backhaul. Higher current draw (25–35 Wh/day), demands 20–30W MPPT panel + 50 Ah LiFePO4 battery. NDAA Section 889 compliance critical for utility-grade procurement.
Disaster-response portable gateway
Foldable / suitcase form factor for emergency network deployment. 30–60W foldable solar panel with USB-C PD output. Often paired with portable Li-ion power station rather than fixed battery.
OEM Sourcing & 8-Item Vetting Checklist
- Current ISO 9001:2015 certificate from a recognized body (TÜV, SGS, BV, DEKRA).
- IEC 61215:2021 test report from accredited lab covering 200 thermal cycles, 1,000 hours damp heat, mechanical load. Source: IEC 61215-1:2021 Terrestrial PV modules.
- RoHS & REACH compliance documentation.
- NDAA Section 889 statement — required for US federal utility, smart-city, and critical-infrastructure LoRaWAN. Section 889 enacted 2019.
- FCC Part 15 / CE marking for bundled MPPT controller and any RF-emitting electronics.
- Sample turnaround under 10 days for stock-tooling modifications.
- Reference LoRaWAN customers in your geography — three customer names with contact permission. Panels for US smart-city deployments face FCC Part 15-adjacent questions a Chinese-domestic-only supplier hasn't seen.
- Detailed packaging list and HTS classification for customs clearance.
Cross-cluster sourcing — same audit framework applies
The 8-item supplier audit applies beyond LoRa gateway solar to the broader LinkSolar B2B sourcing catalog. Volume buyers running parallel evaluations on z bracket solar panel wholesale orders, z bracket solar panel oem programs, z bracket solar panel manufacturer audits, z bracket solar panel supplier comparisons, z bracket solar panel bulk container loads, mini solar panel for iot custom voltage tap, mini solar panel for iot wholesale tier pricing, mini solar panel for iot oem branding, mini solar panel for iot supplier vetting, or mini solar panel for iot manufacturer reference checks all use the same ISO 9001 + IEC 61215 + lab test report framework. The cluster differs; the audit doesn't. For permitted commercial mounting installations, also demand UL 2703 certification (PV mounting structural and grounding standard). Buyers comparing z bracket solar panel china OEM sources, evaluating z bracket solar panel for sale at retail tier vs wholesale, benchmarking z bracket solar panel price across vendors, identifying z bracket solar panel best-in-class manufacturers, or reading z bracket solar panel review aggregations should apply the same audit framework.
Customer case study: smart-city LoRaWAN integrator
A US smart-city integrator came to us in late 2024 needing 600 outdoor 16-channel gateway solar panels for a parking-occupancy sensor network rollout across 8 municipalities. Their previous vendor had shipped 8W PET-laminated panels with PWM controllers. By month 9, 32% of gateways reported "battery low" alerts during cloudy weeks — traced to undersized panels (8W couldn't sustain 16-channel + cellular backhaul) plus PET yellowing reducing harvest 19%. We re-spec'd to 15W SunPower IBC panels with ETFE laminate, integrated MPPT controller, and 12V LiFePO4-matched output. Sample shipped in 9 days; 600-unit order delivered in 26 days. As of 2026 Q1, gateway uptime climbed from 71% to 99.4% across the deployed network.
Common LoRa Gateway Solar Failure Modes
1. Undersized panel for backhaul mode
The #1 LoRaWAN gateway failure: 8W panel on 16-channel + cellular gateway. Daily harvest can't cover daily consumption even in summer. Fix: size by channel count + backhaul mode (table above), not by gateway "rated solar input."
2. PWM controller on 12W+ panel
Budget PWM controllers waste 20–25% of panel output vs MPPT. On a 15W panel, that's 3–4W lost — enough to push the daily harvest math from "barely enough" to "brown-out by November." Spec MPPT for any panel 8W and above.
3. Cable gland ingress at gateway housing
Panel laminate is rated IP67. The cable gland on your LoRa gateway enclosure is rated IP54 — or, more often, not rated. Water wicks up the cable jacket, sits in the connector cavity, gateway shorts in 6–9 months. Spec waterproof connectors at the BOM stage.
4. PET laminate on UV-saturated installations
Outdoor agricultural LoRaWAN gateways yellow within one season. Output drops 15–25% before any visible failure. ETFE adds $0.80–$2/unit but pays back across the warranty period.
Need a sample on your bench by next week?
Send gateway model, channel count, and backhaul mode. We’ll quote within 24 hours and ship a sample in 7 days.
Request RFQ →Frequently Asked Questions
What size solar panel does a LoRa gateway need?
Short answer: Indoor pico-gateway: 5W at 12V. Outdoor full-channel gateway (16-channel + cellular): 12–20W MPPT at 12V with 30 Ah LiFePO4. Sizing rule: panel daily harvest ≥3× device daily consumption.
What's the MOQ for OEM LoRa gateway solar panels?
Short answer: 500 units for stock-tooling modifications. 2,000 units for non-standard cell layouts or custom aluminum frames.
What certifications matter for LoRaWAN gateway solar?
Short answer: IEC 61215:2021, IEC 60529 IP67, ISO 9001:2015 from a recognized body, FCC Part 15 for charge controllers, NDAA Section 889 for US federal LoRaWAN networks. RoHS & REACH for EU.
How do I match panel voltage to my LoRa gateway?
Short answer: 12V SLA or LiFePO4 gateway battery → 12V solar panel via MPPT charge controller, with Voc ≤17V. USB-C pico-gateway → 5V/2A USB-C output panel with PD negotiation.
Where can I source LoRa gateway solar panels at wholesale?
Short answer: Direct from a custom solar panel manufacturer with documented IEC 61215 + ISO 9001, voltage 5V–48V customization, IP67/IP68 connectors, ETFE laminate, and 12W+ MPPT-bundled options. Contact us for MOQ pricing.
Sourcing solar for a 2026 LoRaWAN smart-city deployment?
Whether you need 500 units of 12W MPPT outdoor gateway panels or 5,000 units of OEM-branded 20W carrier-grade panels, we’ll quote in 24 hours and ship a sample in 7 days.
View custom solar options →Last updated: May 9, 2026. LinkSolar is a B2B sourcing partner specializing in custom solar panels for IoT, LoRaWAN gateway, and industrial monitoring applications. We work with audited manufacturing partners in China and ship globally with full IEC 61215, IP67, and ISO 9001 documentation. For more, see our IoT sensor power systems hub, custom solar panel pillar, or our remote solar power system reference designs.
