0.9W 5.5V Mini Solar Panel, Matte PET, SMT SPIC Back-Contact Cell, 75×69.5mm

LinkSolar  |  Artikelnummer: LS-MSP-S207
$1309 USD
Skatter och frakt beräknas i kassan.

Funktioner
  • 0.9W compact output: Delivers a 5.5 V operating point in a small-format panel for low-power electronics.
  • Near-square rectangular footprint: Measures 75 × 69.5 × 2 mm for integration where enclosure space is limited.
  • Waterproof, UV-resistant surface: Matte PET provides a low-glare black finish suitable for outdoor product designs.
  • Back-contact SMT construction: SPIC cells are mounted to an FR4 PCB, keeping electrical contacts on the rear.
  • Bare solder-pad connection: Two polarity-marked 5 mm copper pads support direct integration into a custom wiring harness.
  • OEM-ready customization: Lead wires, connectors, dimensions, and panel outlines can be customized for volume projects.

Product Overview

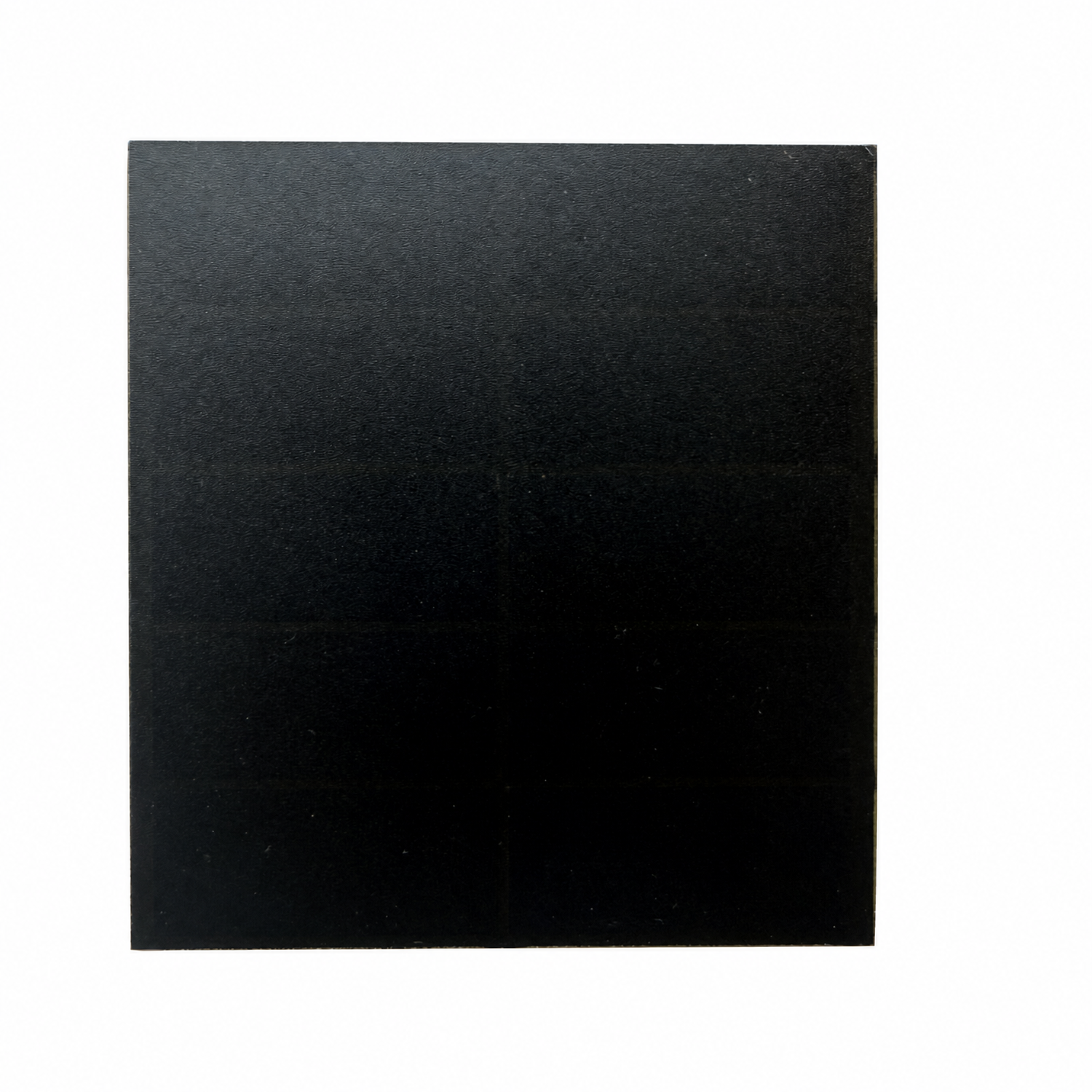

This 0.9W 5.5V mini solar panel combines a compact 75 × 69.5 mm near-square rectangular footprint with a waterproof, UV-resistant matte PET surface. SPIC back-contact solar cells are SMT-mounted to an FR4 PCB, with a clean dark front and two rear solder pads for integration.

At its maximum power point, the panel is rated for 5.5 V and 163.6 mA. Open-circuit voltage is 6.5 V and short-circuit current is 175 mA under the specified test conditions.

Key Features

  • 0.9W compact output: Delivers a 5.5 V operating point in a small-format panel for low-power electronics.
  • Near-square rectangular footprint: Measures 75 × 69.5 × 2 mm for integration where enclosure space is limited.
  • Waterproof, UV-resistant surface: Matte PET provides a low-glare black finish suitable for outdoor product designs.
  • Back-contact SMT construction: SPIC cells are mounted to an FR4 PCB, keeping electrical contacts on the rear.
  • Bare solder-pad connection: Two polarity-marked 5 mm copper pads support direct integration into a custom wiring harness.
  • OEM-ready customization: Lead wires, connectors, dimensions, and panel outlines can be customized for volume projects.

Best For

A practical choice for DIY electronics, compact IoT sensor nodes, beacons, small monitoring devices, and OEM products that need a waterproof low-power solar input in a compact footprint.

Details & Specs

Rated maximum power 0.9 W
Working voltage (Vm) 5.5 V
Working current (Im) 163.6 mA
Open-circuit voltage (Voc) 6.5 V
Short-circuit current (Isc) 175 mA

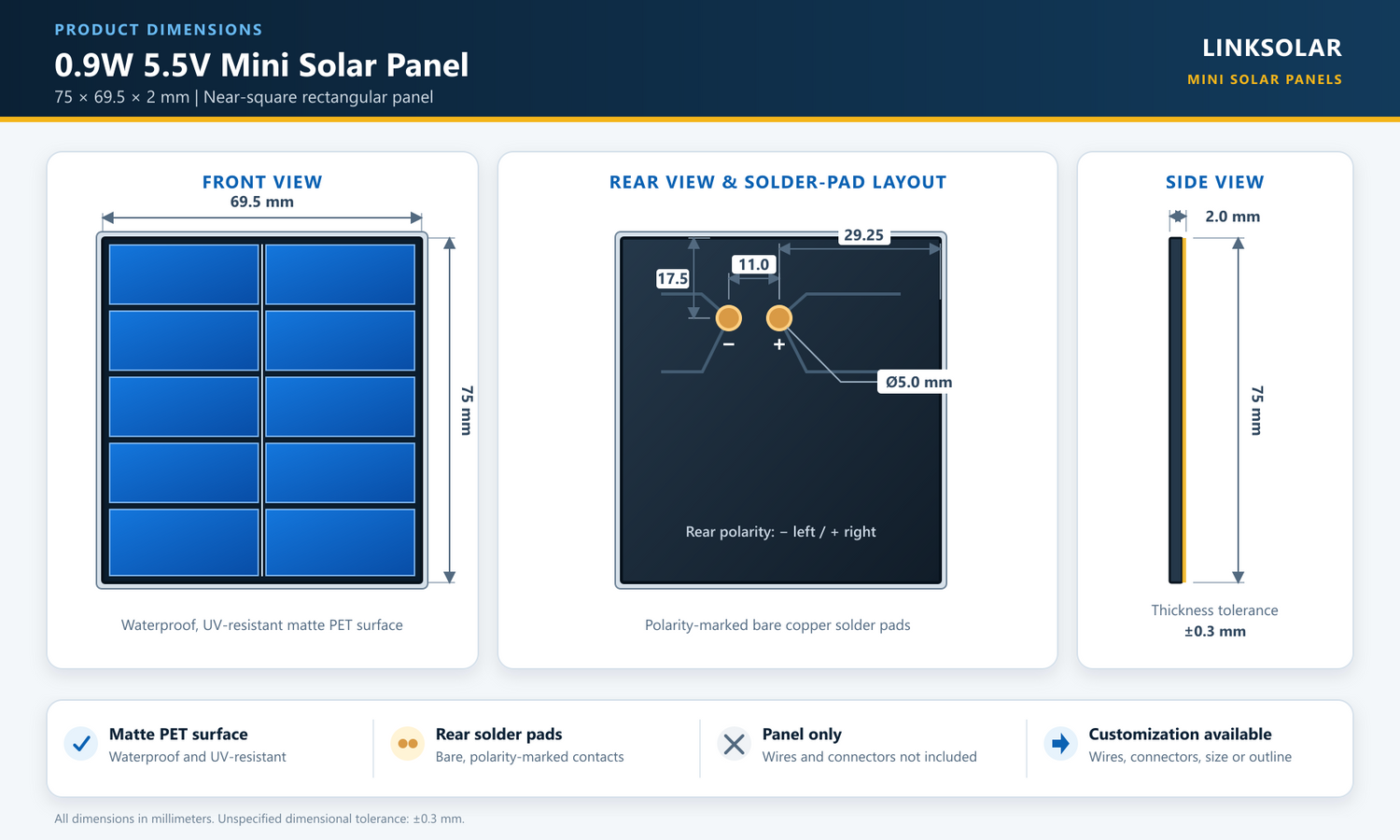

Dimensions 75 × 69.5 × 2 mm
Shape Near-square rectangle
Surface Waterproof, UV-resistant matte PET
Cell and build SPIC back-contact cells, EVA encapsulation, SMT-mounted to double-sided FR4 PCB
Electrical tolerance Voltage ±10%; current ±10%

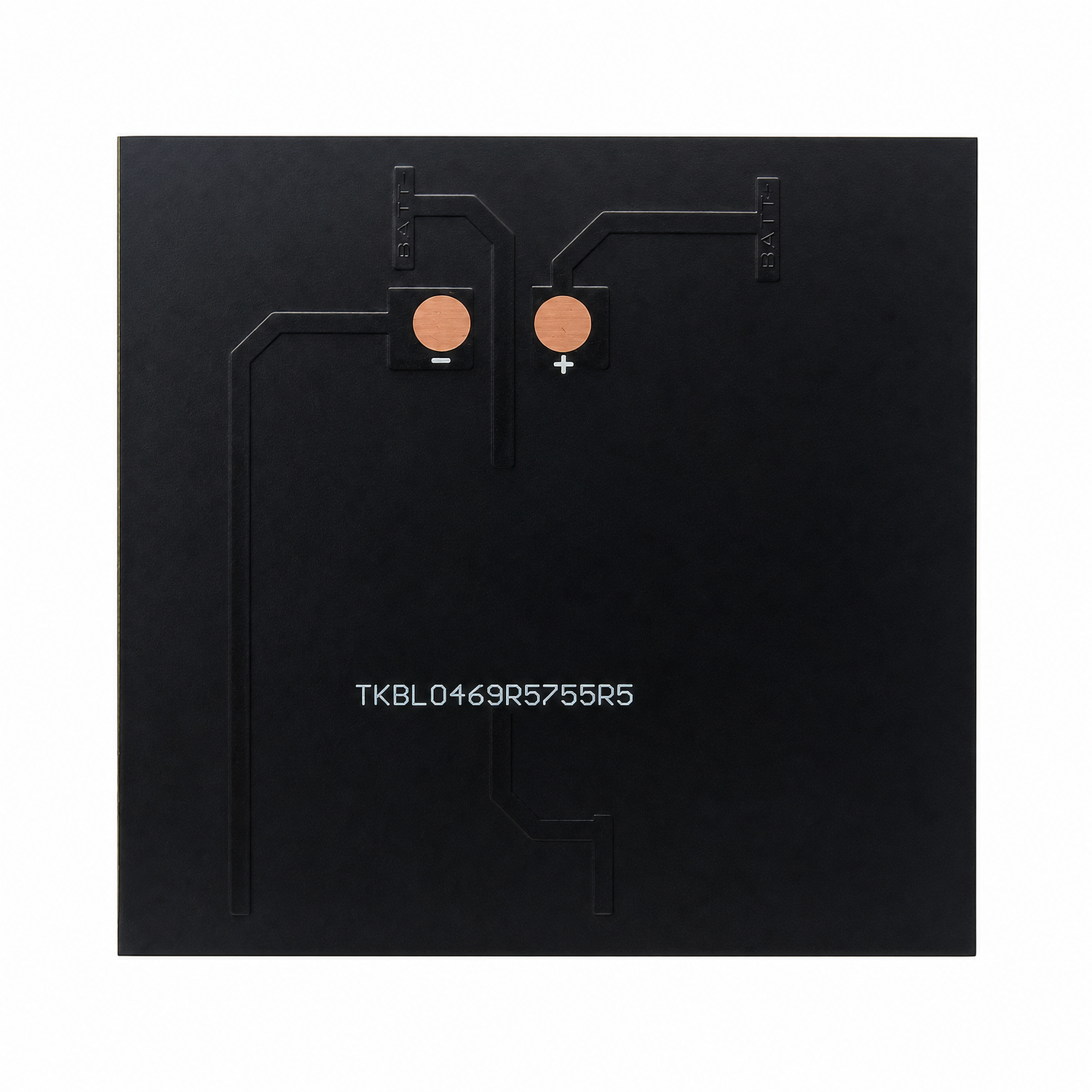

Rear terminals 2 × polarity-marked bare solder pads, Ø5 mm, 11 mm center spacing
Single-panel net weight Approximately 17 g
Rated test conditions 1000 W/m², 25°C, AM1.5



Need a different connection or footprint? Contact LinkSolar about custom lead wires, connectors, dimensions, or panel outlines.
