2.1W 18V Long Rectangular Mini Solar Panel, ETFE, 247×44.5mm

Product Overview

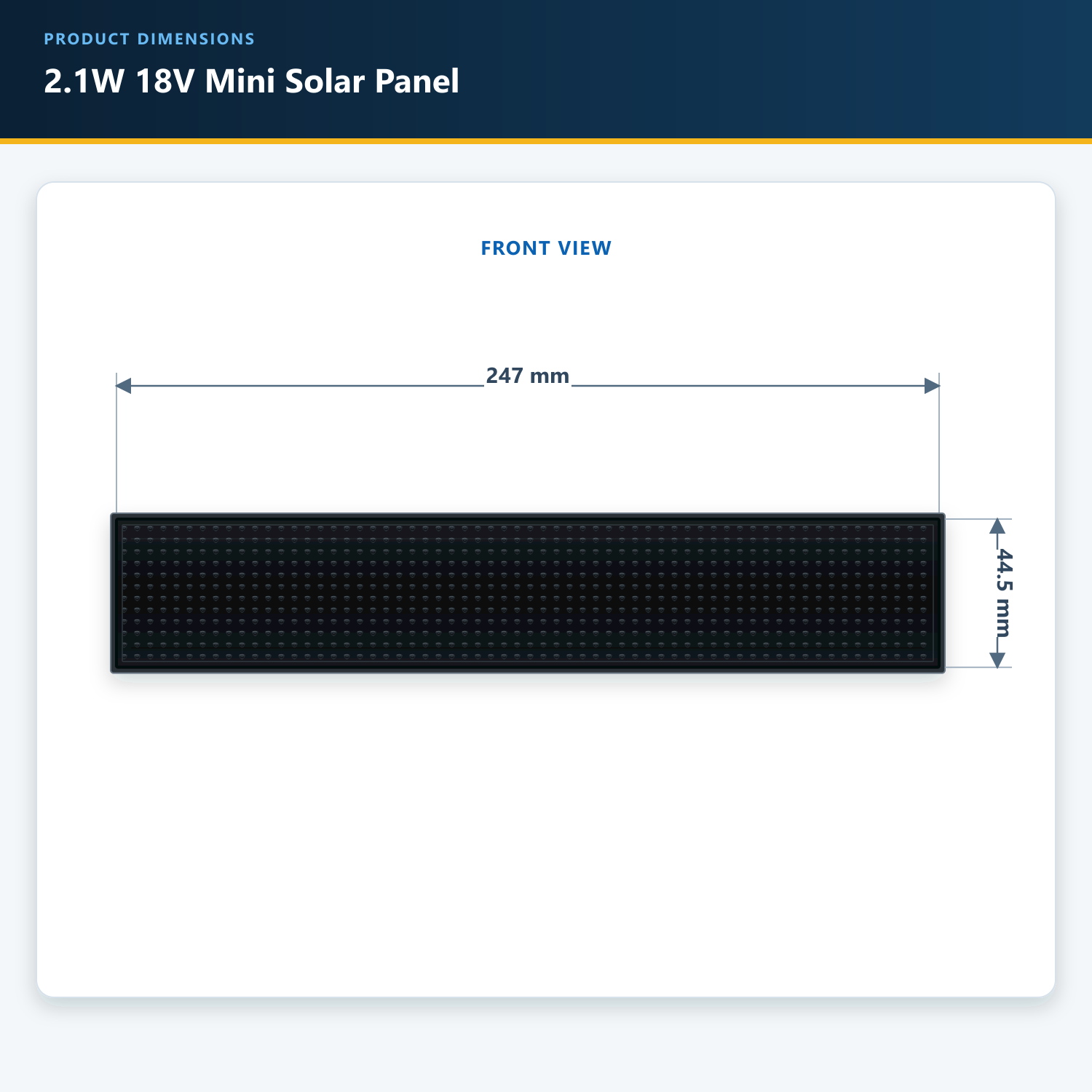

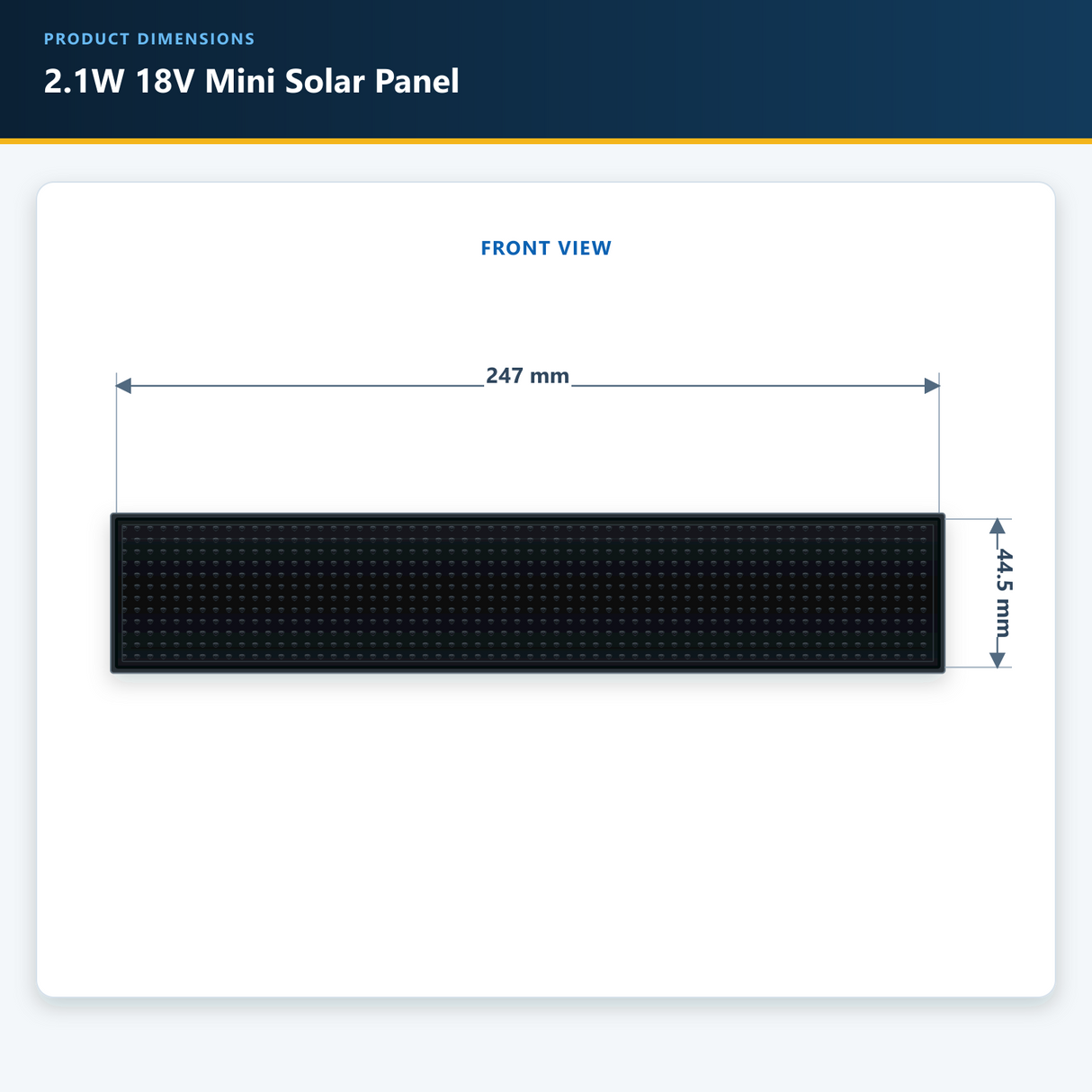

This 2.1W 18V mini solar panel is built for projects that need solar input in a long, narrow footprint. Measuring 247 × 44.5 mm, it combines a textured ETFE surface with SPIC back-contact solar cells SMT-mounted to a PCB. The slim rectangular format fits elongated housings and mounting areas that cannot accommodate a conventional square panel.

Key Features

• 2.1W at 18V: Provides a compact solar input for low-power electronics and energy-harvesting systems.
• Long rectangular footprint: The 247 × 44.5 mm shape makes efficient use of narrow mounting space.

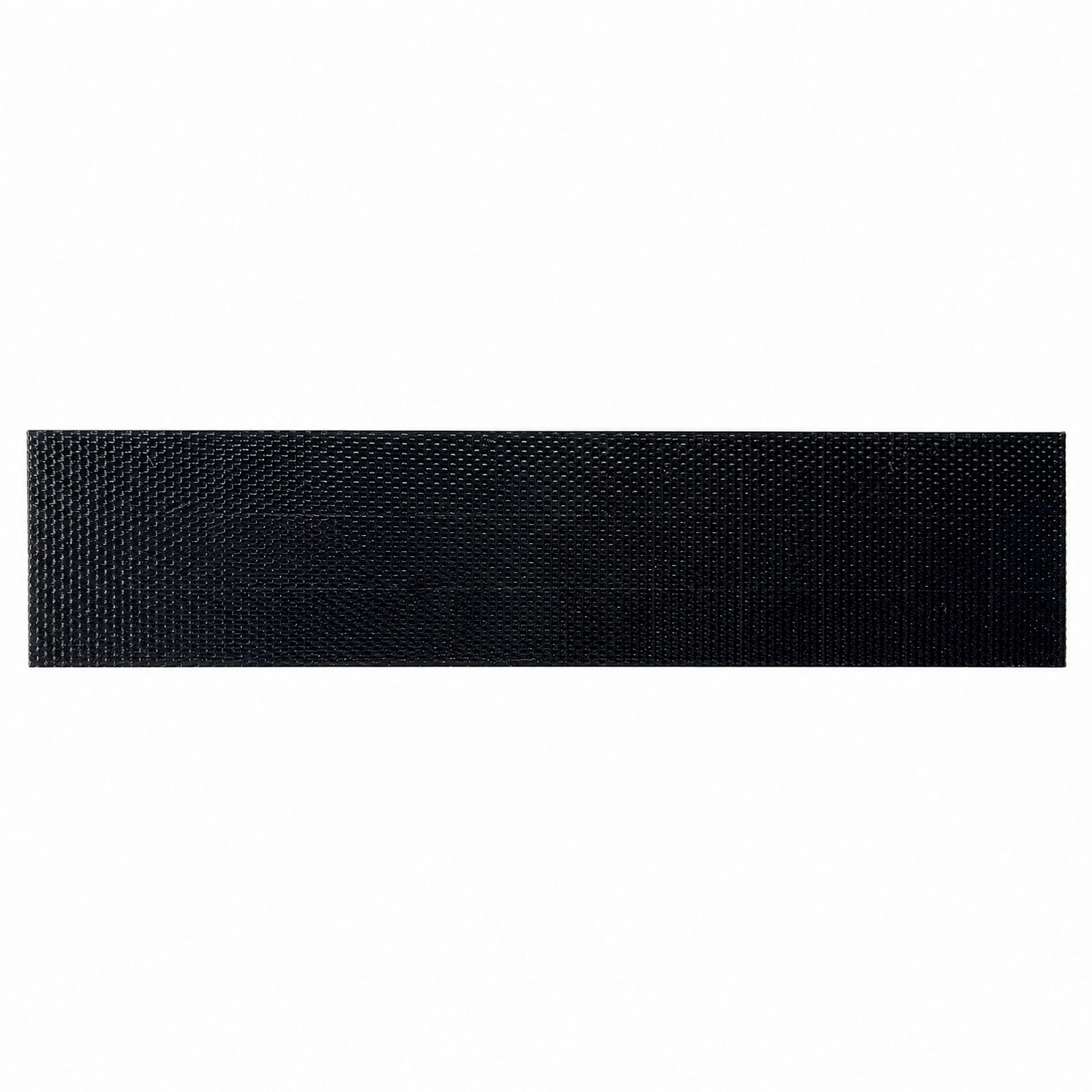

• Durable ETFE surface: Waterproof, UV-resistant, and scratch-resistant construction supports outdoor product integration.
• Back-contact SMT construction: SPIC solar cells are mounted to the PCB with electrical contacts kept on the rear.

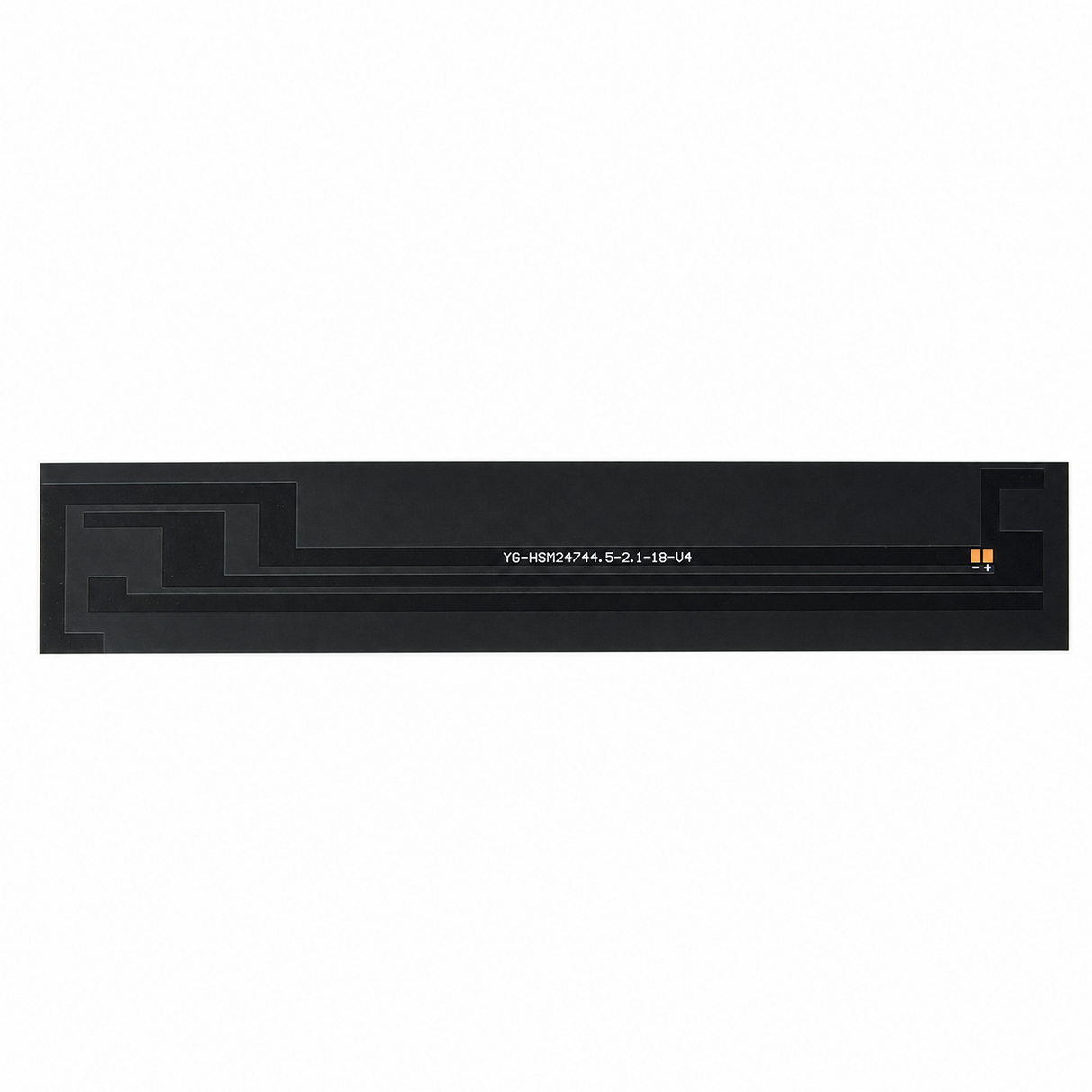

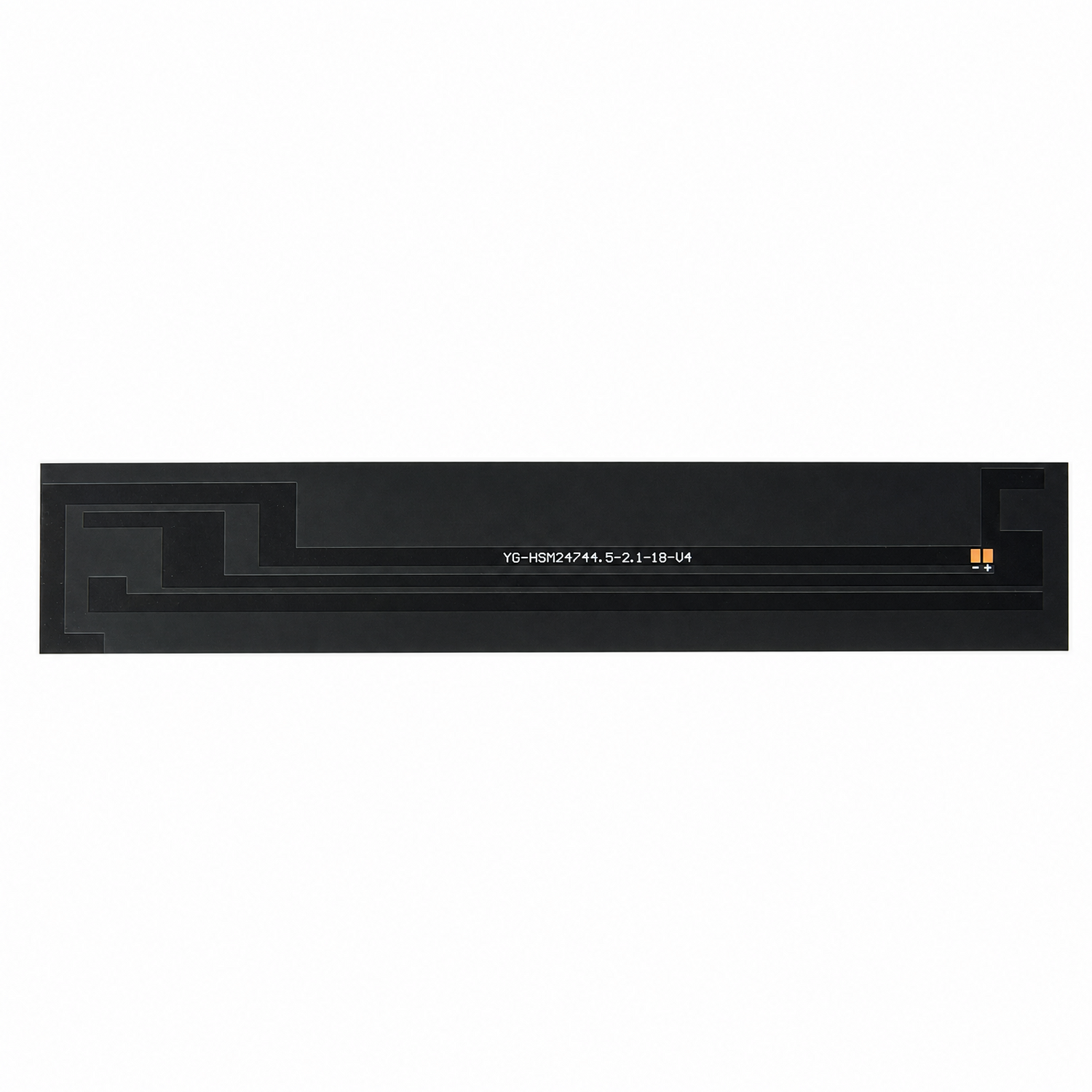

• Polarity-marked solder pads: Two bare copper pads provide a straightforward connection point for custom wiring.
• OEM-ready format: Contact LinkSolar about custom dimensions, outlines, lead wires, or connectors for production projects.

Best For

A practical choice for long, slim enclosures, remote sensors, weather-station components, low-power monitoring equipment, and custom OEM devices where a square panel will not fit.

Details & Specs

Compatibility & Notes

Use a charge controller or regulator suited to the connected device or battery; do not assume direct compatibility from the 18V rating alone. Output varies with sunlight intensity, angle, temperature, controller, battery, and overall system setup. Waterproof construction does not assign a specific IP rating or imply suitability for submersion. Protect the exposed PCB and solder pads from mechanical impact and excessive vibration in the finished assembly.

Need a different footprint or termination? Contact LinkSolar about custom panel dimensions, outlines, lead wires, or connectors.
