200W Foldable Solar Panel with Carrying Pouch and Kickstands

LinkSolar  |  SKU: SP-STD-0200-01
$22149 USD
Impuestos y envío calculados al finalizar la compra.


Características

  • Six-section layout: a wider solar collection surface that folds for transport.
  • Portable construction: an integrated pouch and handle make the folded panel easier to carry and store.
  • Rear kickstands: support angled placement on stable ground.
  • Defined electrical ratings: the source specifications give both open-circuit and working voltage, making input matching more straightforward.

Overview

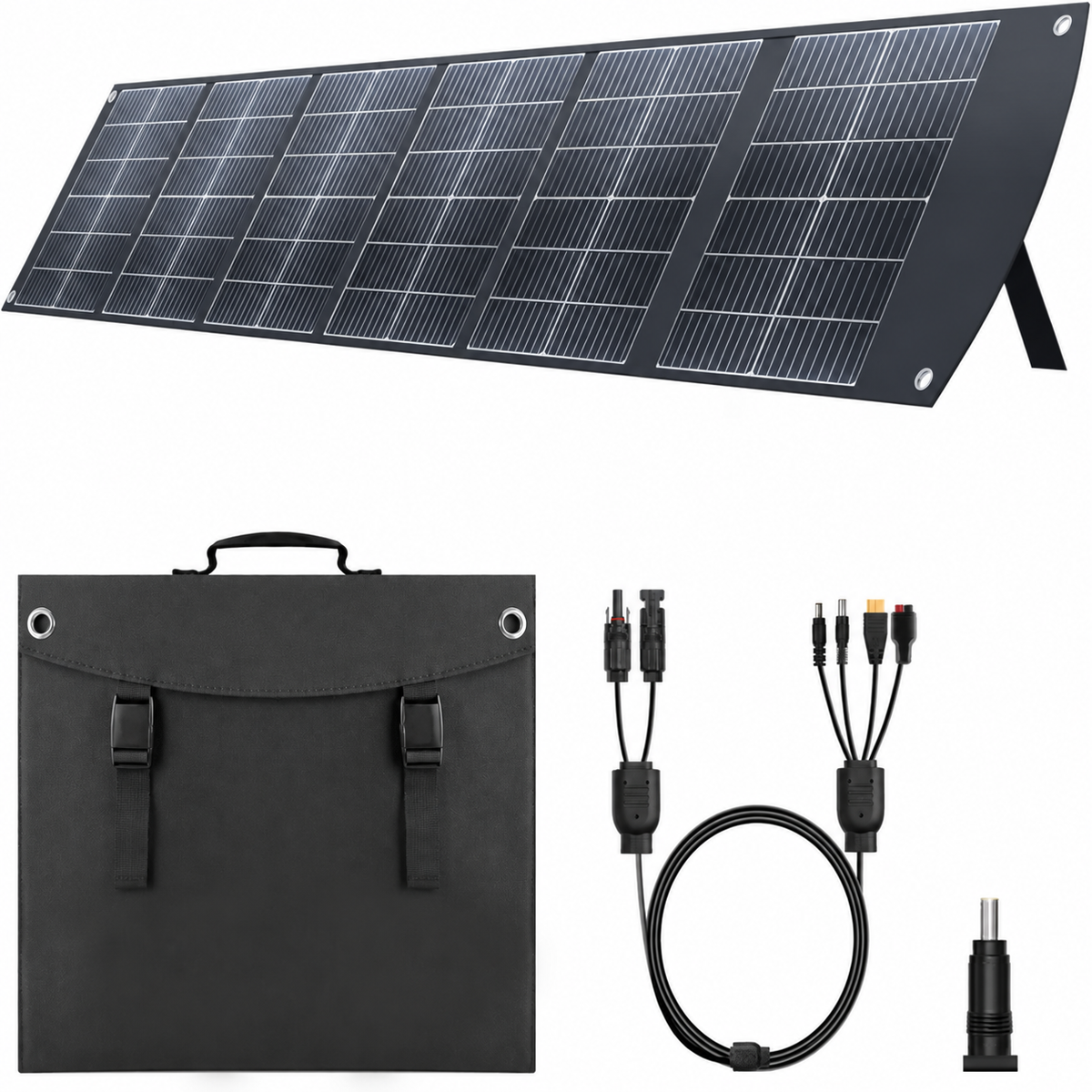

This 200W foldable solar panel opens into six solar sections for portable power setups and folds into a carrying pouch between trips. Rear kickstands help position the panel toward direct sunlight at a campsite, RV stop or other suitable outdoor location.

Why This Panel

  • Six-section layout: a wider solar collection surface that folds for transport.
  • Portable construction: an integrated pouch and handle make the folded panel easier to carry and store.
  • Rear kickstands: support angled placement on stable ground.
  • Defined electrical ratings: open-circuit and working-voltage values help you check the receiving device’s solar-input range.

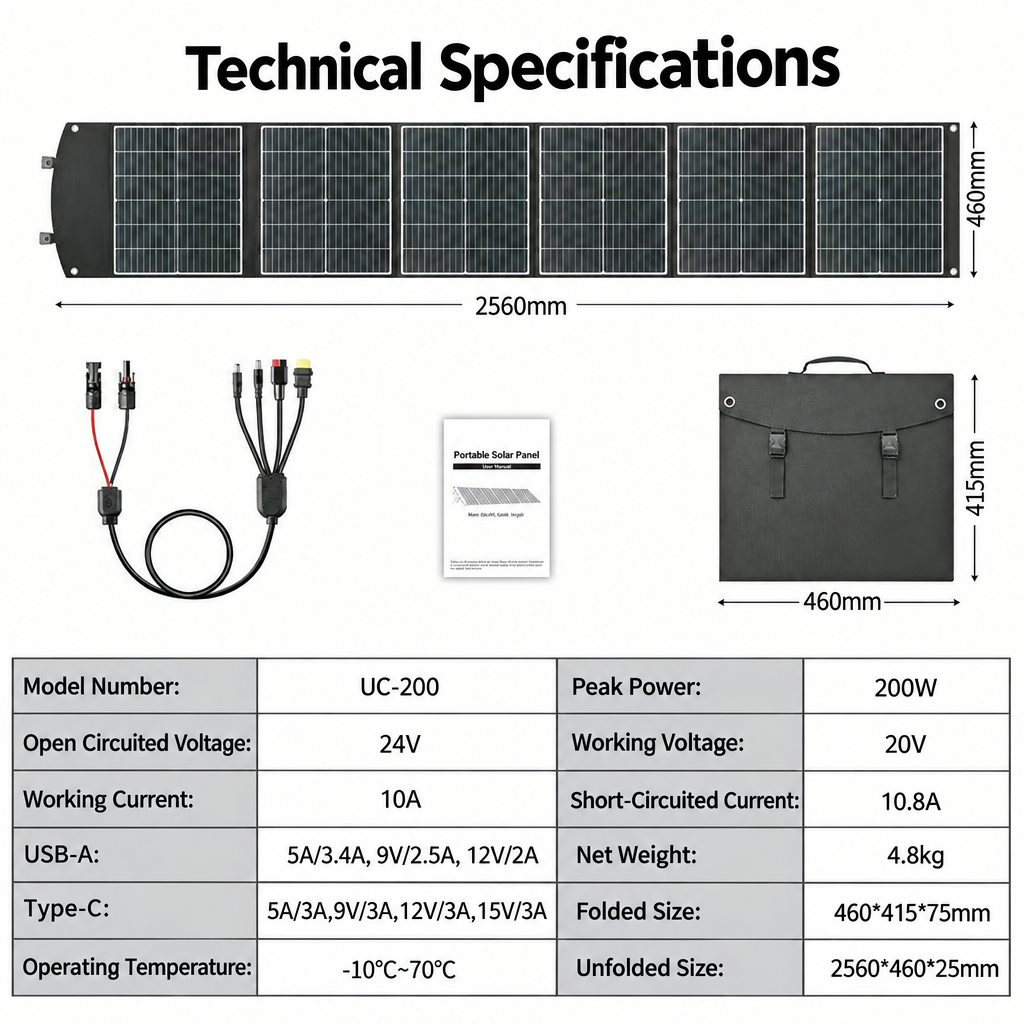

Technical Specifications

Model UC-200
Rated power 200W
Panel format Six-section foldable panel
Unfolded size 2560 × 460 × 25 mm
Folded size 460 × 415 × 75 mm
Weight 4.8 kg
Open-circuit voltage (Voc) 24V
Working voltage 20V
Working current 10A
Short-circuit current (Isc) 10.8A
Operating temperature −10°C to 70°C

Connection & Use

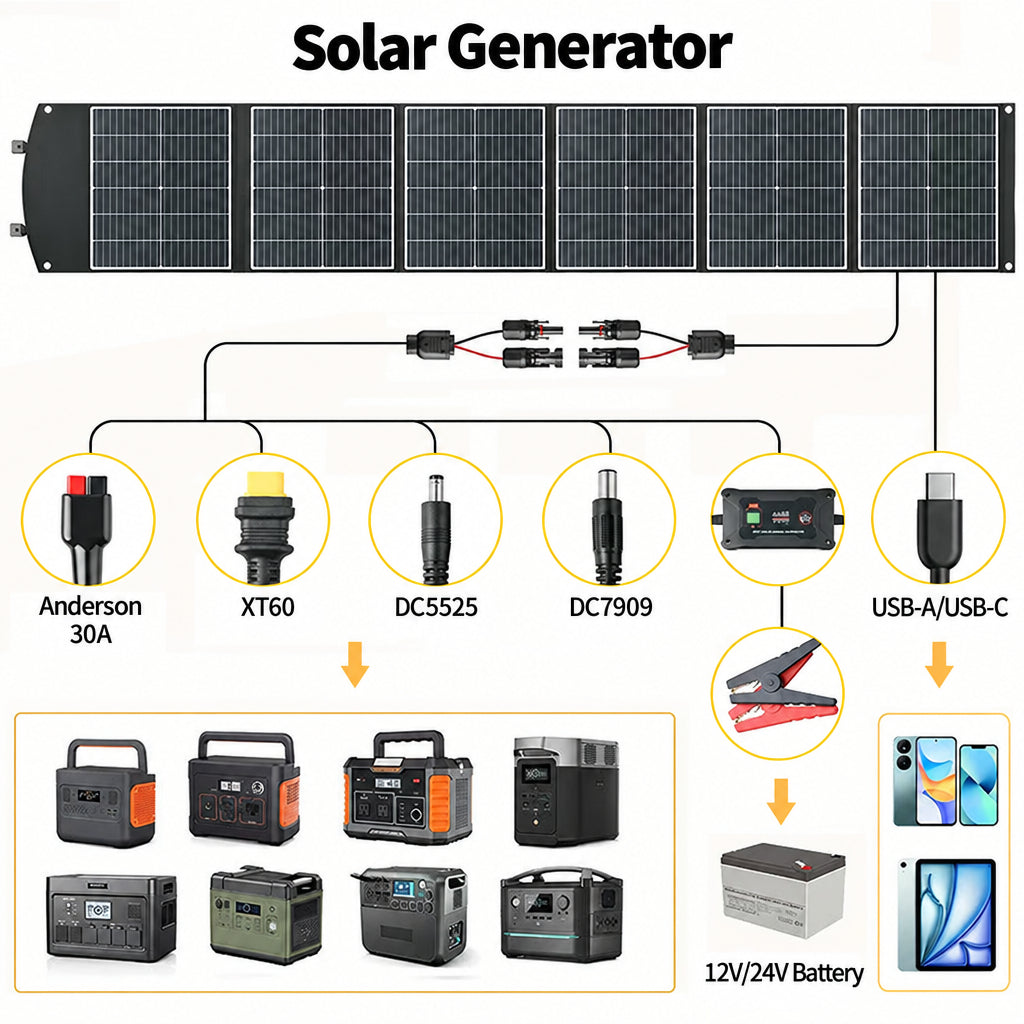

The panel has an output lead. Check your power station or charge controller input voltage, connector polarity and required adapter before connecting. A power station is not included. Actual output depends on sunlight, orientation, temperature and the connected equipment.
