Solar Charge Controller Guide: Sizing, Settings, Fixes

Last updated: September 25, 2026

The panel sits in full sun all afternoon, yet the battery meter barely moves and the device dies overnight.

This guide answers the questions buyers ask in order: what a controller does, what size to buy, which battery settings and load output to use, and whether to choose a built-in or separate controller. It then covers why a solar panel stops charging, which specs to compare before ordering, and the most common follow-up questions.

Figures come from the live LinkSolar product pages as checked on September 25, 2026, plus two named reference sources. For a 12 V battery fed by a small panel, LinkSolar supplies a 10 A MPPT charge controller for 12 V batteries with USB-A and USB-C ports and a front status display.

What does a solar charge controller actually do?

A solar charge controller is a regulator that turns the variable output of a solar panel into the voltage and current a battery can safely accept, delivers that charge in stages, and disconnects when charging should stop. Panel voltage and current rise and fall with sunlight, cloud and temperature through the day. Without a controller, that swinging output goes straight into the battery terminals.

The controller works on the DC side of the system, where, as the U.S. Department of Energy describes it, electricity is held at a constant voltage in one direction; any inverter sits downstream of the battery and is a separate selection.

Most solar charge controllers charge a battery in three stages:

• Bulk stage: The controller passes the full available panel current to the battery until the battery reaches its charging voltage limit.
• Absorption stage: Absorption is the stage where the controller holds the battery at that voltage limit while the charging current tapers off as the cells fill.
• Float stage: Float is a lower holding voltage that offsets the battery's self-discharge, so a full battery stays full without being overcharged.

According to Battery University (2023), a 12 V lead-acid battery charges to about 14.4 V and then floats at about 13.8 V. Those two figures are the absorption ceiling and the float hold for a common 12 V lead-acid battery. Other chemistries use different targets, which is why the battery profile setting on the controller matters.

A solar charge controller also carries protections that run without any input from the user. Overcharge protection caps the battery voltage at the profile's ceiling, however strong the sun gets, and reverse-current protection typically stops the battery from draining back through the panel at night, when panel voltage drops below battery voltage. Some models add a load output with a low-voltage disconnect (LVD), covered with battery settings in the next section.

What size solar charge controller do I need?

Select a controller against its separate PV-input voltage/current/power limits, battery-charge output and load-output ratings. For an MPPT battery-output check, compare accepted array power with the battery’s documented charging voltage and the manufacturer’s sizing/derating method. Array Isc is relevant only to the applicable PV-input current check; Isc × 1.25 is not a universal battery-output sizing rule.

According to PVEducation, the short-circuit current is the current through the solar cell when the voltage across it is zero, which makes Isc the most current a panel can push. Voc is the voltage across the panel with nothing connected, the highest voltage it produces.

The five steps below follow the same order as the figure.

1. Identify the ratings: Obtain the exact controller manual and distinguish PV-input voltage/current/power, battery-charge output and LOAD-output limits.
2. Check PV voltage: Compare the documented cold-condition array Voc and operating range with the permitted PV input for the actual series arrangement.
3. Check PV current: Use array Isc and the actual parallel arrangement only for the applicable PV-input check, following the manufacturer’s method, margins and limits.
4. Check battery-charge output: For MPPT, assess accepted array power divided by the battery’s documented charging voltage using the manufacturer’s sizing method and derating. Verify the battery’s approved profile and temperature protection; PV Isc does not select this output rating.
5. Check the LOAD output separately: If used, compare its permitted voltage, operating/peak current and protection behavior with the exact receiver. A charging-current rating does not establish LOAD compatibility.

The September 25, 2026 example panel lists Isc 6.17 A and Voc 21.63 V at STC. Those values provide inputs for documented PV-side checks, not proof that a 10 A or 20 A controller fits. Confirm temperature-adjusted voltage, array arrangement and the controller’s separate PV and battery-output limits before selecting a model.

The same two panels wired in series add up to about 43.3 V Voc at standard test conditions, and that figure rises on a cold morning. According to PVEducation, open-circuit voltage is the parameter most affected by temperature and decreases as temperature rises, so it climbs when the panel is cold. Keep cold series Voc below the controller's datasheet input limit with margin, because too high an input voltage can damage the controller.

The max PV input voltage of the 10 A 12 V MPPT controller is a figure to confirm with LinkSolar before wiring panels in series to it. Its 12 V system voltage matches a 12 V battery, and a bank at another voltage needs a controller rated for that voltage.

An undersized controller caps charging current and limits harvest on bright days. Buyers can start from small panels that publish Isc and Voc on every page and run the five steps before ordering.

Which battery settings and load output does the controller need?

A solar charge controller must be set to the battery's chemistry and voltage before the first charge, because a lead-acid battery needs absorption then float while a LiFePO4 battery needs a fixed ceiling and little or no float. The live checklist for LinkSolar's 10 A 12 V MPPT controller lists battery voltage, battery chemistry and the required charging profile as items to verify before connection.

A 12 V lead-acid profile charges in stages and then holds a float voltage once the battery is full. According to Battery University (2023), a 12 V lead-acid battery charges to about 14.4 V and then floats at about 13.8 V. The float stage offsets self-discharge while the battery sits full.

A 12 V LiFePO4 profile uses a fixed charge ceiling and little or no float. According to Battery University (2021), a lithium phosphate cell has a nominal 3.20 V and charges to 3.65 V, so a 4-cell 12 V pack tops out around 14.6 V, and lithium takes no trickle or float charge at full. The same source notes that a phosphate cell on a charger set for regular Li-ion is overcharged and that lithium should not be charged at freezing temperature, which is the reason to look for a low-temperature cutoff on the controller or on the battery's protection board.

According to the U.S. Department of Energy, batteries store solar energy so it can be used at night or when weather keeps sunlight off the panels, and the charge controller is the device that decides how that battery is filled.

A load output is a controller terminal that powers the device from the battery, and on controllers that have one it typically includes LVD. LVD (low-voltage disconnect) is a cut-off that switches the load off before the battery drains too deep, with setpoints that vary by controller and chemistry. LinkSolar's 25 W panel with a built-in MPPT controller lists this on its live page: output stops at about 3.3 V per cell, with a hardware cutoff at about 3.0 V.

Quiescent current (Iq) is the controller's own standby draw, and it runs all night. LinkSolar's custom mini panel guidance is to pick low-Iq harvest or charge controllers to preserve night autonomy, keep cable runs short, size wire for under 3 to 5 % voltage drop and add a small inline fuse. The 12 V camera wiring guide covers fusing and cable runs for a 12 V camera load, and the charging guide gives worked panel-to-battery sizing examples.

A 30 A or 50 A controller label is only one rating. Check whether it names battery-charge current, PV-input current or LOAD-output current, then confirm the exact model’s PV voltage window, cold-condition array Voc, permitted current/power and thermal derating. Compare the battery’s chemistry/profile and charging-temperature protection as separate requirements. Series/parallel arrangement and a nominal panel wattage alone do not approve the controller.

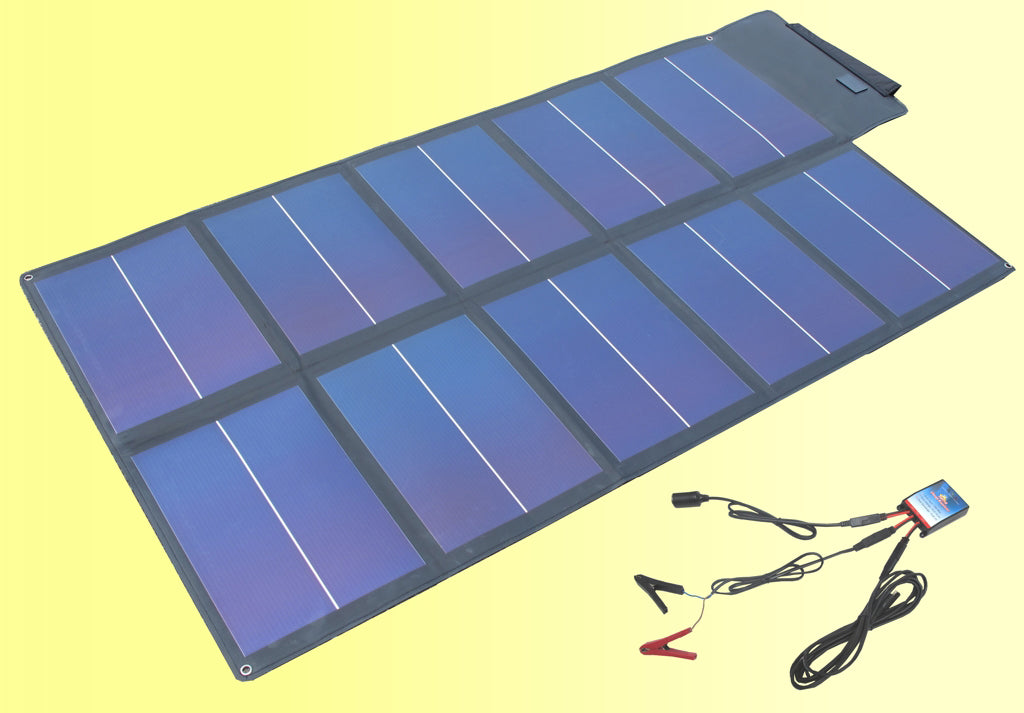

For a portable panel advertised with a built-in controller, ask the quote to identify the panel and controller revisions, battery/receiver path, cable/connector/polarity, charging settings, protective devices and included or excluded battery/mounting parts. This same checklist applies across wattage choices; “built in” does not establish every item in a kit. Send a controller-only or panel/controller enquiry with the input documents and quantity. A custom-panel order is not required for an independent controller request.

Should you buy a panel with a built-in controller or a separate controller, and MPPT or PWM?

A solar panel with a built-in charge controller suits one low-power device that needs a fixed DC output, and a separate solar charge controller suits a battery bank you size and wire yourself.

LinkSolar's 25 W panel with the MPPT controller built in pairs a 25 W monocrystalline panel (about 17.5 V under load, about 21 V open circuit) with an MPPT controller, a 6-slot 18650 battery bay (batteries not included) and a selectable 5 / 6 / 9 / 12 V DC output, all in one IP66 box. The live page, checked on September 25, 2026, presents it as a way to avoid sourcing a controller, a battery holder and an enclosure separately. One limit applies: a 12 V load at the full rated 1 A (12 W) exceeds what a clear day of harvest can supply, so the 12 V output fits lighter or intermittent loads.

A separate charge controller fits when the battery is a 12 V bank chosen for the job, such as a lead-acid or 12 V LiFePO4 battery. The 10 A 12 V MPPT controller in LinkSolar's range charges a 12 V battery at up to 10 A rated current and adds USB-A and USB-C ports for small devices. With a separate unit, the panel, the battery and the load are each sized on their own, and the panel can change later without replacing the controller.

• Built-in controller: one security camera, router or small monitoring cabinet with a 5 to 12 V DC input, mounted where a single sealed box replaces three parts.
• Separate controller: an existing 12 V battery, several loads on one bank, or a panel you want to choose and upgrade independently.

A PWM controller holds the panel near battery voltage, while an MPPT controller converts the panel's surplus voltage into extra charging current. Both options above use MPPT, and the dedicated comparison covers when MPPT beats PWM on mini and small panels.

Can a lower-voltage panel charge a 36 V or 48 V battery pack?

It can, if the exact controller supports raising that panel's voltage to the pack's required charging voltage. A buck converter steps voltage down; a boost converter steps it up. Maximum power point tracking (MPPT) controls how power is drawn from the panel, so an MPPT label alone does not prove step-up capability or compatibility with a 36 V or 48 V pack.

One manufacturer's 36 V/48 V boost-controller manual documents a boost route with pack-specific settings and PV windows. The Victron BlueSolar MPPT 75/10 to 100/20 installation manual describes a PV-above-battery route. These examples show why the conversion path must be documented; neither establishes a compatible LinkSolar model for your pack.

Two controller routes to check against the exact module and battery documents

Purchase question	PV input above battery: buck route	Documented boost route
What makes it eligible?	The allowed PV operating range meets the battery charging range and controller startup requirements.	The exact model supports step-up operation for this pack and accepts the proposed PV input range.
What rules it out?	PV below its documented start or working threshold, or cold open-circuit voltage above its maximum input limit.	PV outside its permitted input window, an unsupported battery configuration or unapproved charge settings.
Which limits remain model-specific?	PV current and power, battery-charge output current, charge profile, temperature conditions and derating.	The same separate limits apply; step-up capability does not remove them.
What must the quotation identify?	Exact controller and document revision, retained module and pack, supplied settings and included items.	The same records, including the supplied pack-voltage and chemistry configuration.

Check PV working voltage and startup requirements separately from open-circuit voltage (Voc). The proposed module configuration must stay within the controller's operating window, while its cold-condition Voc must remain below the model's maximum input limit. Give the supplier the module datasheet, series/parallel arrangement and relevant temperature conditions. Changing the series arrangement needs review against the equipment documents by the responsible project designer.

Specify which battery will receive the charge: a 12 V accessory battery and the complete 36 V or 48 V battery pack are different charging tasks. Provide the exact pack documentation and its approved chemistry, charging profile, current and temperature conditions. A battery management system (BMS) monitors or protects the pack; its presence, or a matching connector, does not establish approval of the proposed charger.

For a request for quotation (RFQ), send the exact module and pack documents, the charging task, any candidate controller model, quantity and destination. Ask for the controller revision, supplied settings, included or excluded sensors, leads and protection, and who must resolve outstanding compatibility checks. Request a controller-only sourcing assessment from LinkSolar, stating what stays in place and which documents are missing. You can request the controller without purchasing panels; model availability and commercial terms are confirmed for your request.

Why is my solar panel not charging the battery?

A solar panel usually stops charging a battery for one of six reasons: glass or shade over the cells, a panel voltage outside the controller's charging voltage window, a panel too small for the load, a battery that is already full and in float, a temperature cutoff, or a loose or reversed connection. The causes below run from the ones visible from the ground to the ones that need a meter reading.

• Window glass: A solar panel behind window glass still charges, but coated, tinted or double glazing and a steep angle to the sun cut its output noticeably, so a panel mounted indoors often delivers too little current to lift the battery.
• Partial shading: A small shadow from a branch, gutter or cable across a single cell typically drags down the whole string of cells, so the panel output drops far more than the size of the shaded area suggests.
• Wrong panel voltage: Every charge controller accepts only a set input voltage window, and the LinkSolar 25 W panel with a built-in MPPT controller needs a charging voltage above 16 V and below 21 V, while a controller without voltage step-up cannot charge a higher-voltage battery from PV below its required operating range; a boost route requires separate exact-model approval.
• Undersized panel: When the load uses more energy per day than the panel harvests, the battery drains even in full sun, and the same 25 W box shows the effect because its 12 V output at the full rated 1 A (12 W) exceeds a clear day of harvest.
• Battery already in float: According to Battery University (2023), a lead-acid battery is fully charged when its charge current falls to 3 to 5 percent of its Ah rating, so a low current reading on a sunny afternoon often means the battery is full and the controller has moved to float.
• Temperature cutoff: According to Battery University (2021), lithium-ion cells should not be charged at freezing temperature, so many controllers block lithium charging near 0 °C, and lead-acid float voltage is typically set lower in hot weather.

If none of these causes fits, check the wiring next. The LinkSolar 10 A 12 V MPPT controller page asks buyers to verify connector polarity, cable sizing, battery voltage and chemistry before connection, and a reversed or loose lead stops charging entirely.

For device-level tests on a camera installation, follow these step-by-step checks for a solar camera that stops charging.

Specs to compare before you order a solar charge controller

Before ordering a solar charge controller, compare rated current, system voltage, maximum PV input voltage, battery profiles, load output and enclosure, because a controller that fails any one of them either limits harvest or cannot connect at all. The table below compares those seven specs on two live LinkSolar products, a separate 10 A 12 V MPPT controller and a 25 W panel with the MPPT controller built in.

Controller specs and where to find them (live LinkSolar figures, September 25, 2026; blank means not published, ask before ordering)

Spec	What it tells you	10 A 12 V MPPT controller	25 W panel with built-in MPPT
Rated charging current	Assess battery-charge output from accepted PV power and documented battery charging voltage, following the manufacturer’s sizing method and derating. Check array Isc separately against the exact model’s PV short-circuit and input-current limits.	10 A	Panel max about 1.2 A
System / battery voltage	Must match the bank	12 V	18650 cells in parallel, output 5 / 6 / 9 / 12 V
Max PV input voltage	Must exceed cold Voc	not published, ask	Charging voltage 16 V to 21 V
Battery profile	Sets absorption and float	Battery voltage, chemistry and profile on its checklist	Overcharge about 4.28 V per cell, balanced charging
Load cut-off (LVD)	Protects the battery from deep drain	not published, ask	Output stops about 3.3 V per cell
Outputs	What you can power directly	USB-A and USB-C	5.5 × 2.1 mm DC, 12 V rated 1 A
Enclosure (IP rating)	Outdoor exposure	not published, ask	IP66

Before you order, check the 10 A controller against this list and send any row marked "not published, ask" as a written question.

The Spec column names the value to look for on a datasheet, and the What it tells you column gives the pass condition for your own panels and battery. The two product columns summarize the live product pages. A cell reading "not published, ask" means the page leaves that value out, so confirm it in writing before matching the controller to a panel.

FAQ: solar charge controllers

Does solar charging work through glass?

Solar charging works through window glass, but a panel behind glass produces noticeably less than the same panel outdoors. Coated, tinted or double glazing and a steep sun angle cut output the most. For a continuous load, mount the panel outside.

Why is my solar camera not charging even in full sun?

A solar camera that shows no charging in full sun most often has a battery that is already full and resting in float, a panel voltage outside the camera's input window, or a loose cable. A full battery accepts only a small current, so a low reading is often normal. Check the panel voltage against the camera's input range, then reseat every connector.

Can a solar charge controller be too big?

A solar charge controller with a higher amp rating than the panels need does no harm, because the panels set the current and the controller only caps it. The limits that matter are a maximum input voltage above the panels' cold-morning Voc, a battery profile that matches the chemistry, and a low standby draw from the controller itself.

Can one controller take two panels?

Two panels can be considered only when the documented array configuration stays within the exact controller’s PV voltage/current/power limits and battery-charge output capability. Series voltage needs a cold-Voc check; parallel current needs the applicable PV-input check. Separately assess MPPT battery-charge current from accepted array power and documented charging voltage, using manufacturer margins and derating.

Next step: Send LinkSolar the panel Isc and Voc, whether the panels run in series or parallel, the battery chemistry and voltage, and the load in W and hours per day. LinkSolar confirms the controller match against those figures before you order. To request a quote, start with custom mini panels with the controller specified to your load.

The datasheet says 10 A, but will it hold up on your coldest morning with your battery?
