For most mini and small solar builds, the controller choice comes down to one number: how far the panel's voltage sits above your battery voltage. PWM is fine when those two are close; MPPT only earns its premium when the gap is wide, the light is poor, or you're combining panels.
Quick answer: For a single low-watt panel whose Vmp is close to battery voltage, a PWM controller is usually enough and keeps cost and board space down. Step up to MPPT when the panel voltage runs well above the battery (e.g., an 18V-class panel on a 12V battery), when you operate in cold or cloudy conditions where extra harvest matters, or when you're wiring multiple panels in series.
MPPT vs PWM at a Glance (for Small Solar)
The table below maps the four scenarios small-solar builders hit most often to the controller that usually fits. Treat it as a starting rule of thumb, then validate against your own panel datasheet and battery chemistry.
| Scenario | Usually best | Why |
|---|---|---|
| Single 5–20W IoT panel (sensor, beacon, ESP32) | PWM | Panel Vmp is typically close to battery voltage, so MPPT's extra conversion buys little. The controller's own draw can offset gains on tiny loads. |
| 50–100W with a higher-voltage panel | MPPT | A wide Vmp-to-battery gap is exactly where MPPT recovers more energy by stepping voltage down to current. |
| Cold-climate or remote off-grid site | MPPT | Cold raises panel voltage and cloudy light shifts the operating point, so MPPT's tracking generally captures more in marginal conditions. |
| Tight-budget micro build | PWM | Lower cost, simpler wiring, and adequate harvest when panel and battery voltages already match. |
We source mini solar panels through partner factories with Vmp specs chosen to match common battery voltages, which is what makes the PWM-versus-MPPT call straightforward at the small end.
How PWM and MPPT Actually Differ
The core difference is what each one does with the voltage gap between your panel and your battery. A PWM controller throws that gap away; an MPPT controller converts it into extra charging current. Everything else is a consequence of that single design choice.
A PWM controller is essentially a fast electronic switch sitting between the panel and the battery. When it closes, it ties the panel almost directly to the battery, so the panel is forced down to whatever voltage the battery happens to be at.
That matters because a small panel's maximum-power voltage (Vmp) is usually well above a battery's resting voltage. A nominal "12V" panel might have a Vmp in the high teens, while a 12V battery sits around 12–14V while charging. PWM drags the panel from its happy operating point down to the battery's level, and the energy in that voltage difference is simply not collected.
An MPPT controller is a DC-DC converter, not just a switch. It lets the panel run at its true maximum-power point, then electronically trades the surplus voltage for additional current before sending power to the battery (the U.S. DOE solar design basics covers the underlying maximum-power-point concept).
Think of it as a transmission rather than a clutch:
- PWM connects panel to battery and accepts whatever the battery voltage dictates: surplus voltage is lost as the panel is pulled off its ideal point.
- MPPT holds the panel at its ideal point, then converts excess volts into extra amps, so more of the panel's available watts reach the battery.
| Behavior | PWM | MPPT |
|---|---|---|
| Panel operating voltage | Pulled down to battery voltage | Held at panel's max-power point |
| Voltage gap (Vmp − Vbatt) | Lost | Converted into charging current |
| Underlying circuit | Fast on/off switch | DC-DC converter |
This is also why the choice gets more consequential as the gap widens. When panel Vmp is only slightly above battery voltage, there is little surplus to recover, so the two behave similarly.
But the wider that gap grows, a higher-voltage panel feeding a low-voltage battery, the more energy PWM clamps away and the more MPPT has to work with. The same logic applies once you start wiring multiple cells or panels in series, where output voltage climbs; if you are planning that kind of build, our guide on how to connect mini solar panels walks through the series-versus-parallel decision that sets this voltage gap in the first place.
Why Small Solar Changes the Answer
At single 5–100W panels, the MPPT-vs-PWM tradeoff often flips: the watts an MPPT recovers can be too small to justify its premium. Big-brand guides assume large arrays, where harvest gains scale into real money. On a micro build, they may not.
Three things behave differently once you drop into mini and IoT territory.
1. The absolute harvest gain shrinks. MPPT's edge is a percentage of what the panel produces. On a 10W panel feeding a sensor, that percentage may equal only a few watt-hours per day.
- On a 300W array, recovered watt-hours add up fast.
- On a 10–20W panel, the same percentage is a rounding error against the controller's extra cost.
- The premium gets harder to recover the smaller the panel goes.
2. Many mini panels are already sold near load voltage. A lot of the small panels we source through partner factories are wound to sit close to the battery or device voltage, so a PWM controller clamps away very little. Datasheets generally show Vmp landing a volt or two above a 6V or 12V target on these units. When that gap is small, PWM loses almost nothing MPPT could recover.

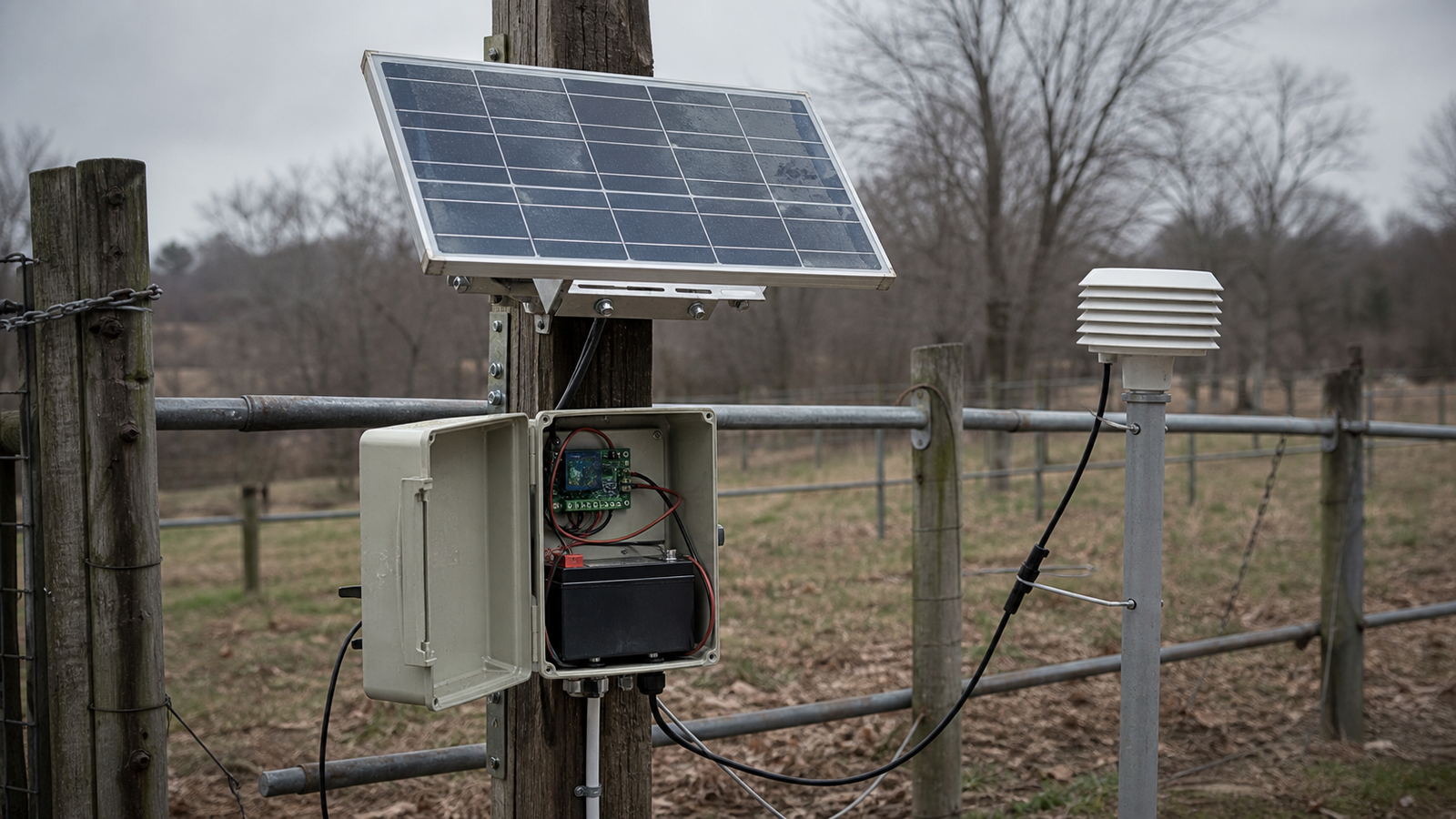

3. But undersized voltage bites back on long leads. This is the trap. Sensors mounted on poles, fences, or field cabinets often run several meters of thin wire. Voltage drop across that lead, plus a controller clamping the panel low, can starve the device and cause brownouts at dawn, dusk, or under cloud.
So the real decision variable for choosing MPPT for IoT solar is not the brand on the controller. It is the gap between panel Vmp and your battery/load voltage, read alongside your climate; field performance data from NREL solar research backs how strongly temperature and irradiance shift that operating point.
| Vmp-to-battery gap | Climate | What it favors |
|---|---|---|
| Small (panel near battery V) | Mild, mostly sunny | PWM is usually enough |
| Large (high-Vmp panel, low battery) | Cold or often cloudy | MPPT starts earning its keep |
| Small, but long sensor leads | Any | Fix wiring/voltage first, then choose |
MPPT generally recovers more when panel Vmp sits well above battery voltage and in cold or cloudy light, because it converts that surplus voltage into usable current. PWM simply pulls the panel down to battery voltage, so a high-Vmp panel wastes its headroom. The bigger your Vmp-to-battery gap, the more MPPT matters.
That is why sizing has to come before the controller debate. If you are spec'ing a deployment, work the panel, battery, and lead length together, as we walk through in our guide to sizing solar for agricultural IoT sensors, and review the panel-voltage options we supply for solar for IoT sensors before locking in MPPT or PWM.
When PWM Is the Right Call for Mini & IoT
PWM is the right call when your panel's operating voltage already sits close to your battery voltage and cost or simplicity matters more than squeezing out the last few percent of harvest. In small single-panel builds, that's a surprisingly common situation. The voltage gap that makes MPPT worthwhile often just isn't there.
Here's the core mechanic: a PWM controller clamps the panel down to battery voltage, so any voltage the panel produces above the battery is wasted as the two are pulled into the same range. When a panel's maximum-power voltage (Vmp) is already near where the battery floats, there's very little to waste. That's exactly where a nominal-12V panel paired with a 12V battery lands.
For a 5-100W IoT or micro off-grid build, the math frequently favors PWM. Many small "12V" panels are specced so their Vmp sits just a few volts above a 12V battery's charging range, leaving an MPPT controller almost nothing to recover. Datasheets generally show MPPT pulling ahead when the panel voltage runs well above the battery, which is the opposite of this scenario.
Use this checklist. Choose PWM when:
- You run a single nominal-12V panel on a 12V battery (or a nominal-24V panel on a 24V bank): Vmp and battery voltage are already close.
- The system is small, typically in the 5-100W single-panel range, where absolute harvest gains are tiny in real watt-hours.
- You're building cost-sensitive, high-volume hardware (sensor nodes, trail cams, ESP32 deployments) and unit price scales across hundreds or thousands of units.
- You want fewer failure points; PWM circuitry is simpler, with no high-frequency switching stage to fail in the field.
- You operate in warm, sunny climates, where MPPT's cold-light and low-light advantage barely shows up.
- You need a controller that draws very little idle current and tolerates a wide thermal range without active cooling.
The trade-off is honest: PWM leaves some potential energy on the table whenever the panel voltage outruns the battery. But for a remote sensor sipping milliwatts, a slightly larger panel or a cheaper controller often solves the gap for less money than the MPPT premium would cost.
We source mini and small panels through partner factories specifically for builds like these, so we routinely help integrators match panel Vmp to battery voltage before the controller decision is even made, which is where most of the real efficiency is won or lost.
When MPPT Wins for Small Builds
MPPT earns its premium even on a 5–100W build when your panel voltage sits well above battery voltage, when it gets cold, or when wiring losses eat into a tight power budget. In those conditions the extra harvest is real watt-hours, not a spec-sheet flourish. Below those conditions, the cheaper clamp-style controller usually wins on cost.
The core mechanism is simple. PWM drags the panel down to battery voltage; MPPT converts the panel's higher voltage into more charge current. The bigger the gap between panel Vmp and battery voltage, the more an MPPT unit pays back.
Here are the small-scale scenarios where that gap shows up:
- Panel Vmp well above battery voltage. An 18V-class panel feeding a 12V battery, or a higher-voltage panel on a 6V/3.7V node, leaves headroom MPPT can reclaim. Datasheets generally show the recovered current scaling with that voltage difference.
- Cold climates. Panel voltage rises as temperature drops, so on cold, bright mornings the Vmp-to-battery gap widens, exactly when MPPT converts the surplus instead of clamping it away.
- Long cable runs. Voltage drop scales with distance and current. Running a higher-voltage panel at lower current cuts that loss, and an MPPT controller is built to accept that higher input. This is the same physics behind why 5V solar panels kill ESP32-C3 weather stations over any meaningful wire length.
- Multiple panels in series. Two small panels wired in series stack their voltage. PWM throws most of that away; MPPT harvests it.
- Tight power budgets. On an IoT node that browns out at dawn or after cloudy days, the marginal watt-hours MPPT recovers in weak light can be the difference between a node that survives the night and one that resets.
That last point is the one makers underrate. In low or diffuse light, panel current collapses but voltage holds up reasonably well, and MPPT trades that available voltage for charge current. Manufacturers typically cite the largest gains in cold, cloudy, or high-Vmp conditions, which is precisely the duty cycle a year-round outdoor sensor lives in.
Choose MPPT when:
- Your panel Vmp is meaningfully higher than your battery voltage (e.g., an 18V-class panel on a 12V pack).
- The build runs through cold winters or sits in frequently overcast light.
- The panel-to-controller cable run is long enough that voltage drop matters.
- You're wiring two or more panels in series.
- The load is a power-starved node where every recovered watt-hour prevents a brownout.
If none of those apply, a small panel matched close to battery voltage, short wiring, mild climate, the premium rarely pays back, and a simpler controller is the smarter spend. We source mini panels through partner factories across a range of Vmp ratings, so the controller choice should follow the panel-and-battery pairing, not the other way around.
Integrated-MPPT Mini Panels & a B2B Sourcing Checklist
For very small builds, an integrated MPPT mini panel folds the panel and charge controller into one part, removing a separate component from your bill of materials. This matters most on space-constrained IoT nodes where there is no room for a discrete controller board.
The tradeoff is flexibility: the embedded controller is matched to one battery chemistry and voltage, so you size the panel to the device rather than swapping parts later. For a fixed sensor or trail-cam design shipping at volume, that lockstep is usually a feature, not a limit.
We source mini solar panels through partner factories, including a 25W mini panel with a built-in MPPT controller. For non-standard outlines, voltages, or connectors, we also handle custom mini solar panels built to a project spec.
What to confirm before you commit an order
Whether you buy integrated-MPPT or a separate controller, the same procurement checks protect the build. Treat each line as a question to answer per project, not a number to assume.
- Controller type & match — confirm MPPT vs PWM, and that the controller chemistry and battery voltage match your cell (Li-ion, LiFePO4, lead-acid). A mismatch here is the most common field failure.
- IP rating — for outdoor nodes, confirm the sealed enclosure rating. IP65 handles rain and dust; IP67 adds short submersion, and IP68 covers continuous submersion. Pick per exposure, not by default.
- Panel qualification — for the panel itself, ask whether the modules follow IEC 61215 design-qualification practice; reputable partner factories can supply the test summary on request.
- Compliance documents — request CE and RoHS documentation up front so import and EHS sign-off don't stall the shipment.
- QMS evidence — confirm the partner factory runs an ISO 9001 quality management system, which signals repeatable batches rather than one good sample.
Specs vary by part, so we quote the controller type, voltage window, and IP rating against your actual load and climate. Treat the figures on any datasheet as a typical range to confirm per project, then lock them into the purchase spec.
| Checklist item | Standard / spec | Why it matters |
|---|---|---|
| Charge controller | MPPT or PWM, voltage-matched | Wrong chemistry or voltage damages cells |
| Outdoor sealing | IP65 / IP67 / IP68 | Survives rain, dust, submersion |
| Market compliance | CE, RoHS | Clears customs and EHS review |
| Factory quality system | ISO 9001 | Consistent batches at scale |
FAQ & Sourcing
Is MPPT worth it for a 20W panel?
For most 20W builds, MPPT is worth it only when the panel's Vmp sits well above your battery voltage. Datasheets generally show MPPT recovering more usable energy in that gap, and in cold or cloudy light where panel voltage stays high.
The trade-off is cost and standby draw. If you run a 12V battery from an 18V-class panel, MPPT typically pays off; if the panel and battery are closely matched, a PWM unit's lower quiescent current can net out ahead on a small daily harvest.
Can I use PWM with a higher-voltage panel?
Yes, but you forfeit the surplus voltage. PWM clamps the panel down to battery voltage, so a higher-Vmp panel still charges, just without converting that extra headroom into current the way MPPT does.
For tiny micro-builds the simplicity can be acceptable. For anything where every watt-hour counts, pairing a high-voltage panel with PWM wastes the exact advantage you paid for.
Do I need a charge controller for a 5V USB mini panel?
Usually not, if you charge a device through its own USB port. A 5V USB mini panel feeds a phone, power bank, or dev board whose internal charging IC already regulates the input.
You do need a controller the moment a raw panel connects to a bare lithium or lead-acid cell. Without regulation there is nothing to stop overcharge, so add a small integrated-MPPT board or charge IC between panel and cell.
What controller for an off-grid IoT sensor?
For an off-grid IoT sensor, favor a low-quiescent-current MPPT charge IC sized to your panel and cell, not a bench-style standalone unit. At single-panel scale, the controller's own standby draw matters as much as conversion efficiency, since the load itself is tiny.
This is why we increasingly source mini panels with integrated-MPPT charging built onto the board, so integrators skip external wiring and standby losses entirely.
