1.2W Solar Panel, 6V, DC5521 or USB Lead Options
Product Overview

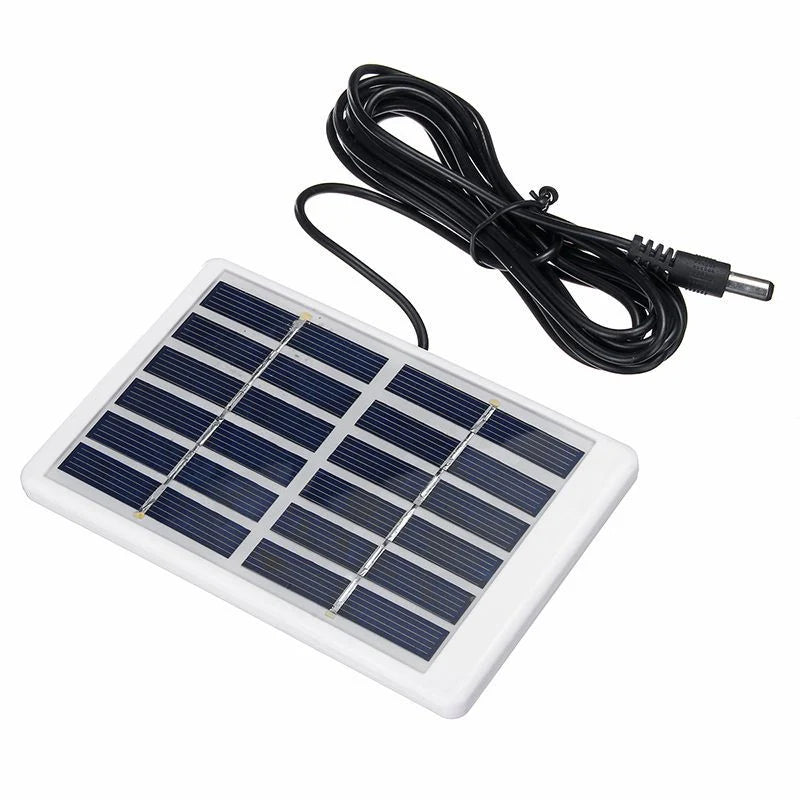

Choose the connection for this 1.2W solar panel from DC5521, Micro-USB or USB-C. Each configuration uses a 6V working module in the same 84 × 130mm plastic frame, with an approximately 2.8–3m lead. Rear mounting slots help position the cell board toward sunlight while the load remains connected at a distance.
Key Features
- Three separate connector configurations
- 1.2W panel rating with 6V working output

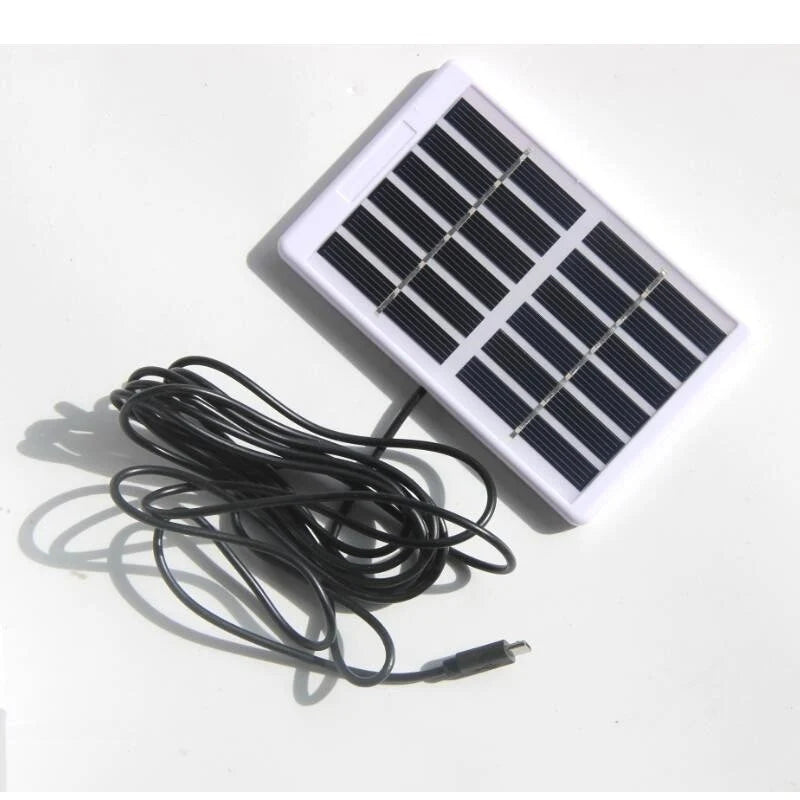

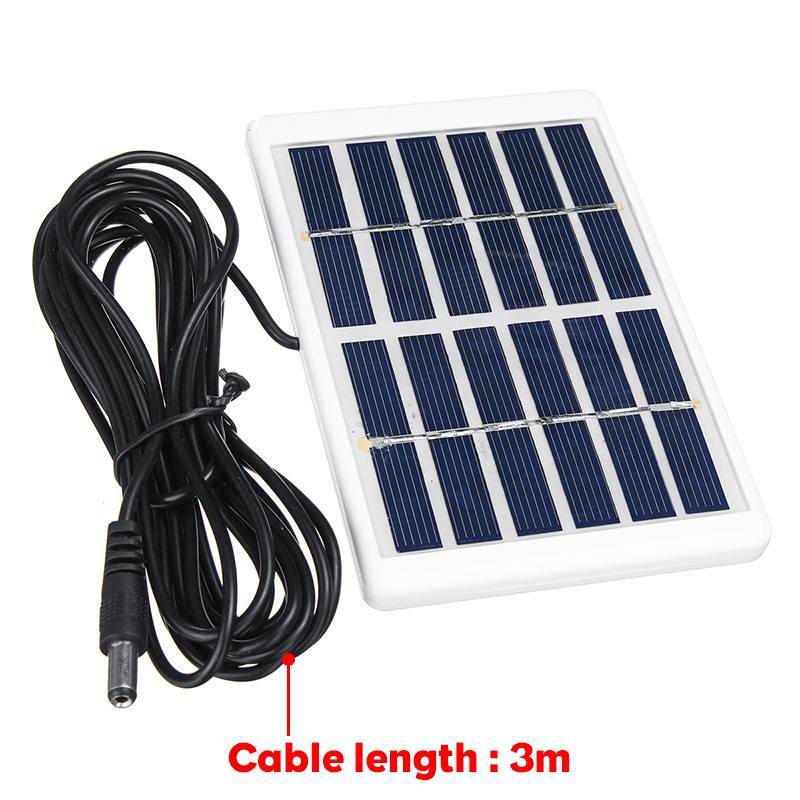

- Approximately 2.8–3m attached cable
- 84 × 130 × 10mm framed polycrystalline board

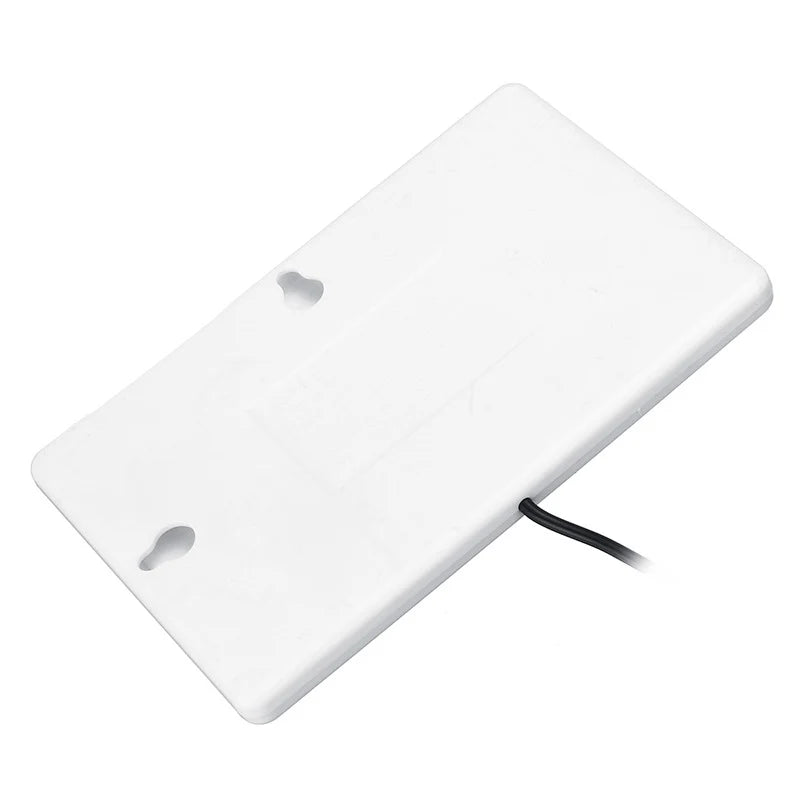

- Rear slots support mounting integration
Details & Specs
| Rated panel power | 1.2W |
|---|---|
| Working voltage | 6V |

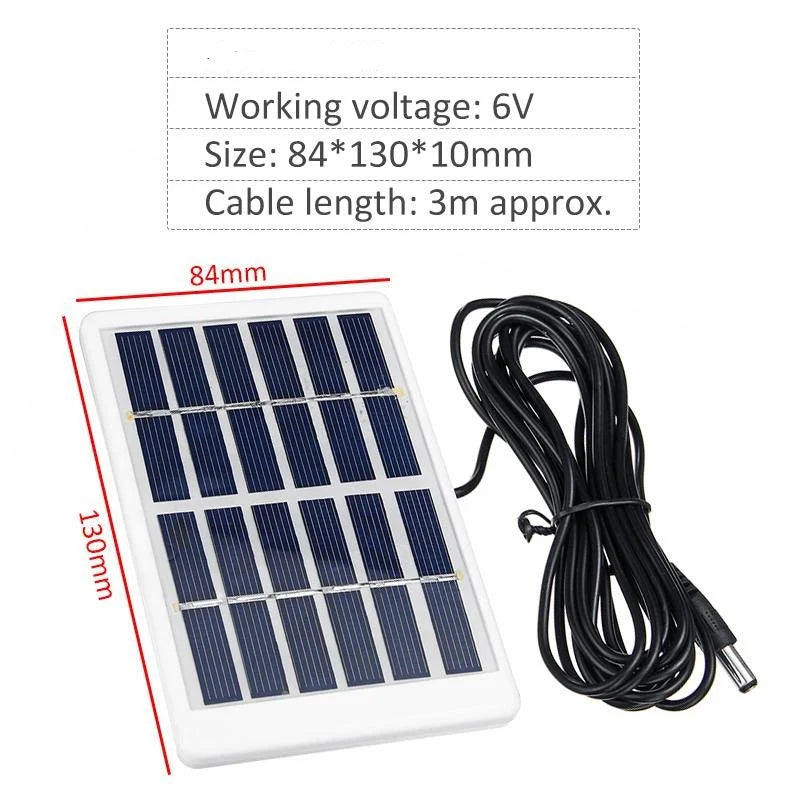

| Dimensions | 84 × 130 × 10mm |

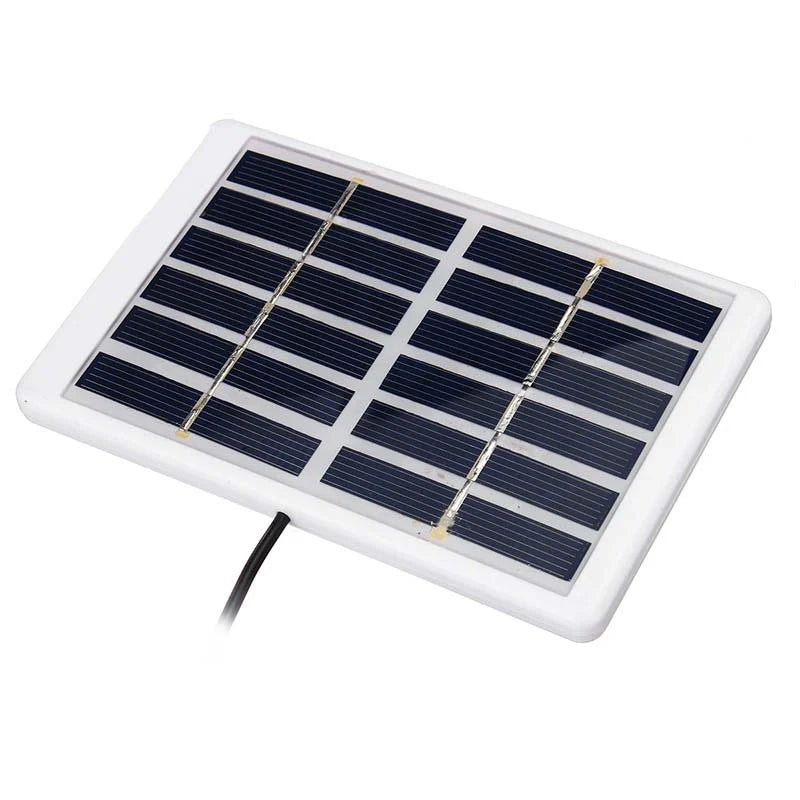

| Cell / surface | Polycrystalline silicon in a plastic frame |
| Connection | Selected DC5521, Micro-USB or USB-C plug;2.8–3m lead |
| Output current | 0–200mA |
| Short-circuit current | 210mA |
| Panel weight | Approximately 100g |
| Included | 1 framed panel with the selected connector lead |
Compatibility & Notes
Select the exact connector and verify that your equipment accepts 6V working output. USB-shaped plugs do not establish regulated 5V or USB Power Delivery compatibility. Use suitable charge control for rechargeable batteries; available output varies with sunlight.
