How to Build a Solar Panel from Bare Cells (Step by Step)

Door Dean D.  •   10 minuten lezen

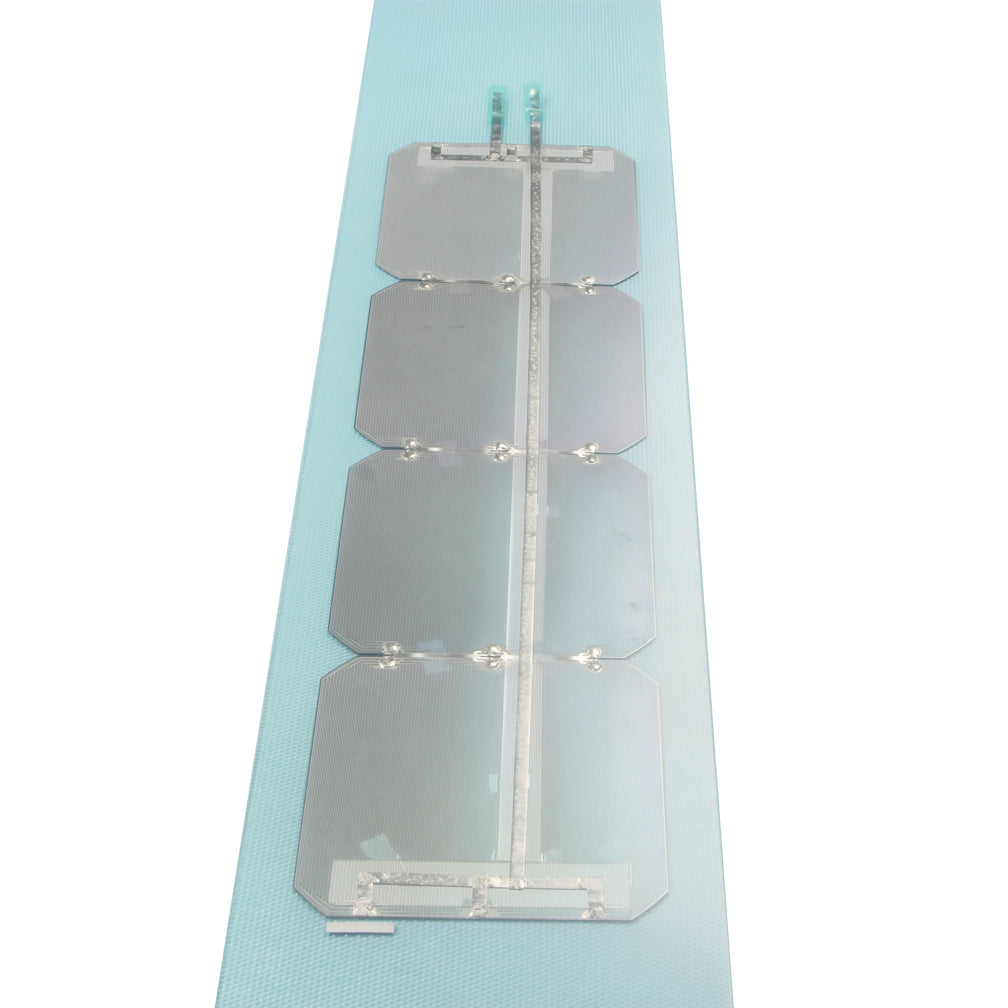

Interconnected solar cell string on light blue backing strip

Building a solar panel from bare solar cells is five steps: count the cells for the target voltage, tab and solder them into a string, join the strings with bus wire, test, then encapsulate. One crystalline cell gives 0.5 to 0.6 V at maximum power whatever its size, so cell count sets voltage.

Encapsulation is the hard part. Without a vacuum laminator, a home-sealed panel traps bubbles and lets moisture in, killing most hand builds. This page covers the generic process to make your own solar panel; Step 3 links a worked project, a small portable charger.

TL;DR

  • Step 1, count the cells: at 0.55 V per cell, 12 cells make 6 V nominal, 36 make 18 V for a 12 V battery.
  • Step 2, materials: cells from bare solar cells in stock, tabbing ribbon, bus ribbon, flux, solder, a blocking diode, covers.
  • Step 3, string the cells: tab each cell, solder front to back, check voltage every three cells.
  • Step 4, bus and test: join strings with bus ribbon, fit the diode, read open-circuit voltage before loading.
  • Step 5, encapsulate: hand sealing is the weak link; anything outdoors for years is better ordered laminated.

Step 1: decide the output, then count the cells

Voltage comes from how many cells sit in series; current comes from the area of one cell. Fix both before ordering: cell count follows from the target voltage, cell size from the target current. A crystalline silicon cell holds roughly 0.5 to 0.6 V at maximum power whatever its dimensions, because the junction voltage is set by the material — the US Department of Energy's solar photovoltaic cell basics page describes the same behavior.

Cells in series per target output, figured at about 0.55 V per cell
Target output Cells in series Notes
5 V USB via regulator 10–12 Regulator needs headroom, so build near 6 V.
6 V nominal 12 About 6.6 V at maximum power.
12 V battery charging 36 Roughly 19.8 V, the margin a controller needs to charge 12 V.
18 V nominal 36 Same 36-cell string, named by working voltage.

One string means one cell type at one size. Series current is limited by the smallest or most shaded cell, so one undersized cell drags the whole panel down to its own current. Shade acts the same way: a leaf on one cell costs far more than that cell's output.

Take a 6 V nominal panel at 1 A. Twelve cells in series give the voltage, and each of them has to deliver at least 1 A at maximum power, because the string carries the current of one cell and not the sum. Area buys that ampere: a physically larger cell, or a larger piece of a cut one.

Check the candidate cell against that 1 A bar before ordering. A 125 mm IBC cell is rated 6.05 A whole, and cutting keeps voltage while dividing current, so a half cell rated 1.88 W still clears 1 A. Small-format cells reach the same voltage at the same count but carry less current, which rules them out here.

Step 2: materials list

Nine things go into a hand-built panel, and two decide whether it works: the cells and the solder joint on them. The other seven are wiring, protection and packaging, where a poor choice costs service life rather than function. Pick the cells first: format sets ribbon width, iron temperature and layout.

Nine materials for a hand-built panel
Item What it does Notes
Solar cells Produce the current; any crystalline cell sits near 0.5–0.6 V at maximum power Best first build: 52 × 52 mm PERC cells with wire options, 78 × 52 mm mono cells with wire options or 156 × 52 mm mono cells. For curves, flexible amorphous cells need no soldering
Tabbing wire Tinned copper ribbon carrying current cell to cell Sold separately. Match ribbon width to the cell busbar
Bus wire Wider ribbon joining strings and carrying the output Sold separately. Two to three times the tabbing width
Flux pen Cleans the busbar so solder wets instead of beading Sold separately. No-clean rosin flux is the usual pick
Solder and a temperature-controlled iron Makes the joint; the temperature setting keeps the wafer from cracking 60/40 or lead-free. Temperature control matters more than wattage
Blocking diode (Schottky) Stops the battery discharging back into the panel at night Rate above the string short-circuit current; Schottky for low forward drop
Backing sheet and front cover Hold the string flat and keep water off the cells Glass over rigid backing is durable; PET with EVA is lighter
Output terminal or short lead Carries the bus wire out of the laminate Strain-relieve it. A lead torn off the bus ribbon kills the panel
Interconnected solar cell string on light blue backing strip
Interconnected solar cell string on light blue backing strip

Two cell types defeat a hand build. TOPCon and modern half-cut PERC use round-wire multi-busbar contacts built for stringer machines, which an iron cannot reproduce. Back-contact IBC cells put both poles on the rear, so every joint lands on a back pad instead of across the front — 125 mm IBC cells, full or cut are the friendliest format for hand soldering.

Step 3: tab the cells and solder the string

Tab one cell at a time, and read the string voltage every three or four cells. Soldering the whole row and testing once at the end means finding a bad joint after twenty cells are already wired together. Work in that rhythm and a mistake costs one cell instead of the afternoon.

  1. Cut the tabbing ribbon. Roughly twice the cell length: half lies along the busbar, half overhangs to reach the next cell.
  2. Flux the busbar. Run the pen along the pad only, so residue does not sit on the active area.
  3. Pre-tin one side. Tack the ribbon down on every cell first, face up, before any two are joined.
  4. Flip and interconnect. Each series joint bridges the back of one cell to the front busbar of the next; on back-contact IBC cells both ends of that joint land on the rear, pad to pad.
  5. Measure every three or four cells. Put the multimeter across the finished end of the string; open-circuit voltage should climb by roughly 0.6 V per added cell.
  6. Fix the string down. Tape or clamp the finished row to its backing before moving it, or the ribbon carries the weight of the cells.
Cut blue monocrystalline solar cell strips on wooden background
Cut blue monocrystalline solar cell strips on wooden background

Three failures account for most ruined hand builds. Heat is the first: too long on the pad cracks the wafer or lifts the contact metal, which is why our walkthrough on testing and tabbing cells with a multimeter settles on a temperature-controlled iron at 320–350°C and about three seconds per joint. A cold joint is the second: it looks grey and grainy instead of shiny, holds for a while, then lets go when the string is flexed.

Reversed polarity is the quiet one, because nothing looks wrong. The voltage stops climbing, or drops, instead of adding up cell by cell, and the reading every three or four cells catches it. For one build wired end to end, our portable solar charger project follows a single string from loose cells to a working output.

BUILD SEQUENCE
Six stages from loose cells to a sealed panel
Six-stage flow for building a solar panel by hand: cells, tab, string, bus, test, encapsulate Loose cells of matched size are tabbed with tinned copper ribbon, soldered into a series string back contact to front busbar, joined to other strings with wider bus ribbon, tested for open-circuit voltage and then under load, and finally encapsulated. Encapsulation is marked as the weakest stage of a hand build because a home seal traps bubbles and lets moisture reach the cells. 1 Cells one size, one string 2 Tab flux, then ribbon 3 String back to front 4 Bus wider ribbon 5 Test Voc, then load 6 Encapsulate weakest stage of a hand build
Note: Stages 2 and 3 are this section; the voltage reading at stage 5 is repeated every three or four cells rather than left to the end.

Step 4: lay out the strings, add the bus and the diode, test

Finished strings go down in a serpentine pattern, joined end to end with bus ribbon, one blocking diode in series on the positive output, and two measurements before sealing. The serpentine run keeps the panel rectangular and brings both output tails to one edge. Dry-fit the layout and confirm polarity before soldering.

Leave a few millimetres between strings. Each string faces the opposite way to its neighbour: the first ends positive at the bottom, the second at the top, so a short bus ribbon bridges them without crossing the cells. Solder that ribbon to the tabbing tails at each string end, not to the cell surface.

The blocking diode sits in series on the positive output lead, banded end away from the panel so current leaves and cannot return. After dark an unlit cell behaves like a load, and a battery wired to the panel discharges backwards through the string. Schottky types lose less output to heat than a standard rectifier.

Measure open-circuit voltage first, in full sun, nothing connected. A healthy string reads roughly 0.6 V per cell: near 7 V on a 12-cell build, near 21 V on a 36-cell one. A reading short by clean multiples of 0.6 V points at a dead cell, not wiring.

Then load the output and watch the voltage. A 36-cell panel that holds near 19.8 V under load is working; one that sags toward zero is making voltage but no current, the signature of a cracked cell or cold joint. That sag is the IV curve's knee moving; reading a solar cell IV curve tells the two apart.

Series or parallel is the last layout call. Series adds voltage and keeps the output wire thin; parallel adds current and stops one shaded string dragging the others down, at the cost of heavier wire and a diode per branch. Both patterns are drawn in how to connect mini solar panels.

Step 5: encapsulate, and know what a DIY panel cannot do

Encapsulation is the weakest link in a hand-built panel, because a home workshop has no vacuum laminator. A production laminator pulls air out of the EVA sheet and presses the stack while the resin cross-links; without it, a home-sealed panel traps bubbles, lets the front sheet yellow and leaves moisture a path to the cell metallization. Those three faults are what make flexible panels delaminate in the field.

Glass with EVA in an oven is the closest a workshop gets to the factory stack: glass, EVA sheet, cells, EVA, backsheet, warmed until the EVA flows and bonds. It asks the most of the builder, because the heat has to be even across the whole panel and trapped air needs somewhere to escape, and the finished panel is heavy and breakable.

A PET film cover is the fast route: the cells sit on a backing board, a PET sheet goes over them with adhesive, and the result is light and thin enough to follow a curve. Outdoor life is what you give up, because PET clouds and yellows under UV well before the cells underneath lose output.

Pouring clear resin over the cells needs no press and no oven, and it seals the edges in one pass. The panel comes out thick and heavy, the cure locks in any bubble you failed to release, and nothing inside can be reached again if a cell goes bad.

The standards follow the same line. IEC 61215 and IEC 61730 are tested on a finished laminate, an IP67 rating comes from the sealed stack and its junction box, and neither can be claimed for a hand-sealed panel. Our partner factories laminate under ISO 9001; for a battery build, pair the panel with an MPPT charge controller rather than a PWM unit so the string voltage is used, not clipped.

Order a laminated panel instead when the build has to live outdoors for years, when it goes inside a product you sell, or when you need more than a handful of units. The same cells can be strung and laminated by our manufacturing partners as custom solar panels in the size and voltage your enclosure needs. Hand-building teaches you the electrical side; sealing is where a laminating press earns its place.

FAQ

How many cells do I need for a 12 V panel?

Thirty-six crystalline cells in series is the standard count for a 12 V panel. At roughly 0.55 V per cell at maximum power that string sits near 18 V, the headroom a 12 V battery needs to charge through a controller. Cell size sets the current, not the voltage, so pick the area that carries your amps.

Can I solder TOPCon or half-cut PERC cells by hand?

Not well, and the contact design is the reason. TOPCon and modern half-cut PERC carry round-wire multi-busbar contacts built for stringer machines, not for a hand-held iron, so bench joints stay unreliable. For a hand build, use small-format cells with wide flat pads, or back-contact IBC cells with both polarities on the rear face.

Which cells are the most forgiving for a first build?

Start with small square cells that ship with the tabbing ribbon already in the pack. The 52 × 52 mm cells sold with wire are the usual starting point: a short string reaches a useful voltage, the pads take a hand-held iron, and cracking one during practice is no setback. The 78 × 52 mm format gives more current per cell.

Should I build the panel or order a custom one?

Build it to learn the electrical side, or for a one-off that stays indoors. Order laminated when the panel sits outdoors for years, goes inside something you sell, or runs past a handful of units, because hand sealing is the step a workshop cannot match. Our manufacturing partners laminate the same cells to your size and voltage, and that panel costs less per working year.

Browse the solar cells collection to pick a format, then work back to the cell count from Step 1. If the panel lives outdoors or ships inside a product, skip the sealing problem: Request a quote for a custom laminated panel →
