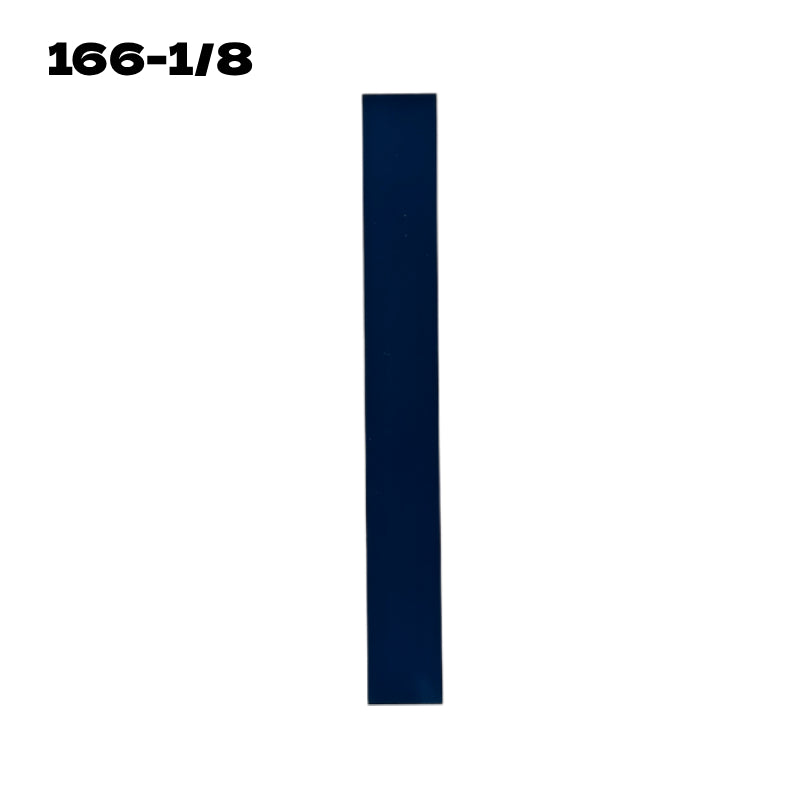

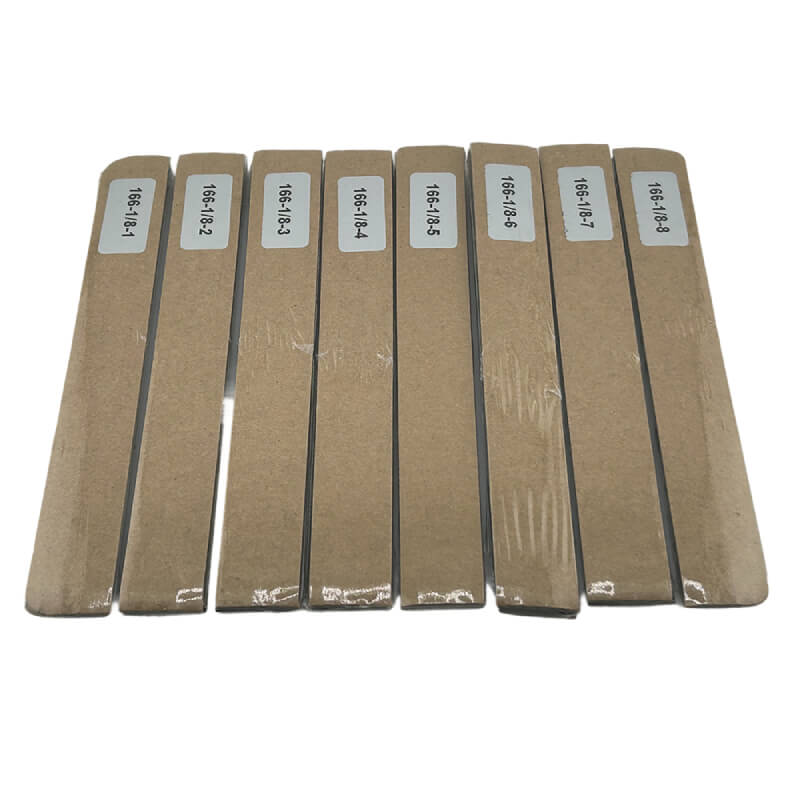

SunPower 6-Inch IBC Solar Cell 6.7W – High Efficiency 166mm Mono Cells for DIY & Custom Panels (Full / Half / 1/4 / 1/8 Cut)
SunPower 6-Inch IBC Solar Cell 6.7W – High Efficiency 166mm Mono Cells for DIY & Custom Panels (Full / Half / 1/4 / 1/8 Cut) - Full Size / 10pcs is backordered and will ship as soon as it is back in stock.
SunPower 6-Inch IBC Solar Cell 6.7W – High Efficiency 166mm Mono Ce...
SunPower Gen6 6-Inch Solar Cell – MN1 Grade (Full & Custom Cuts)
High-Power IBC Solar Cells for Professional & DIY Projects
We supply SunPower® Maxeon Gen6 6-inch IBC solar cells (MN1 grade) with ultra-high efficiency, designed for high-performance solar applications.

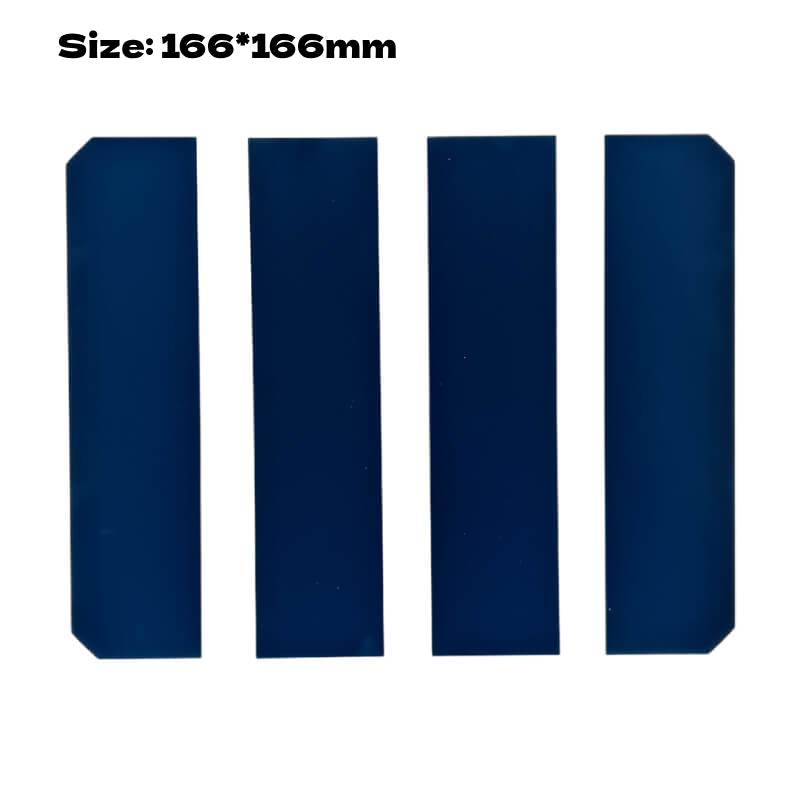

Available in Full-Size or Precision-Cut formats:

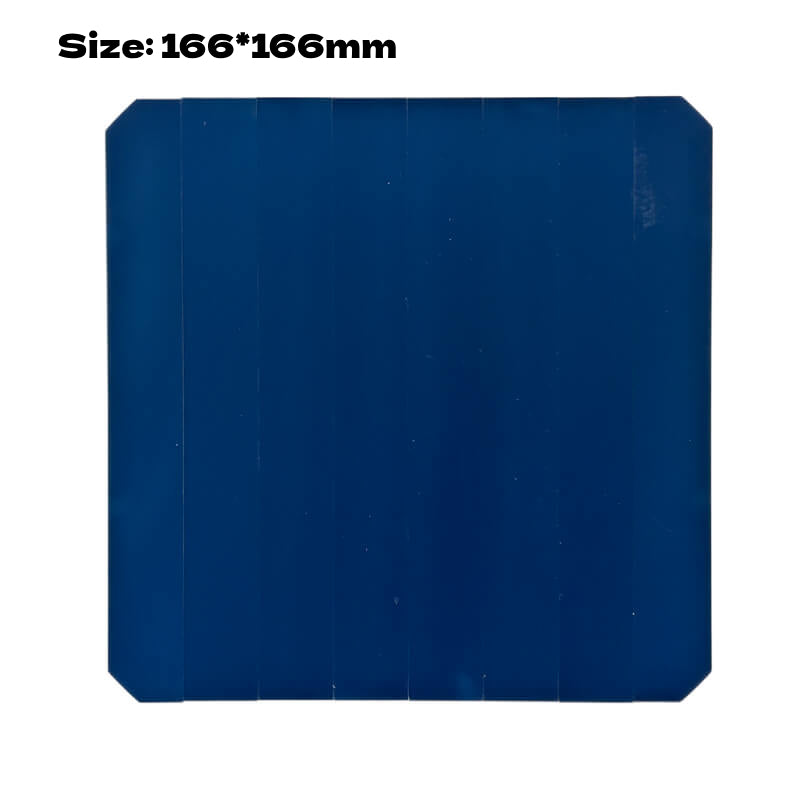

✅ Full Cell

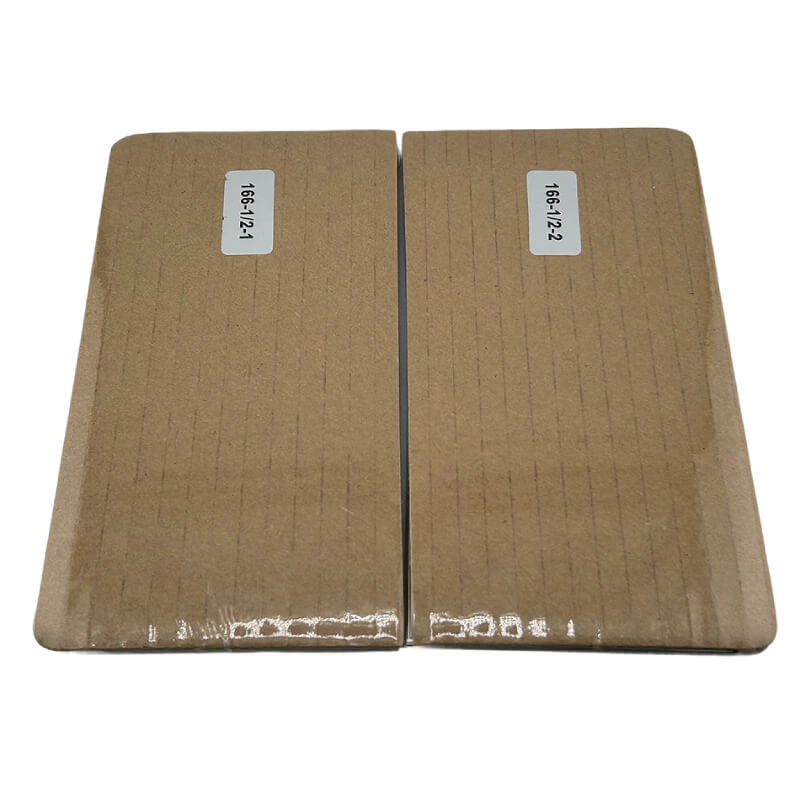

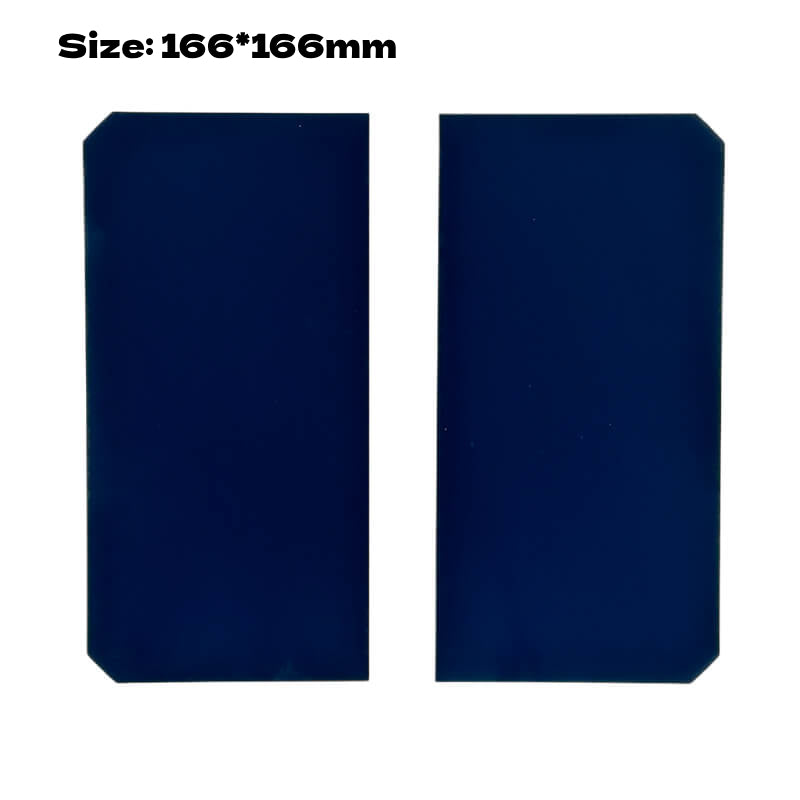

✅ Half-Cut
✅ 1/3 Cut
✅ 1/6 Cut

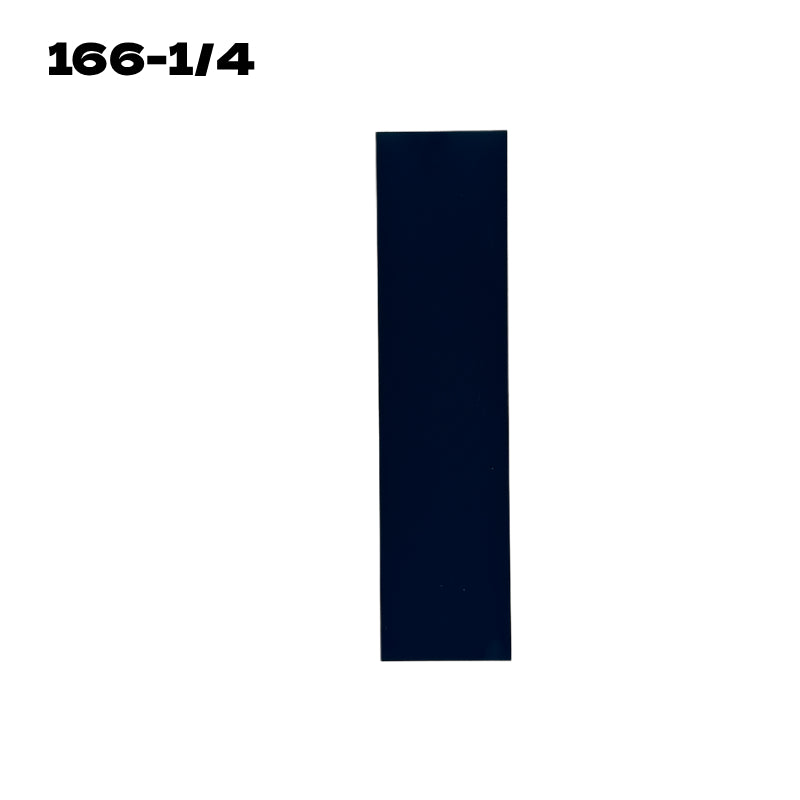

✅ Center Strip (Middle-Only, Trimmed)
Cells are processed with precision laser scoring + mechanical separation,
Ideal for engineers, universities, and product developers building high-voltage or space-constrained solar systems.
MN1 Electrical Specs (Typical @ STC)
| Type | Voltage (Vmp) | Current (Imp) | Power (Pmp) | Size (mm approx.) |
|---|---|---|---|---|
| Full Cell | 0.60 V | 11.0 A | 6.60 W | 156 × 156 mm |
| Half-Cut | 0.60 V | 5.50 A | 3.30 W | 156 × 78 mm |
| One-Third Cut | 0.60 V | 3.66 A | 2.20 W | 156 × 52 mm |
| One-Sixth Cut | 0.60 V | 1.83 A | 1.10 W | 156 × 26 mm |
| Center Strip | 0.60 V | 1.60–1.75 A | 0.96–1.05 W | ~156 × 24–26 mm |
⚠️ Voltage remains stable; current scales with area. Final output may vary depending on soldering method, shadowing, and test setup.
Key Features
✅ 24%+ Cell Efficiency (MN1 Grade)

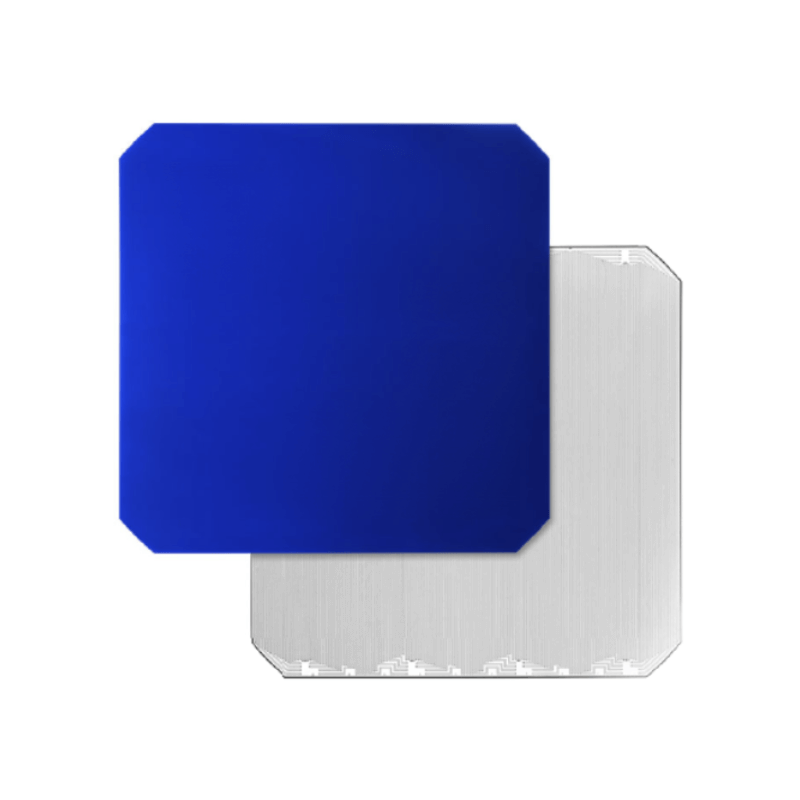

✅ Gen6 IBC Technology – no front busbars, maximum absorption
✅ Excellent low-light performance
✅ EL-tested & IV Curve included
✅ Suitable for DIY, prototyping, and embedded solar
✅ Pre-cut options for fast integration
Applications
🔬 Electrical engineering lab experiments
🚗 Solar cars, IoT, drones, wearables
🧱 Custom high-voltage modules
📦 Educational kits & demonstrations
🔋 Shading/thermal behavior simulations
Testing Disclaimer
Please note:
-
All technical data is based on SunPower's MN1 test bin under STC, but our testing process follows our own factory standards.
- Due to cutting-related loss and handling differences, your DIY or lab results may differ from listed specs.
- We provide reference values only, and are not responsible for final results in third-party testing or custom integration.
